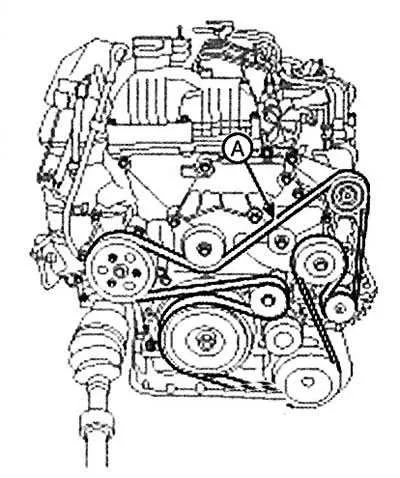

2017 Kia Sorento serpentine belt diagram with routing details and pulley locations
If you’re looking for the correct belt diagram for your 2017 Kia Sorento, you’re in the right place. This diagram is crucial for understanding the proper routing of the serpentine belt and ensuring the engine runs smoothly. Incorrect routing can lead to belt failure, causing serious engine damage.
The 2017 Sorento typically uses a serpentine belt system that drives multiple components, including the alternator, power steering pump, air conditioning compressor, and water pump. The belt system in this vehicle is designed to minimize wear and maximize efficiency. Be sure to verify the correct belt length and type based on your engine model–either the 2.4L 4-cylinder or the 3.3L V6–since the diagram can vary slightly between these options.
Always use a high-quality replacement belt that matches the specifications for your Sorento. When replacing the belt, check for signs of wear or damage in other components, like pulleys or tensioners. A new belt can improve performance, but it’s only effective if all related parts are in good condition. If you’re unsure about the installation, refer to the manufacturer’s service manual for a step-by-step guide.

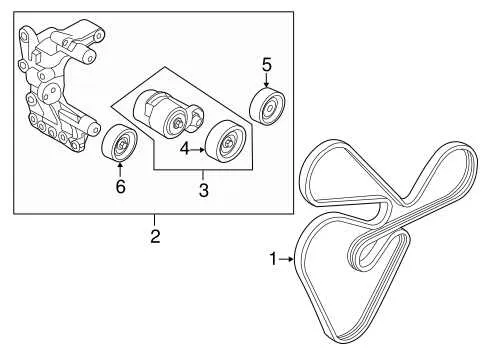

2017 Kia Sorento Belt Diagram
To properly maintain the 2017 Kia Sorento, refer to the belt diagram for correct routing of the serpentine belt. The serpentine belt is responsible for driving multiple engine components like the alternator, power steering pump, and air conditioning compressor. A misaligned or damaged belt can lead to engine performance issues or even failure of vital systems.
The 2017 Kia Sorento comes with several engine variants, and each may have a slightly different belt routing. The most common configurations are for the 2.4L I4 engine and the 3.3L V6 engine. Be sure to check the specific diagram for your engine model to avoid any confusion during repairs or replacements.
The serpentine belt in the 2.4L engine typically runs around the alternator, power steering pump, water pump, and air conditioning compressor. The tensioner is located near the top of the engine, and it is manually adjusted using a wrench or socket to ensure the belt remains taut.
For the 3.3L V6 engine, the belt layout is similar but involves a more complex routing to accommodate the additional engine accessories. The belt covers components like the alternator, power steering pump, water pump, and the AC compressor, but with an extra pulley to handle the increased load. The tensioner setup on the V6 may differ slightly and should be checked for proper adjustment during service.
If you’re replacing the serpentine belt, it’s crucial to check the belt for wear and cracks before installation. Using the wrong belt or improper routing can result in premature failure and costly repairs. Always refer to the owner’s manual or a repair guide specific to your engine model when replacing the belt.
For added convenience, some auto parts stores provide belt routing diagrams or printouts for vehicles, including the 2017 Kia Sorento. If you’re unsure about the installation, a quick reference to a repair manual or an experienced mechanic can save you time and hassle.
How to Read the 2017 Kia Sorento Serpentine Belt Diagram
To read the serpentine belt diagram for the 2017 Kia Sorento, start by identifying the key components shown in the diagram: the alternator, power steering pump, air conditioning compressor, and the crankshaft pulley. These are usually depicted as simple circles or ovals, with lines representing the belt routing between them.
Pay attention to the direction of the arrows or lines. They indicate the exact path the serpentine belt takes around each component. Follow the belt’s routing from the crankshaft pulley, typically the largest circle at the bottom, to each accessory in the order specified by the diagram. Make sure you note any specific twists or turns that the belt must make as it loops around the pulleys.
Some diagrams also include additional notations such as pulley sizes or tensioner locations. The tensioner is a key part of the system, keeping the belt tight enough to function properly. Ensure the diagram shows the direction the tensioner moves to release the belt tension, should you need to replace or inspect the belt.
Lastly, confirm the number of grooves or ribs the serpentine belt has, as this can vary. The diagram may show this detail, or you may need to check the vehicle’s service manual for the exact specifications. Once you’ve familiarized yourself with the belt routing and components, you can confidently replace or inspect the serpentine belt on your 2017 Kia Sorento.
Identifying Common Issues in the 2017 Kia Sorento Belt System
Check the serpentine belt regularly for signs of wear, as it is a common issue in the 2017 Kia Sorento. Cracking, fraying, or glazing on the belt can lead to slippage or even breakage, affecting engine performance. If you notice any of these, it’s time to replace the belt.
Another frequent problem involves the tensioner pulley. If the tensioner is faulty, it may fail to maintain the correct tension, causing the belt to slip or wear unevenly. This can also result in squeaking or squealing noises from the engine bay. Inspect the tensioner pulley for smooth operation and signs of damage.
Be mindful of the idler pulley as well. Over time, it can wear out or seize, causing belt misalignment. A misaligned belt leads to inefficient operation, which may affect accessory components like the alternator, power steering, and air conditioning. Check for any unusual noises or vibrations from the pulleys.
Pay attention to the alternator, water pump, and air conditioning compressor. A failing component can put extra stress on the belt, leading to premature wear. If you experience electrical issues, overheating, or poor air conditioning performance, the belt system may be to blame. Inspect all related components to ensure they’re functioning properly.
In some cases, oil or coolant leaks can contaminate the belt, causing it to degrade faster. Inspect for fluid leaks around the engine, particularly near the belt system, and address any leaks promptly to avoid further damage.
Step-by-Step Guide to Replacing the Belt on a 2017 Kia Sorento
Replacing the belt on your 2017 Kia Sorento requires precision and attention to detail. Follow these steps to complete the task effectively:
- Gather Tools and Parts:
- New belt (verify part number for the Sorento model)
- Socket wrench set
- Torque wrench
- Socket extensions
- Car jack and jack stands (if necessary)
- Serpentine belt tool or a breaker bar
- Ensure Safety:
Place the vehicle on a flat surface and engage the parking brake. Disconnect the negative terminal from the battery to avoid any electrical hazards while working.
- Locate the Belt:
The serpentine belt on the 2017 Kia Sorento runs across several components, including the alternator, power steering pump, and air conditioning compressor. Open the hood and find the belt routing diagram (often located on the radiator support or under the hood). It’s essential to refer to this diagram for correct installation.
- Release Tension on the Belt:
Locate the tensioner pulley and use a serpentine belt tool or a breaker bar to relieve tension. This allows you to remove the belt from the pulleys. Be mindful of the tensioner’s position as it may snap back quickly.
- Remove the Old Belt:
Once tension is released, carefully slide the old belt off the pulleys. Take note of its routing so you can easily install the new one in the same manner.
- Inspect Components:
Before installing the new belt, inspect the pulleys for wear or damage. Look for cracks, excessive wear, or misalignment. Replace any faulty components before continuing.
- Install the New Belt:
Place the new serpentine belt around the pulleys according to the routing diagram. Make sure the belt is aligned properly on each pulley and fits securely.
- Reapply Tension:
Use the serpentine belt tool or breaker bar to apply tension to the new belt by moving the tensioner back into place. Ensure the belt is tight and has no slack.
- Check Alignment:
Rotate the engine by hand (using a wrench on the crankshaft bolt) to ensure the belt is properly seated and aligned. This step will help identify any issues before starting the engine.
- Reconnect the Battery and Test:
Reconnect the negative terminal of the battery. Start the engine and observe the belt’s movement. Listen for any unusual noises, and check for smooth operation. If everything looks good, you’re done!
Regular maintenance of your serpentine belt can help prevent costly engine damage. Always consult the vehicle’s manual for any specific instructions or torque specifications for your Kia Sorento.
