Husqvarna YTH24V48 Drive Belt Diagram Layout and Routing Guide

Consult the specific drive belt diagram for the Husqvarna YTH24V48 before attempting any maintenance. Correct routing prevents slippage, premature wear, and uneven mower deck operation, ensuring smooth performance across all terrains.

Inspect the belt for cracks, fraying, or glazing before installation. Replace any damaged belt immediately, using the OEM part number 532 18 57-13 to match the exact dimensions and tooth profile required for this model. Align all pulleys and tensioners according to the diagram to maintain consistent drive tension.

Follow the diagram carefully when threading the belt around the mower deck, transmission, and engine pulleys. Misalignment can lead to belt shredding or motor strain. Adjust the idler pulleys so the belt tracks precisely in the grooves, allowing optimal power transfer from the engine to the wheels and cutting blades.

Regularly check belt tension and condition, especially after the first few hours of operation on a new or replaced belt. A correctly routed and tensioned belt reduces vibration, extends component life, and maintains uniform mowing height across the yard.

Husqvarna YTH24V48 Drive Belt Diagram Practical Guide for Maintenance and Replacement

Inspect the drive belt before each mowing season to identify cracks, fraying, or glazing. Replace the belt immediately if any of these signs appear to prevent slippage or damage to pulleys.

Refer to the YTH24V48 belt diagram to locate the deck belt, engine pulley, and idler pulleys. Ensure the mower is on a flat surface and the ignition is off before beginning any maintenance.

Release tension from the idler pulley by moving it away from the belt path, then remove the old belt carefully, noting its routing. Compare the new belt with the old one to confirm correct size and tooth pattern.

Install the new belt along the exact path shown in the diagram. Start with the engine pulley, guide it around idler pulleys, and position it on the mower deck. Verify that the belt sits properly in all pulley grooves.

Reapply tension by positioning the idler pulley back into place. Rotate the mower deck manually to ensure smooth movement and correct alignment. Adjust tension if necessary; the belt should deflect slightly under moderate pressure.

After installation, perform a short test run without engaging the blades to confirm the belt tracks correctly and the pulleys rotate freely. Inspect the belt after initial use to confirm it has seated properly and make minor adjustments if required.

Maintain the belt by keeping pulleys clean and free of debris. Avoid excessive moisture or chemical exposure, as these can accelerate wear. Periodic inspection and proper routing according to the diagram extend belt life and maintain mower performance.

Identifying All Drive Belts and Their Routing on the YTH24V48

Locate the main drive belt by removing the deck and inspecting the pulleys connected to the engine and transmission. The belt wraps around the engine pulley, the idler pulleys, and the transaxle pulley in a specific sequence to transfer power efficiently.

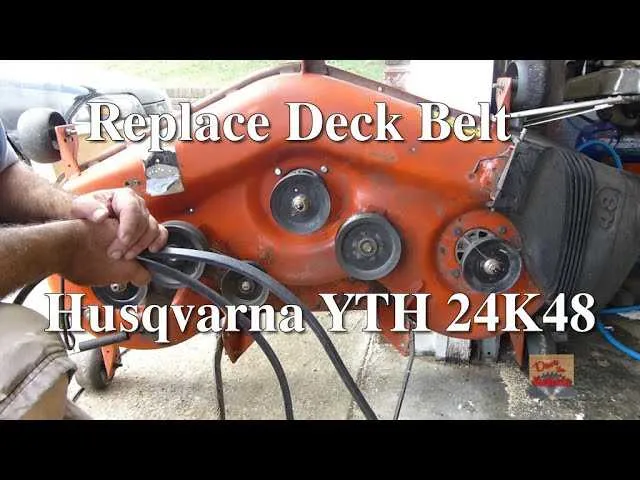

Identify the deck belt by following the path from the engine’s lower pulley to the deck spindles. Note that it passes over several idler pulleys to maintain proper tension and alignment, ensuring smooth blade operation.

Check each idler pulley for wear or misalignment, as incorrect routing can cause the belt to slip or fray. Keep the belt snug around each pulley without forcing it, maintaining the natural contour designed by the manufacturer.

Use the routing diagram stamped under the mower deck or in the operator’s manual to confirm correct paths. Start threading the belt around the engine pulley, then guide it over the tensioner and idlers, finally securing it around the transaxle or deck spindles.

Rotate the pulleys by hand after installation to verify smooth movement and proper alignment. Adjust tensioners if needed to eliminate slack or binding points along the belt path.

Regularly inspect both the drive and deck belts for cracks, fraying, or glazing. Replace any damaged belts promptly, following the exact routing sequence to prevent operational issues and maintain mower performance.

Step-by-Step Guide to Removing and Installing Drive Belts

Begin by disengaging the battery or spark plug to prevent accidental engine start. Position the mower on a flat surface and engage the parking brake for stability.

Locate the drive belt cover on the YTH24V48 and remove the mounting bolts with a socket wrench. Lift the cover to expose the belts and pulleys.

Identify the specific belt you need to replace, noting its routing around the engine pulley, idler pulleys, and transmission. Use a marker or take a clear photo for reference.

Release tension on the belt by loosening the idler pulley. Slide the belt off the engine pulley first, then carefully remove it from the transmission and other pulleys.

Inspect pulleys for wear, damage, or debris. Clean surfaces with a cloth to ensure smooth belt operation and prevent premature wear.

Position the new belt following the original routing, starting at the engine pulley. Loop it around each idler and transmission pulley according to your reference image or markings.

Reapply tension by adjusting the idler pulley until the belt sits snugly without excessive slack. Rotate the engine pulley by hand to confirm smooth movement and proper alignment.

Replace the drive belt cover and secure all bolts tightly. Reconnect the spark plug or battery, then test the mower under low power to verify the belt engages correctly and the drive system operates smoothly.

Troubleshooting Common Belt Wear and Misalignment Issues

Inspect the drive belt regularly for cracks, fraying, or glazing on the surface. Replace any belt showing signs of excessive wear immediately to prevent further damage to pulleys and shafts.

Check belt tension using a tension gauge or by pressing midway between pulleys. A belt that is too loose can slip, while a belt that is too tight can strain bearings and shafts. Adjust the tension according to the specifications in the YTH24V48 manual.

Examine pulleys for alignment and wear. Misaligned pulleys cause uneven belt wear and may produce squealing noises. Use a straight edge or laser alignment tool to ensure pulleys line up correctly.

• Look for belt tracking issues: if the belt drifts to one side, inspect pulley faces for burrs or debris.
• Replace worn or damaged pulleys to maintain proper belt seating and reduce vibration.
• Verify that idler pulleys spin freely and are properly lubricated; seized idlers can accelerate wear.

Clean the belt and pulleys regularly to remove grass, dirt, and oil. Contaminants reduce friction and cause slipping, uneven wear, or noise.

After any belt replacement, run the mower for a short period and recheck tension and alignment. Monitor for unusual vibrations, noise, or tracking issues and correct them immediately.

Keep a maintenance log noting belt replacement dates and observed wear patterns. This helps predict future service intervals and prevents unexpected failures during operation.
