2011 Kia Forte 2.0 serpentine belt diagram with routing and replacement details

Check the serpentine belt routing on the 2011 Kia Forte 2.0 before removing the old belt. The belt drives the alternator, water pump, power steering pump, and air conditioning compressor, so correct installation prevents engine overheating and charging issues. Use the factory diagram as a guide to track the pulleys and maintain the proper direction of rotation.

Inspect the automatic tensioner before installing a new belt. A worn or weak tensioner can cause squealing noises, belt slipping, or premature wear. Press on the tensioner pulley to confirm smooth movement and adequate resistance. Replace the component if it shows cracks, misalignment, or excessive play.

Choose a replacement belt that matches the OEM specifications: 6 ribs, approximately 92 inches in length, and designed for the 2.0-liter four-cylinder engine. Avoid universal belts, as incorrect sizing affects alignment and tension. After routing the belt, rotate the crankshaft manually one full turn to verify that it sits evenly on all pulleys without twisting.

2011 Kia Forte 2.0 Belt Diagram

Follow the factory belt routing for the 2011 Kia Forte 2.0 to avoid misalignment. The serpentine belt wraps around the crankshaft pulley at the bottom, continues over the alternator on the upper left, then moves across the water pump and power steering pump. It also drives the A/C compressor located at the lower right, while tension is maintained by the automatic belt tensioner.

Before installing a new belt, check the pulleys for wear and clean any debris from the grooves. Align the new belt carefully with each pulley and use a breaker bar on the tensioner to relieve pressure during placement. Release the tensioner slowly to avoid damage and rotate the crankshaft manually one full turn to confirm proper seating.

Use only the recommended belt size: six-rib, approximately 79 inches in length. An incorrect size can slip or stress the pulleys. Regularly inspect for cracks, fraying, or glazing, and replace the belt every 60,000 to 90,000 miles depending on driving conditions.

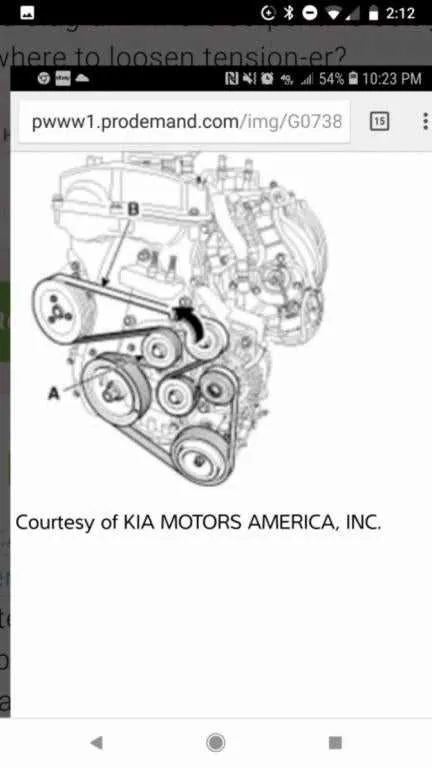

Serpentine Belt Routing for 2011 Kia Forte 2.0 Engine

Follow the correct belt path to avoid misalignment and premature wear. The serpentine belt on the 2011 Kia Forte 2.0 wraps around several pulleys, and each must be engaged properly before tensioning.

The belt leaves the crankshaft pulley and runs upward to the alternator pulley. From there, it moves across to the water pump and then downward around the idler pulley. The path continues to the power steering pump and then around the A/C compressor before looping back to the tensioner pulley and returning to the crankshaft.

Always check the grooves on ribbed pulleys and confirm that the belt seats correctly. Apply pressure on the tensioner with a breaker bar or ratchet to install the belt, then release slowly to secure proper tension. Inspect alignment visually along the entire routing path before starting the engine.

Steps to Replace the Serpentine Belt on Kia Forte 2.0

Disconnect the negative battery cable to prevent accidental starts and provide a safe work environment.

Place a wrench on the belt tensioner bolt and rotate it clockwise to relieve pressure. Slide the old serpentine belt off the pulleys while keeping track of the routing.

Inspect the pulleys for cracks or uneven wear, and clean them from debris to avoid premature belt damage.

Route the new belt according to the factory diagram, making sure it sits properly in each pulley groove. Leave the tensioner pulley for last to simplify installation.

Rotate the tensioner again, slip the belt over its pulley, and slowly release the tensioner to secure the belt. Double-check alignment across all pulleys to prevent squealing or slippage.

Reconnect the battery and start the engine. Observe the belt operation for smooth rotation and consistent tension without wobbling.

Common Problems and Symptoms of Belt Wear on Kia Forte 2.0

Inspect the serpentine belt regularly and replace it at the first signs of wear to avoid sudden breakdowns. A worn belt often shows visible cracks, fraying, or missing ribs that weaken its grip on pulleys.

• Squealing noise: A high-pitched sound during acceleration or at startup usually signals belt glazing or misalignment.
• Visible cracks and fraying: Surface cracks across the ribs or frayed edges indicate the rubber has hardened and lost flexibility.
• Loss of power steering: Difficulty in steering response suggests the belt is slipping on the power steering pump pulley.
• AC malfunction: Reduced cooling or compressor failure often links to a slipping or loose belt.
• Battery warning light: If the alternator pulley is not driven properly, the charging system weakens and triggers a dashboard warning.

Replace the belt if any of these symptoms appear. A new belt should fit tightly without slack and align correctly with every pulley to restore reliable operation.
