2014 Chevy Malibu Serpentine Belt Routing Diagram and Maintenance Guide
The serpentine belt in your 2014 Chevy Malibu plays a crucial role in powering multiple components of the engine, including the alternator, power steering pump, air conditioning compressor, and more. If you’re experiencing issues with any of these systems, the serpentine belt could be the cause. A visual guide to the belt’s routing and components can help you identify and resolve problems faster.

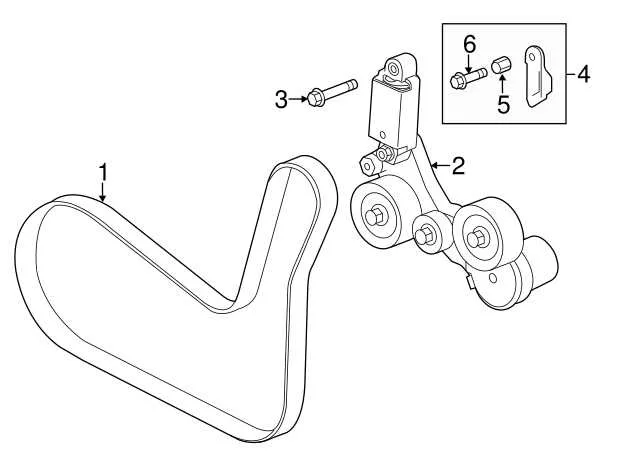

Refer to the diagram below for a clear representation of the serpentine belt routing for the 2014 Malibu. It includes all the essential components and the path the belt follows through the pulleys. Understanding this layout is key to diagnosing belt wear, misalignment, or other related issues.
When replacing the serpentine belt, ensure the new one matches the diagram’s specific routing. Incorrect installation can lead to further engine damage or inefficient operation. Double-check the belt tension after installation to avoid slipping, as a loose belt can result in overheating and other complications.
Regular inspection and timely replacement of the serpentine belt will help keep your Malibu running smoothly. Keep an eye out for signs of wear, such as cracks, fraying, or squealing noises, and replace the belt when necessary to avoid more costly repairs down the road.
2014 Chevy Malibu Serpentine Belt Diagram
The serpentine belt diagram for the 2014 Chevy Malibu shows the proper routing of the belt to ensure all engine components are powered effectively. For the 2.5L and 2.4L engine options, the belt follows a specific path over the alternator, power steering pump, air conditioning compressor, and water pump.
The belt runs through the crankshaft pulley, the tensioner, and a series of pulleys to keep everything in sync. Ensure the tensioner is properly engaged to maintain the correct belt tension. Over time, the belt can wear and slip, leading to decreased performance or potential damage to engine components.
Refer to the diagram in the vehicle’s service manual for exact pulley positions and belt routing. Regularly inspect the serpentine belt for signs of wear like cracks or fraying. If you notice any issues, replace the belt to prevent further damage and ensure your Malibu runs smoothly.
How to Identify the Serpentine Belt Routing on 2014 Chevy Malibu
To identify the serpentine belt routing on your 2014 Chevy Malibu, first locate the engine diagram typically found on the radiator support or under the hood. This diagram shows the exact path the belt takes around pulleys, tensioners, and accessories like the alternator and power steering pump.
If the diagram is not visible, refer to the service manual for detailed instructions. The serpentine belt layout can be easily understood by following the sequence of pulleys that the belt interacts with. Begin with the crankshaft pulley at the bottom, move through the tensioner, and make sure to trace the belt’s path around each pulley. Pay special attention to how the belt loops around the idler pulleys and the alternator to ensure proper installation.
After identifying the routing, check the belt for wear signs such as cracks or fraying. If the belt is in good condition, make sure it aligns perfectly with all pulleys and is properly tensioned. If the routing is off, the belt could wear unevenly or cause damage to the engine components.
Step-by-Step Guide to Replacing the Serpentine Belt in 2014 Chevy Malibu
Replacing the serpentine belt on your 2014 Chevy Malibu is straightforward with the right tools and some basic mechanical knowledge. Follow these steps to get the job done efficiently:
- Gather Tools and Materials: You’ll need a new serpentine belt, a socket set, a ratchet wrench, a serpentine belt tool (or a 3/8-inch drive ratchet), and a belt diagram for your model (found on the radiator support or under the hood).
- Locate the Belt Tensioner: Open the hood and find the belt tensioner, which keeps the serpentine belt tight. It’s usually located near the bottom of the engine, near the crankshaft pulley.
- Release Tension: Use a serpentine belt tool or ratchet wrench to rotate the tensioner. This will loosen the tension on the belt, allowing you to slide it off the pulleys.
- Remove the Old Belt: Once the tension is released, carefully remove the old serpentine belt from the pulleys. Pay attention to how the belt is routed for reinstallation.
- Inspect Components: Before installing the new belt, inspect all pulleys, the tensioner, and other components for any signs of wear or damage. Replace any faulty parts before proceeding.
- Install the New Serpentine Belt: Route the new belt according to the diagram. Ensure it sits properly on each pulley and follows the same path as the old belt.
- Apply Tension: Use the serpentine belt tool or ratchet wrench to rotate the tensioner again, allowing it to tighten the belt securely. Ensure the belt is aligned correctly on each pulley.
- Check Belt Alignment: Double-check that the belt is centered on all pulleys and properly aligned. If any misalignment occurs, reposition the belt.
- Test the Belt: Start the engine and observe the belt’s operation. Listen for any unusual noises and ensure the belt is running smoothly.
With the belt replaced and everything functioning correctly, you can now enjoy your 2014 Chevy Malibu with a properly tensioned serpentine belt.
Common Issues with Serpentine Belt in 2014 Chevy Malibu and How to Fix Them
If the serpentine belt in your 2014 Chevy Malibu starts to wear down or break, the engine may experience power loss or even stop working. Here are common issues you might encounter with the serpentine belt and how to fix them:
1. Belt Slipping
If the belt is slipping, you’ll notice a squealing or screeching noise, especially during acceleration. This happens when the belt loses grip on the pulleys. To fix this, check for tension and alignment. If the tensioner is weak or the belt is stretched, it may need replacement. Ensure the belt is properly routed according to the diagram and consider replacing the tensioner pulley if it’s worn out.
2. Cracks and Fraying
Cracks, fraying, or chunks missing from the serpentine belt indicate that it’s time for a replacement. A damaged belt can break suddenly, causing the engine to lose power. Inspect the belt regularly for visible signs of wear. If you spot damage, replace the serpentine belt immediately to avoid engine damage or breakdowns on the road.
3. Worn Pulley Bearings
Worn or damaged pulleys may cause the serpentine belt to misalign, leading to further wear. If you hear grinding noises from the engine, it’s a sign that the pulleys may be at fault. Inspect the pulleys and check for wobbling. If the pulleys are damaged, replace them before installing a new serpentine belt to prevent premature belt failure.
4. Tensioner Issues
The serpentine belt relies on a tensioner to maintain proper tightness. Over time, the tensioner may lose its spring tension, causing the belt to become too loose. If the tensioner is faulty, it’s essential to replace it. Check the tensioner arm for movement and inspect the spring mechanism for wear.
5. Misalignment
If the serpentine belt isn’t aligned properly, it may not run smoothly, leading to faster wear. This could be due to a misaligned pulley or tensioner. Check the pulleys for any signs of damage or looseness. Realign the components as needed and replace the belt if misalignment continues.
6. Noisy Belt
A noisy belt could indicate a variety of issues, such as a damaged belt or faulty pulley. If you hear whining or squeaking sounds coming from the engine bay, inspect the belt’s condition. Replace any worn-out parts, including pulleys, tensioners, or the belt itself, to reduce noise and restore optimal performance.
Regular inspection and prompt replacement of damaged parts are the keys to keeping the serpentine belt in good working condition and preventing more serious engine problems.
