2008 Kia Spectra Serpentine Belt Routing and Diagram Guide

To identify the proper belt layout for your 2008 Kia Spectra, start by locating the vehicle’s belt routing diagram. This diagram is typically found near the engine bay, either on a sticker attached to the underside of the hood or within the engine compartment itself. The belt system in the Kia Spectra includes components like the alternator, power steering pump, and air conditioning compressor, each of which must be properly aligned for optimal performance.

Ensure that the serpentine belt runs smoothly across the pulleys without slipping. The tensioner pulley is responsible for maintaining the correct belt tension, so it’s crucial that it functions properly to avoid premature wear. If you notice any cracks or fraying on the belt, replace it immediately to prevent breakdowns or further engine damage.

When replacing the drive belt, follow the exact routing as shown in the diagram. Any deviation can lead to improper function of the accessory systems. If the belt seems too loose or too tight, adjust the tensioner as needed. Always double-check the belt’s condition before final installation to ensure that the grooves align correctly with the pulleys for effective power transfer.

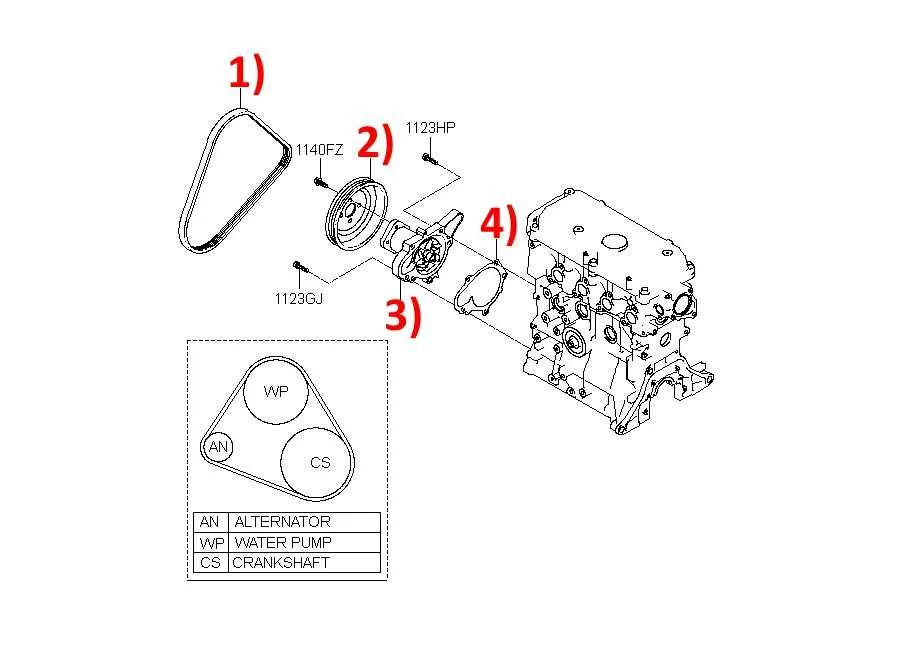

2008 Kia Spectra Belt Diagram

The 2008 Kia Spectra features a serpentine belt system that powers essential components, including the alternator, power steering pump, air conditioning compressor, and water pump. Understanding the layout and tensioning is crucial for smooth vehicle operation.

First, inspect the belt for any visible signs of wear, such as cracks or fraying. A worn-out belt should be replaced immediately to avoid failure of critical components. Ensure that the belt is routed according to the factory diagram, which specifies the path it should take over pulleys and tensioners.

The diagram typically shows a continuous loop passing over the crankshaft pulley, the alternator, and other components, with proper tension maintained by the automatic tensioner. The belt must be installed correctly to prevent slippage and ensure all components operate efficiently.

If you’re replacing the serpentine belt, it’s advisable to use a belt tool to relieve tension from the tensioner. Once the belt is removed, check the pulleys for any signs of wear or damage. Replace them as necessary before installing the new belt.

Always follow the manufacturer’s specifications for belt type, length, and installation sequence to guarantee proper performance and avoid premature belt failure.

How to Identify the Belt Layout for 2008 Kia Spectra

To identify the correct belt layout for the 2008 Kia Spectra, start by locating the diagram on the engine bay. Typically, this is found near the radiator or on the underside of the hood. This diagram will show the path and connections for the serpentine belt and any additional auxiliary belts.

Once you have the diagram in view, check the alignment of the belt around the pulleys. Pay attention to the order in which the belt travels over the components, such as the alternator, power steering pump, and air conditioning compressor. The layout should also indicate the belt tensioner and idler pulleys, which are essential for proper belt function.

If the diagram is missing or unclear, refer to the vehicle’s service manual for a detailed illustration. In case of uncertainty, you can also use an online resource or contact a mechanic to ensure the correct belt routing. Accurate identification will prevent misalignment and ensure the longevity of the belt system.

Step-by-Step Guide for Replacing the Drive Belt on a 2008 Kia Spectra

Start by disconnecting the car battery to prevent any electrical hazards while working on the vehicle.

Locate the drive belt and inspect the tensioner pulley. Use a wrench to release the tension from the belt.

Once the tension is released, remove the drive belt from the pulleys. Take note of the routing path or use a diagram for reference.

Check the new belt for the correct size and alignment with the pulleys. Make sure the new belt is the proper replacement for your vehicle’s make and model.

Begin placing the new belt over the pulleys following the same path as the old belt. Ensure that it sits properly on each pulley and aligns with any guides or grooves.

Once the belt is in place, use the wrench to re-engage the tensioner pulley, ensuring the belt is tightened properly.

Inspect the belt for any slack or misalignment before reconnecting the battery. Start the engine to verify that the new belt operates smoothly without any unusual noises.

If the belt is functioning correctly, replace any covers or components you removed during the process.

Finally, check the belt’s alignment and tension after a short drive to confirm everything is running smoothly.

Troubleshooting Common Belt Issues in 2008 Kia Spectra

If the drive belt on your 2008 Kia Spectra is squealing, check for signs of wear, cracks, or glazing. This often indicates a misalignment or the belt is too tight. Ensure the belt is properly tensioned. If the belt shows excessive wear, replacing it with a new one is necessary.

A slipping belt can cause poor performance of accessories like the alternator or power steering. To fix this, inspect the belt for any slack and adjust the tension if needed. Also, check the pulleys for damage or wear. If the tensioner is faulty, it will need replacing.

Another common issue is belt noise, often caused by debris lodged in the pulleys or on the belt itself. Clean the pulleys and belt to remove any dirt or foreign objects. If the noise persists, inspect the pulley bearings for wear and replace them if necessary.

If your car is experiencing overheating or poor charging, it may be due to the alternator belt. Check for signs of belt slippage or missing teeth. A worn alternator belt should be replaced immediately to prevent further damage to the alternator or engine.

In some cases, the belt may become misaligned due to a worn-out tensioner or pulley. Use a straightedge to verify the alignment of the pulleys and the belt. If the alignment is off, replacing the tensioner or adjusting the pulley system may solve the issue.
