Serpentine Belt Diagram for 2008 Jeep Liberty and Its Components

If you need to replace or inspect the serpentine belt on your 2008 Jeep Liberty, refer to the diagram below to identify the correct routing. This diagram shows the precise path that the belt follows, ensuring all components are properly powered, including the alternator, power steering pump, and air conditioning compressor.

The serpentine belt system in the 2008 Jeep Liberty is designed to keep engine components running smoothly. A worn-out or damaged belt can cause various mechanical failures, so it’s important to check the condition of the belt regularly. If you notice any signs of wear, such as cracking or fraying, replace the belt as soon as possible to avoid engine damage.

Refer to the diagram for the correct belt routing to ensure all accessories are properly driven. The belt should be tight but not over-stretched. Be sure to follow the manufacturer’s recommended specifications for belt tension to maintain proper function.

Note: Always double-check the serpentine belt’s alignment and tension after installation to prevent slipping or misalignment, which can cause further damage to the system. If you’re unsure, consult a professional mechanic for proper installation.

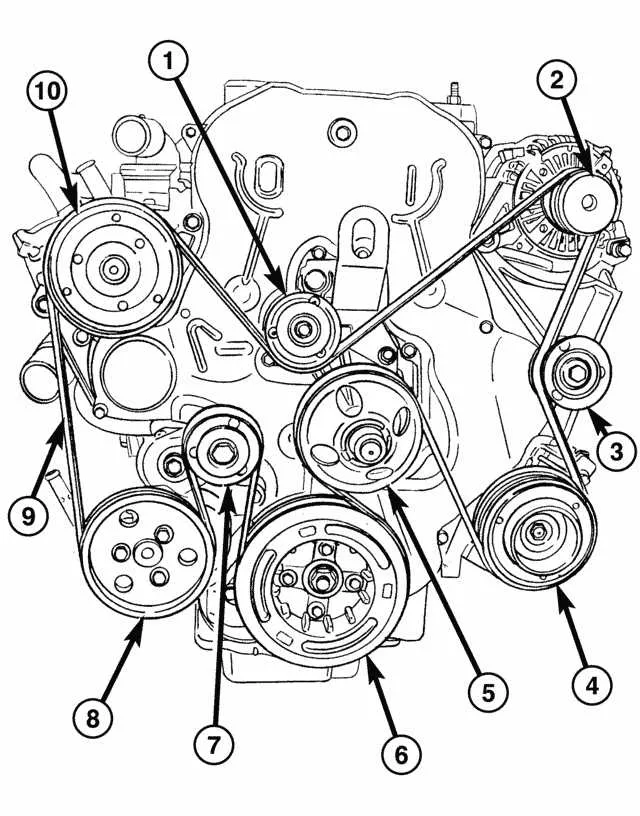

Serpentine Belt Diagram 2008 Jeep Liberty

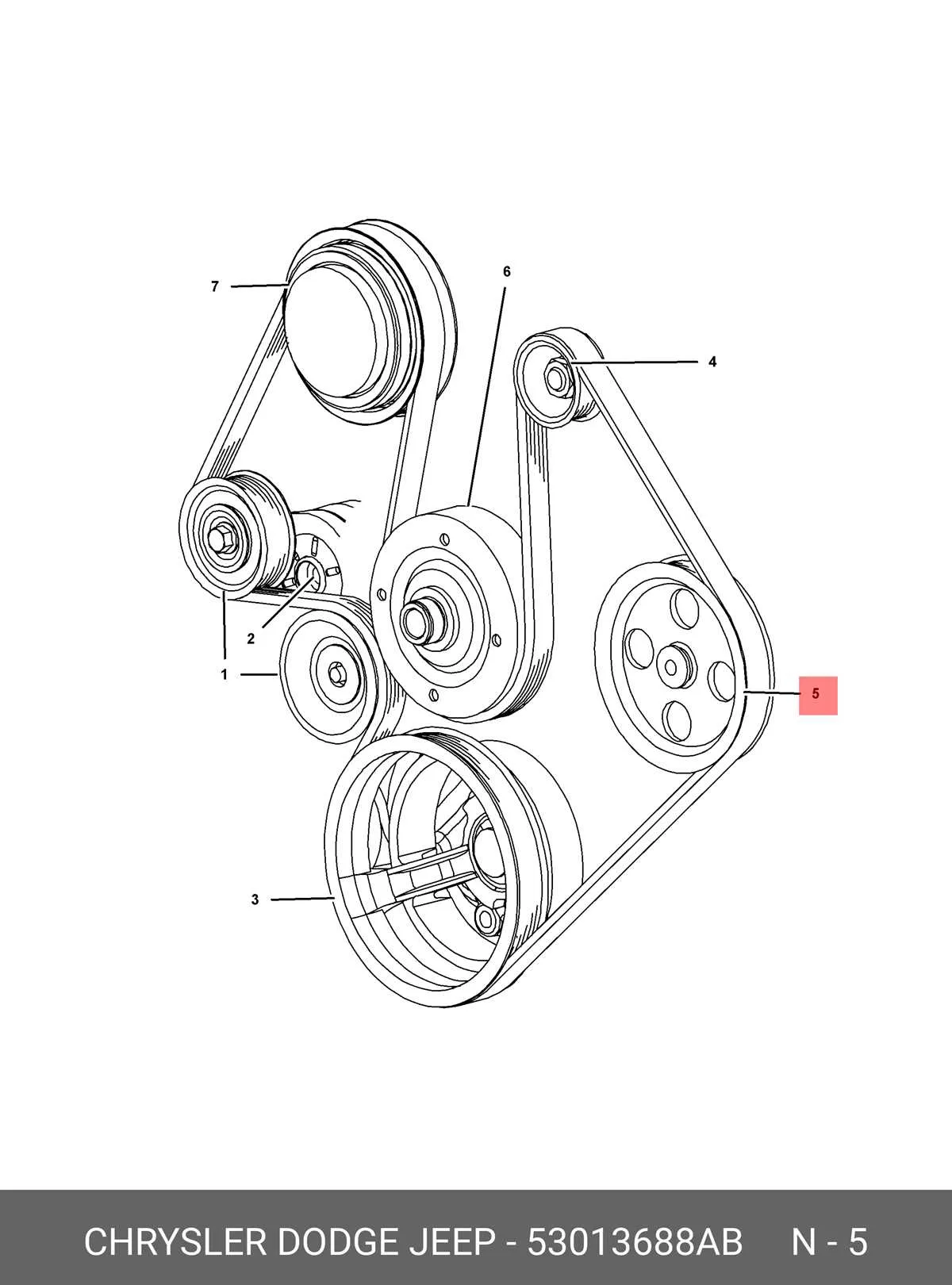

To replace or inspect the serpentine belt on a 2008 Jeep Liberty, refer to the following diagram for the correct routing of the belt. The diagram shows how the belt connects to various components like the alternator, power steering pump, air conditioning compressor, and the crankshaft pulley. Proper alignment is key for the belt’s longevity and vehicle performance.

• Crankshaft Pulley: The starting point for the serpentine belt. Ensure the belt runs in a smooth loop without twisting.
• Alternator: Located on the driver’s side. The belt should pass over the alternator pulley.
• Power Steering Pump: Positioned above the alternator, the belt should loop around this pulley next.
• Air Conditioning Compressor: This component is located near the bottom of the engine. The belt must wrap around the compressor pulley.
• Idler Pulley: Provides tension to the serpentine belt. It should be properly aligned to avoid excessive wear.
• Tensioner Pulley: Located just above the idler pulley, this adjusts the tension on the belt to ensure it doesn’t slip or wear prematurely.

Before replacing the serpentine belt, confirm the routing matches this diagram. A misaligned belt can cause premature wear or even failure of engine components. Always use the correct tension and check the belt’s condition regularly for any signs of cracking, fraying, or glazing.

If you’re unsure, consult the vehicle’s service manual or seek professional assistance for accurate belt installation.

Understanding the Layout of the Serpentine Belt System in a 2008 Jeep Liberty

The serpentine belt in a 2008 Jeep Liberty connects several critical components, including the alternator, power steering pump, air conditioning compressor, and water pump. To ensure proper belt operation, it’s vital to understand its layout. The belt follows a specific path, looped around a set of pulleys that guide its motion. It runs from the crankshaft pulley, through a tensioner, and over each accessory component in a continuous loop. Any deviation in this setup can result in poor performance or belt failure.

Begin by locating the tensioner pulley, which maintains the correct tension on the belt. The tensioner ensures the belt does not slip or become too loose, preventing damage to the engine components. The diagram of the 2008 Jeep Liberty serpentine belt should show the belt’s route around each pulley, including the alternator and other accessories. Check the condition of the belt regularly for cracks or fraying to avoid sudden breakdowns.

When replacing the serpentine belt, make sure to follow the correct routing sequence. Incorrect installation may lead to misalignment, causing the belt to wear prematurely. The tensioner pulley can also be adjusted to ensure proper tension after a replacement. A belt that is too tight or too loose can strain the engine’s components and reduce the efficiency of the serpentine system.

Using a serpentine belt tool or breaker bar will make it easier to move the tensioner during belt replacement. Be cautious when handling the belt, as it may have been under tension and could snap back. After installation, manually rotate the belt to verify the proper alignment and ensure the pulleys are moving smoothly.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2008 Jeep Liberty

Before starting, ensure the engine is off and cool. Disconnect the negative terminal of the battery to avoid any electrical hazards.

1. Locate the Serpentine Belt
The serpentine belt on the 2008 Jeep Liberty is located at the front of the engine, passing through various pulleys such as the alternator, power steering pump, and air conditioning compressor.

2. Inspect the Belt Routing Diagram
Check the engine bay for the serpentine belt routing diagram. This diagram provides the exact path the belt follows and is usually found on a label near the radiator or under the hood.

3. Release Tension from the Belt
Using a 3/8-inch ratchet or serpentine belt tool, rotate the tensioner pulley counterclockwise to release the tension from the belt. Keep the tool in place, then remove the belt from the pulleys.

4. Remove the Old Belt
Once the tension is released, remove the serpentine belt from the various pulleys. Inspect it for wear, cracks, or fraying, which may indicate why it needs replacing.

5. Install the New Serpentine Belt
Refer to the belt routing diagram and position the new belt onto the pulleys, starting from the crankshaft pulley. Ensure the belt is seated correctly on each pulley groove.

6. Reapply Tension
Once the belt is in place, use the ratchet or serpentine belt tool to rotate the tensioner pulley again, applying tension to the new belt. Ensure the belt is taut and properly aligned.

7. Check Alignment
Inspect the belt to ensure it is seated correctly in all pulleys. The belt should run smoothly with no slack, twists, or misalignment.

8. Reconnect the Battery
Once the belt is installed, reconnect the negative terminal of the battery.

9. Test the New Belt
Start the engine and observe the belt while the engine is running. Check for any noise or misalignment. If everything is functioning correctly, the new serpentine belt installation is complete.

Troubleshooting Common Serpentine Belt Issues in the 2008 Jeep Liberty

If the serpentine belt on your 2008 Jeep Liberty shows signs of wear or failure, inspect it immediately. Common problems include squeaking noises, poor engine performance, or overheating due to an improperly functioning belt.

First, check for visible wear such as cracks, frays, or glazing on the belt. A damaged belt can cause the alternator or power steering pump to fail. If you notice any of these signs, replace the belt without delay to prevent further damage.

If you hear a squeaking or chirping noise, it could indicate belt slippage. This often occurs due to improper tension or wear on the tensioner pulley. Test the tensioner by pressing on the belt between pulleys; if it feels too loose, replace the tensioner to restore proper tension and avoid slippage.

In cases of overheating, the belt may not be properly driving the water pump. Inspect the belt’s alignment and condition. If the belt is worn or misaligned, it might not rotate the pump correctly, leading to engine temperature problems.

Check the pulleys for damage or misalignment. A damaged pulley can cause uneven wear on the serpentine belt and increase the risk of failure. Ensure all pulleys are properly aligned and rotate smoothly. If any pulley is faulty, replace it before installing a new belt.

Lastly, when replacing the serpentine belt, ensure the belt routing follows the correct pattern as shown in the vehicle’s diagram. Incorrect routing can lead to malfunctioning of various engine components. After installation, double-check the belt’s tightness and alignment before starting the engine.
