2005 Ford Focus Serpentine Belt Diagram and Maintenance Guide

For optimal engine performance, understanding the layout and components of the serpentine belt system in a 2005 Ford Focus is key. The serpentine belt drives multiple accessories, including the alternator, power steering pump, air conditioning compressor, and water pump. If the belt shows signs of wear, it can lead to engine overheating or accessory failure.

The serpentine belt routing diagram for the 2005 Ford Focus is designed to ensure each component operates in harmony. Be sure to refer to the diagram when replacing or adjusting the belt, as improper installation can lead to inefficiencies or even damage to the components. Check the tensioner and pulleys regularly for wear, as they play a crucial role in maintaining proper belt tension.

If you’re replacing the serpentine belt yourself, follow the diagram precisely, ensuring each pulley and component aligns correctly. Keep in mind that belts should be replaced every 60,000 to 100,000 miles, depending on the condition of the belt and other related components.

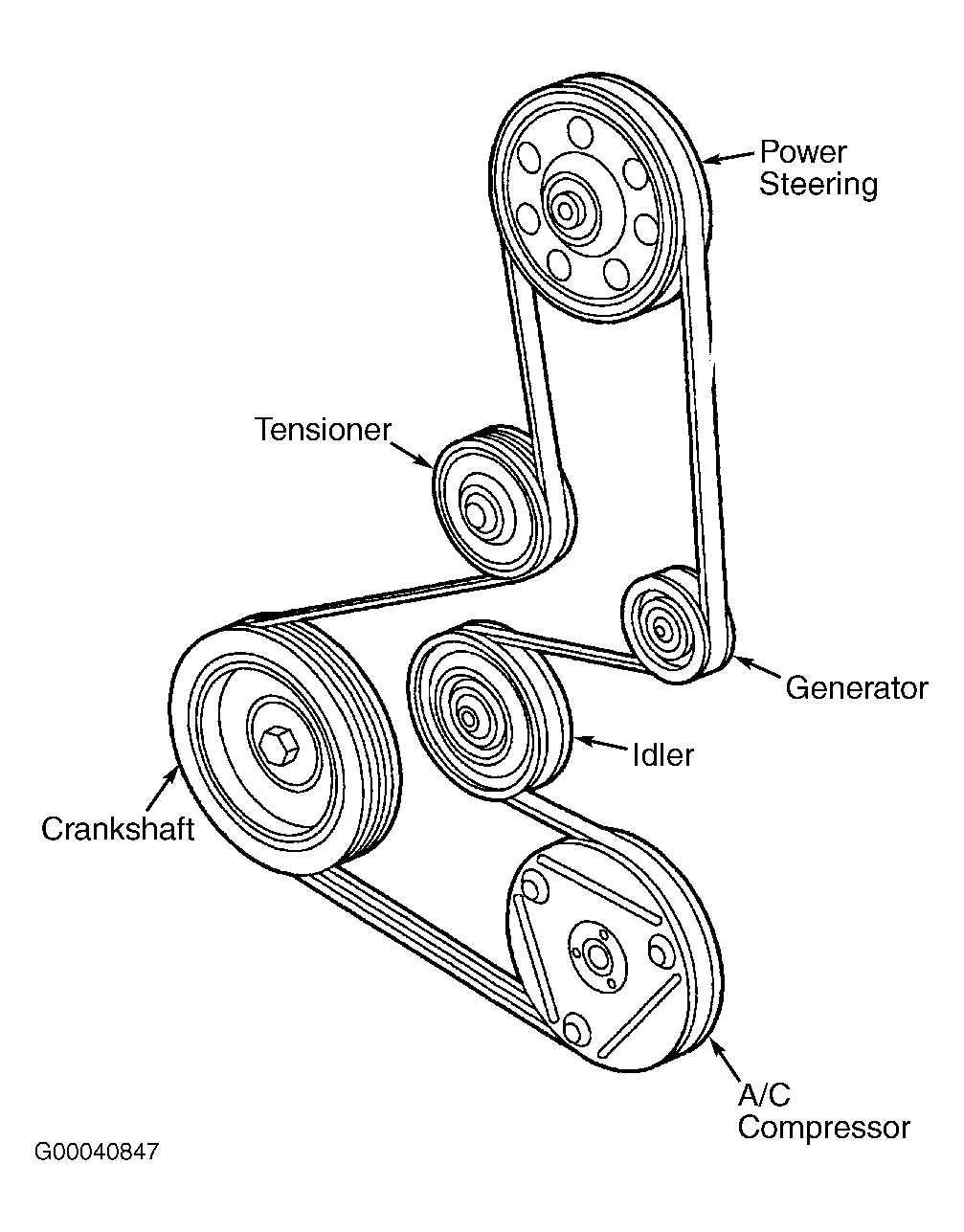

2005 Ford Focus Serpentine Belt Diagram

The serpentine belt on the 2005 Ford Focus is responsible for powering several key components, such as the alternator, power steering pump, air conditioning compressor, and water pump. To ensure smooth operation, the belt must be routed properly through the pulleys. Follow the diagram to avoid misalignment, which can lead to premature wear or failure.

Start by locating the tensioner pulley, which is designed to keep the belt under the correct tension. The diagram will show its position relative to other pulleys. Be sure to check the direction of the belt as it passes over the pulleys, ensuring it follows the correct path. Any deviation from the diagram may cause the belt to slip or wear out faster.

If you’re replacing the serpentine belt, it’s a good idea to inspect the pulleys and tensioner for any signs of damage or wear. A worn-out pulley can cause the new belt to fail prematurely. Be sure to check for any noise or wobbling that may indicate a problem with the pulleys before installing a new belt.

Lastly, always ensure that the belt is properly tensioned before starting the engine. A loose belt can cause a range of issues, including poor performance of the engine components it powers. Double-check the routing and tension according to the diagram before use.

Identifying the Correct Serpentine Belt Routing for 2005 Ford Focus

To ensure your 2005 Ford Focus runs smoothly, it’s crucial to install the serpentine belt with the correct routing. First, confirm the belt size, as an incorrect one will not fit the pulleys properly. The serpentine belt should follow a specific path to ensure all components, such as the alternator, power steering pump, and air conditioning compressor, are powered effectively.

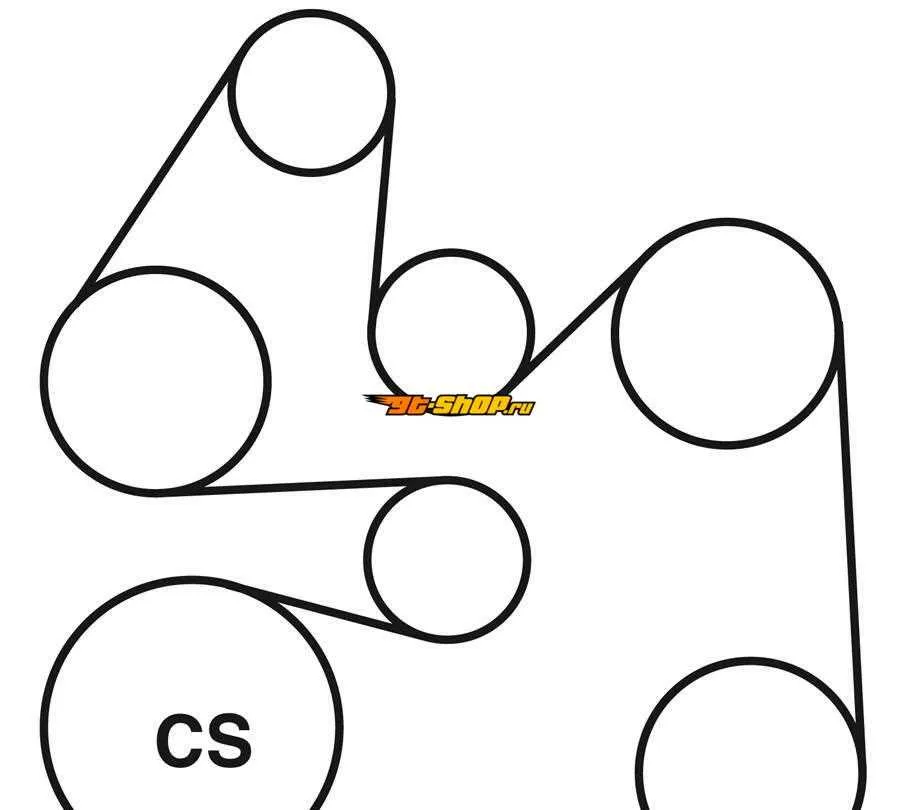

The diagram for the 2005 Ford Focus shows a straightforward routing. Start by threading the belt over the crankshaft pulley at the bottom of the engine. From there, loop it over the water pump pulley, then pass it through the power steering pump and air conditioning compressor pulleys. Ensure that the belt runs along the tensioner pulley before reaching the alternator pulley. Finally, check that the belt runs smoothly around each pulley, with no twists or misalignments.

Tip: Use a serpentine belt tool to release the tension from the tensioner pulley when installing the belt. This will make it easier to position the belt correctly without damaging the components.

After positioning the belt, double-check the routing diagram for the 2005 Ford Focus, which can be found under the hood or in the vehicle’s manual. This will verify the accuracy of your installation, ensuring all parts receive the proper power and function as expected.

Step-by-Step Instructions for Replacing the Serpentine Belt on a 2005 Ford Focus

Start by gathering the necessary tools: a socket wrench, a serpentine belt tool or a long-handled ratchet, and a new serpentine belt. Before proceeding, ensure the engine is cool and the ignition is off.

Locate the serpentine belt tensioner. It’s usually near the center of the engine bay. Use a serpentine belt tool or a ratchet to relieve tension from the belt by rotating the tensioner counterclockwise.

Once the tension is released, carefully slide the belt off the pulleys. Take note of the routing path, as this will be important when installing the new belt. A diagram for proper belt routing can often be found on the engine compartment cover or in the owner’s manual.

Remove the old belt from the engine. Inspect the tensioner and pulleys for any signs of damage or wear. If any parts appear faulty, replace them before installing the new belt.

Install the new serpentine belt by following the original routing diagram. Make sure the belt is seated properly on each pulley, ensuring it’s aligned with all grooves. Double-check the tensioner and pulleys for correct alignment.

Once the belt is installed, slowly release the tensioner to apply the necessary tension to the belt. Inspect the belt for any slack or misalignment.

Start the engine and observe the belt’s operation. Ensure it runs smoothly, without any unusual noise or wobble. If everything appears normal, you’ve successfully replaced the serpentine belt.

Common Issues with the Serpentine Belt System in the 2005 Ford Focus

Serpentine belt wear is a common issue in the 2005 Ford Focus, often resulting from exposure to heat, friction, and age. A worn or damaged belt can lead to a variety of symptoms that affect the vehicle’s performance.

• Belt Slippage: When the serpentine belt slips, it may fail to power the engine accessories properly. This could lead to issues like dimming headlights or a malfunctioning air conditioning system. Regularly inspect the tensioner and pulleys to ensure the belt is properly tensioned.
• Cracks and Fraying: Inspect the serpentine belt for visible signs of damage, such as cracks or fraying. These imperfections usually appear after several years of use. If the belt shows signs of excessive wear, replace it immediately to prevent complete failure.
• Noisy Operation: A squeaking or squealing noise often indicates that the belt is loose or misaligned. This may be due to worn pulleys or a defective tensioner. In such cases, it’s necessary to replace the worn components and adjust the belt tension.
• Tensioner Failure: The serpentine belt tensioner is responsible for maintaining proper tension. If the tensioner fails, the belt may become loose, leading to improper operation of the engine components. In many cases, replacing the tensioner is required to restore proper function.
• Pulley Misalignment: Pulley misalignment can cause the belt to wear unevenly, leading to rapid degradation. Check the pulleys for any signs of damage or misalignment, and replace them if necessary.

Addressing these issues as soon as they arise can prevent more serious engine problems and improve the vehicle’s overall performance. Always ensure that the serpentine belt system is inspected and maintained regularly to extend its lifespan.
