2014 Jeep Wrangler 3.6 Serpentine Belt Routing Diagram

If you’re tackling maintenance on your 2014 Jeep Wrangler with a 3.6L engine, understanding the belt diagram is a must. This visual guide will help you correctly route the serpentine belt and avoid costly mistakes. The diagram provides the exact path the belt should take, ensuring smooth operation of critical components like the alternator, power steering pump, and air conditioning compressor.

The serpentine belt on the 3.6L engine is crucial for driving multiple accessories. Make sure to identify the correct tensioner pulley, as improper tension can lead to premature wear or slippage. The routing diagram also shows the direction of rotation for each pulley, which is vital for proper belt installation.

Pay attention to the alignment and condition of the pulleys during installation. Worn or damaged pulleys should be replaced immediately to avoid damaging the belt. Regularly inspect the belt for signs of cracking or fraying and replace it as necessary to maintain optimal engine performance.

2014 Jeep Wrangler 3.6 Belt Diagram

For the 2014 Jeep Wrangler 3.6, the belt routing is crucial for proper engine function. The serpentine belt drives multiple components like the alternator, power steering pump, and air conditioning compressor. Incorrect belt routing can lead to poor performance or even engine damage. Refer to the diagram below to ensure correct installation.

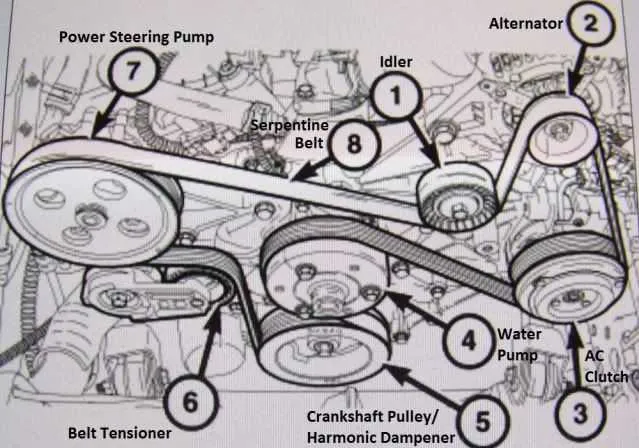

The serpentine belt should be routed from the crankshaft pulley around the alternator, power steering pump, idler pulleys, and the air conditioning compressor. Be sure to align the belt according to the diagram shown in your Jeep’s service manual. The tensioner pulley keeps the belt under the correct amount of tension, ensuring smooth operation.

Double-check the positioning of the belt on all pulleys. If the belt is misaligned or too loose, it can cause slipping or wear out quickly. Replace the serpentine belt if you notice cracks or damage, as it’s critical for the vehicle’s power distribution.

Always use OEM (Original Equipment Manufacturer) parts to maintain system integrity. If in doubt, consult a mechanic to verify belt placement and tension, or to replace the belt entirely if it’s worn out.

How to Locate the Serpentine Belt Routing on 2014 Jeep Wrangler 3.6

To locate the serpentine belt routing on a 2014 Jeep Wrangler 3.6, start by opening the hood and locating the front of the engine. The belt routing diagram is usually found on the underside of the hood or on the radiator support. Look for a small sticker or diagram that shows how the serpentine belt should be routed around the pulleys.

If the diagram is not visible, refer to the owner’s manual for the belt routing details. You can also check near the alternator or the power steering pump for any markings or guides indicating the path of the belt.

Once you’ve found the diagram or manual reference, inspect the pulleys and tensioner. The serpentine belt should follow a path around all the pulleys, with the tensioner pulley keeping it tight. Note the direction of rotation for the belt, as it can be tricky to get it back on without proper alignment.

If you’re replacing the serpentine belt, remember to use the routing diagram as a guide to avoid mistakes when reinstalling the new belt. Pay close attention to the specific order of pulleys to ensure smooth engine operation.

Common Issues with Belt Alignment on Jeep Wrangler 3.6 Engine

Improper belt alignment on the Jeep Wrangler 3.6 engine can cause premature wear, increased friction, and reduced performance. The first step is to inspect the belt routing to ensure it’s correctly aligned with all pulleys and components.

Misalignment can often be traced back to a few key issues:

• Worn Pulleys: Over time, pulleys can wear down or become damaged, causing the belt to slip or misalign. Check for any signs of wear or uneven surface on the pulleys.
• Faulty Tensioner: The belt tensioner controls the belt’s tension. A worn-out or broken tensioner can lead to a loose or slack belt, which may misalign during operation. Ensure the tensioner moves freely and maintains proper tension.
• Incorrect Belt Routing: Always double-check the belt diagram for the correct routing. A slight mistake during installation can lead to a misaligned belt, affecting performance.
• Damaged Belt: If the belt itself is cracked, frayed, or excessively worn, it may not sit properly on the pulleys. Replace the belt if any damage is noticed.

Addressing these issues early can prevent further damage to your engine components and keep your Jeep running smoothly.

Step-by-Step Guide to Replacing the Serpentine Belt in Jeep Wrangler 3.6

Start by gathering the necessary tools: a 15mm wrench, a new serpentine belt, a jack and jack stands (if needed), and a belt tensioner tool. Park your Jeep on a level surface and engage the parking brake. If you’re lifting the vehicle, use the jack and jack stands for safety.

Locate the serpentine belt on the front of the engine. The 2014 Jeep Wrangler 3.6 features a straightforward belt routing system. Check the belt routing diagram, which is often found on a label under the hood, to ensure correct installation.

Using the 15mm wrench, loosen the belt tensioner. This will relieve tension on the belt, allowing you to remove it from the pulleys. Keep the tensioner in a relaxed position so you can easily remove the old belt.

Once the belt is removed, inspect all the pulleys for wear or damage. Ensure that all components, such as the alternator and power steering pulley, spin freely. If any of the pulleys are damaged or feel rough when spun, replace them before installing the new belt.

Place the new serpentine belt around the pulleys following the routing diagram. Start by positioning it on the crankshaft pulley, then work your way around the other pulleys, making sure it sits properly in each groove.

With the belt in place, use the tensioner tool to apply tension to the belt. Tighten the tensioner until it is holding the belt firmly in place. Check the belt for proper alignment and ensure that it’s snug but not overly tight.

Double-check the routing again, ensuring there are no twists or misalignments in the belt. Once everything looks correct, start the engine and observe the belt in motion to verify it operates smoothly.

If the belt is running properly without any noise or slipping, your replacement is complete. Dispose of the old belt properly and remove any tools from the engine bay.
