2014 Jeep Cherokee Serpentine Belt Routing and Diagram Guide

If you’re replacing or troubleshooting the serpentine belt on your 2014 Jeep Cherokee, having the correct diagram is crucial for ensuring proper installation and belt routing. The serpentine belt connects several important components under the hood, including the alternator, power steering pump, and air conditioning compressor. Misrouting the belt can lead to serious engine issues or belt failure, so it’s important to follow the correct diagram precisely.

To avoid confusion, start by identifying the engine type in your Jeep Cherokee. Depending on whether your vehicle has a 2.4L or 3.2L engine, the serpentine belt routing diagram may vary slightly. Typically, the diagram will show the path of the belt around pulleys and tensioners, highlighting the direction of rotation and specific routing steps.

Once you locate the diagram, check for any wear or damage on the belt itself. A cracked or frayed serpentine belt can cause slipping, resulting in poor performance or damage to engine components. Always ensure the belt tension is correct before reassembly, as an overly tight or loose belt can cause premature wear or failure.

2014 Jeep Cherokee Serpentine Belt Diagram

For a 2014 Jeep Cherokee, it’s important to refer to the serpentine belt diagram before replacing or adjusting the belt. The serpentine belt drives several essential components, including the alternator, air conditioning compressor, power steering pump, and the water pump. Correctly routing the serpentine belt ensures proper function and prevents premature wear.

The diagram can be found near the engine bay, typically on a sticker or metal plate attached to the radiator support or engine cover. Make sure to check this diagram when installing the belt to ensure all pulleys are aligned properly. Incorrect routing can cause belt slippage, overheating, or damage to components.

Generally, the 2014 Jeep Cherokee uses a single serpentine belt that loops around multiple pulleys. The belt tensioner plays a key role in maintaining proper tension. The belt should be installed so it runs smoothly over the idler pulleys, with the ribs of the belt aligned correctly with the grooves on the pulleys.

If the serpentine belt shows signs of wear, such as cracks, fraying, or glazing, replacing it sooner rather than later can help prevent issues. Be sure to check the tensioner as well; a worn-out tensioner can lead to improper tension, causing the belt to wear unevenly.

For visual guidance, refer to the factory service manual or consult online forums dedicated to the 2014 Jeep Cherokee for user-shared experiences and diagrams. Correct installation ensures the longevity and smooth performance of your vehicle’s engine accessories.

How to Locate the Serpentine Belt on a 2014 Jeep Cherokee

To locate the serpentine belt on your 2014 Jeep Cherokee, start by opening the hood and securing it in place. Look at the engine bay on the front side of the engine block. The serpentine belt typically runs across several pulleys, including the alternator, power steering pump, water pump, and air conditioning compressor. It’s the long, continuous rubber belt with grooves on its inner surface.

On the passenger side of the engine, near the front, you’ll find the belt routing diagram on a sticker or plate. This diagram provides the exact path the serpentine belt follows over the various components. It’s usually located on the engine or near the front of the radiator. If the diagram is missing or damaged, you can find it in the vehicle’s manual or online.

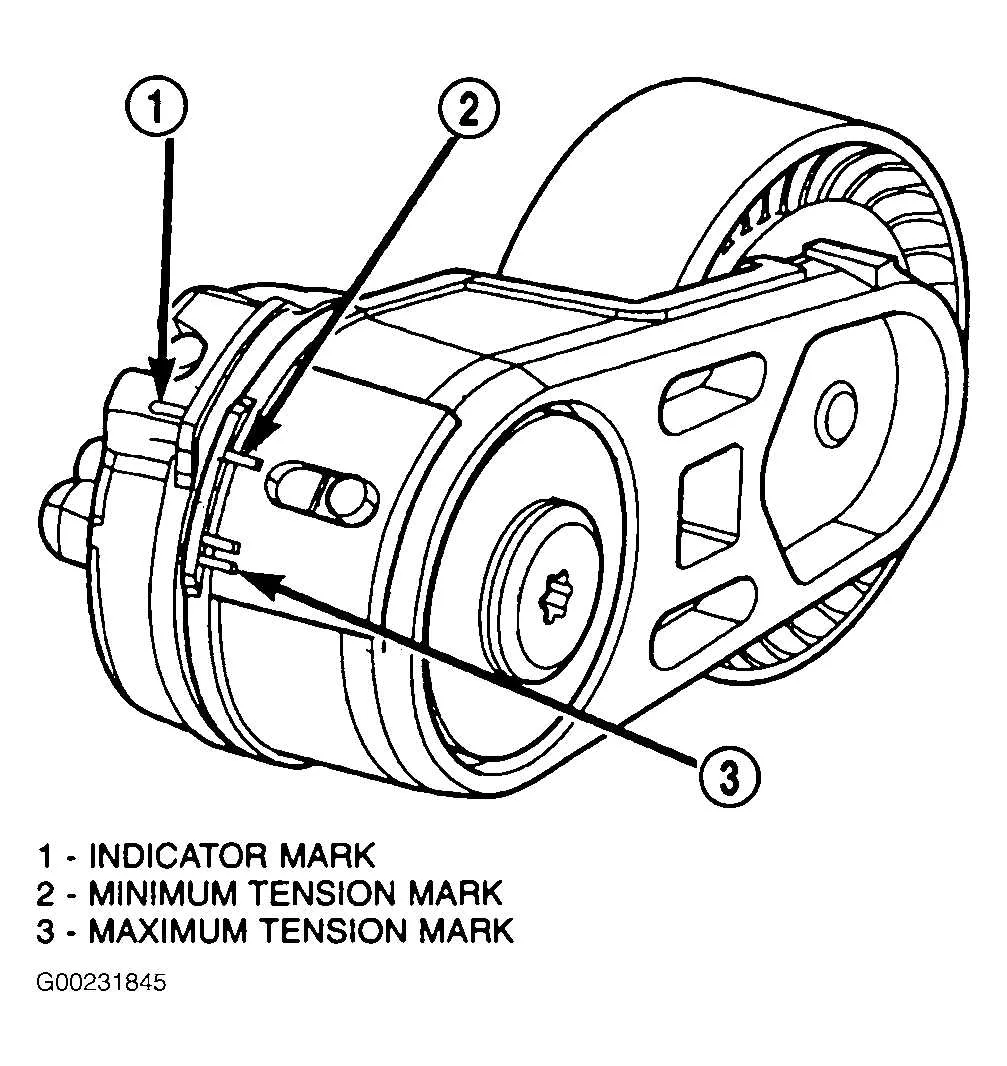

The tensioner pulley, which keeps the serpentine belt taut, is located near the center of the belt path. To inspect the belt’s condition or remove it, you’ll need to relieve tension from the tensioner pulley by using a wrench or serpentine belt tool to rotate it. This will allow you to slip the belt off the pulleys and replace it if needed.

• Check the belt for wear, cracks, or fraying.
• Ensure the pulleys are in alignment, and none of them are damaged or loose.
• If the belt has slipped off or looks damaged, it’s time for a replacement.

Once the belt is in place, double-check that it’s correctly aligned with all pulleys before releasing the tensioner. This ensures it operates smoothly and avoids premature wear on the components.

Step-by-Step Guide to Removing and Replacing the Serpentine Belt

First, disconnect the negative battery terminal to prevent accidental electrical shorts while working on the engine.

Locate the serpentine belt tensioner. This is a spring-loaded pulley that keeps the belt tight. Use a socket wrench with the appropriate size socket to rotate the tensioner counterclockwise. This will relieve the tension and allow you to remove the belt easily.

With the tension relieved, slide the serpentine belt off the pulleys. Take note of how the belt is routed around each component; refer to the diagram in your vehicle’s manual if necessary.

Inspect the old belt for any signs of wear such as cracks, fraying, or glazing. If any of these issues are present, replacing the belt is necessary.

Install the new serpentine belt by following the same routing pattern as the old one. Ensure that it fits snugly around all pulleys, and the tensioner is correctly aligned.

Once the belt is in place, rotate the tensioner again to allow the belt to be tightened. Make sure the belt is seated properly on all pulleys and there’s no slack.

Reconnect the battery terminal and start the engine. Check the belt’s movement to confirm it runs smoothly without any wobbling or slipping.

If everything looks good, close the hood and you’re done. Regularly inspect the serpentine belt to ensure it remains in good condition for optimal engine performance.

Troubleshooting Common Serpentine Belt Issues in the 2014 Jeep Cherokee

If the serpentine belt on your 2014 Jeep Cherokee begins to slip or squeal, inspect it for visible wear. A worn belt typically shows cracks, frays, or missing segments. This could result from the belt stretching over time or from exposure to high heat under the hood. If you notice these signs, replace the belt immediately to avoid further engine complications.

Check the tensioner and pulleys next. The tensioner keeps the belt tight, so if it fails or the spring loses pressure, the belt may not stay in place. To check, remove the belt and try turning the tensioner by hand. If it’s stiff or loose, replace the tensioner. Also, ensure the pulleys spin freely. Any resistance, noise, or roughness indicates worn bearings that can damage the belt.

Examine the alignment of the serpentine belt. If the belt isn’t running in a straight line across the pulleys, there could be an issue with pulley misalignment. Misalignment can cause excessive wear and eventual failure of the belt. This issue could stem from a bent pulley, worn out pulley bearings, or improper installation.

Another common problem is belt noise. If you hear squeaking or chirping sounds, it could be a sign that the belt is not properly aligned or that it is too loose. Adjusting the tension or replacing the belt should resolve the noise. If the sound persists, inspect the pulleys for debris or oil contamination that could reduce friction, causing slippage.

Lastly, keep an eye on the serpentine belt’s lifespan. Jeep recommends replacing the belt every 60,000 to 100,000 miles depending on driving conditions. If your vehicle has reached that mark, replacing the belt as a preventive measure can save you from unexpected breakdowns.
