2013 Jeep Patriot Serpentine Belt Diagram and Routing Instructions

If you’re facing issues with your 2013 Jeep Patriot’s belt system, it’s crucial to refer to the correct belt diagram for proper reinstallation or replacement. The accessory drive belt layout on your Jeep can help avoid potential misalignments that could lead to mechanical failure or additional repairs.

The 2013 Jeep Patriot uses a serpentine belt system that runs various engine components such as the alternator, power steering pump, air conditioning compressor, and the water pump. Understanding the precise routing of the belt is key to ensuring that all components function properly. If you’re replacing the belt or conducting maintenance, it’s a good idea to check the diagram to confirm the correct path and tension specifications.

Ensure the belt is routed around all pulleys in the proper direction, following the factory routing path shown in the diagram. This prevents the belt from slipping or breaking due to improper tension or misalignment. It’s also a good practice to inspect all pulleys and idler components for wear or damage before installing a new belt.

Using the right belt and ensuring correct installation will extend the lifespan of your engine components and avoid unnecessary repairs down the road. Make sure to double-check your belt routing against the diagram before proceeding with any repairs.

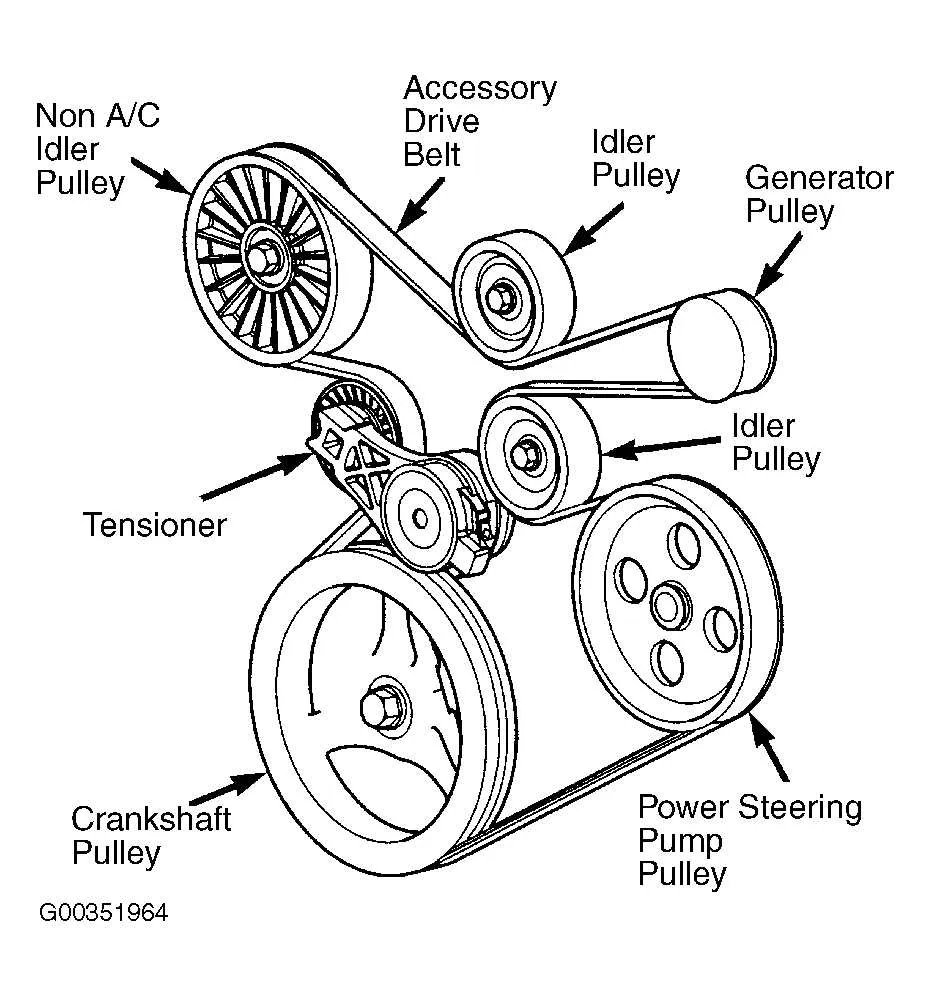

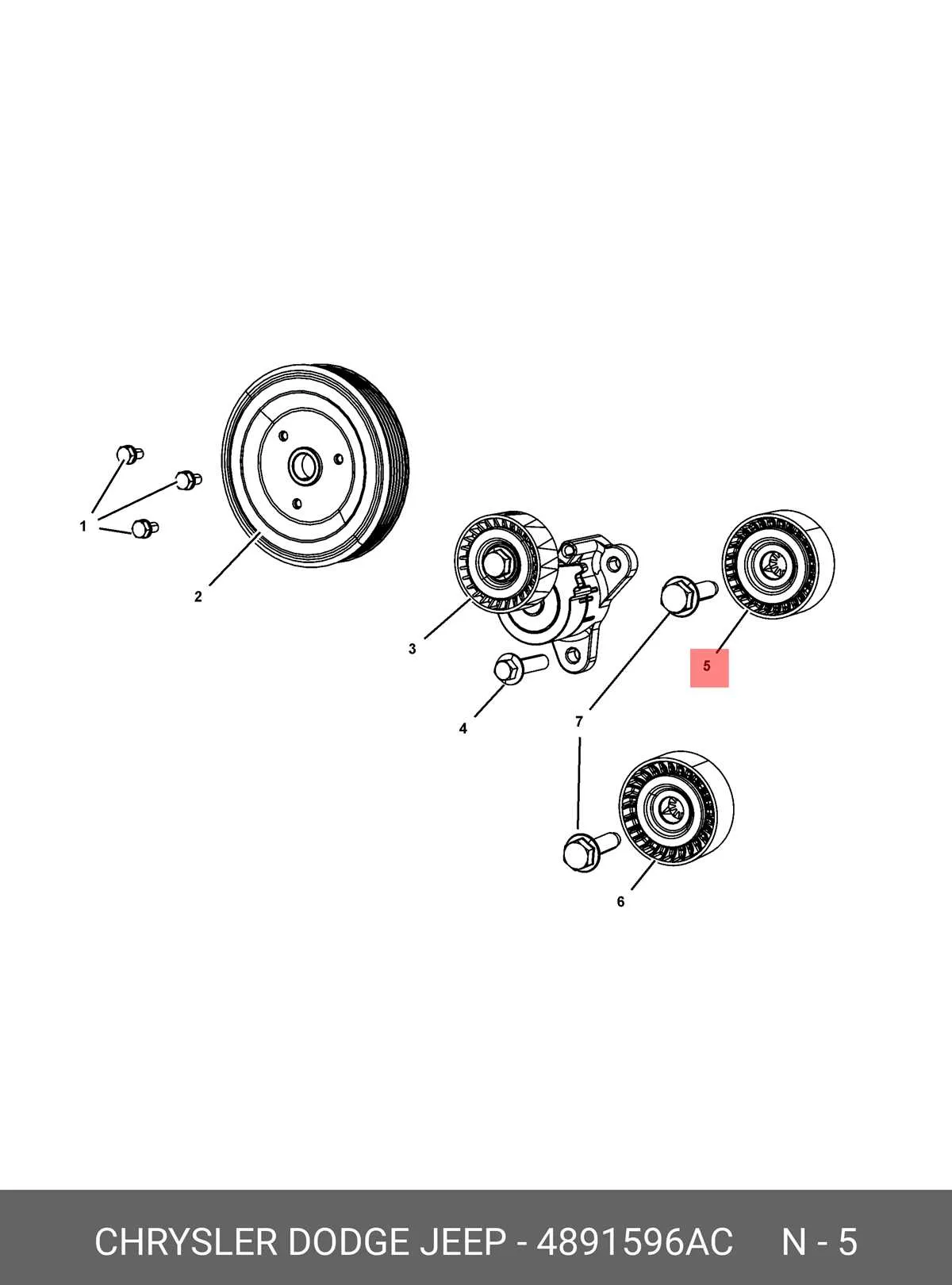

2013 Jeep Patriot Belt Diagram

To replace or inspect the serpentine belt on a 2013 Jeep Patriot, follow the belt routing diagram specific to your model. The diagram helps ensure the correct installation of the belt, avoiding operational issues or premature wear.

The belt on the 2013 Jeep Patriot drives multiple accessories including the alternator, power steering pump, water pump, and air conditioning compressor. Incorrect belt routing can lead to system failure or poor performance.

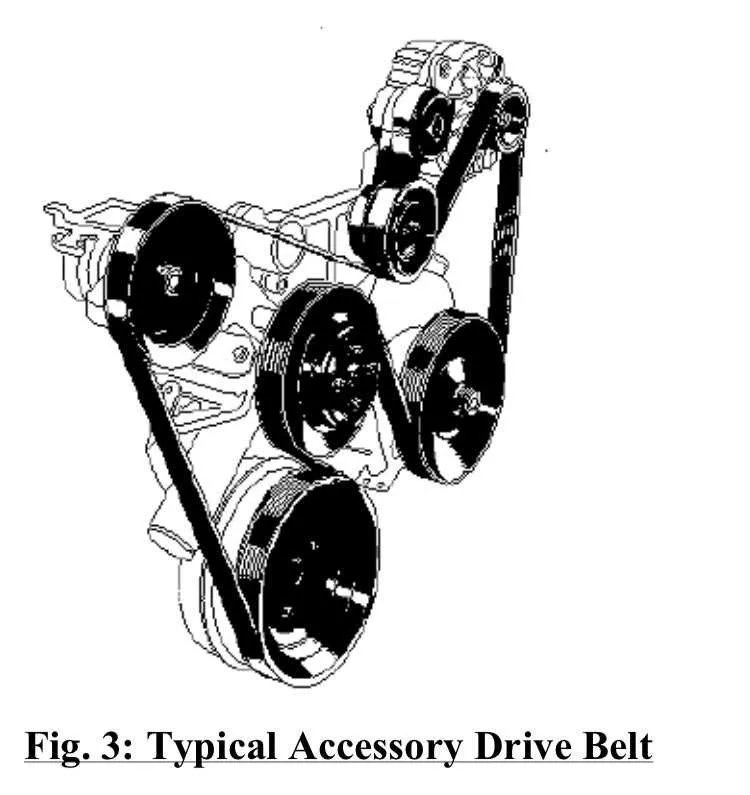

• Serpentine Belt Routing: The belt follows a precise path around the engine components. Make sure the belt wraps around the crankshaft pulley, alternator, and other accessories as indicated in the diagram.
• Tensioner Pulley: The tensioner adjusts the belt tension automatically. Ensure the tensioner moves freely and maintains appropriate tension during installation.
• Accessory Pulley Positions: Double-check the placement of the pulleys and ensure they are aligned properly. Misaligned pulleys can cause the belt to slip or wear prematurely.
• Belt Type: Use only the recommended belt type for your Jeep Patriot. Using an incorrect size or type can lead to damage and poor performance.

If you’re unsure about your belt’s condition or installation, refer to your vehicle’s manual for additional guidance. A belt that’s too tight or too loose can lead to serious engine problems, so always check belt tension after installation.

For a visual reference, consult a trusted service manual or online resources for the exact diagram and specific details related to your 2013 Jeep Patriot’s belt system.

How to Identify the Serpentine Belt Layout in a 2013 Jeep Patriot

Check the serpentine belt routing diagram located on the radiator support or inside the hood of the 2013 Jeep Patriot. This diagram clearly shows how the belt should be routed around pulleys, ensuring the proper operation of components like the alternator, power steering pump, and air conditioning compressor.

If the diagram is not visible, refer to the vehicle’s manual for a detailed illustration. Additionally, you can inspect the belt from the front of the engine bay. The serpentine belt usually runs along a series of pulleys, with one of them being the tensioner that keeps the belt tight. The diagram highlights the correct direction and order of the belt’s path around the pulleys.

In case the belt is off or damaged, manually rotate the crankshaft pulley by hand to verify how the belt should align. It’s essential to replace the belt if it’s cracked, frayed, or showing signs of wear, as a damaged belt can lead to engine component failures.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2013 Jeep Patriot

Begin by disconnecting the vehicle’s battery to prevent any electrical accidents. Remove the negative terminal to ensure complete safety while working on the engine.

Next, locate the serpentine belt. On the 2013 Jeep Patriot, it’s positioned on the front of the engine, running around various pulleys. Use a socket wrench to relieve tension on the tensioner pulley, allowing you to remove the belt with ease.

Inspect the tensioner pulley for any wear or damage. If it shows signs of wear, replace it along with the serpentine belt to prevent further issues. If the pulley is in good condition, you can reuse it.

Once the old belt is off, compare it with the new one to ensure the correct size and fit. Lay the new belt on a flat surface and make sure the ribs face the pulleys correctly.

Carefully route the new belt around the pulleys, following the exact path of the old belt. Make sure each pulley is aligned properly, especially the crankshaft and alternator pulleys. Double-check the tensioner’s position to confirm it’s in the correct place.

Once the belt is in place, use a socket wrench to relieve tension from the tensioner pulley again and slip the belt over it. Release the tension slowly to allow the tensioner to hold the belt securely.

Check the belt’s alignment and make sure it sits properly in all grooves. Give the engine a few turns by hand to ensure everything is moving smoothly. Tighten any loose bolts, if necessary, and reconnect the battery.

Start the engine and observe the belt’s operation. Listen for any unusual sounds or signs of improper tension. If everything looks good, you’re done!

Troubleshooting Common Belt Issues on a 2013 Jeep Patriot

If you notice unusual noises or a drop in engine performance, check the drive belts. A worn, loose, or damaged belt can cause a variety of problems, including overheating, poor charging, and steering issues.

Check for Visible Damage: Inspect the belt for cracks, fraying, or glazing. A damaged belt can lose its grip on the pulleys, leading to slipping and poor performance. If the belt shows significant wear, replace it immediately.

Verify Belt Tension: A loose or overly tight belt can affect vehicle function. Use a belt tension gauge to check for the correct tension. If the belt feels too loose, the tensioner might need adjustment or replacement.

Listen for Noise: A squealing or whining sound is a typical indicator of a loose or worn-out belt. This noise may also occur if the belt is misaligned with the pulleys. Tighten or replace the belt to address the issue.

Inspect Pulleys: Misaligned or worn pulleys can cause the belt to wear prematurely. Spin each pulley by hand and look for signs of damage or uneven rotation. If any pulley is damaged or faulty, replace it before installing a new belt.

Check for Overheating: If the belt operates the alternator or water pump, overheating can indicate a problem with the belt. Ensure the belt is properly routed and in good condition to prevent overheating and engine damage.

Verify Belt Routing: Ensure the belt follows the correct path according to the vehicle’s belt diagram. Incorrect routing can cause the belt to slip or wear unevenly, leading to frequent replacements.

Taking care of belt issues early prevents more serious engine problems. Regular inspections and prompt replacements keep your 2013 Jeep Patriot running smoothly and efficiently.
