2012 Jeep Liberty 3.7 Serpentine Belt Diagram and Routing Guide

For anyone working on the 2012 Jeep Liberty 3.7 engine, understanding the belt routing diagram is key for smooth repairs or replacements. The serpentine belt system is critical for powering various components such as the alternator, power steering pump, and air conditioning compressor. Misplacing or incorrectly routing the belt can lead to serious engine damage.

The belt diagram for this model is straightforward but requires attention to detail. The serpentine belt wraps around several pulleys in a specific order to maintain proper tension and function. Start by locating the belt tensioner, which plays a role in keeping the belt taut. The diagram shows exactly how the belt loops around the components, ensuring smooth operation of all necessary systems.

If you’re replacing the belt, make sure to follow the diagram step by step. Ensure that the belt is seated properly on each pulley, with no slack or over-tightening. A belt installed incorrectly can result in poor engine performance or even belt failure. Consult the vehicle’s manual for any torque specifications if necessary.

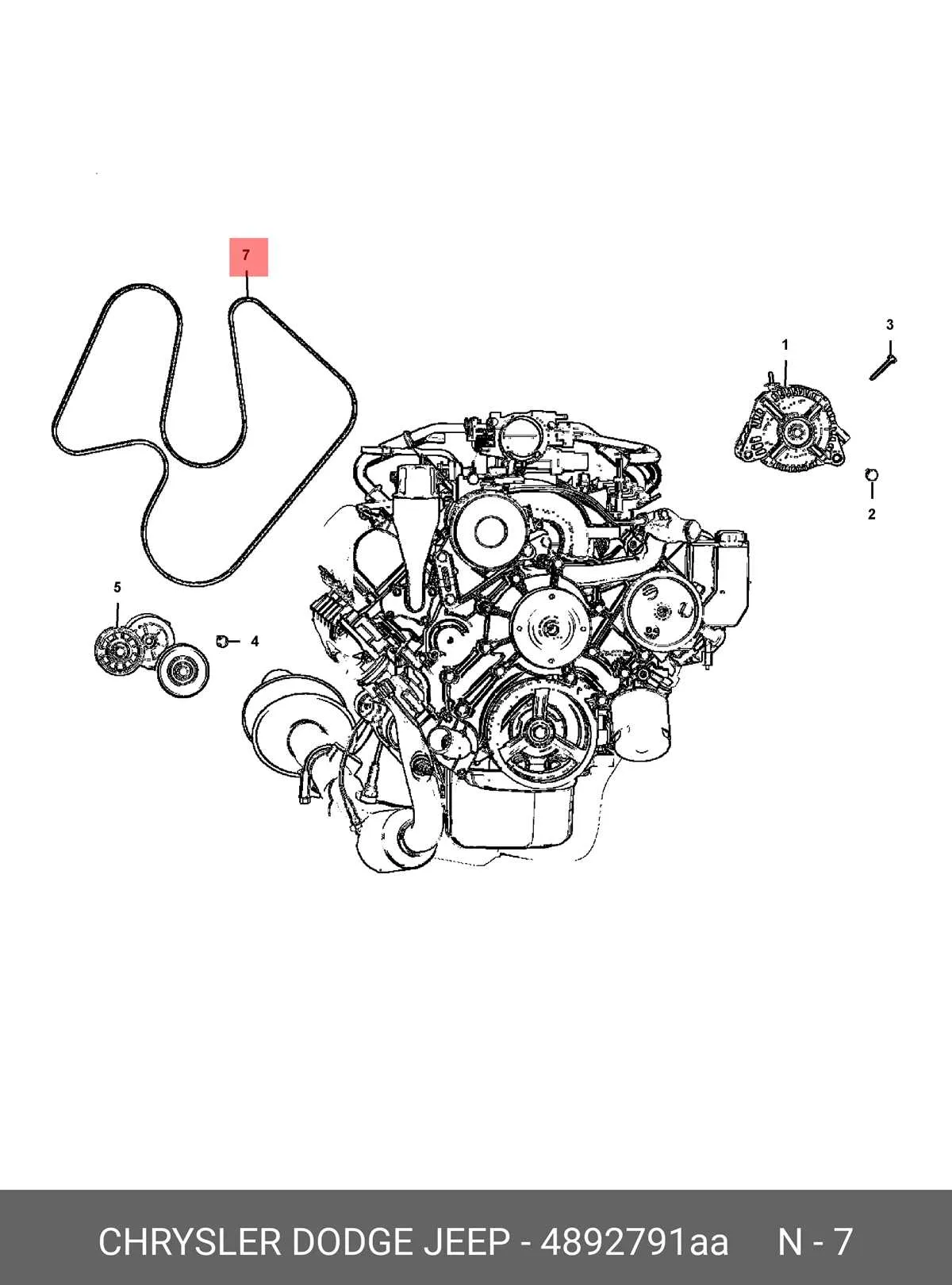

2012 Jeep Liberty 3.7 Belt Diagram

To replace or inspect the serpentine belt on a 2012 Jeep Liberty 3.7, understanding the belt routing is key. Below is a simplified guide for the belt path and components involved:

• The serpentine belt runs around the crankshaft pulley, alternator, power steering pump, water pump, and air conditioning compressor.
• The tensioner pulley keeps the belt tight to prevent slipping, ensuring proper operation of all driven accessories.
• The diagram typically shows the alternator located on the top left of the engine, with the power steering pump near the bottom.
• The water pump and A/C compressor are positioned centrally, with the crankshaft pulley at the bottom of the layout.
• Ensure that the belt wraps around all components correctly, as misrouting can lead to component damage or malfunction.

Check the belt’s condition periodically for signs of wear, such as cracking or fraying. Replace the belt if necessary to avoid any engine-related issues.

If you’re replacing the serpentine belt yourself, using a proper tool to relieve tension on the tensioner pulley is necessary to remove and install the new belt.

Here’s the basic routing for the 2012 Jeep Liberty 3.7 serpentine belt:

• Crankshaft pulley -> Alternator -> Tensioner pulley -> Power steering pump -> Water pump -> A/C compressor -> Crankshaft pulley

Refer to the vehicle’s service manual or specific diagram stickers under the hood for precise routing details. Keep in mind, incorrect belt alignment can cause the engine to overheat or accessories to fail.

Identifying the Correct Belt Routing for the 2012 Jeep Liberty 3.7

For accurate belt routing on your 2012 Jeep Liberty 3.7, ensure the serpentine belt follows the correct path around each pulley. Start by positioning the belt around the crankshaft pulley, then loop it over the water pump, power steering pump, alternator, and the AC compressor. The tensioner pulley should be on the opposite side of the belt loop, allowing the tensioner to maintain proper tension.

Pay close attention to the direction of rotation for each pulley. The belt must be aligned to move with the natural rotation of the engine, ensuring smooth operation. The tensioner pulley is spring-loaded, so make sure it maintains the correct pressure to avoid slack or premature wear on the belt. Double-check the routing diagram for any variations specific to your vehicle model.

If the belt doesn’t align perfectly or is too tight, inspect the pulleys for wear or damage. Ensure the belt is not twisted or misaligned at any point, which could cause it to slip or break prematurely. Regular maintenance and careful routing are key to prolonging the life of the serpentine belt and preventing future mechanical issues.

Common Issues with the Serpentine Belt on the 2012 Jeep Liberty 3.7

Check the serpentine belt on the 2012 Jeep Liberty 3.7 for wear and damage regularly. The most frequent problems include cracks, fraying, and glazing. These signs can reduce the belt’s efficiency and cause it to slip, affecting engine components like the alternator, power steering, and water pump.

A slipping serpentine belt often leads to a squealing noise, especially when starting the engine or accelerating. If ignored, this issue can cause the belt to completely lose grip, leading to a loss of power to crucial systems. It’s important to replace the belt at the first sign of wear.

Another issue is misalignment. If the belt isn’t running properly in its groove, it could be due to a faulty pulley or tensioner. This can cause uneven wear and premature belt failure. A visual inspection can help identify such issues, as the belt will show signs of uneven surface wear or even burn marks.

In some cases, the tensioner itself may fail. The tensioner is responsible for maintaining proper belt tension, and a malfunctioning one can lead to excessive slack or tightness, both of which can cause the belt to wear out more quickly or break. Listen for rattling sounds, which could indicate a failing tensioner.

Lastly, contamination from oil or coolant leaks can degrade the serpentine belt material. Ensure that any engine leaks are fixed before replacing the belt, as contamination will shorten its lifespan and cause it to crack or break prematurely.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2012 Jeep Liberty 3.7

Begin by disconnecting the negative battery terminal to prevent any electrical issues. Use a 10mm wrench to loosen the bolt on the terminal, then remove it completely.

Next, locate the serpentine belt tensioner. It’s located on the passenger side of the engine bay, near the top. Use a 3/8-inch drive ratchet to rotate the tensioner clockwise and relieve tension from the belt. With the tension released, carefully remove the belt from the pulleys. Take note of the belt routing for reinstallation.

Inspect the condition of the old belt for wear, cracks, or any damage. If the belt shows signs of damage, replacing it with a new one is a good idea. When choosing a replacement, ensure it matches the specifications for a 2012 Jeep Liberty 3.7 engine.

Now, position the new serpentine belt around the pulleys. Follow the same routing as the old belt. Ensure it sits properly on each pulley, including the alternator, power steering pump, and idler pulley. Use the ratchet to rotate the tensioner again, allowing it to slip into place and secure the belt under tension.

Once the belt is in place, visually check its alignment on each pulley. Make sure it’s seated correctly without any twists or misalignments. Reconnect the battery terminal, tightening the bolt to secure it.

Finally, start the engine and observe the belt’s operation. Listen for any unusual noises or vibrations. If everything runs smoothly, the replacement is complete.
