2007 Honda Accord Serpentine Belt Diagram and Maintenance Guide

The 2007 Honda Accord uses a serpentine belt system that drives multiple components in the engine. This belt powers crucial systems like the alternator, power steering pump, and air conditioning compressor. For proper maintenance, it’s crucial to know the correct routing and tension of the belt.

Inspect the serpentine belt regularly for wear signs such as cracks, fraying, or glazing. If any of these issues are present, replacement is necessary to avoid sudden belt failure. Ensure the belt is routed according to the factory diagram, as incorrect installation can lead to malfunctioning accessories and engine damage.

To replace the serpentine belt on a 2007 Honda Accord, start by releasing the tension from the belt using a belt tensioner tool. Once the tension is relieved, remove the old belt and compare it with the new one for correct length and fit. Install the new belt by following the specific routing instructions in the manual or using the diagram available online.

Keep in mind that an incorrectly installed belt can cause performance issues, including the failure of critical engine components. If you’re unsure about performing this task yourself, it’s always best to consult a mechanic for assistance.

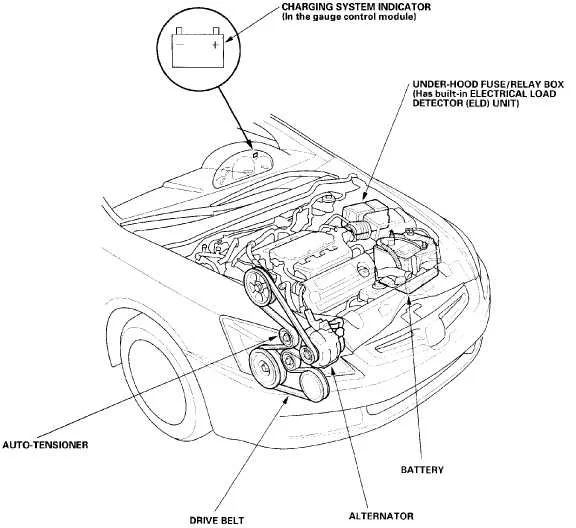

2007 Honda Accord Belt Diagram

The 2007 Honda Accord uses a serpentine belt system that powers various engine components, including the alternator, power steering pump, air conditioning compressor, and water pump. To ensure the system operates smoothly, it’s crucial to follow the correct belt routing. Below is a quick overview of the belt layout and tensioner system for proper installation and maintenance.

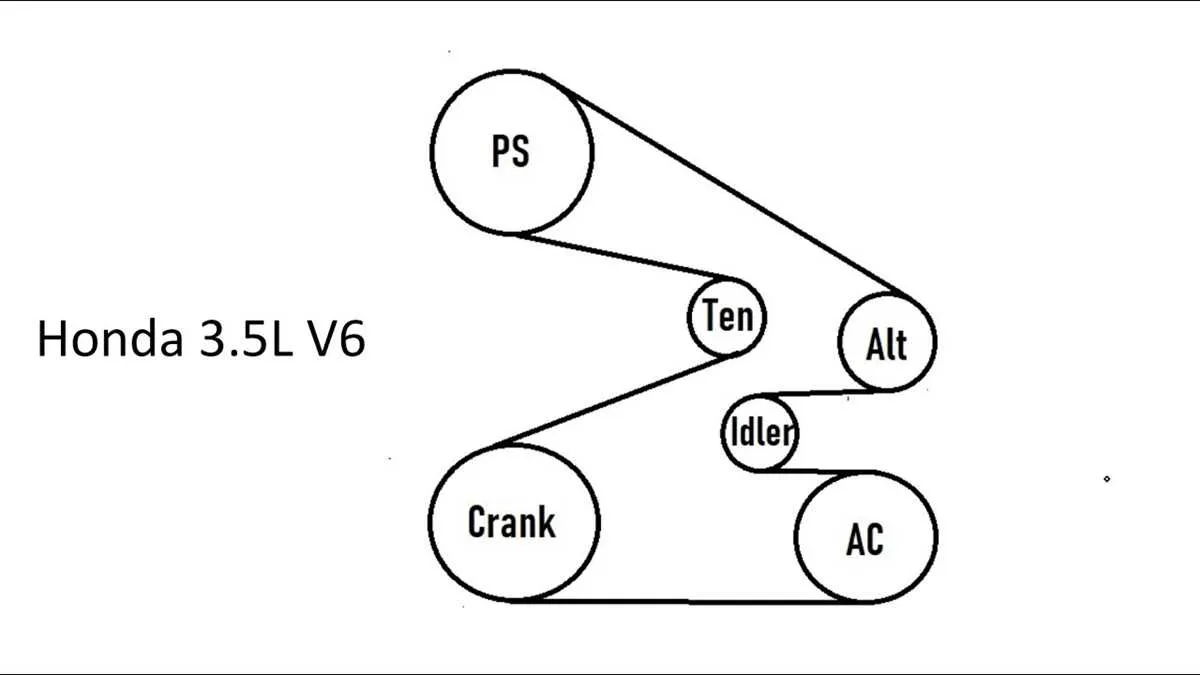

The serpentine belt layout on the 2007 Accord varies slightly depending on the engine model. For the 4-cylinder engine, the belt runs over the crankshaft pulley, alternator, power steering pump, water pump, and air conditioning compressor. The V6 model adds an additional pulley for the water pump and has a different routing to accommodate the dual overhead cam configuration.

Ensure the belt is routed correctly as per the diagram to avoid slipping, overheating, or premature wear. Pay attention to the tensioner, which should maintain consistent pressure to prevent belt failure. If the tensioner is malfunctioning, it can cause the belt to lose tension, leading to issues like squeaking or, in worst cases, engine damage.

Replacing the serpentine belt should be done regularly, typically every 60,000 to 100,000 miles, or sooner if signs of wear appear. A worn-out belt can show cracks, fraying, or signs of glazing. Also, check the pulleys for any damage or misalignment during the replacement process.

How to Identify the Serpentine Belt in the 2007 Honda Accord

The serpentine belt in the 2007 Honda Accord can be identified by its long, continuous loop running across multiple components under the hood. It typically connects the alternator, power steering pump, air conditioning compressor, and the water pump. The belt is located at the front of the engine, usually on the right-hand side when viewed from the front of the car.

Look for a ribbed belt made of rubber with grooves running along its length. The grooves help grip the pulleys for optimal performance. In the 2007 Honda Accord, the serpentine belt usually has a single continuous loop, which sets it apart from older belt systems that use multiple separate belts.

Check the condition of the belt by looking for any visible wear, such as cracking, fraying, or glazing. If the belt is worn, it’s a sign that it may need replacing. You can also check the belt’s tension by gently pressing on it. If it has too much slack or is overly tight, adjustment may be necessary.

For further identification, refer to the engine bay diagram located on the underside of the hood. This diagram will show the exact path of the serpentine belt and provide valuable information for belt replacement or maintenance.

Common Problems with the 2007 Honda Accord Serpentine Belt System

One common issue with the 2007 Honda Accord serpentine belt system is belt wear. Over time, the serpentine belt can become cracked, frayed, or stretched, causing it to slip or break. Regular inspection is recommended, especially if the vehicle starts to exhibit squeaking or whining noises from the engine area.

Another problem to watch out for is belt misalignment. This occurs when the pulleys or tensioner are not aligned properly, which leads to uneven wear on the belt. Misalignment can also cause excessive heat buildup, increasing the risk of premature belt failure. If you notice unusual vibrations or hear grinding sounds, check the alignment of the serpentine belt and its components.

In addition, a faulty tensioner can create problems. The tensioner maintains the proper tension on the belt, and if it malfunctions, the belt can become too loose or too tight. This can result in slippage, increased wear, and possible damage to other engine components. Replacing a worn tensioner is crucial to maintaining the integrity of the serpentine belt system.

Another issue is contamination from oil or coolant leaks. If fluids leak onto the belt, it can degrade the material, causing it to become brittle or slippery, leading to belt slippage or breakage. It is important to address any oil or coolant leaks promptly to prevent damage to the serpentine belt.

Finally, worn-out pulleys can also be a source of problems. If a pulley becomes damaged or worn, it can cause the serpentine belt to wear unevenly or even slip off. Regularly inspect the pulleys for wear, rust, or damage, and replace them as needed to prevent belt failure.

• Check for cracks, fraying, or stretching on the serpentine belt.
• Inspect the alignment of the pulleys and tensioner.
• Replace the tensioner if it’s malfunctioning or worn.
• Address any leaks from oil or coolant to prevent belt damage.
• Examine pulleys for wear and rust.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2007 Honda Accord

First, ensure you have the correct replacement serpentine belt for your 2007 Honda Accord. Check the owner’s manual for the part number and verify the belt size before starting.

Begin by disconnecting the vehicle’s battery. This helps avoid accidental electrical shorts while working on the engine.

Locate the serpentine belt in the engine bay. You’ll see it running over various pulleys, including the alternator, power steering pump, and air conditioning compressor. It’s helpful to take a picture of the current belt layout for reference.

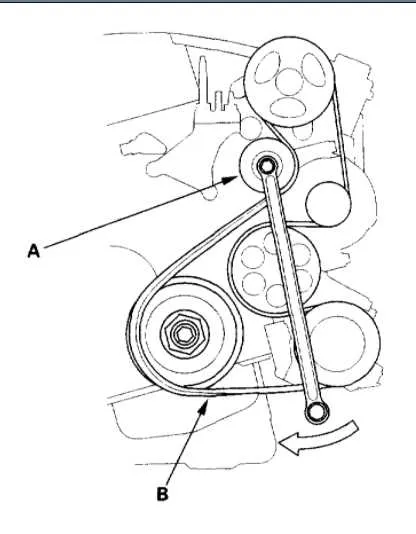

Using a wrench or a serpentine belt tool, loosen the tensioner pulley by rotating it counterclockwise. This will relieve tension on the belt, making it easier to remove. Carefully slide the belt off the pulleys.

Check the condition of the pulleys and the tensioner. If they show any signs of wear or damage, replace them before installing the new belt.

Install the new serpentine belt, following the pattern you photographed earlier. Make sure the belt fits snugly over each pulley and runs in the correct direction as indicated on the belt’s markings.

Once the belt is in place, rotate the tensioner pulley clockwise to apply tension to the new belt. Double-check the belt’s alignment on the pulleys to ensure it is seated correctly.

Reconnect the vehicle’s battery and start the engine. Listen for any unusual noises and visually confirm that the belt is operating smoothly without slipping or wobbling.

If everything looks good, you’ve successfully replaced the serpentine belt. Dispose of the old belt properly and keep the engine area clean for optimal performance.
