2008 Jeep Liberty Serpentine Belt Diagram and Maintenance Guide

To maintain the proper functioning of your 2008 Jeep Liberty, understanding the serpentine belt layout is crucial. This belt plays a key role in powering various components like the alternator, power steering pump, and air conditioning compressor. Knowing the belt configuration helps you spot any potential issues or perform replacements when necessary.

The serpentine belt system in the 2008 Jeep Liberty is designed to ensure all components are driven efficiently from the engine. Refer to the diagram for the exact routing, ensuring the belt is correctly placed on the pulleys. This will prevent wear, misalignment, or slipping that can cause engine performance problems.

If you’re experiencing issues such as squealing noises or loss of power steering, the serpentine belt might need adjustment or replacement. Check the belt tension and look for signs of wear like cracks or fraying. Replacing the serpentine belt regularly is key to keeping your vehicle running smoothly and avoiding costly repairs down the road.

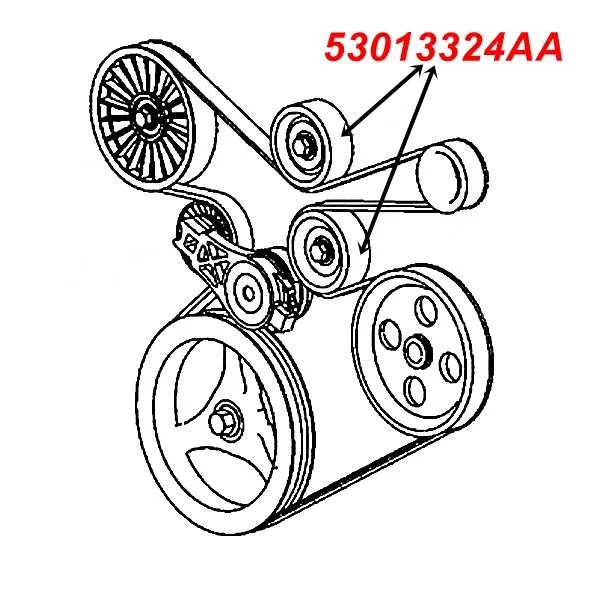

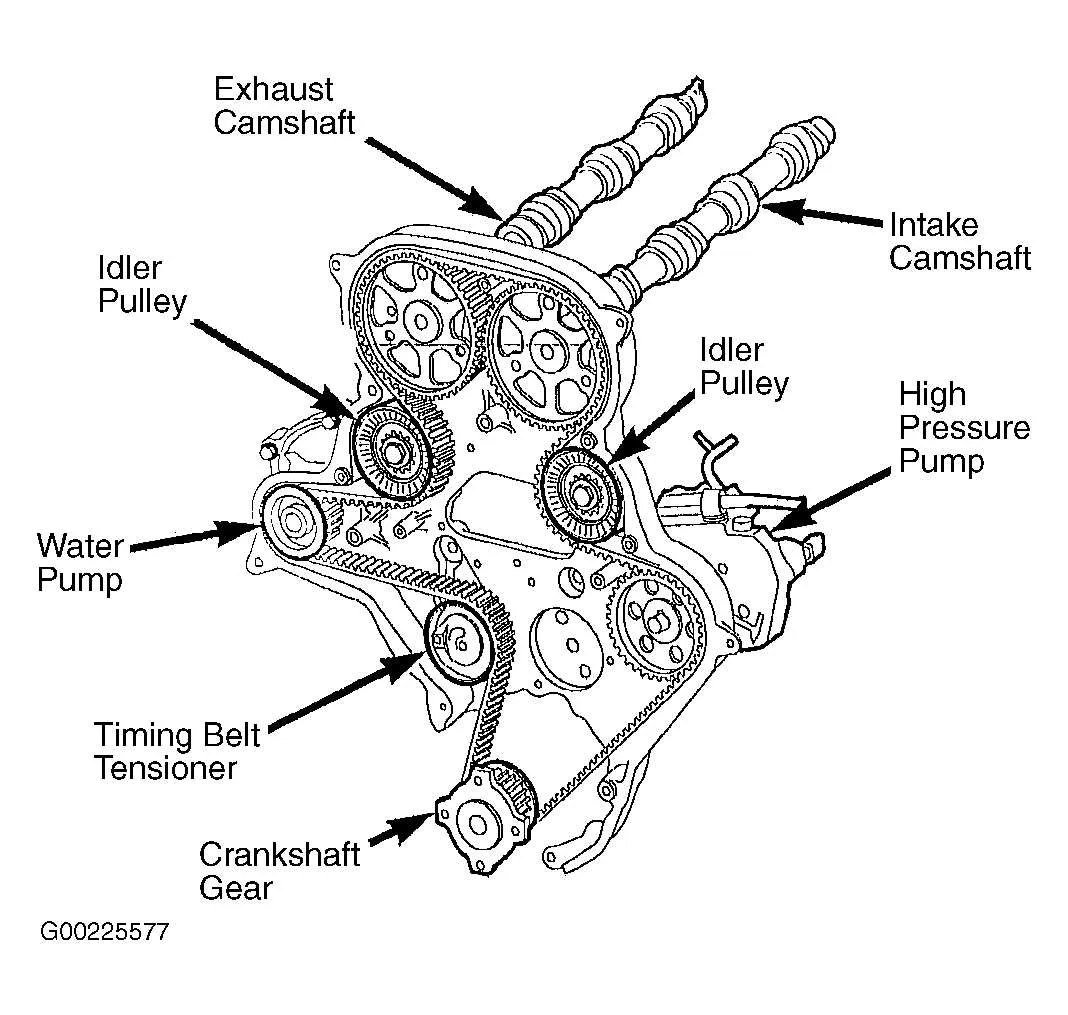

2008 Jeep Liberty Serpentine Belt Diagram

The serpentine belt in the 2008 Jeep Liberty plays a key role in driving several engine accessories. Proper understanding of its path and the components it interacts with is critical for maintenance and repairs. Here’s a detailed breakdown of how to read and interpret the serpentine belt diagram.

• Location of Components: The serpentine belt is routed around the alternator, power steering pump, water pump, and air conditioning compressor. Check the diagram to identify the precise alignment of these components and their respective pulleys.
• Correct Tension: Ensure the belt is correctly tensioned. Over-tightening or under-tightening can cause premature wear and possible slippage. The diagram shows how the tensioner pulley maintains the correct tension.
• Routing the Belt: When replacing the serpentine belt, carefully follow the diagram’s exact routing to avoid misalignment. Misrouted belts can cause inefficiency, excess wear, or damage to components.

Follow the diagram closely when replacing the serpentine belt. If the belt appears worn, cracked, or frayed, replacement is necessary to maintain engine performance. A replacement serpentine belt should be installed with the same routing and tension specifications outlined in the diagram.

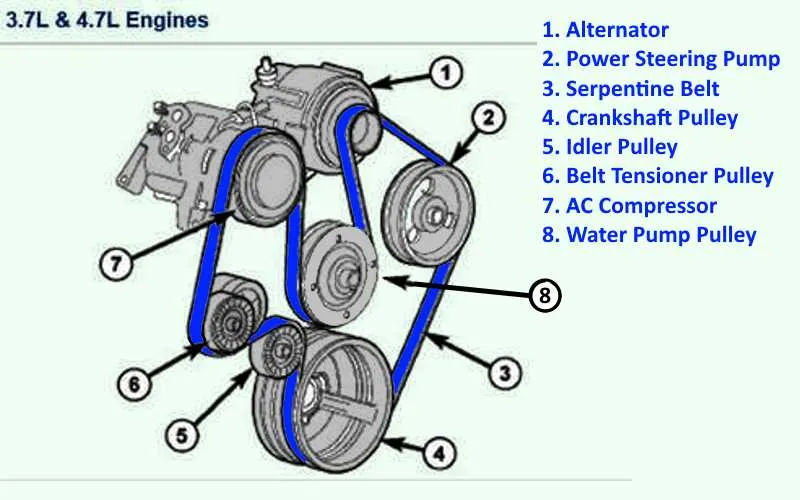

Understanding the Serpentine Belt Routing on the 2008 Jeep Liberty

The serpentine belt on the 2008 Jeep Liberty plays a key role in driving multiple engine components, including the alternator, air conditioning compressor, and power steering pump. To ensure proper operation, it’s critical to follow the correct routing for the serpentine belt.

Start by identifying the tensioner pulley, which is the main point of adjustment. The tensioner keeps the belt at the proper tension to avoid slipping or excessive wear. Follow the path from the crankshaft pulley to the other pulleys, ensuring that the belt loops around the alternator, power steering pump, and air conditioning compressor in the specified order.

Make sure the belt runs smoothly over the pulleys without twisting or misalignment. The path should follow a continuous loop, starting from the crankshaft, moving to the water pump, and then routing to the alternator and other components. Each pulley should be securely engaged with the belt to avoid wear or failure.

Check the belt diagram specific to the 2008 Jeep Liberty, as the routing can vary depending on engine configuration and accessories. The diagram provides clear instructions on how the belt should be routed over the pulleys for optimal performance. When replacing the serpentine belt, ensure it matches the specified length and width to maintain the proper tension and fit.

Identifying Common Issues with the Serpentine Belt and Tensioner

Inspect the serpentine belt for visible signs of wear, such as cracks, fraying, or glazing. If the belt shows these signs, it may not grip properly, leading to slippage or failure of engine components. Check the belt tensioner for smooth operation; a faulty tensioner can result in an insufficiently tight belt, causing it to slip or squeal. If the tensioner moves unevenly or fails to maintain proper tension, replace it immediately.

Listen for squealing or chirping noises, which often indicate a misaligned or worn-out belt. These sounds are usually caused by friction between the belt and pulleys. Inspect the pulleys for smooth rotation. If a pulley is seized or damaged, it can cause the belt to wear unevenly or break. Ensure all pulleys align correctly with the belt. Misalignment can lead to belt damage or malfunctioning of the engine accessories, such as the alternator or power steering pump.

Examine the tensioner’s spring mechanism. A weakened spring may fail to apply enough tension, causing the belt to slacken. If the tensioner feels loose or wobbles when tested by hand, it is likely faulty and needs replacing. Regular inspection of the serpentine belt and tensioner can prevent costly repairs and keep your engine running smoothly.

Step-by-Step Guide to Replacing the Serpentine Belt on Your Jeep Liberty

Lift the front of your Jeep Liberty with a jack and secure it with jack stands to access the serpentine belt area.

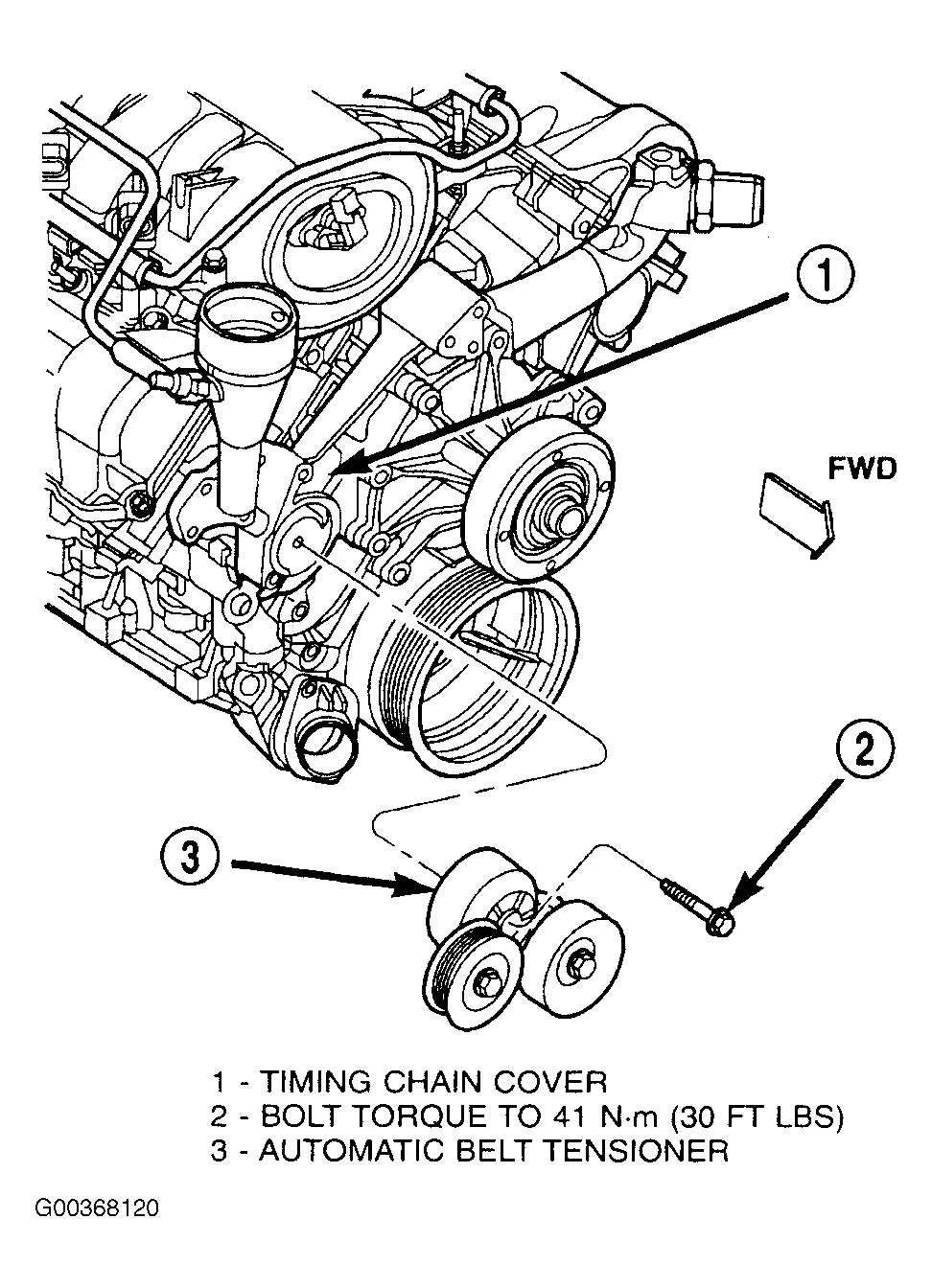

Locate the serpentine belt tensioner using the vehicle’s service manual. Use a ratchet and socket to rotate the tensioner counterclockwise, relieving tension from the belt.

Remove the old serpentine belt by carefully slipping it off the pulleys. Take note of the belt routing to ensure proper installation of the new belt.

Compare the old serpentine belt with the new one to ensure they are the same size and type. Begin installing the new belt over the pulleys, following the correct routing pattern. Ensure the belt fits snugly around each pulley.

Once the belt is in place, rotate the tensioner again to allow the belt to tighten. Check that the belt is properly aligned and tensioned.

Lower the Jeep Liberty and start the engine to verify that the serpentine belt is operating smoothly. Listen for any unusual noises and ensure that the belt is not slipping.

If everything is functioning correctly, turn off the engine, recheck the tension, and make any necessary adjustments before closing the hood.
