1998 Jeep Wrangler Serpentine Belt Routing and Diagram Guide

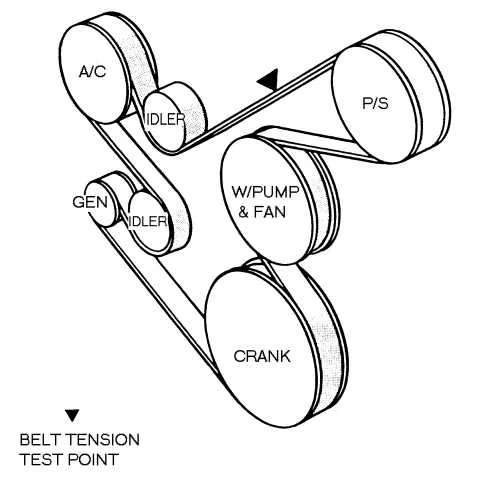

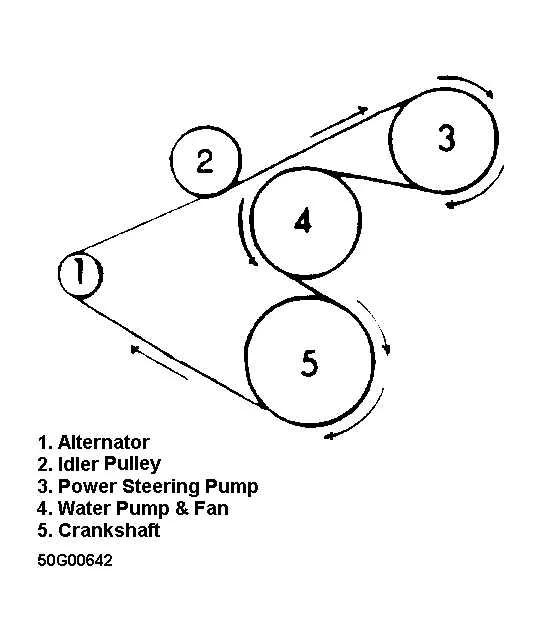

Understanding the serpentine belt layout for your 1998 Jeep Wrangler is crucial for maintaining engine performance and avoiding costly repairs. This diagram provides a clear representation of how the serpentine belt should be routed through the various components, ensuring smooth operation of the alternator, power steering pump, and other essential parts.

Begin by identifying the key components the belt interacts with, such as the crankshaft pulley, water pump, and air conditioning compressor. Make sure the belt is properly aligned with each pulley to prevent slippage or wear. If the belt has become worn or damaged, replacing it with the correct part number and routing is vital for maintaining vehicle functionality.

Refer to the diagram regularly during maintenance to ensure proper installation, especially when performing repairs like belt replacement or tension adjustments. Keep an eye on the belt tension and any signs of wear to avoid future issues.

How to Identify the Serpentine Belt Path on a 1998 Jeep Wrangler

To identify the serpentine belt path on a 1998 Jeep Wrangler, begin by locating the belt routing diagram. It’s often found on the radiator support or near the front of the engine bay. This diagram provides a clear visual of how the belt should be routed around the various pulleys and accessories.

Next, inspect the components that the serpentine belt connects to. These include the alternator, power steering pump, air conditioning compressor, and crankshaft pulley. Understanding the placement of each pulley is crucial for proper belt alignment.

• The alternator sits at the top-left of the engine bay, with the belt routed around it.
• The power steering pump is usually located near the front-left, requiring the belt to loop around it.
• The air conditioning compressor is found on the lower section of the engine bay and is also connected by the serpentine belt.
• The crankshaft pulley is positioned at the bottom-center, serving as the main driving force for the belt.

Use a flashlight to check the belt’s position against the diagram. Ensure that it follows the correct path without any misalignments or twists. The belt should be taut across all pulleys, with no noticeable slack. If any component is misaligned, it can cause belt wear or failure.

If you can’t find the diagram, you can also look up the specific serpentine belt routing for the 1998 Jeep Wrangler in the vehicle’s service manual or online resources. This will help ensure the belt is routed properly for optimal engine performance.

Step-by-Step Guide to Replacing the Serpentine Belt on a 1998 Jeep Wrangler

To replace the serpentine belt on your 1998 Jeep Wrangler, first ensure you have the right tools: a ratchet wrench, a serpentine belt tool, and a replacement belt that matches your vehicle’s specifications. It’s also important to keep your vehicle stable by using a jack and jack stands if necessary.

1. Locate the Serpentine Belt: Open the hood and find the serpentine belt. It runs over several pulleys, including the alternator, power steering pump, and air conditioning compressor. Take note of the belt’s routing, as this will be crucial when installing the new one. You can use the diagram on the radiator support or take a photo for reference.

2. Release Tension on the Belt: Use a serpentine belt tool or a socket wrench to rotate the tensioner pulley. This will relieve tension on the belt, allowing you to remove it from the pulleys. Keep the tool in place while you slide the belt off the pulleys.

3. Remove the Old Belt: Once the tension is released, carefully remove the belt from the pulleys. Take note of how it fits on each pulley, as the new belt will need to follow the same path. If you’re having difficulty removing the belt, gently work it off the pulleys to avoid damage.

4. Install the New Serpentine Belt: Begin by placing the new belt onto the pulleys in the same configuration as the old belt. Make sure the belt is seated properly on each pulley, especially the grooves of the drive pulleys. The belt should not be twisted, as this can cause it to wear out prematurely.

5. Apply Tension to the Belt: Rotate the tensioner pulley again to release tension and allow the new belt to fit snugly into place. Check the alignment of the belt on all pulleys, ensuring it is properly seated and aligned.

6. Double Check the Installation: Before starting the engine, visually inspect the belt for proper routing and tension. The belt should not be too tight or too loose. Start the engine briefly to confirm that the belt is operating correctly without slipping or making noise.

7. Test Drive: After installation, take your Jeep for a short test drive to ensure everything is functioning correctly. Pay attention to any unusual noises or performance issues that may suggest the belt is not properly installed.

Common Issues with the Serpentine Belt System in the 1998 Jeep Wrangler

The serpentine belt on the 1998 Jeep Wrangler can experience a variety of issues over time. One common problem is belt wear and cracking. This typically occurs due to age or exposure to extreme temperatures. Regularly inspect the belt for visible signs of wear, such as fraying or cracks, and replace it if necessary.

Another issue is belt slippage, which can lead to poor engine performance. If the belt slips, it may be due to incorrect tension, worn-out pulleys, or a malfunctioning tensioner. Tightening the tensioner or replacing the pulley can often resolve this issue.

Noisy belts are also a frequent complaint. Squealing or whining noises can indicate that the belt is loose, misaligned, or contaminated with oil or coolant. Check the belt’s alignment and clean off any debris or fluid that may have caused the noise. If the noise persists, replacing the belt is usually the best solution.

Pulley misalignment is another problem that can affect the serpentine belt system. Misalignment can cause the belt to wear unevenly, leading to premature failure. Ensure the pulleys are in proper alignment, and replace any damaged pulleys to prevent further wear.

Lastly, issues with the serpentine belt tensioner can lead to improper belt tension, which can cause slippage, wear, or even belt failure. If the tensioner shows signs of wear or malfunction, it should be replaced to maintain proper tension and prevent further damage.
