John Deere 48 Inch Mower Belt Diagram and Layout for Accurate Installation
Consult the 48-inch belt diagram to identify all pulley positions and the correct routing path before removing the old belt. Misalignment can cause premature wear or slippage, so mark each pulley location clearly with tape or chalk.
Replace the belt if cracks, fraying, or stretching are visible. Use the diagram to ensure the tensioner applies consistent pressure across all pulleys. Check the spring tension and verify that the belt sits evenly along the grooves without twisting.
Follow the diagram to perform periodic inspections. Clean debris from pulleys and check for misaligned shafts. Lubricate pivot points lightly to maintain smooth rotation and prevent noise while ensuring the belt maintains proper engagement with each pulley.
Use the diagram as a reference when adjusting deck height or removing attachments. Correct routing reduces strain on the mower’s engine and transmission, maintaining uniform blade speed and preventing slippage during heavy load mowing.
John Deere 48 Inch Belt Diagram Practical Guide for Maintenance and Replacement
Inspect the belt tension before any maintenance. Use the diagram to identify each pulley and the correct belt path. Misalignment or worn pulleys can shorten belt lifespan.
Follow these steps for replacement:
- Disconnect the spark plug to prevent accidental start.
- Locate the idler and tensioner pulleys as shown in the 48-inch belt diagram.
- Release tension using a wrench or lever on the tensioner pulley.
- Remove the old belt carefully, noting its routing across all pulleys.
- Place the new belt following the exact path indicated in the diagram.
- Reapply tension to the belt and ensure it sits properly in all pulley grooves.
- Rotate the mower deck by hand to verify smooth movement and correct alignment.
For maintenance:
- Check belt wear regularly; look for cracks, fraying, or glazing.
- Keep pulleys and spindles free of debris and dirt to prevent slippage.
- Lubricate moving parts where applicable, avoiding direct contact with the belt.
- Replace the belt immediately if it shows signs of significant wear to prevent mower damage.
Use the diagram as a reference during each inspection or replacement to maintain proper function and extend belt service life.
Locating and Identifying Key Pulleys and Belt Routes
Begin by positioning the mower on a flat surface and engaging the parking brake. Locate the main drive pulley near the engine output shaft; this pulley transfers power to the deck belt. Identify the tensioner pulley, typically spring-loaded, which maintains proper belt tension and prevents slipping. Check the idler pulleys along the deck; these guide the belt around the blades and support even movement.
Trace the belt from the main drive pulley clockwise or counterclockwise, following the contours of each idler and blade pulley. Note the direction of belt travel, ensuring the smooth side contacts the pulleys’ flat surfaces while the ribbed side engages the grooved pulleys. Use a reference image from the 48-inch belt diagram to confirm alignment with each pulley.
Inspect each pulley for wear, looseness, or damage. The spindle pulleys attached to the mower blades must rotate freely without wobble, and the tensioner must compress and release smoothly. Mark each pulley with tape or chalk during your inspection to simplify reassembly and maintain correct belt routing.
After identifying all pulleys, double-check that the belt path matches the diagram exactly, avoiding crossing belts or improper loops. This ensures uniform power distribution, reduces noise, and prevents premature belt wear, keeping the mower operating reliably.
Step-by-Step Instructions for Removing and Installing the Belt
Begin by disengaging the mower deck and placing the tractor on a flat surface. Ensure the engine is off and the key is removed. Locate the idler pulley controlling tension on the 48-inch belt. Use a wrench to rotate the tension spring and relieve pressure on the belt.
Slide the belt off the idler pulley first, then carefully remove it from the mower deck and engine pulleys. Note the belt path or take a reference photo for accurate reinstallation. Avoid forcing the belt over pulleys to prevent damage.
Inspect all pulleys for wear, debris, or misalignment before installing the new belt. Replace any damaged pulleys or clean them thoroughly. Confirm that the mower deck and engine pulleys are free of grease and residue.
Position the new belt following the original routing, starting with the engine pulley and working toward the idler pulley. Rotate the idler pulley to stretch the belt into place, ensuring it sits correctly in all pulley grooves without twisting.
Check belt tension by applying moderate pressure at the midpoint between pulleys. The belt should deflect slightly but remain taut. Reengage the mower deck, start the engine, and observe the belt in operation to confirm smooth rotation and proper alignment.
Perform a final inspection after a short test run, ensuring the belt maintains position and there is no slippage or unusual noise. Adjust tension if necessary by repositioning the idler pulley or tension spring.
Troubleshooting Common Belt Alignment and Tension Issues
Check the belt path for any misaligned pulleys. Misalignment often causes uneven wear and squealing. Use a straightedge across pulley faces to confirm parallel alignment and adjust brackets or idlers as needed.
Inspect belt tension using a gauge or manual deflection method. A 48-inch John Deere deck belt typically requires ½ to ¾ inch of deflection at mid-span. Over-tensioned belts strain bearings, while loose belts slip under load.
Examine idler pulleys for free rotation. Seized or wobbly idlers disturb alignment and increase wear. Replace any pulleys with excessive play or damaged bearings.
Check for debris or buildup in pulley grooves. Grass, dirt, and residue can shift belt tracking and reduce tension consistency. Clean grooves thoroughly before reinstalling the belt.
Ensure that all mounting bolts on pulleys and idlers are torqued to specifications. Loose hardware allows movement under operation, leading to misalignment and inconsistent tension.
Observe belt tracking during operation at low speed. The belt should remain centered on all pulleys. If it drifts, adjust the idler position or replace worn pulleys to restore correct tracking.

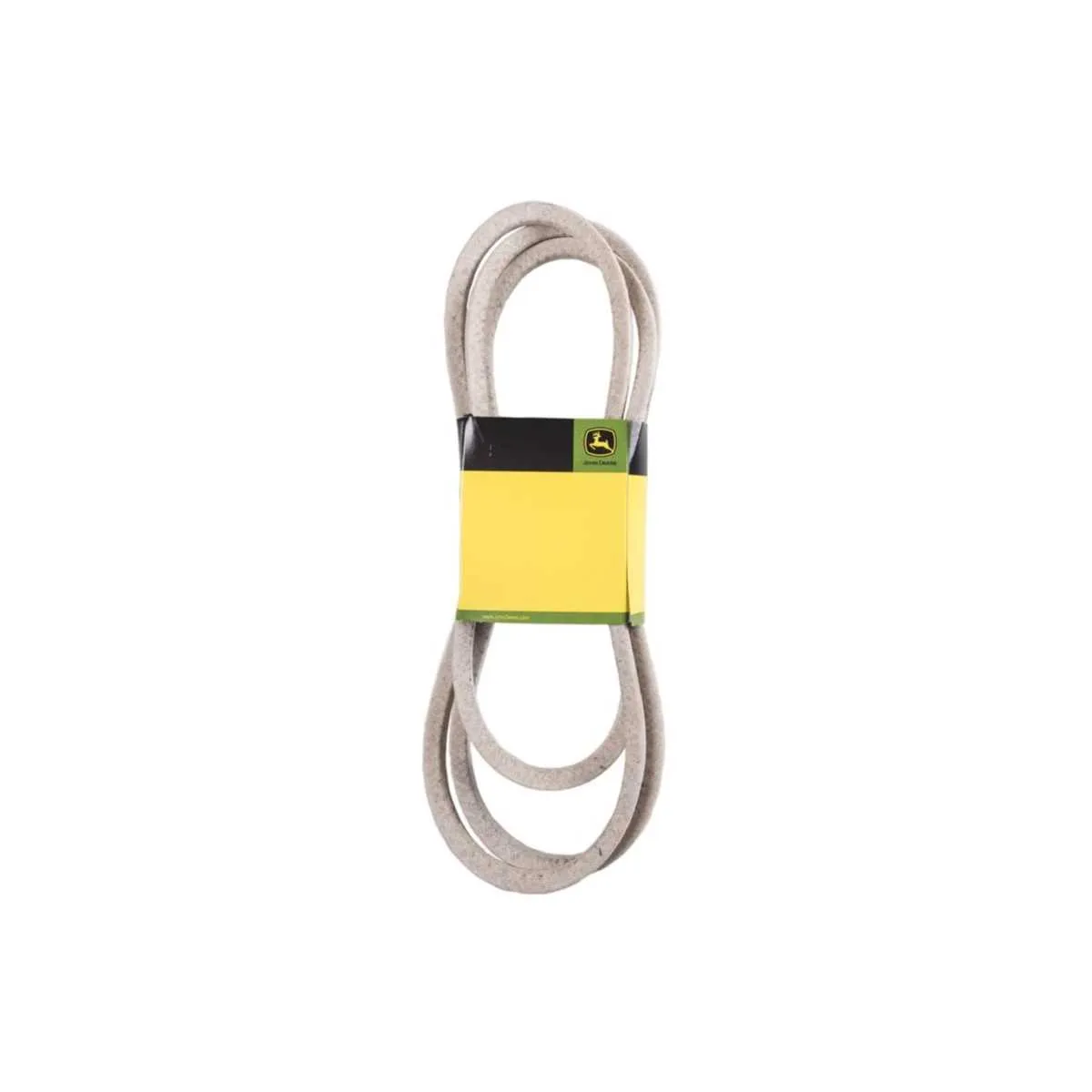

Replace belts showing fraying, cracks, or glazing. Worn belts reduce grip, cause slipping, and prevent proper tension maintenance. Always match the exact length and profile recommended for the 48-inch deck.
