2013 Hyundai Tucson Belt Diagram and Maintenance Guide

The 2013 Hyundai Tucson belt diagram provides a clear and precise guide to the correct routing of various belts in the vehicle’s engine system. When replacing or inspecting the belts, it’s crucial to follow the diagram for proper installation to prevent any damage or misalignment.

Start with the serpentine belt: This belt drives multiple components like the alternator, power steering pump, and air conditioning compressor. Refer to the diagram to ensure the belt runs smoothly over the pulleys without any twists or improper tension.

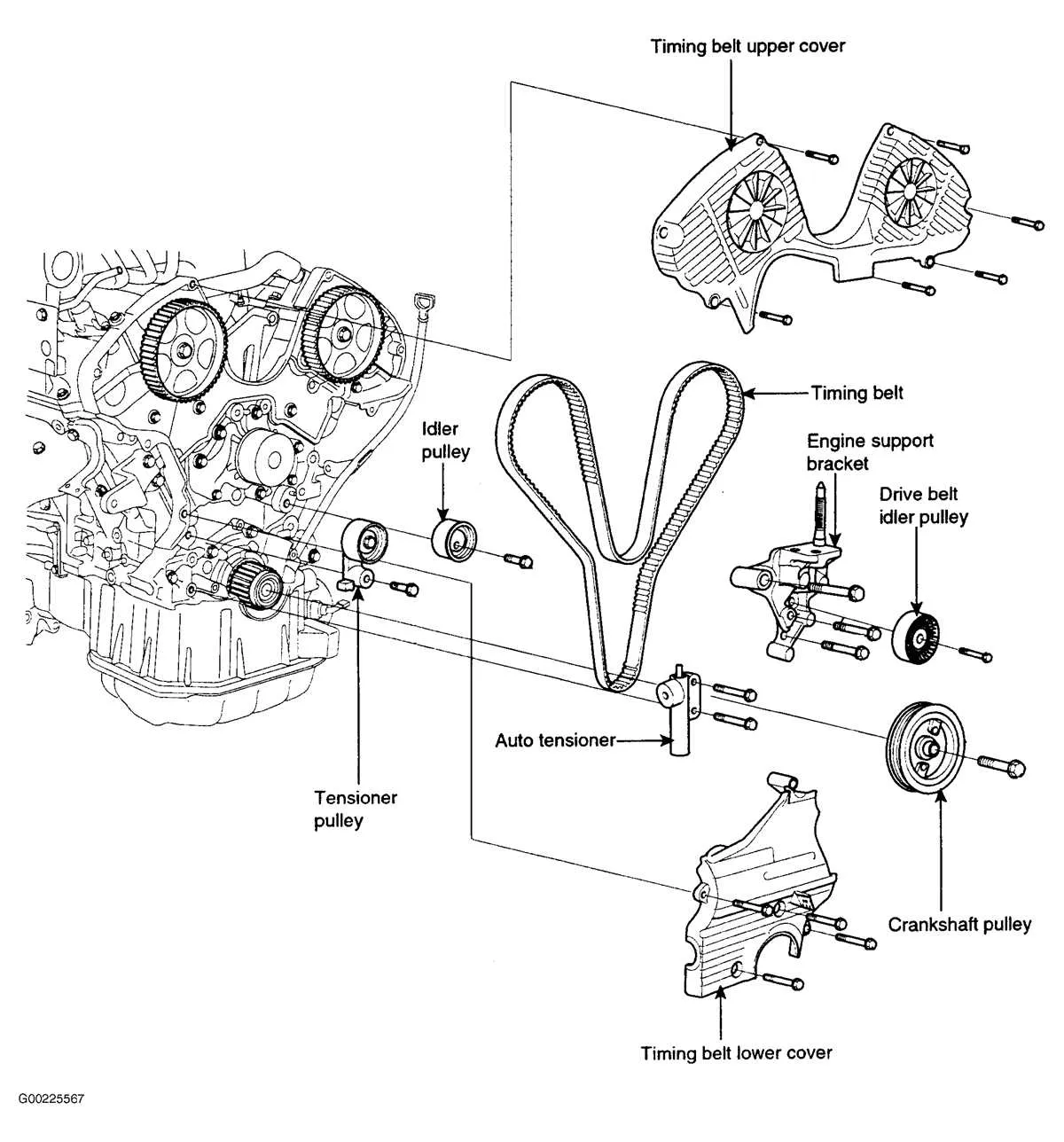

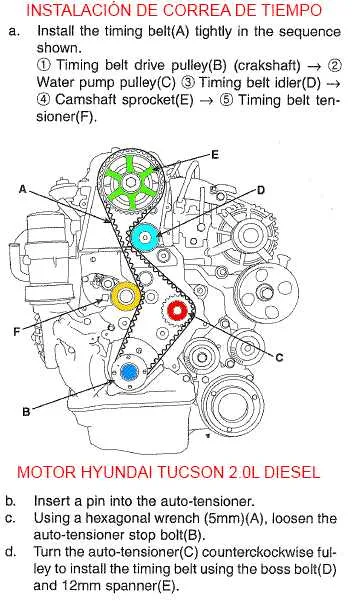

Check the timing belt: This critical component controls the timing of the engine’s valves. Follow the diagram’s instructions for correct positioning to avoid timing issues, which can lead to severe engine damage.

Inspect auxiliary belts: These smaller belts power various accessories. Make sure they align with their respective pulleys as shown in the diagram. Regular inspection and replacement can help prevent unnecessary wear and potential breakdowns.

2013 Hyundai Tucson Belt Diagram

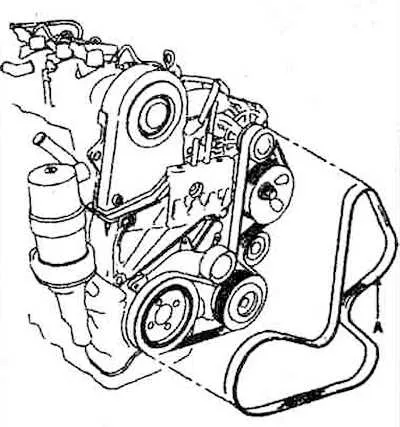

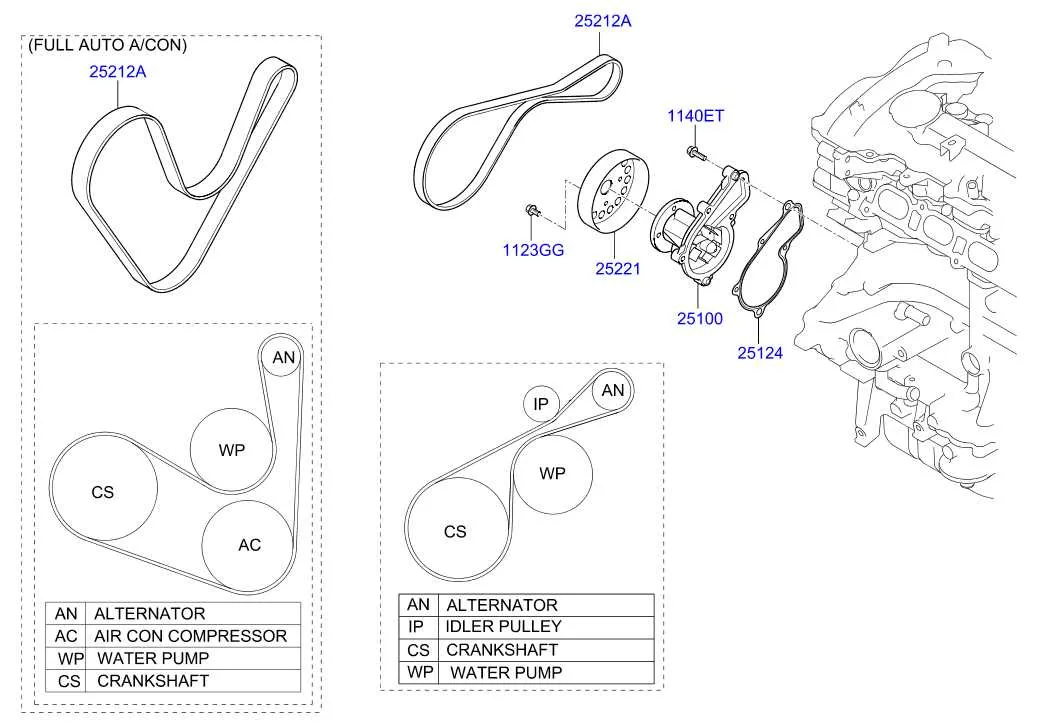

The 2013 Hyundai Tucson uses several belts that are vital for various engine components. The serpentine belt is the main belt, driving the alternator, power steering pump, water pump, and air conditioning compressor. To ensure optimal performance, it is important to follow the specific routing diagram for the serpentine belt. This diagram helps in identifying the proper belt path, preventing misalignment and reducing wear.

The belt diagram can usually be found on a sticker in the engine bay or in the vehicle’s service manual. It’s recommended to inspect the belt periodically for signs of wear, cracks, or fraying. Replacing the belt before it fails can prevent further damage to engine components. When replacing, make sure to use the manufacturer-recommended belt to maintain the correct tension and fit.

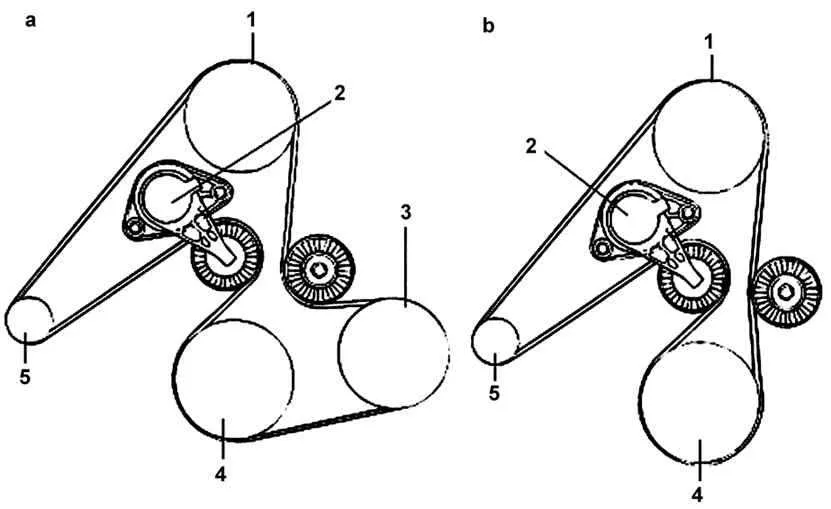

For accurate installation, refer to the diagram when placing the new belt. The diagram shows the exact path the belt should take, including routing around pulleys and tensioners. If you’re unsure about the belt’s condition, a professional mechanic can inspect and replace the belt as needed. Always ensure the belt is tensioned properly to avoid slippage and unnecessary wear.

Identifying the Belt System in the 2013 Hyundai Tucson

The 2013 Hyundai Tucson features a serpentine belt system that drives several key components, including the alternator, air conditioning compressor, power steering pump, and water pump. It is essential to check the condition of the belt regularly to ensure optimal performance of these components.

Start by locating the belt, which runs along the front of the engine and is typically accessible without removing any major components. The tensioner pulley helps keep the belt tight, while the idler pulley guides the belt along the necessary path. A misaligned or worn-out belt can cause various issues, including reduced engine power or failure to charge the battery.

Inspect the belt for cracks, fraying, or glazing. Any visible damage means it’s time for a replacement. The belt should also be checked for proper tension. If the belt feels loose or makes noise, the tensioner may need adjustment or replacement.

• Alternator: The belt powers the alternator, which keeps the battery charged.
• Air Conditioning Compressor: The belt also drives the air conditioning system for cabin comfort.
• Power Steering Pump: The belt facilitates smooth steering by driving the power steering pump.
• Water Pump: The belt helps the water pump circulate coolant, maintaining engine temperature.

For precise diagnostics, use a belt diagram specific to the 2013 Hyundai Tucson. It will provide a clear layout of the pulleys and components connected by the belt, aiding in correct routing during replacement.

When replacing the belt, ensure it is routed according to the manufacturer’s specifications to avoid any interference with other engine components. If unsure, consider consulting a professional to confirm the installation.

Step-by-Step Guide to Replacing the Drive Belt

Begin by lifting the front of the vehicle using a jack. Secure it with jack stands to ensure stability while you work.

Locate the drive belt. For the 2013 Hyundai Tucson, it typically runs around the front of the engine, connecting components such as the alternator, power steering pump, and air conditioning compressor.

Use a socket wrench to release the tension on the belt. This can be done by turning the tensioner pulley counterclockwise to loosen the belt. Carefully remove the belt from its pulleys once the tension is released.

Before installing the new belt, compare it with the old one. Ensure the new belt matches in size and shape. Lay the new belt over the pulleys, making sure it runs in the same direction as the old one.

Reapply tension to the belt by turning the tensioner pulley clockwise. Make sure the belt fits snugly in all grooves, with no slack or twists.

Double-check the belt’s alignment and tightness. The belt should sit firmly but not be overly tight.

Finally, lower the vehicle and start the engine to ensure the new belt is operating correctly. Listen for any unusual noises and inspect the belt for any signs of slipping.

Troubleshooting Common Belt Issues in the 2013 Hyundai Tucson

Inspect the drive belt for visible wear, such as cracks, fraying, or glazing. A damaged belt may produce squealing noises, especially when starting the engine or accelerating. Replace the belt if any signs of wear are present.

Check the belt tension. A loose or overly tight belt can affect engine performance. Use a belt tension gauge to measure the correct tension. If the belt feels too slack, adjust or replace the tensioner.

Examine the pulleys for any signs of misalignment or damage. Misaligned pulleys can cause uneven wear on the belt, leading to premature failure. Ensure the pulleys spin freely and are correctly aligned with the belt’s path.

Inspect the tensioner for proper operation. A worn-out tensioner may fail to maintain the correct belt tension, resulting in slipping. If the belt keeps loosening or squealing after adjustment, replace the tensioner.

If the belt appears fine but the vehicle still experiences issues, check the routing. A misrouted belt can cause unnecessary wear and reduce performance. Refer to the manufacturer’s belt diagram to confirm proper installation.
