2009 Hyundai Elantra Serpentine Belt Diagram and Routing Guide
If you’re working on the 2009 Hyundai Elantra and need to replace or inspect the serpentine belt, this guide provides a clear visual reference for the belt routing. The belt diagram is crucial for understanding the placement and tension needed to ensure optimal performance.
The serpentine belt in the 2009 Hyundai Elantra drives several key components including the alternator, power steering pump, and air conditioning compressor. Proper routing and tensioning are necessary to avoid unnecessary wear or damage to these parts.
To avoid confusion, ensure the diagram you use matches the specific model year. Although belt routing is similar across different years, subtle changes in pulley placement or component configurations can affect the setup. Check your vehicle’s manual for further details.

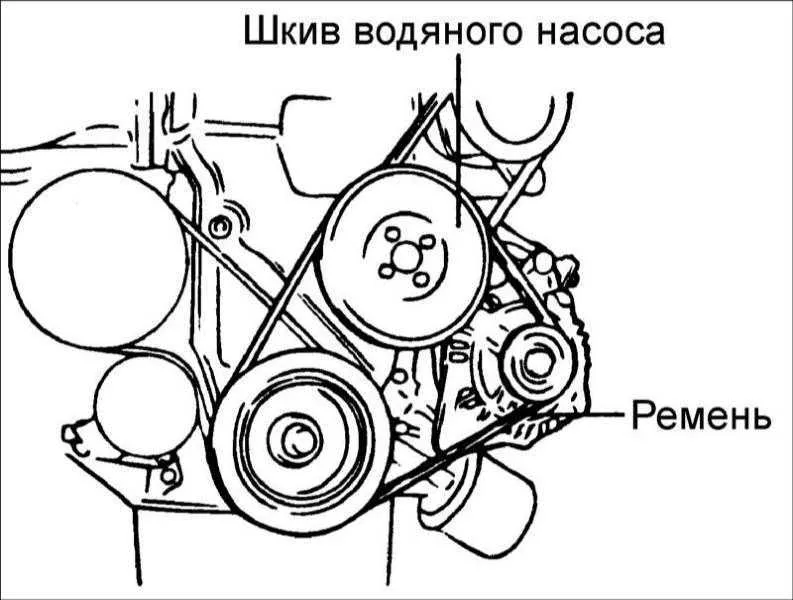

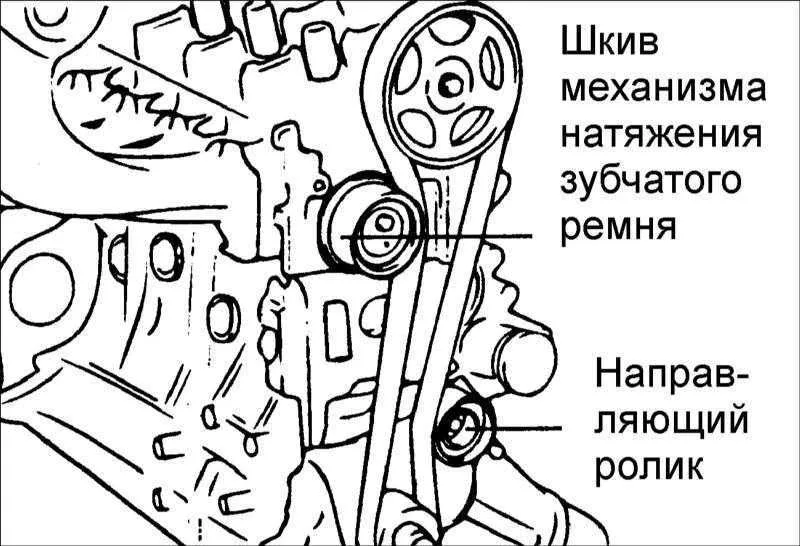

2009 Hyundai Elantra Belt Diagram
To replace or inspect the serpentine belt on a 2009 Hyundai Elantra, follow the diagram below for accurate placement and routing. The serpentine belt is responsible for powering several components like the alternator, air conditioning compressor, and power steering pump.
The diagram shows the serpentine belt routed around the crankshaft pulley, water pump, alternator, and tensioner pulley. The belt goes in a clockwise direction starting from the crankshaft pulley, looping over the power steering pump, air conditioning compressor, and the alternator, and finally back to the tensioner pulley. The tensioner pulley is spring-loaded, ensuring the belt remains taut at all times.
Ensure the belt’s tension is correct. A loose or tight belt can lead to component failure or poor performance. If you are replacing the belt, compare the old belt with the new one to ensure they are the same size and width. Also, check the condition of the pulleys, as worn pulleys may cause premature belt wear.
Double-check all components are functioning properly before reassembling the engine bay. If in doubt, consult a professional mechanic for assistance with the installation and tensioning process.
Understanding the Serpentine Belt Layout on the 2009 Hyundai Elantra
The serpentine belt on the 2009 Hyundai Elantra plays a crucial role in powering various engine components, such as the alternator, power steering pump, and air conditioning compressor. The belt connects these parts in a continuous loop, ensuring smooth operation across the engine’s systems. Understanding its layout is vital for maintenance and repair tasks.
The belt routing for the 2009 Elantra is relatively straightforward. It begins at the crankshaft pulley, winding through several pulleys, including the alternator, power steering pump, and the air conditioning compressor. The diagram for the 2009 Hyundai Elantra shows the belt moving in a serpentine path, twisting around the pulleys in a specific order to maintain proper tension and alignment.
It’s important to check the belt’s condition regularly for wear and tear, as a cracked or frayed serpentine belt can lead to failure of critical engine systems. The tensioner pulley, which maintains proper tension on the belt, should also be inspected to ensure it is functioning correctly. If the belt appears loose or damaged, replacing it promptly can prevent more severe engine issues.
When replacing the belt, follow the exact routing outlined in the diagram to avoid misalignment. Incorrect installation may cause the belt to slip off or wear unevenly. It’s also a good idea to check the pulleys for any signs of damage or debris that could interfere with the belt’s operation.
How to Replace the Serpentine Belt on Your 2009 Hyundai Elantra
To replace the serpentine belt on a 2009 Hyundai Elantra, first ensure you have the right replacement belt. Check your owner’s manual for the exact specifications. You’ll need basic tools like a socket wrench, a serpentine belt tool or a breaker bar, and possibly a pulley tensioner tool.
1. Locate the serpentine belt: Open the hood and find the belt on the engine. It’s usually located near the front of the engine, running over various pulleys.
2. Release tension: Use a serpentine belt tool or a breaker bar to rotate the tensioner pulley. This will relieve the tension on the belt and allow you to remove it. Make sure to release the tension slowly to avoid damage.
3. Remove the old belt: Slide the belt off the pulleys and carefully remove it from the engine. Make note of its routing or refer to the belt diagram under the hood or in the manual to help you with installation.
4. Install the new belt: Start by placing the new belt over the pulleys according to the routing diagram. Make sure the belt sits properly on each pulley, especially on the tensioner and idler pulleys. Check for proper alignment.
5. Reapply tension: Use the serpentine belt tool to move the tensioner pulley again and slip the belt into its final position. Ensure the belt is tight and fully seated on all pulleys.
6. Test the belt: Start the engine and observe the belt in motion. Listen for any unusual noises or irregular movements. If everything looks good, you’ve successfully replaced the serpentine belt.
Make sure to check the belt regularly for wear, as this can extend the life of your engine components and prevent costly repairs down the line.
Troubleshooting Common Issues with the Belt System in the 2009 Hyundai Elantra
If you notice strange noises or experience difficulty with engine performance, the belt system in your 2009 Hyundai Elantra might be the issue. The most common causes of problems are misalignment, wear, or damage to the belts and pulleys. Check these key areas to troubleshoot effectively.
Start by inspecting the serpentine belt for cracks, fraying, or signs of wear. If the belt is loose or too tight, adjust the tension. A loose belt will slip, causing squealing noises and poor engine performance. A tight belt may cause the bearings in the pulleys to wear out prematurely. Replace the belt if it shows visible damage or has been in service for over 60,000 miles.
Next, inspect the pulleys and tensioner. A misaligned pulley can cause the belt to wear unevenly, leading to a loss of function. Check for any wobbling or noise from the tensioner, which could indicate it’s failing to maintain the proper belt tension. Replacing a faulty tensioner can prevent further damage to the belt system.
If you hear a chirping or squealing sound, the problem might be caused by the alternator or power steering pump pulleys. These components should turn smoothly without any resistance. Inspect each pulley for signs of wear, and replace any pulleys that are not functioning correctly.
Lastly, ensure that the crankshaft and accessory pulleys are properly aligned. If the pulleys are misaligned, it can strain the belt and cause premature wear. A visual inspection can help you identify any misalignment issues.
By addressing these common problems early, you can extend the life of your belt system and prevent more expensive repairs down the line. Always replace any damaged parts and keep an eye on belt tension regularly.
