2018 Dodge Journey 2.4 Belt Diagram for Engine and Accessory Belts
If you’re working on a 2018 Dodge Journey 2.4 and need to replace or inspect the serpentine belt, it’s crucial to know the exact routing for the belt system. The diagram for this engine setup helps ensure that the belt runs smoothly over all pulleys without misalignment or stress.
The serpentine belt on the 2.4L engine drives several components, including the alternator, power steering pump, and air conditioning compressor. Understanding the layout will help prevent any installation mistakes that could lead to further engine issues or inefficient performance.
The belt routing on this engine follows a specific pattern, which involves a tensioner pulley to maintain the correct amount of pressure. Make sure to follow the exact sequence for a hassle-free setup. Check the tensioner for wear, as a faulty tensioner can lead to a loose belt, resulting in poor engine performance.
Refer to the factory service manual for the detailed diagram to confirm your work. If you don’t have access to it, you can find diagrams online, but always verify the belt’s fit and tension once installed to avoid premature wear or damage.

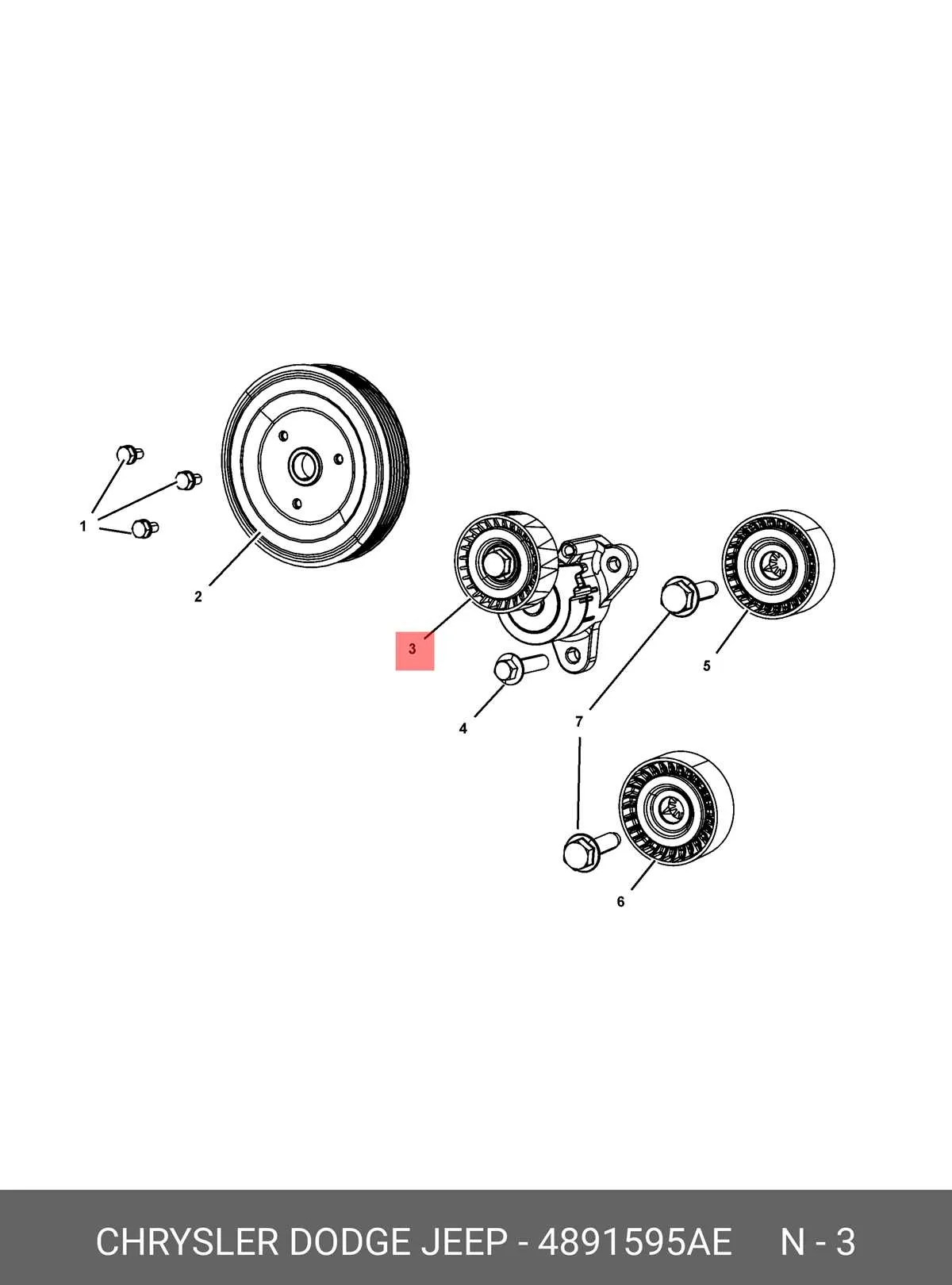

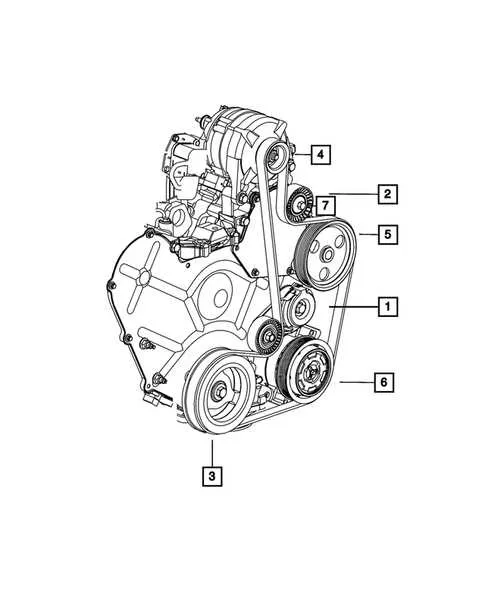

2018 Dodge Journey 2.4 Belt Diagram
The 2018 Dodge Journey 2.4 uses a serpentine belt system to drive various engine components. The belt routing diagram ensures that all accessories, like the alternator, power steering pump, and air conditioning compressor, receive the power they need. To replace or inspect the belt, make sure to follow the correct routing path to avoid misalignment or damage.

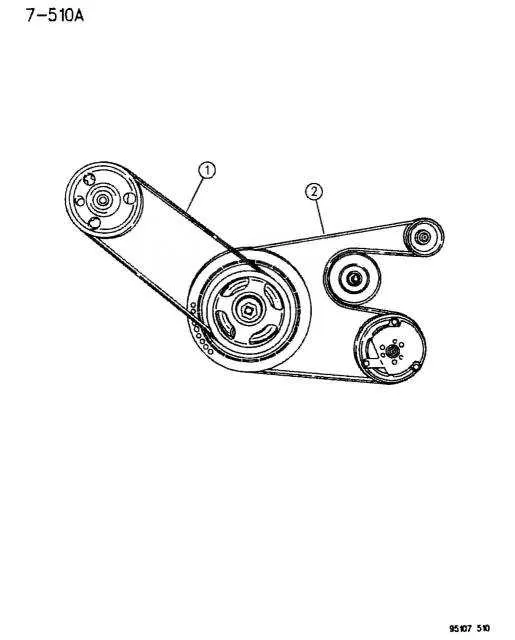

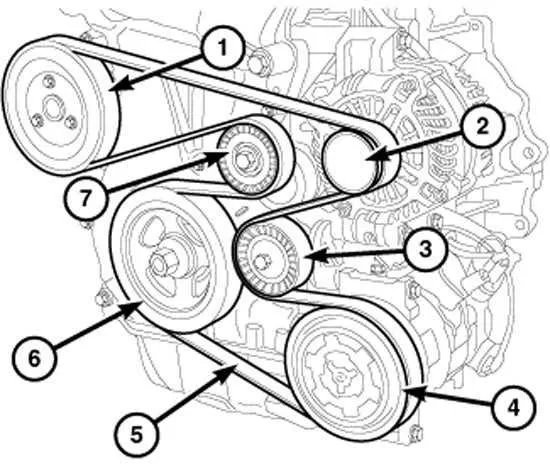

The diagram shows the serpentine belt routed around key pulleys: the crankshaft pulley, tensioner, alternator, air conditioning compressor, power steering pump, and water pump. The tensioner pulley is a critical part of maintaining the correct belt tension. Check the belt for signs of wear, such as cracks, fraying, or glazing, and replace it if necessary.
To install a new belt, loosen the tensioner using a suitable tool, remove the old belt, and carefully follow the diagram to position the new one around all pulleys. Tighten the tensioner pulley to the correct tension after the belt is in place. Always double-check the routing to ensure it’s aligned properly before starting the engine.
Refer to your vehicle’s service manual for specific torque settings and any additional steps required for your model. Always ensure that the replacement belt matches the manufacturer’s specifications in terms of size and type for optimal performance.
How to Locate the Serpentine Belt in 2018 Dodge Journey 2.4
To locate the serpentine belt in a 2018 Dodge Journey 2.4, open the hood and find the engine bay. The belt runs along the front of the engine, looping around various pulleys and accessories, including the alternator, power steering pump, and air conditioning compressor.
On the 2.4-liter engine, the serpentine belt is situated at the front-left side of the engine block. It’s visible when you stand in front of the vehicle, looking toward the engine. You may need to remove any plastic engine covers or components that might be obstructing your view.
Look for a small diagram on the radiator support or near the engine compartment. This diagram shows the exact routing of the serpentine belt and helps in understanding how it interacts with the different components.
If you need to replace or inspect the belt, use a wrench or serpentine belt tool to relieve tension on the tensioner pulley, allowing you to remove or inspect the belt. Be cautious when handling the belt, as it can be worn or damaged over time.
Step-by-Step Guide to Replacing the Belt on a 2018 Dodge Journey 2.4
Replacing the serpentine belt on your 2018 Dodge Journey 2.4 is a straightforward process if you follow these steps carefully. Here’s how to do it:
- Lift the Vehicle
Use a jack to raise the front of the vehicle and secure it with jack stands. Make sure the car is stable before proceeding. - Locate the Serpentine Belt
The belt runs over the alternator, power steering pump, air conditioning compressor, and other components. It can be accessed from the engine compartment. - Release the Tension
Use a wrench or a serpentine belt tool to release the tension on the tensioner pulley. Rotate the tensioner counterclockwise to loosen the belt. - Remove the Belt
Once the tension is released, carefully slide the belt off the pulleys. Take note of the belt routing for reinstallation. - Inspect the New Belt
Before installing the new belt, compare it with the old one to ensure it’s the correct size and has the same number of grooves. - Install the New Belt
Begin by routing the new belt around the pulleys, following the diagram. Ensure that the belt sits properly in all the grooves. - Apply Tension
Use the wrench or serpentine tool to move the tensioner pulley back into position. This will apply tension to the new belt. - Double-Check the Installation
Make sure the belt is seated correctly on all pulleys and that it’s not misaligned. - Lower the Vehicle
Remove the jack stands and lower the car back to the ground. Start the engine and observe the belt in operation to confirm it’s functioning properly.
With these steps, you’ll have the serpentine belt replaced and your vehicle running smoothly again.
Troubleshooting Common Belt Issues in the 2018 Dodge Journey 2.4
If the serpentine belt in your 2018 Dodge Journey 2.4 begins to squeal, it’s often due to wear or improper tension. Start by inspecting the belt for cracks, fraying, or glazing. A worn belt should be replaced as it can fail unexpectedly, leading to engine damage.
Check the tensioner and idler pulleys for wear. If the belt appears fine but you hear noise, a worn tensioner could be the cause. The tensioner maintains proper belt tension; if it fails, the belt will slip or squeal. It should be replaced if it doesn’t apply sufficient pressure to keep the belt tight.
Examine the alignment of the pulleys. Misaligned pulleys can lead to premature belt wear and cause it to wear unevenly. If the pulleys are misaligned, the issue may stem from a damaged or worn-out component, such as the alternator or power steering pump.
Ensure the belt is installed correctly. A belt installed in the wrong configuration will not work efficiently. Refer to the factory belt diagram to confirm the correct routing. Incorrect installation can lead to severe damage to the belt or the engine components it powers.
If you experience power steering failure or the engine overheats, check the belt for damage or slippage. The serpentine belt powers several key components, so if it slips or breaks, the car’s systems can stop functioning properly.
Lastly, keep an eye on the belt’s age. A belt that’s more than 60,000 miles old may be more prone to failure, even if it looks fine. Regular checks and timely replacement will prevent unexpected issues.
