2007 Hyundai Santa Fe 2.7 Belt Diagram and Component Layout Guide
For accurate belt routing on your 2007 Hyundai Santa Fe 2.7, refer to the correct diagram for your engine model. The serpentine belt system powers key components such as the alternator, power steering, and air conditioning. A detailed diagram ensures proper alignment and function during installation or replacement.
Ensure that the diagram you’re using matches the 2.7 engine version of the Santa Fe, as different engine configurations may require different belt paths. Pay special attention to the placement of pulleys and the tensioner. An incorrect setup can lead to premature wear or even damage to the components.
Before replacing belts, check for any signs of wear, such as cracks or fraying. Always replace damaged belts promptly to prevent further engine complications. With the correct diagram and proper maintenance, your Santa Fe’s belt system will run smoothly and efficiently.

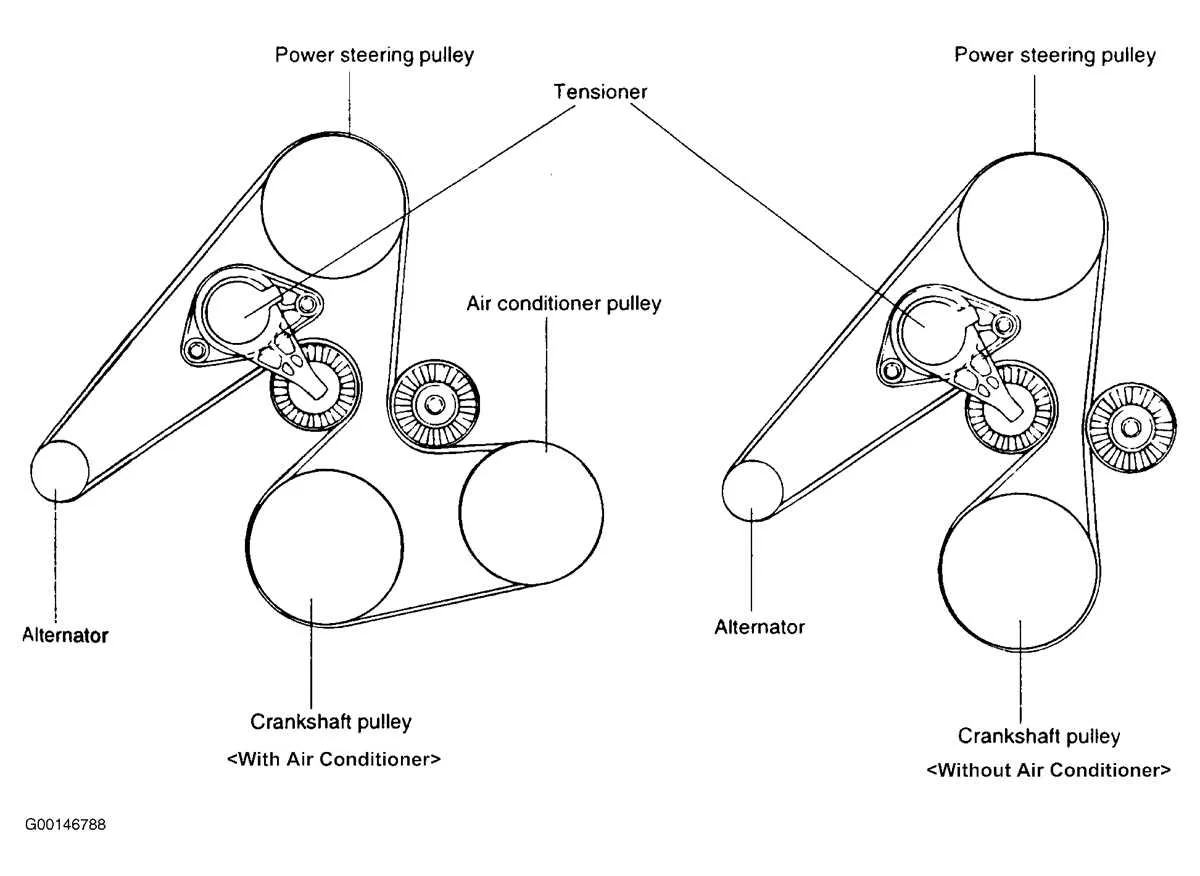

2007 Hyundai Santa Fe 2.7 Belt Diagram

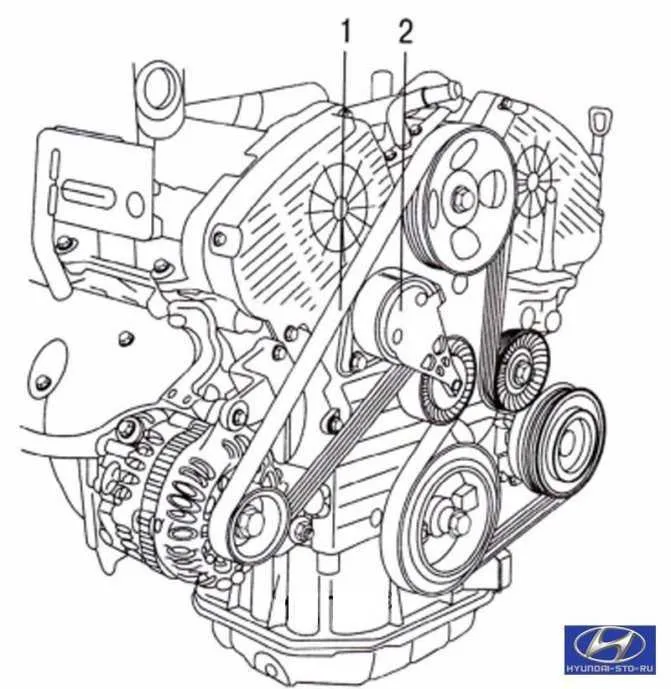

For the 2007 Hyundai Santa Fe 2.7, the belt diagram provides a clear layout of how the serpentine belt routes through various components of the engine. Follow these steps to ensure proper installation:
1. Start by locating the tensioner pulley, which is responsible for keeping the belt taut. The diagram will show the direction of the belt as it runs around the crankshaft, water pump, alternator, power steering pump, and air conditioning compressor.
2. Pay attention to the correct routing order. The belt typically runs from the crankshaft pulley, then around the alternator, followed by the power steering pump and water pump, with the air conditioning compressor typically placed at the end of the routing.
3. Ensure that the belt is positioned correctly over all pulleys. Improper alignment can lead to belt wear, slippage, or premature failure.
4. Once the belt is properly routed, check that the tensioner pulley is exerting adequate tension. The belt should not be too tight or too loose, which could result in noise or poor engine performance.
5. If replacing the belt, it’s recommended to inspect the pulleys and tensioner for wear and replace them as needed before installing a new belt.
Consult the owner’s manual or a repair guide for the exact belt specifications and routing diagram, as these can vary slightly depending on your specific engine model.
Understanding the Belt Configuration for 2007 Hyundai Santa Fe 2.7
The belt configuration for the 2007 Hyundai Santa Fe 2.7 is straightforward once you know the placement of each component. The main drive belt connects the crankshaft to various accessories, including the alternator, power steering pump, and air conditioning compressor. Make sure to inspect the belt for signs of wear or damage, as a worn-out belt can lead to a loss of power steering or electrical issues.
Start by ensuring that the belt tensioner is functioning correctly. It should maintain proper tension, allowing the belt to run smoothly. If the tension is off, the belt can slip, leading to reduced performance or damage to the engine components. Always refer to the specific routing diagram, which shows the correct path and direction of the belt.
For a successful replacement or inspection, follow these key steps: first, disengage the battery and remove any obstructing parts around the belt. Then, use a wrench or appropriate tool to release the tensioner, allowing you to remove the old belt. Before installing the new belt, compare it with the old one to ensure proper fit and tension. Double-check that the new belt follows the correct route and is properly aligned with all pulleys.
Regular maintenance of the belt system is necessary to avoid potential engine failures. If you hear squealing noises or notice visible cracks on the belt, replace it immediately to prevent further damage to your vehicle’s engine.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2007 Hyundai Santa Fe 2.7
Replacing the serpentine belt on a 2007 Hyundai Santa Fe 2.7 is straightforward if you follow these steps carefully.
- Gather the Tools and Parts
You will need a new serpentine belt, a ratchet wrench, a socket set, a belt tensioner tool, and gloves for protection. - Locate the Serpentine Belt
Open the hood and find the serpentine belt routing diagram, usually on the engine bay’s radiator support or near the front of the engine. This will guide you through the exact belt path. - Release Tension from the Belt
Use a belt tensioner tool to rotate the tensioner pulley counterclockwise. This will loosen the belt. Carefully slide the belt off the pulleys once it’s loose. - Remove the Old Belt
Once loosened, remove the belt from all pulleys. Make sure to remember the routing for the new belt, as it must follow the same path. - Install the New Serpentine Belt
Starting with the lowest pulley, route the new belt over the pulleys, following the same path as the old belt. Double-check the alignment to ensure the belt sits properly in each pulley groove. - Reapply Tension
Use the belt tensioner tool again to rotate the tensioner pulley and allow the belt to slide back onto the last pulley. Release the tensioner to apply proper tension to the new belt. - Inspect and Test
Double-check the belt’s positioning and make sure it’s aligned properly with all pulleys. Start the engine and observe the belt’s movement. If it runs smoothly without any issues, the installation is successful.
By following these steps, you can replace the serpentine belt on your 2007 Hyundai Santa Fe 2.7 without any hassle. Make sure to dispose of the old belt properly and keep an eye on the new one for wear and tear over time.
Common Issues with the 2007 Hyundai Santa Fe 2.7 Belt and How to Fix Them
If your 2007 Hyundai Santa Fe 2.7’s belt is squeaking, slipping, or showing signs of wear, it’s likely time to address these issues. Regular inspection and replacement are key to avoiding costly repairs down the road.
A common issue is belt slippage, often caused by worn or loose tensioners. This can lead to poor performance in engine components like the alternator and power steering. To fix this, inspect the belt tensioner. If it’s faulty, replace it with a new one. Make sure the belt is tight enough to avoid slipping but not overly tight, which can cause damage to other engine components.
Another frequent problem is belt wear due to improper alignment. Misalignment can happen if pulleys are damaged or if the belt isn’t properly installed. To correct this, check the pulleys for any visible damage or debris and clean or replace them as needed. Ensure that the belt is routed according to the manufacturer’s diagram and that each pulley is aligned correctly.
Cracking or fraying of the belt is another sign of wear. If the belt is more than a few years old or shows visible damage, replace it with a new one. Always opt for a belt that matches the specifications for your vehicle model to ensure proper fit and performance.
Over time, the pulleys can also wear down, which can cause the belt to slip or make noise. Inspect each pulley for smooth operation. If you notice any wobbling or grinding, replace the pulley immediately. This will prevent further damage to the belt and surrounding components.
Lastly, be aware of the belt’s tension. A belt that’s too loose will not properly power accessories like the alternator, air conditioning, and power steering. Regularly check the tension and adjust it as needed to keep the system functioning smoothly.
