Husqvarna Z248F Deck Belt Diagram Guide for Accurate Installation and Maintenance
Check the deck belt routing on your Husqvarna Z248F before any maintenance to prevent misalignment and premature wear. The deck belt connects the engine pulley to the mower blades, ensuring smooth cutting performance. A clear diagram helps identify tension points, idler pulleys, and the correct path through each spindle pulley.
Use the diagram to inspect for frayed edges or cracks along the belt. Proper alignment reduces strain on the mower deck and extends the lifespan of both the belt and spindles. Follow the indicated routing closely to avoid accidental belt slips or uneven blade rotation.
Replace the belt if any damage is visible, noting that installation requires threading the belt around multiple pulleys in a specific sequence. Tighten the idler pulley to maintain correct tension, and rotate the spindles by hand after installation to verify smooth movement.
Store the diagram for reference during seasonal maintenance. Accurate routing prevents unnecessary repairs, ensures consistent blade performance, and keeps your Z248F operating safely and reliably throughout the mowing season.
Husqvarna Z248F Deck Belt Diagram
Locate the deck belt by removing the mower deck and inspecting the routing path over the pulleys. Start with the engine pulley, loop the belt around the idler pulleys, and finish at the spindle pulleys. Ensure the belt sits fully in the grooves to prevent slipping and uneven wear.
Check the tension of the belt after installation. Use the deck lift lever to engage the tensioner and verify the belt remains tight without excessive strain. Adjust the idler arms if necessary to maintain proper alignment.
Replace the belt immediately if you notice cracks, fraying, or glazing on the surface. Using a worn belt can damage pulleys and reduce cutting performance. Always choose a replacement belt matching the Husqvarna Z248F specifications.

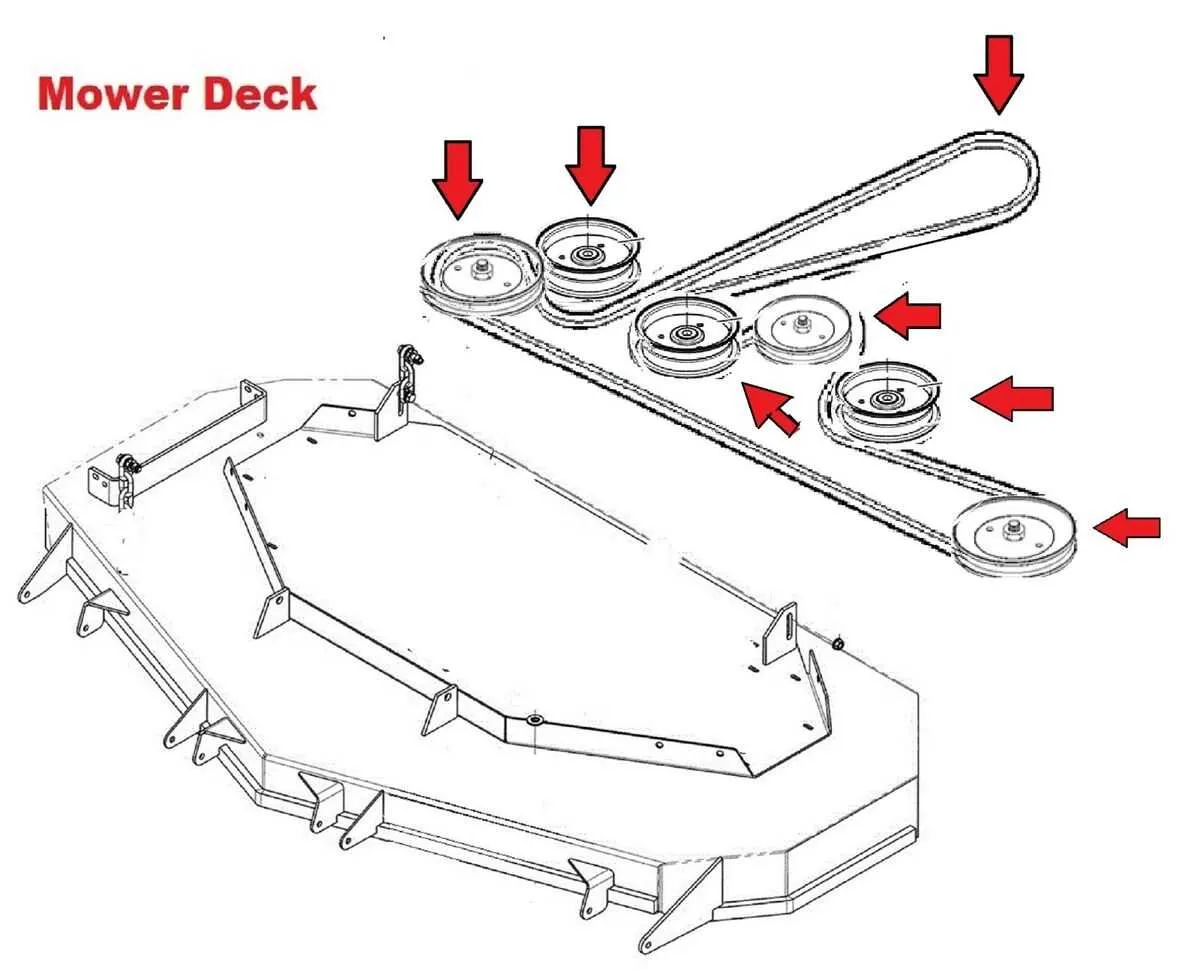

Refer to the deck belt diagram for correct pulley order and belt orientation. Following the diagram closely reduces installation errors and ensures smooth operation of the mower deck. Keep the diagram accessible for future maintenance or belt replacements.
Locating the Deck Belt on Husqvarna Z248F
Access the deck belt by first removing the mower deck from the Z248F. Position the mower on a flat surface and engage the parking brake. Slide under the deck and identify the two main pulleys: the engine pulley and the deck idler pulley. The belt wraps around the engine pulley at the front and the deck pulleys at the rear, following a clear zigzag pattern.

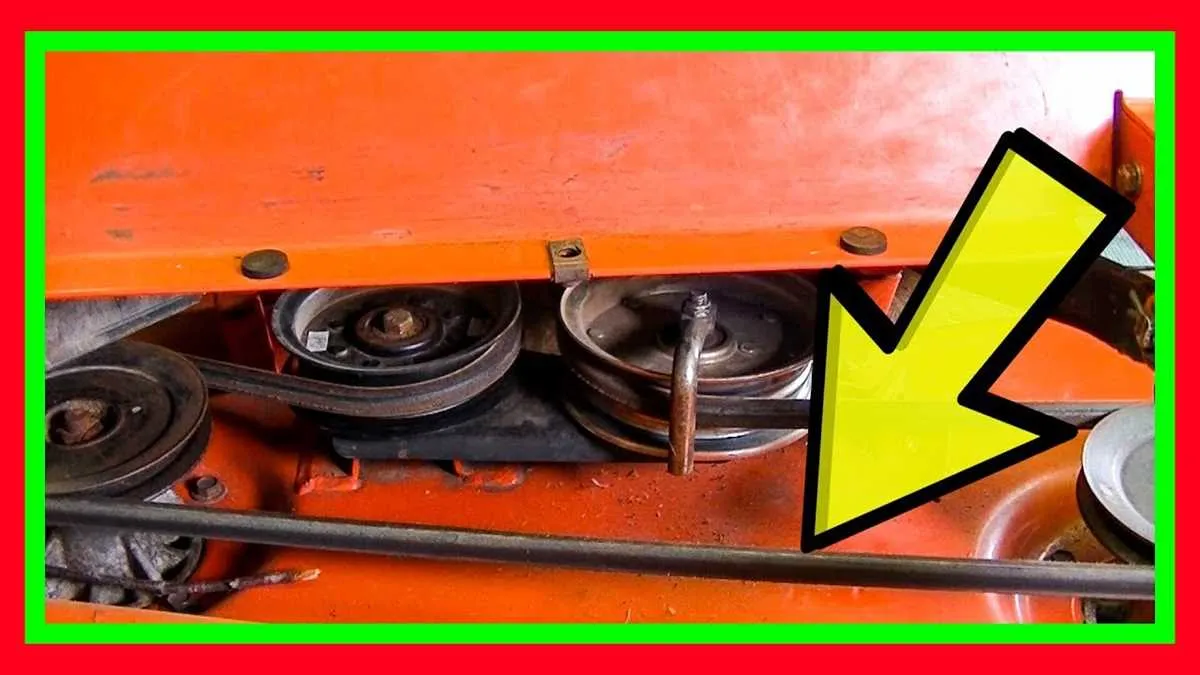

Locate the tensioner arm near the front of the deck. The deck belt passes through its groove, maintaining proper tension. Release the tension by pushing the arm outward, then carefully lift the belt off the pulleys. Note the orientation of the belt teeth and grooves to match when reinstalling. Check the belt for wear marks or cracks during removal to ensure smooth operation after replacement.
For easier access, remove the mower deck anti-scalp wheels and adjust the deck height to its highest setting. This exposes the belt path fully and allows clear visibility of the idler pulleys and spring attachments. Follow the belt diagram printed on the deck shell if available, ensuring correct routing over each pulley. After positioning the new belt, rotate the pulleys by hand to verify alignment and tension before lowering the deck back into place.
Step-by-Step Belt Routing for Z248F Mower Deck
Position the mower on a flat surface and engage the parking brake to prevent movement. Begin by placing the belt around the engine pulley closest to the mower deck. Ensure the belt sits firmly in the pulley groove.
Route the belt under the idler pulley located near the front center of the deck. Pull the belt upward and loop it around the left spindle pulley, keeping tension consistent. Follow the belt across to the right spindle pulley, making sure it remains flat against the deck’s guide edges.
Pass the belt around the secondary idler pulley near the deck’s rear. Check that the belt does not twist or overlap itself at any point. Loop the belt back toward the engine pulley, maintaining alignment with all intermediate pulleys.
Engage the tensioner arm by pulling it outward and slide the belt onto the tensioner pulley. Release the tensioner slowly to apply proper pressure on the belt. Rotate each spindle by hand to confirm smooth movement and correct tracking along all pulleys.
Double-check that the belt sits in all pulley grooves and maintains a straight path without rubbing against deck edges or mounting brackets. Make minor adjustments by slightly shifting the belt on idler pulleys to eliminate any misalignment.
Troubleshooting Common Deck Belt Issues on Z248F
Inspect the belt for cracks, fraying, or glazing. Replace the belt immediately if you notice any visible damage, as worn belts can slip or break under load.
Check belt tension by pressing down on the center of the belt span. A properly tensioned belt should deflect approximately ½ inch. Adjust the idler pulley or tensioner according to the Z248F manual to achieve correct tension.
Examine pulleys for debris or wear. Remove grass clippings, dirt, and any foreign objects. Ensure pulleys spin freely without wobbling or noise.
Verify alignment between the engine pulley and deck pulleys. Misaligned pulleys cause uneven wear and reduce belt lifespan. Adjust the brackets or reposition the deck to restore alignment.
Listen for unusual noises during operation. Squealing indicates slipping, while grinding may signal a damaged pulley or bearing. Replace faulty components immediately.
Rotate the deck manually to check for smooth movement. Binding or resistance suggests bent spindles or seized bearings that may affect belt performance.
Follow these steps systematically:
- Turn off the mower and remove the key.
- Inspect the belt for visible damage.
- Check belt tension and adjust if necessary.
- Clean all pulleys and check for free rotation.
- Confirm proper pulley alignment.
- Replace any worn or damaged components.
- Test the deck by slowly engaging the blades.
Keep a replacement belt and basic tools in your maintenance kit. Regular inspection every 25 hours of use prevents sudden failures and maintains cutting performance.
