2007 Hyundai Elantra Engine Belt Routing Diagram for Accurate Installation and Maintenance
Locate the serpentine belt routing immediately behind the engine front cover for the 2007 Hyundai Elantra. The belt wraps around the crankshaft pulley, alternator, power steering pump, and A/C compressor, forming a precise path that ensures each accessory operates smoothly.
Use the belt diagram printed on the radiator shroud or inside the engine compartment to verify correct placement. Tensioners should be checked for proper alignment and pressure, as incorrect installation can lead to premature wear or slipping.
When replacing the belt, release tension using the tensioner bolt and carefully guide the belt along the pulleys following the exact routing. Confirm each pulley groove matches the belt ribs to prevent misalignment and avoid engine damage.
Regular inspection of the belt for cracks, fraying, or glazing helps maintain engine performance and reduces the risk of sudden failure. Keep a spare belt and a reliable diagram accessible to simplify maintenance and repairs.
Verify the belt path visually after installation and run the engine briefly to ensure smooth operation. Misplaced belts can generate noise, reduce accessory efficiency, or trigger warning indicators, making careful adherence to the diagram necessary.

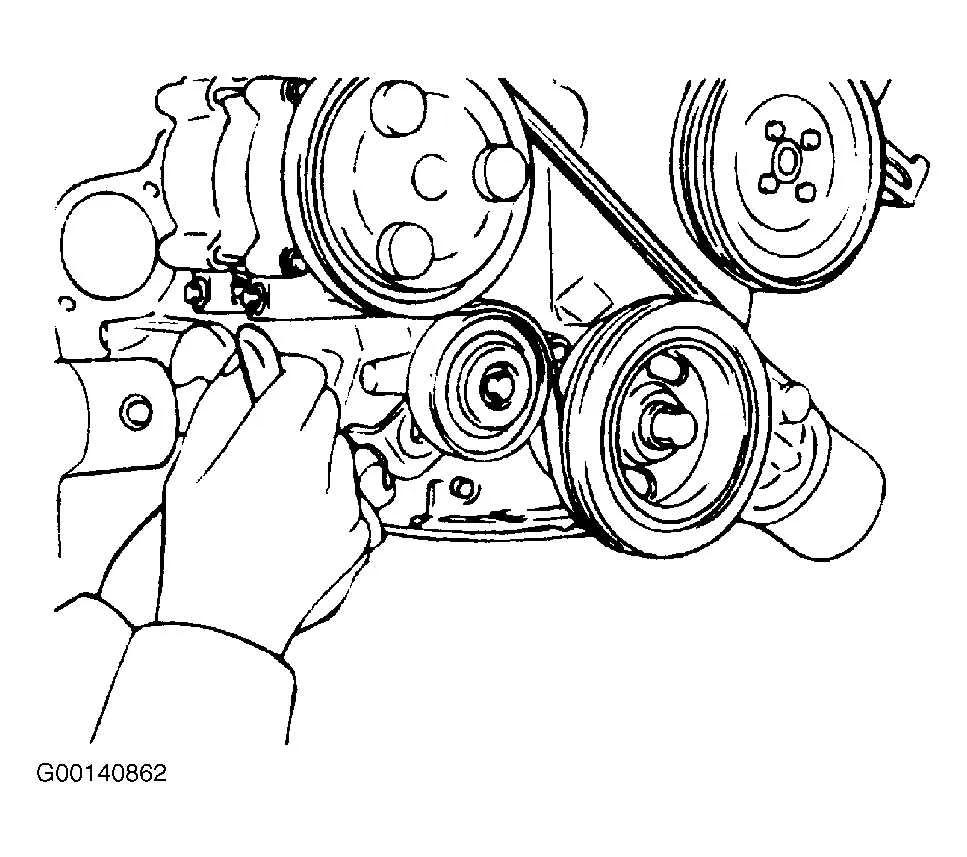

2007 Hyundai Elantra Belt Diagram
Locate the serpentine belt routing on the front engine cover; for the 2007 Hyundai Elantra with a 2.0L engine, the belt runs from the crankshaft pulley to the alternator, water pump, power steering pump, and air conditioning compressor. Follow the tensioner pulley carefully when removing the old belt to avoid misalignment.
Use a belt diagram specific to the 2007 Elantra, usually found in the engine bay or the service manual, to match the correct path over each pulley. Begin installation at the crankshaft pulley, looping the belt around the alternator, then over the tensioner, and finish at the A/C compressor. Ensure the belt sits fully in the grooves of each pulley to prevent slipping or premature wear.
Check the tensioner after installation; it should allow slight movement while keeping the belt tight. Rotate the engine manually two full turns to confirm the belt tracks smoothly without rubbing or skipping pulleys. Inspect for cracks, fraying, or glazing before completing the setup, replacing any components that show damage.
Keep a wrench or serpentine belt tool on hand for tension adjustments. Maintaining the correct belt routing and tension ensures reliable operation of the alternator, power steering, and cooling system. Regular inspection every 30,000 miles prevents unexpected failures and maintains engine efficiency.
Locating and Identifying All Engine Belts
Locate the serpentine belt on the front of the engine, running around the alternator, power steering pump, water pump, and air conditioning compressor. Check the belt for smooth, crack-free surfaces and consistent tension.
The timing belt sits behind the engine cover on the passenger side. Remove the cover to inspect the belt’s teeth and alignment marks, which indicate proper engine timing.
Use the following steps to identify each belt clearly:
- Serpentine Belt: Single, wide belt looping across multiple pulleys; drives accessories like alternator and AC compressor.
- Timing Belt: Narrow, toothed belt located under the plastic cover; coordinates crankshaft and camshaft movement.
- Accessory Belts: Smaller belts on older 2007 Elantra trims; usually run the alternator or power steering separately.
Mark each belt path with chalk or tape before removing any belt. Check each pulley for smooth rotation and absence of play. Keep a belt routing diagram on hand to ensure correct reinstallation. Confirm belt tension using a manual tension gauge or by pressing the belt mid-span; it should deflect approximately half an inch under moderate pressure.
Labeling each belt after inspection avoids confusion during maintenance and ensures accurate replacement. Follow the manufacturer’s torque specifications on tensioners and pulleys for secure operation.
Regular inspection every 30,000 miles helps catch wear early. Replace belts showing fraying, cracking, or glazing to maintain engine performance and prevent breakdowns.
Step-by-Step Belt Routing for Replacement
Loosen the tensioner pulley using a 14mm wrench to relieve tension from the serpentine belt. Pull the belt off the pulleys carefully, keeping note of its routing for reference.
Start routing the new belt around the crankshaft pulley at the bottom of the engine. Loop the belt clockwise over the alternator pulley on the top left, then under the water pump pulley located near the center.
Next, guide the belt over the power steering pump pulley on the top right. Make sure the belt sits squarely in the grooves of each pulley to avoid slippage or premature wear.
Route the belt around the A/C compressor pulley at the lower right side, maintaining tension but leaving it slightly loose near the tensioner. Check alignment against the pulley diagram specific to the 2007 Hyundai Elantra.
Finally, pull the tensioner pulley to slip the belt into its final position. Release the tensioner slowly, ensuring the belt locks into place on all pulleys. Rotate the engine manually two complete turns to confirm smooth movement and proper alignment.
| Pulley | Belt Position |
|---|---|
| Crankshaft | Bottom, starting point |
| Alternator | Top left, over |
| Water Pump | Center, under |
| Power Steering Pump | Top right, over |
| A/C Compressor | Lower right, over |
| Tensioner | Final, adjust tension |
Inspect the belt after installation for any twists or misalignment. Start the engine and observe the belt for smooth operation without slipping or noise.
Tension Adjustment and Inspection Tips
Check belt tension using a tension gauge at the longest span between pulleys; the recommended deflection for the 2007 Hyundai Elantra serpentine belt is 10–15 mm with moderate finger pressure. Excessive slack can cause squealing or premature wear, while overtightening stresses bearings and accessories.
Inspect the belt surface for cracks, fraying, or glazing along both edges. Replace the belt if any damage appears, as compromised belts reduce efficiency and may break under load.
Use a wrench to rotate the tensioner pulley clockwise to relieve tension, then slide the belt off the pulleys carefully. Align the new or inspected belt according to the factory diagram, ensuring all grooves seat correctly in the pulleys to prevent slippage.
After installation, release the tensioner slowly to apply proper tension. Spin each pulley by hand to confirm smooth rotation and that the belt tracks correctly without wobbling or noise.
Check tension again after the engine runs for a few minutes, as belts often settle slightly. A final visual inspection ensures pulleys remain aligned and no unusual movement occurs, extending belt life and maintaining accessory performance.
