Husqvarna Riding Lawn Mower Belt Diagram and Maintenance Guide

To replace or repair the belt on your Husqvarna riding lawn mower, it’s critical to follow the correct belt diagram. This ensures proper installation and avoids unnecessary wear or damage. Check the diagram for a clear visual guide to the belt routing system, which helps you understand how each component fits together.

Start by identifying the exact model of your Husqvarna mower. Belt configurations can vary depending on whether you have a zero-turn or a traditional lawn tractor. Once you know your model, you can easily find the corresponding diagram in the user manual or online. The diagram provides detailed instructions on where each belt loop goes, helping you save time and frustration.

It’s important to inspect the belt’s condition before replacing it. Look for any signs of wear, cracks, or fraying that might affect the mower’s performance. A worn-out belt can cause the blades to stop spinning, leading to uneven cutting or damage to the mower. Replacing the belt using the diagram ensures everything is aligned and functioning properly.

Refer to the manual for specific instructions on how to access and replace the belt. Typically, you will need to remove a few panels or shields, which may require basic tools. By following the diagram closely, you can ensure that the new belt is installed without complications, extending the life of your mower.

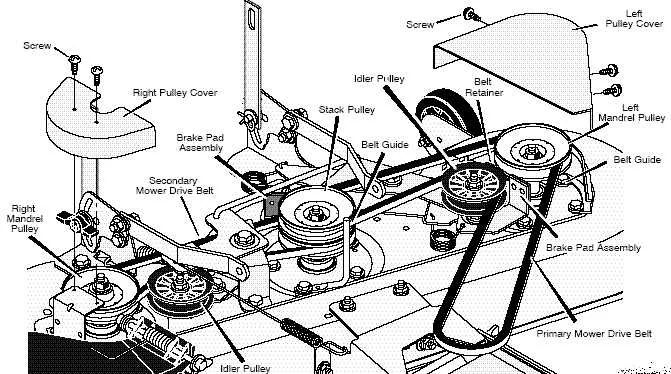

Husqvarna Riding Lawn Mower Belt Diagram

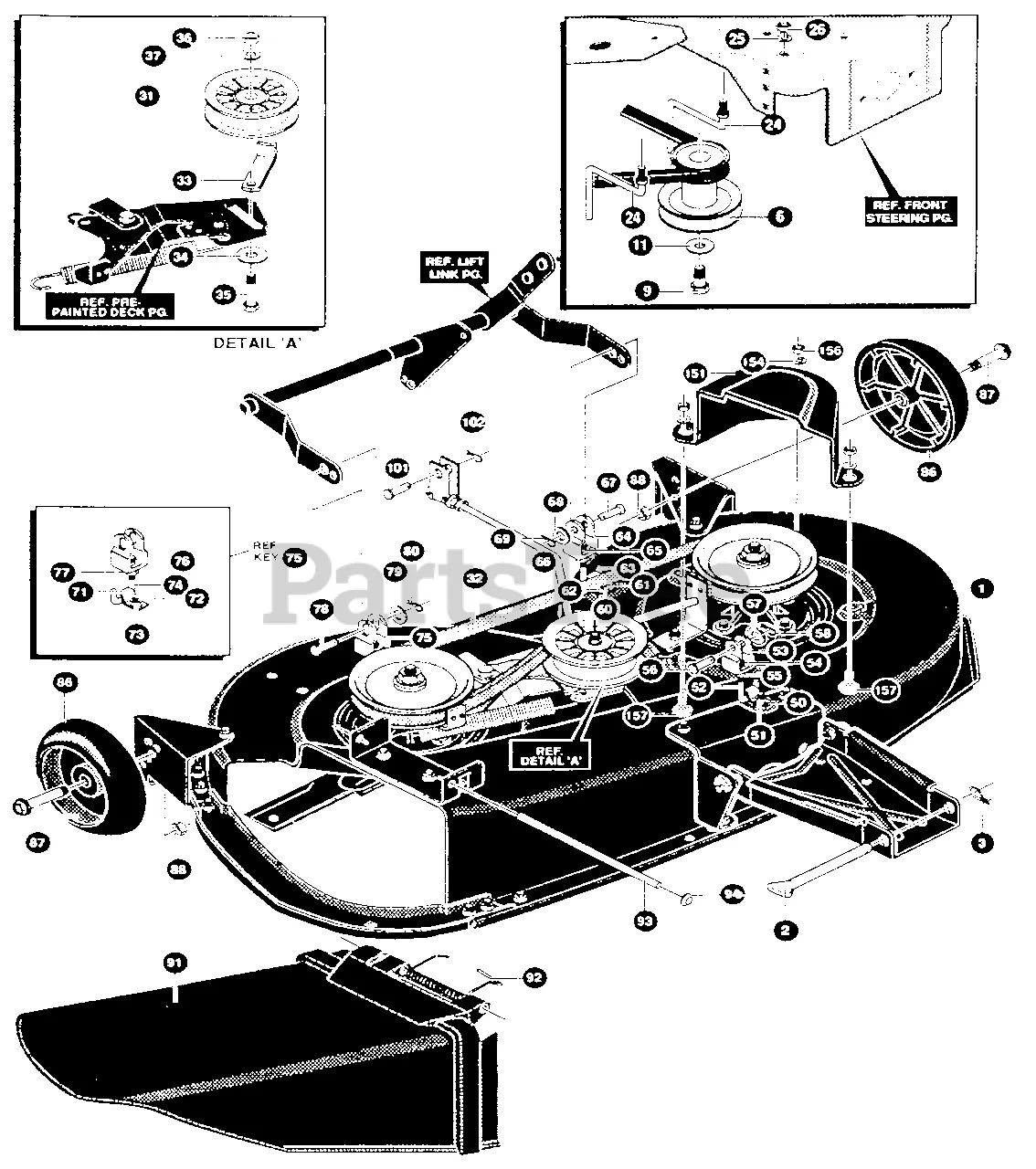

For quick and accurate replacement of the drive or deck belt, always refer to the specific belt diagram for your Husqvarna riding lawn mower model. The belt system is key to ensuring smooth operation and efficient cutting. Here’s a basic guide to help you understand the belt routing:

• Start by identifying the correct diagram for your model. Check the owner’s manual or the machine’s frame near the engine for a sticker with the belt routing diagram.
• Disconnect the battery before beginning any maintenance. This ensures safety while handling the belts and other components.
• For the drive belt, it typically routes around the engine pulley, transmission pulley, and rear axle. Follow the path shown on the diagram to avoid mistakes.
• The deck belt usually loops around the deck pulleys, including the spindle pulleys, and the idler pulleys. Make sure the belt tension is correctly adjusted during installation to prevent slippage or excessive wear.
• If you’re replacing the belt, inspect all pulleys for signs of damage, wear, or debris. Clean and lubricate the pulleys if needed to ensure smooth belt movement.

Consulting the diagram during belt replacement will save time and reduce errors. It’s always a good practice to take a photo of the belt routing before disassembly to reference during reinstallation. If you’re unsure, a professional can assist with the replacement, but most DIY enthusiasts can complete the task with the right tools and guidance.

How to Read and Understand the Husqvarna Mower Belt Diagram

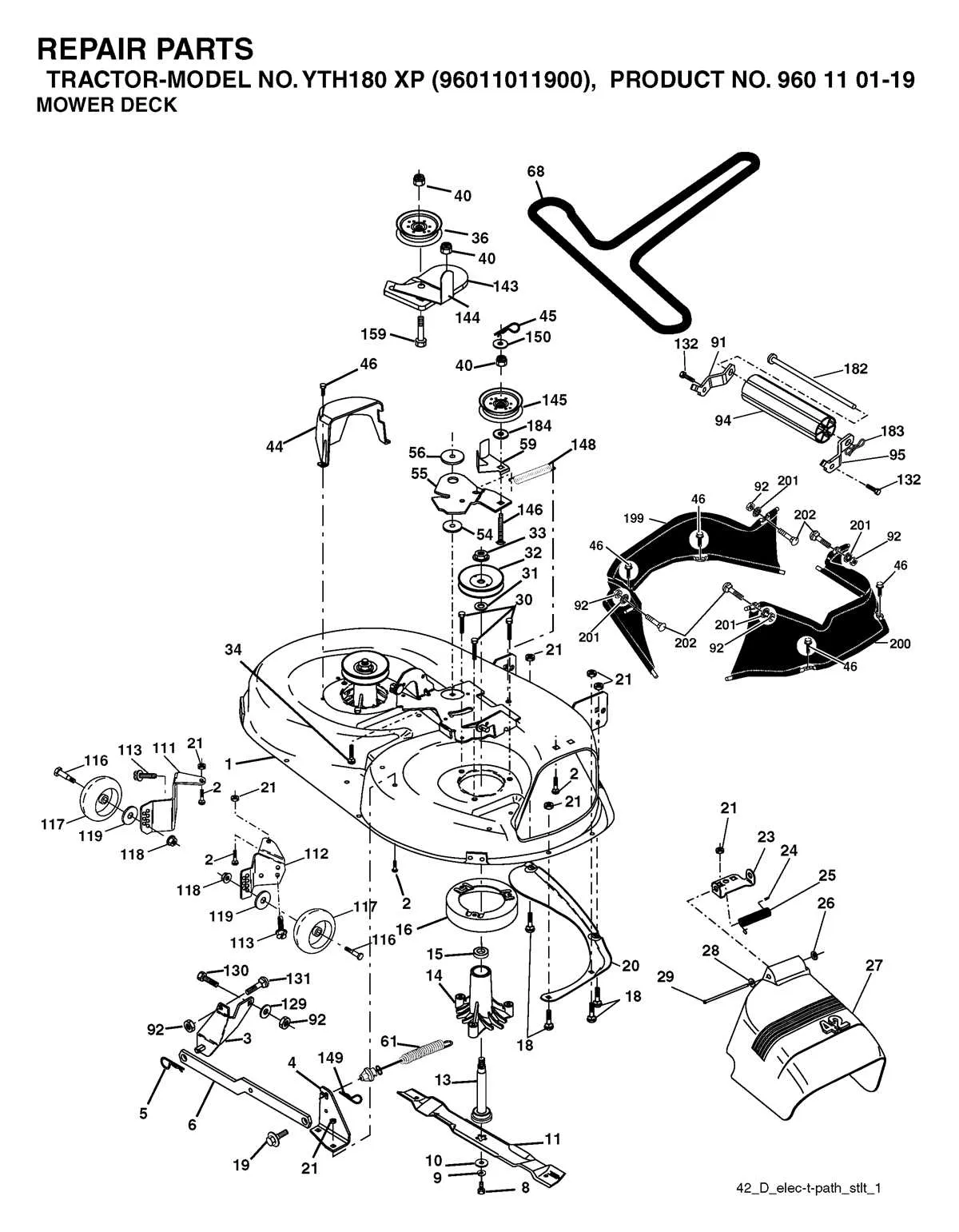

Start by locating the belt diagram on your Husqvarna mower. Typically, it’s found on the inside of the mower deck or in the owner’s manual. This diagram outlines the correct routing for the belts, which is crucial for smooth operation. Pay close attention to the belt paths, as even a slight misalignment can cause premature wear or malfunction.

The diagram will show each belt’s exact position and direction. Identify the primary drive belt, which transfers power from the engine to the mower deck. This is usually the longest belt and runs across multiple pulleys. Be sure to follow the arrows indicating belt direction, as reversing this can cause issues with power transfer.

Look for the tensioner pulley in the diagram. This component is responsible for maintaining proper belt tension. It’s important to check the tensioner regularly and ensure it’s in the right position. A loose belt can slip, while a tight one can strain the engine.

Examine the pulleys and idler arms shown in the diagram. Each component should match your mower’s setup. Pulleys guide the belt and help with smooth operation. If any pulleys appear worn or damaged, replace them immediately to avoid future issues.

If you’re replacing the belt, ensure it matches the one shown in the diagram. Mower belts come in various sizes and lengths, so double-check that the new belt matches the original one in terms of dimensions and strength. Installing the wrong size belt can cause it to stretch or slip.

For visual clarity, use the diagram as a reference during reassembly. Lay out the new belt along the path indicated, making sure it rests in the correct grooves on each pulley. Once in place, rotate the pulleys by hand to ensure the belt moves freely without resistance.

Following the belt diagram closely will help avoid unnecessary repairs and ensure your mower runs smoothly. Proper belt maintenance reduces strain on other components, improving the mower’s longevity and performance.

Step-by-Step Guide to Replacing the Drive Belt on Your Husqvarna Mower

To replace the drive belt on your Husqvarna riding mower, start by securing the mower on a flat, stable surface. Turn off the engine and disconnect the spark plug wire to prevent accidental starts. Lift the mower deck using the lift lever or jack, depending on your model.

Next, remove any covers or shields blocking access to the drive belt. This may include side panels or the deck’s protective covers. Keep the screws in a safe place, as you’ll need them to reassemble the mower later.

Once the covers are off, locate the drive belt, which runs from the engine’s pulley to the transmission. Take note of how the belt is routed by either referring to the mower’s manual or taking a photo. This will help ensure the new belt is installed correctly.

Now, release the tension on the belt by moving the tensioner pulley away from the belt. You may need to use a wrench or socket set to loosen any bolts or nuts holding the pulley in place. Carefully slide the old belt off the pulleys, making sure not to damage any components.

Place the new belt onto the pulleys, ensuring it follows the same path as the old one. Make sure the belt is properly seated in the grooves of the pulleys. Once in place, return the tensioner pulley to its original position, applying enough tension to keep the belt secure.

Reinstall any covers or panels you removed earlier, securing them with the screws. Reconnect the spark plug wire and lower the mower deck back to its normal position. Finally, test the mower by starting it up and ensuring the belt is functioning correctly. If the mower runs smoothly without any unusual noises or slippage, the job is complete.

Common Belt Issues and Troubleshooting Tips for Husqvarna Riding Mowers

If your Husqvarna riding mower belt isn’t working properly, the issue could be with its tension, alignment, or condition. First, inspect the belt for any visible damage, cracks, or wear. A worn belt should be replaced immediately, as it can cause poor performance or even damage other components.

Check the belt tension regularly. Too much slack can lead to slippage, causing the mower to lose power and performance. Tighten the tension if necessary, following the manufacturer’s specifications. Conversely, if the belt is too tight, it may wear out faster or cause unnecessary strain on the engine.

Inspect the pulleys and idler arms for any obstructions or damage. Misaligned pulleys can cause the belt to slip or wear unevenly. Ensure that each pulley is spinning freely and properly aligned with the belt’s path. Replace any damaged or worn pulleys to avoid further issues.

Keep the mower deck clean and clear of debris. Grass and dirt buildup on the deck can interfere with the belt’s performance, causing it to overheat or lose grip. After each use, remove any grass clippings that may have accumulated around the pulleys or belt.

Listen for unusual noises while the mower is running. If you hear squealing or grinding sounds, it could indicate that the belt is slipping or rubbing against another part of the machine. Tighten the belt or adjust the pulley alignment to resolve this issue.

If the mower is still not functioning properly after addressing these areas, consider consulting a professional technician for further diagnosis. Regular maintenance will extend the life of your mower and prevent costly repairs down the road.
