Serpentine Belt Diagram for 2007 Honda Odyssey and Its Components
To maintain your 2007 Honda Odyssey in optimal condition, understanding the serpentine belt system is key. This belt powers several critical components, including the alternator, power steering pump, and air conditioning compressor. Regular inspection and timely replacement of the serpentine belt will prevent unexpected breakdowns and costly repairs.
The diagram of the serpentine belt for this model shows the precise routing path and tensioner placement. The belt loops around pulleys, including the crankshaft, alternator, water pump, and air conditioning compressor. It’s important to follow the correct routing for a smooth operation of all connected components.
Check the belt for any signs of wear, such as cracks, fraying, or glazing. A worn-out belt can slip, causing loss of power to the engine accessories. Replacing the belt at regular intervals is an effective way to avoid system failures that could compromise engine performance.
Use the diagram to guide you through the correct replacement process, ensuring each pulley is aligned properly to prevent further issues. This visual reference helps save time and prevents confusion during installation.
Serpentine Belt Diagram for 2007 Honda Odyssey
For the 2007 Honda Odyssey, the serpentine belt follows a specific routing pattern. It is critical to replace the belt if worn or damaged to prevent engine malfunction. The belt connects various engine components including the alternator, power steering pump, air conditioning compressor, and water pump.
The correct serpentine belt routing diagram for the 2007 Odyssey is shown below. Starting from the crankshaft pulley, the belt wraps around the following components in this order: crankshaft, power steering pump, air conditioning compressor, alternator, and water pump. Make sure the tensioner pulley is correctly positioned to maintain proper tension on the belt.
Double-check the belt’s alignment and condition before installation to avoid further damage. Replacing the serpentine belt involves lifting the vehicle, removing the old belt, and ensuring the new belt matches the routing diagram. Always use the right-sized belt and confirm it fits properly on each pulley.
How to Identify Key Components in the Serpentine Belt System
The serpentine belt system includes several key components that work together to drive essential engine accessories. Start by identifying the belt itself–this long, continuous rubber band wraps around the pulleys. Look for the tensioner, which keeps the belt taut. It’s a spring-loaded device that maintains the correct tension to prevent slipping.
Next, locate the idler pulley. This pulley does not drive any accessories but keeps the belt aligned. The alternator pulley is another crucial part; it generates electrical power and often acts as a key guide for the belt’s path. Don’t forget the power steering and water pump pulleys, which help keep these critical systems running smoothly.
Lastly, the crankshaft pulley is a central component. It directly drives the belt and is usually the largest pulley in the system. Inspect the entire system regularly for signs of wear, like cracks or fraying on the belt, or noise from pulleys. Proper maintenance of these components ensures that all systems powered by the serpentine belt operate efficiently.
Step-by-Step Instructions for Replacing the Serpentine Belt on a 2007 Honda Odyssey
To replace the serpentine belt on a 2007 Honda Odyssey, you’ll need a few tools: a socket wrench, a serpentine belt tool or a breaker bar, and the replacement belt. Begin by ensuring the engine is turned off and cool.

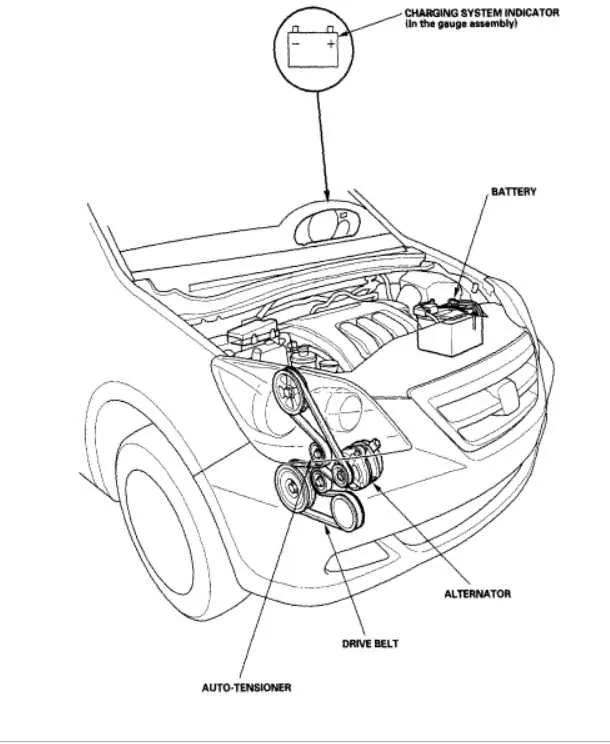

1. Locate the serpentine belt. On the 2007 Odyssey, it runs around several pulleys near the front of the engine. Check the diagram under the hood to understand the routing of the belt.

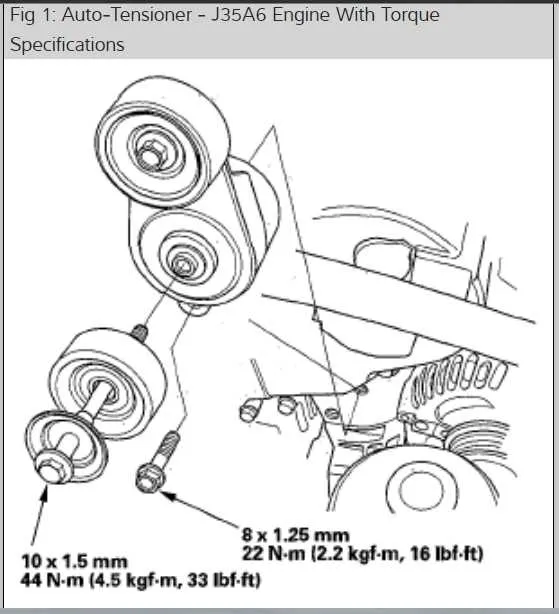

2. Use the socket wrench to loosen the tensioner. The tensioner pulley keeps the belt tight. With a serpentine belt tool or breaker bar, apply pressure to the tensioner pulley to relieve the tension. This will allow you to remove the belt easily.
3. Remove the old serpentine belt. Once the tension is relieved, slide the belt off the pulleys, starting from the top. Pay attention to how it is routed so you can install the new belt correctly.
4. Install the new serpentine belt. Follow the belt routing diagram, starting at the top pulleys and working your way down. Ensure the belt sits properly in the grooves of each pulley.
5. Re-tension the belt. Use the serpentine belt tool or breaker bar to return the tensioner pulley to its original position, which will tighten the new belt. Make sure the belt is snug but not overly tight.
6. Double-check the belt’s placement. Before starting the engine, ensure the belt is correctly routed and positioned on all pulleys. The belt should be centered in the grooves without any slipping or misalignment.
7. Start the engine. With the new belt in place, start the engine and observe the belt’s movement. It should rotate smoothly, with no noise or signs of slipping. If you notice anything unusual, turn off the engine immediately and recheck the installation.
Replacing the serpentine belt on a 2007 Honda Odyssey can be done at home with basic tools. Regular maintenance can prevent potential engine damage and keep your vehicle running smoothly.
Common Issues with the Serpentine Belt and How to Spot Them
Check for cracks or fraying on the serpentine belt regularly. These signs usually indicate wear and tear, which could lead to belt failure. If you notice any visible damage, replace the belt immediately to avoid further issues.
A slipping serpentine belt can cause a variety of performance issues. If you hear a squealing or squeaking noise, this could be a sign that the belt is loose or worn out. Make sure to check the tensioner and the belt’s condition. If the belt is slipping, adjust the tension or replace it if necessary.
Another common issue is a misaligned serpentine belt. This can cause uneven wear or excessive stress on the engine’s components. Inspect the pulleys for damage or debris that might cause the belt to misalign. Pay attention to any unusual sounds or vibrations during operation.
Sometimes, a damaged tensioner can cause the serpentine belt to lose tension, resulting in poor performance or complete failure. If you notice a rattling or squeaking noise from the tensioner area, it could indicate that it’s not functioning properly. In this case, inspect or replace the tensioner to prevent further damage.
- Cracks and fraying on the belt
- Slipping belt causing squealing sounds
- Misalignment of the serpentine belt
- Rattling or squeaking noise from the tensioner
Address these issues as soon as possible to maintain proper engine function and avoid costly repairs. Regular inspection and timely replacement of the serpentine belt can save you from more serious complications down the line.
