John Deere D170 54 Inch Mower Deck Belt Diagram and Maintenance Guide

If you’re looking for a clear and accurate diagram of the belt system for your John Deere D170 54-inch mower deck, you’ve come to the right place. This model’s belt configuration is essential for smooth operation, and having the right visual reference makes the replacement or maintenance process straightforward. The diagram clearly shows how the belts should be routed around pulleys and tensioners, helping you avoid errors during installation.

To start, make sure you have the correct belt size and type for your mower deck. John Deere provides a detailed belt diagram for the D170 54-inch model that helps you understand the positioning of each component. The belt runs over the pulleys, ensuring the blades rotate properly for cutting efficiency. Proper tension is also vital, so follow the recommended adjustments to keep everything running smoothly.

Check the diagram for any signs of wear or misalignment. A worn-out belt can cause slippage or even failure of the cutting system, so it’s important to inspect the belt regularly. If you notice any damage or fraying, it’s time to replace it with a genuine John Deere belt. Doing so will ensure your mower operates at peak performance.

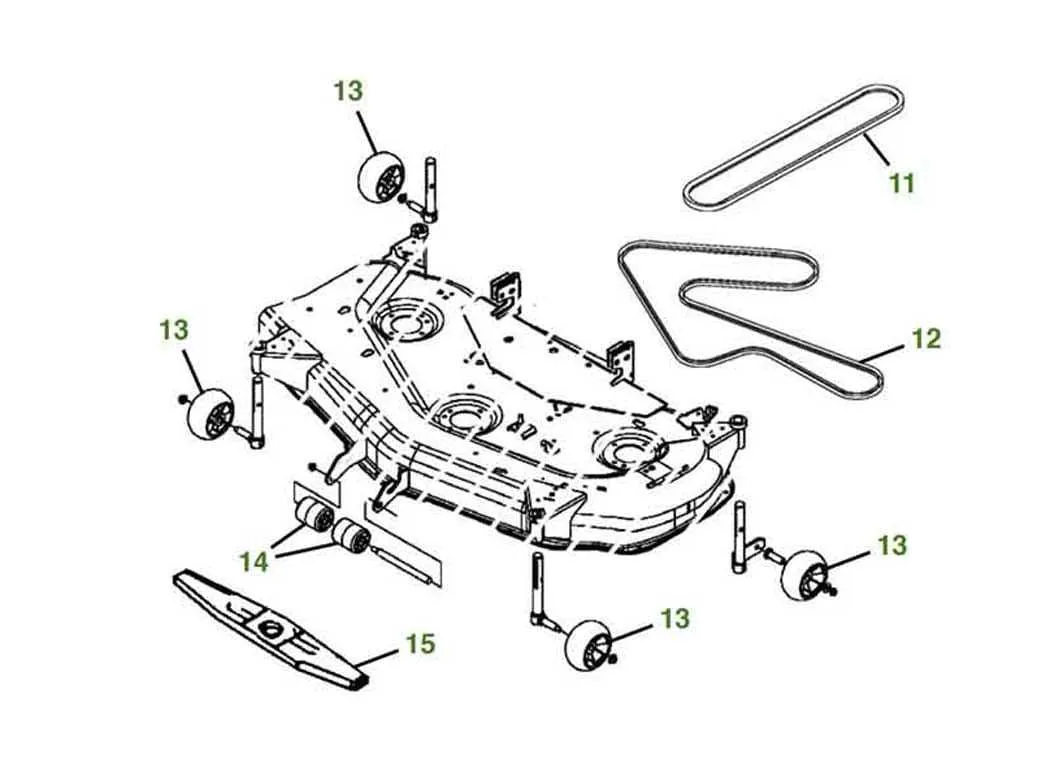

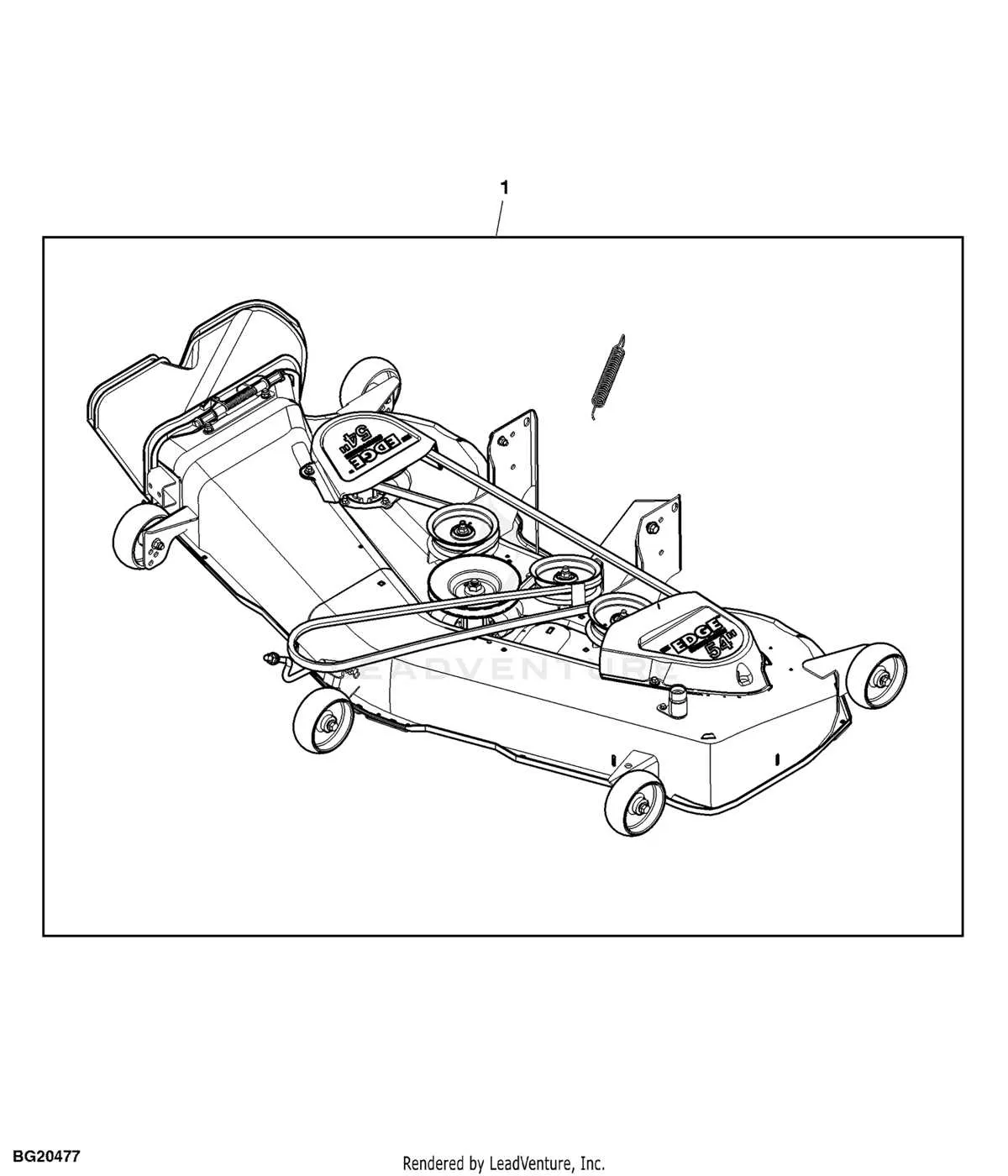

John Deere D170 54 Inch Mower Deck Belt Diagram

To replace the belt on the John Deere D170 54-inch mower deck, follow the steps outlined in the diagram for correct installation. Start by removing the mower deck from the tractor. Lift the deck using the tractor’s lift system and secure it for easy access. Next, identify the belt routing path from the diagram, ensuring it follows the correct sequence around pulleys and spindles.

The belt must be positioned correctly around the engine pulley, the tensioner, and each of the spindles. When installing the belt, pay attention to the direction of the belt grooves and ensure it’s properly aligned with each pulley. It’s important to keep the belt tensioned at the proper level to avoid unnecessary wear. You may need to adjust the tensioner pulley to achieve the right tension.

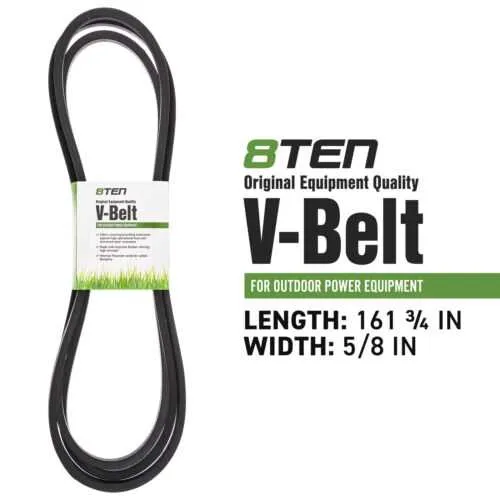

If the belt is worn or damaged, replace it with the correct part number listed in your tractor’s manual. Using the wrong belt size can cause misalignment or excessive wear. Once the new belt is in place, rotate the deck by hand to ensure it moves smoothly before reattaching it to the tractor.

Finally, test the mower by running it at a low speed. Check for any unusual noise or vibration, and verify that the belt stays securely in place. If there are issues with the belt slipping or coming off, recheck the belt routing and tension adjustment.

Step-by-Step Guide to Replacing the Mower Deck Belt on a John Deere D170

Lift the mower deck and ensure the machine is turned off, with the key removed to avoid accidents. You’ll also need to disconnect the battery to ensure safety during the replacement.

Locate the old belt. You’ll find it around the pulleys, which are typically positioned near the engine and the mower deck. Make a note of how the belt loops through the system, as you’ll need to replicate this when installing the new belt.

Remove any obstacles. This includes any guards or covers that might be blocking access to the belt. You may need to use a wrench or screwdriver to remove these parts.

Take the tension off the old belt. Depending on the setup, this might involve loosening a spring-loaded tensioner or a bolt that holds the tension in place. Carefully release the tension to remove the belt from the pulleys.

Install the new belt. Align the new belt according to the path of the old one, making sure it fits snugly around all the pulleys. Avoid any twists or kinks that could cause wear or damage over time.

Reattach the covers or guards that were removed earlier. Tighten them securely to ensure that everything stays in place.

Test the mower deck by slowly rotating the blades by hand to ensure the new belt is installed correctly and operates smoothly. Once satisfied, reconnect the battery and start the mower to check for proper operation.

Finally, adjust the tension if necessary. Ensure the belt is tight enough to provide adequate power but not so tight that it causes strain on the pulleys.

Common Belt Routing Mistakes on the John Deere D170 54 Inch Mower Deck

One of the most common errors when replacing or re-routing the belt on a John Deere D170 mower deck is not aligning the belt with the correct pulley positions. Ensure the belt wraps around the large center pulley and follows the correct path along the deck. The belt should pass through the idler pulley without excessive slack, but not be too tight either. A tight belt can cause unnecessary strain on the engine, leading to wear or damage over time.

A second frequent mistake is improperly routing the belt around the blade pulleys. The belt must pass over all three blade pulleys without interference from the mower deck frame. Any misalignment here can lead to uneven blade speed, compromising cutting performance.

When reassembling, some users overlook the need to install the spring-loaded idler pulley. Missing or incorrectly installing this part can cause the belt to slip or fall off during operation. Check that the spring-loaded pulley is positioned correctly and that the spring is tensioned properly before tightening the belt.

Another common issue occurs when the belt is installed backward. Pay attention to the markings on the belt itself, ensuring it is installed with the correct side facing outward. Installing the belt with the wrong side exposed can result in premature wear and reduced performance.

Finally, not double-checking the tension after installation is a mistake that can lead to premature belt failure. After routing the belt, test its tension by pushing on it. It should deflect approximately 1/2 inch when moderate pressure is applied. Too much slack can lead to belt slipping, while too little can cause undue strain on the engine and pulleys.

Troubleshooting Mower Deck Belt Issues on the John Deere D170

Check the belt tension first. A loose or worn-out belt is a common cause of poor performance. Ensure the tension is correct by inspecting the spring and adjusting it according to the user manual.

If the mower deck belt is slipping or not engaging properly, inspect the pulleys for damage or wear. A worn pulley can lead to belt misalignment, causing further issues. Replace any pulleys that appear damaged or worn out.

Examine the belt for fraying or visible damage. A worn belt will not function optimally and could snap during operation. Replace it if you notice significant wear.

Inspect the routing of the belt. Make sure it’s routed according to the diagram in the manual. Misrouting can lead to improper tension and cause the belt to slip or even break.

If the belt is making noise or not rotating smoothly, check for debris buildup in the pulleys or deck area. Clean out any grass clippings or dirt that may be obstructing the moving parts.

If the belt keeps coming off, look for misalignment in the pulleys or deck. Misalignment can occur over time and will cause the belt to slip off regularly. Correct the alignment and replace any damaged parts.

Lastly, check the clutch mechanism. A faulty clutch will fail to engage the belt correctly, leading to issues with the mower’s performance. Ensure the clutch is working as intended or replace it if needed.
