2013 Honda Civic 1.8 Serpentine Belt Diagram and Routing Instructions
If you’re tackling a serpentine belt replacement on a 2013 Honda Civic 1.8, it’s crucial to follow the correct routing. The serpentine belt is responsible for powering several key components like the alternator, power steering pump, and air conditioning compressor. Incorrect installation can cause major issues, including excessive wear on the belt or strain on the engine components.

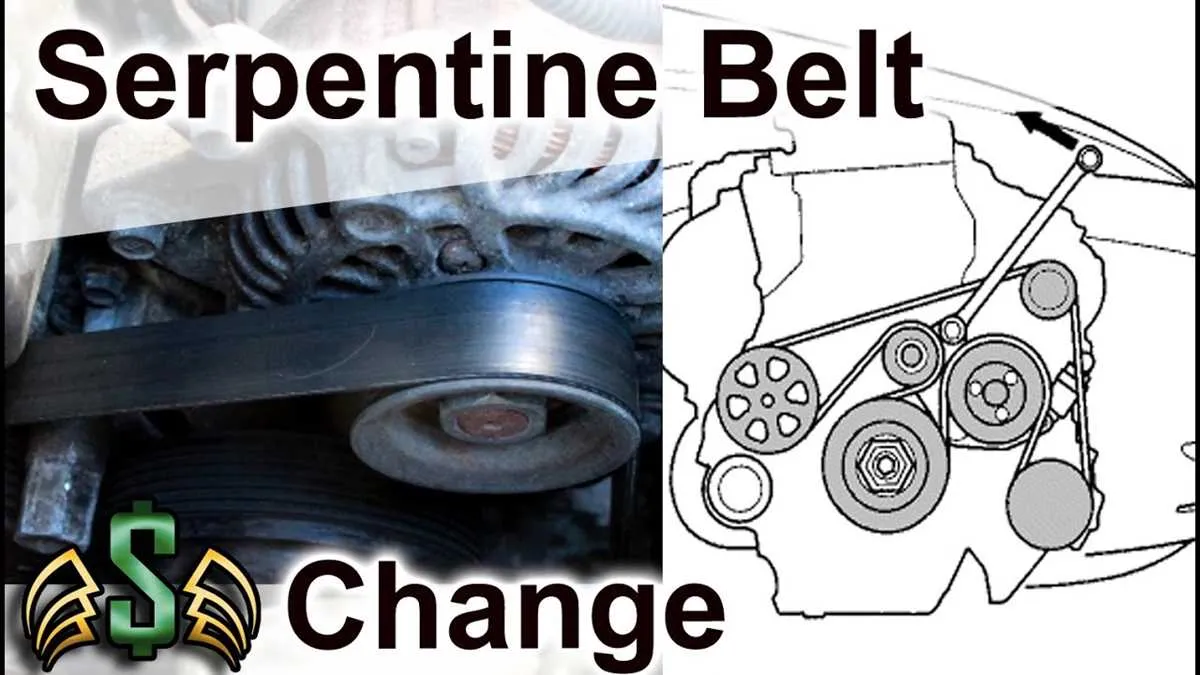

The diagram for this model’s serpentine belt shows a clear path starting from the crankshaft pulley, running around the tensioner, and looping over the alternator and power steering pulley. Each pulley plays a vital role, and any misplacement of the belt can result in poor engine performance or even damage. Make sure to align the belt with each of these pulleys as shown in the diagram to ensure proper function.
Before you start, double-check the belt’s condition and make sure the tensioner is in good working order. A worn-out tensioner can cause the belt to slip or come loose, leading to potential engine damage. Always replace the belt if you notice cracks or excessive wear. With the correct diagram and proper technique, the replacement process will be smooth and straightforward.
2013 Honda Civic 1.8 Serpentine Belt Diagram
The serpentine belt in a 2013 Honda Civic 1.8 plays a key role in driving multiple engine components such as the alternator, power steering pump, and air conditioning compressor. Here’s a clear breakdown of its routing and components.
The serpentine belt for this model follows a specific path starting from the crankshaft pulley. It loops around the power steering pump, alternator, air conditioning compressor, and tensioner pulley. The belt travels through the idler pulley and loops back to the crankshaft. It is important to ensure that the belt is installed correctly to avoid issues with belt slippage or misalignment.
Key Steps for Proper Installation:
- Start by removing any components obstructing access to the belt, such as covers or air intake parts.
- Release tension from the tensioner pulley using the proper tool, allowing the belt to be removed easily.
- Before installing the new belt, compare it with the old one to make sure it matches in size and shape.
- Route the belt along the specified pulleys as shown in the diagram, ensuring it’s secure on each pulley groove.
- Once in place, slowly release the tensioner pulley, applying proper tension to the belt.
- Double-check alignment to ensure the belt sits correctly on all pulleys.
Proper tension on the serpentine belt is crucial. A loose belt can cause poor performance, while an overly tight belt can damage components. Regular inspection for wear, cracks, or fraying will keep your engine running smoothly.
Identifying Components in the Serpentine Belt System
The serpentine belt system in a 2013 Honda Civic 1.8 includes several key components that work together to drive accessories like the alternator, power steering pump, air conditioning compressor, and water pump. Start by locating the serpentine belt itself, which runs over multiple pulleys.
The first pulley to identify is the crankshaft pulley, located at the bottom of the engine. It’s the largest pulley, driven directly by the engine’s crankshaft. Next, locate the tensioner pulley, which maintains the correct tension on the belt. It can be identified by its spring-loaded mechanism, often located near the top of the engine. The idler pulley is another important component, keeping the belt aligned. This pulley is static and positioned in a way that guides the belt along the correct path.
The alternator pulley is easy to spot, located near the top of the engine. It charges the car’s battery while the engine runs. The power steering pump pulley is usually found on the driver’s side and is linked to the steering mechanism. The A/C compressor pulley is located near the front of the engine and powers the air conditioning system. Lastly, the water pump pulley circulates coolant through the engine for temperature regulation.
Check each of these components regularly for wear. The belt itself can also show signs of cracking or fraying, which can indicate it’s time for replacement. Regular inspection ensures that each part functions properly, maintaining optimal performance.
Step-by-Step Guide to Replacing the Serpentine Belt
Begin by securing the vehicle. Park on a flat surface, engage the parking brake, and disconnect the negative terminal of the battery.
Locate the serpentine belt. On the 2013 Honda Civic 1.8L, it’s positioned on the front of the engine, near the alternator and power steering pump. Identify the tensioner pulley; it’s usually on the side and has a bolt that can be turned to release belt tension.
Use a 3/8″ drive ratchet or a specific belt tool to rotate the tensioner pulley counterclockwise. This will loosen the belt. Carefully remove the belt from the pulleys, noting the routing path for reinstallation. A diagram on the engine bay or service manual can be helpful for reference.
Inspect the old belt for wear and tear. If it shows signs of cracks, fraying, or glazing, it’s time to replace it. Compare the old belt with the new one to ensure the correct size and type.
Align the new serpentine belt with the pulleys. Follow the same routing path as the old belt, ensuring it fits snugly around each pulley. Double-check for correct positioning, especially around the crankshaft and alternator.
Rotate the tensioner pulley once more to allow the belt to slip into place. Slowly release the tensioner to apply pressure to the belt, ensuring it’s tight across all pulleys.
Recheck the belt’s alignment and tension. If it’s properly aligned and tensioned, proceed to reconnect the negative terminal of the battery.
Start the engine and observe the belt in motion. Ensure the belt is running smoothly without any unusual noises or movements.
If everything looks good, the job is complete. If you notice any issues, revisit the belt’s installation or consult a professional mechanic.
Troubleshooting Common Serpentine Belt Issues in the 2013 Honda Civic
Inspect the serpentine belt for visible signs of wear such as cracks, fraying, or glazing. If any of these are present, it’s time to replace the belt. Over time, the belt can stretch, leading to improper tension. Check the tensioner for any signs of failure or misalignment, as this can cause the belt to slip, squeal, or fail prematurely.
If the engine belt starts to squeak or squeal, especially during cold starts or under load, it could be a sign of insufficient tension or debris lodged between the belt and pulleys. Tightening the tensioner or replacing a worn-out belt may solve the issue.
A misaligned belt path is another common problem. Check the pulleys for any signs of wear, corrosion, or misalignment. Worn pulleys can cause the belt to run unevenly, leading to noise or premature wear. Ensure all pulleys are rotating freely without wobbling.
If you notice that electrical components or the air conditioning system are not working as expected, a slipping serpentine belt may be the cause. The belt drives multiple accessories, and a weak or slipping belt can impact these systems. Verify that the belt has adequate tension and is aligned correctly.
In cases where the belt is severely worn, it can break during operation. If this happens, replace the serpentine belt and inspect other components like the alternator, power steering, and air conditioning compressor for potential damage caused by the belt failure.
Regular inspection of the serpentine belt, along with its tensioner and pulleys, can prevent many of these issues. Replacing the belt according to the manufacturer’s recommended service interval will help avoid costly repairs and ensure reliable performance of your 2013 Honda Civic.
