Toro Z Master 52 Inch Deck Belt Diagram and Replacement Guide
When replacing or adjusting the deck belt on your Toro Z Master 52-inch mower, it’s crucial to follow the correct belt routing to ensure smooth operation. Referencing a reliable diagram will help you avoid common issues such as misalignment, excessive wear, or malfunctioning of the deck system. The belt plays a key role in transferring power from the engine to the blades, so having it correctly installed is non-negotiable.
The diagram below outlines the correct path the belt should follow across the various pulleys. Pay close attention to the sequence of pulleys and ensure the belt is seated properly. If you’re unsure about any part of the routing, double-check the diagram against the actual setup to confirm the correct path before tightening the components.
While replacing the belt, also inspect other mower parts such as the pulleys and idlers for wear. This can prevent unnecessary repairs down the line. Make sure the tension is correctly adjusted to avoid overstraining the new belt.

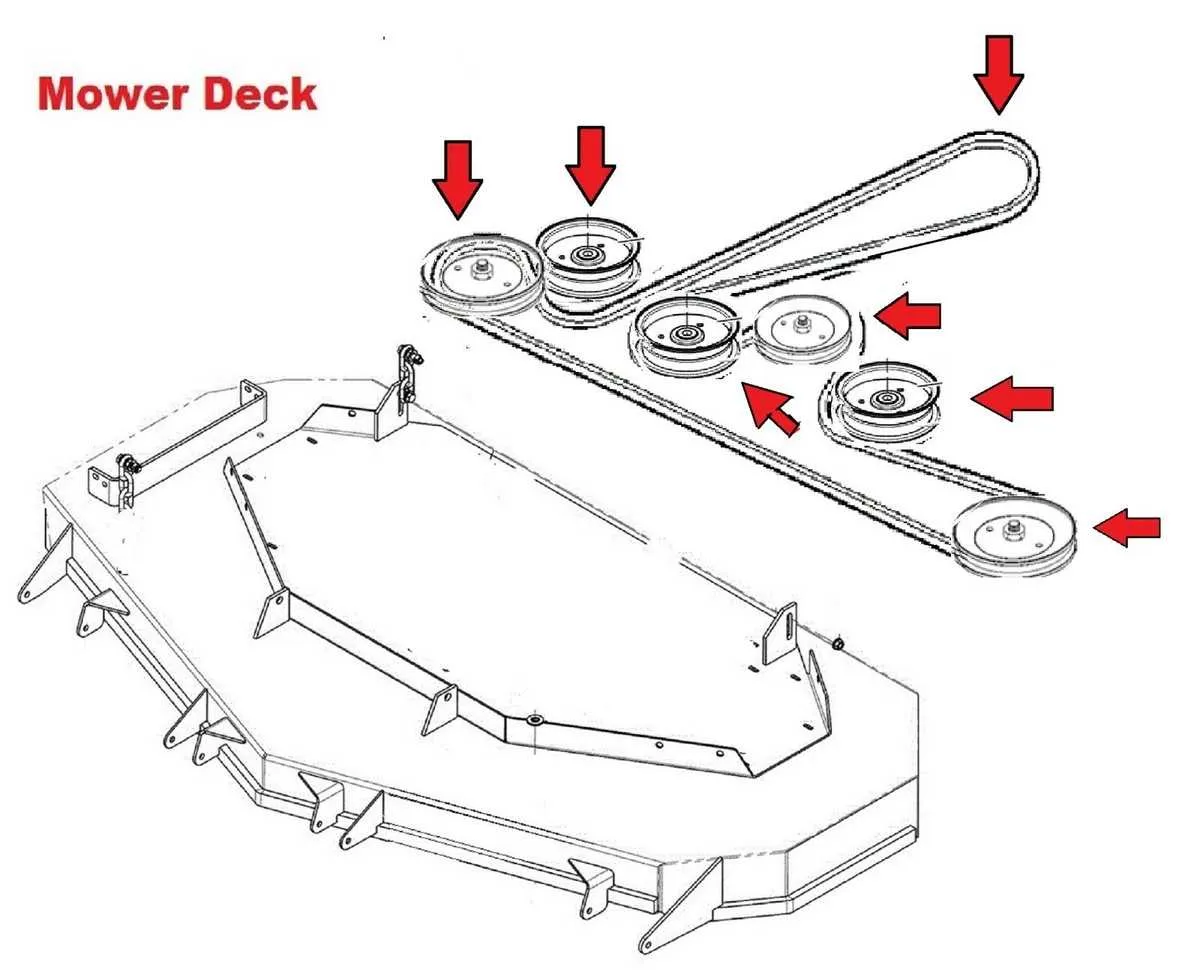

Toro Z Master 52 Inch Deck Belt Diagram
To replace or adjust the deck belt on your Toro Z Master 52 Inch mower, refer to the correct belt diagram for smooth operation. This diagram ensures precise routing, minimizing wear and improving overall functionality.

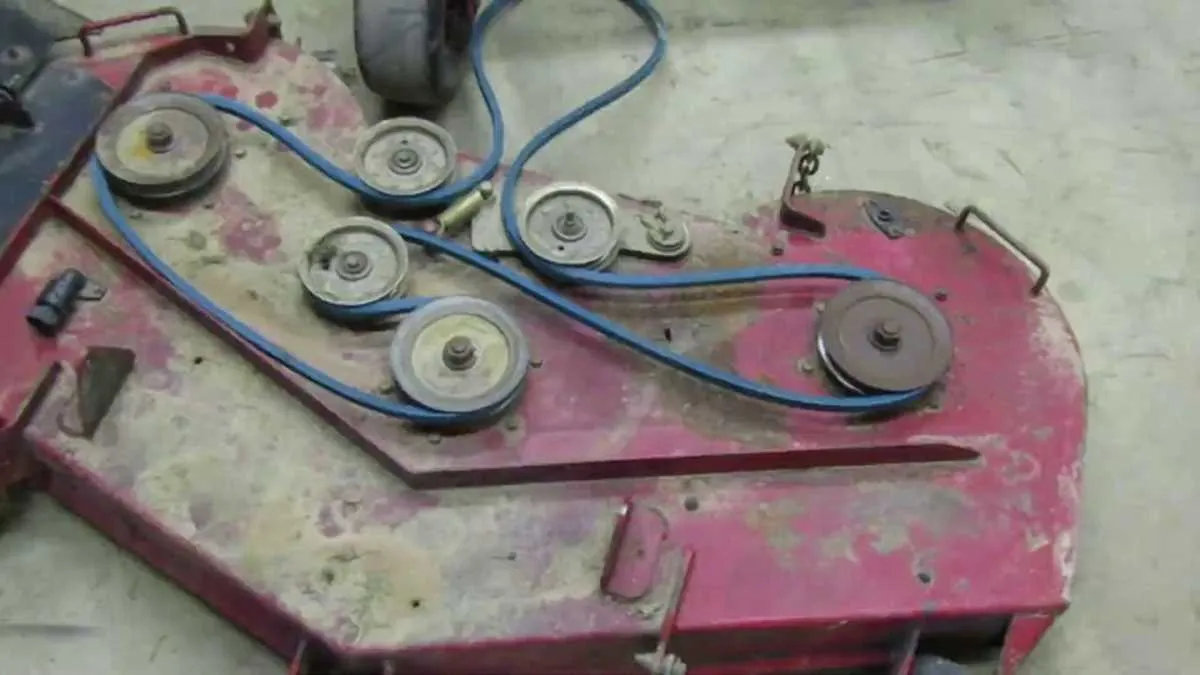

The deck belt for the Toro Z Master 52 Inch typically follows a specific path. First, loop the belt around the engine pulley, then route it through the idler pulleys. Make sure the belt runs through the correct path around the spindle pulleys and tensioner. Ensure the belt fits snugly but not too tight–tight belts can lead to premature wear and excessive strain on the engine.
Double-check the belt’s position on all pulleys and make sure it is properly aligned. Pay attention to the spring-loaded tensioner, which should maintain the correct tension. Improper tension can cause slipping or excessive wear on the belt.
It’s also wise to inspect the belt regularly for signs of wear, such as cracks or fraying. If the belt shows visible damage, replacing it promptly will prevent further complications and maintain mower performance.
How to Install the Belt on Toro Z Master 52 Inch Deck
To install the belt on your Toro Z Master 52 Inch deck, first, raise the deck to its highest position using the lift lever. This will give you clear access to the belt system.
Next, remove the deck from the mower by disconnecting the deck lift arms and the hangers. This step makes the installation easier, allowing you to focus on the belt routing.
Take note of the belt diagram for your Toro model. It’s critical to follow the exact routing path to prevent misalignment or damage to the components. If you don’t have the diagram on hand, it can usually be found in the owner’s manual or online.
Remove the old belt by loosening the idler pulleys and any tension components. Make sure to note the direction and location of each pulley as you take the belt off, as this will guide the placement of the new belt.
Place the new belt around the pulleys starting with the engine pulley. Follow the belt routing diagram and carefully thread the belt around all pulleys, ensuring it sits securely in the grooves.
Once the belt is in place, adjust the tension using the idler pulleys. Tighten the idler pulley bolts until the belt is snug, but not too tight. The belt should have minimal slack but should not be overly stretched.
Reinstall the deck by reversing the removal process. Ensure that the deck is properly aligned and securely attached to the lift arms.
Finally, check the tension one last time before starting the mower. Turn the blades by hand to ensure smooth operation and that the belt is correctly aligned. Test the mower at low speed to confirm that everything is functioning properly.
Troubleshooting Common Belt Alignment Issues on Toro Z Master 52 Inch
If your Toro Z Master 52-inch mower is showing uneven cutting or excessive belt wear, the issue may be related to belt alignment. Start by inspecting the routing diagram to ensure the belt is installed correctly. Misalignment can cause the belt to slip or fray, leading to poor performance.
Check the belt tensioner for proper operation. A worn or loose tensioner can cause the belt to sit incorrectly on the pulleys. Adjust the tensioner to maintain the correct tension. If the belt still seems misaligned, inspect the pulleys for wear or damage. Pulleys that are worn or misaligned can push the belt off its proper track, creating strain on the system.
Next, examine the spindle and deck components. Ensure the pulleys are tightly secured and the deck is level. A tilted deck or loose pulley can contribute to uneven belt wear. Rotate the pulleys by hand to make sure they move freely and aren’t obstructed by dirt or debris.
If all components appear intact, check for any foreign objects that might have lodged in the deck. Even small debris can cause the belt to misalign or rub against components, leading to damage. Clean the area thoroughly and reassemble the mower.
Finally, inspect the belt for signs of wear or stretching. A stretched or damaged belt will not align properly, even if all parts are in good condition. Replace the belt if needed and recheck the alignment after installation. Regular maintenance and periodic belt checks will help prevent misalignment issues from occurring again.
Step-by-Step Guide for Replacing the Belt on Toro Z Master 52 Inch Deck
Replacing the belt on your Toro Z Master 52-inch deck is a straightforward task if you follow the correct steps. Here’s how to do it:
- Prepare the Equipment: Ensure the mower is turned off, with the ignition key removed. Raise the deck to its highest position to gain better access to the components.
- Remove the Deck: Disconnect the deck from the mower by loosening the bolts or pins securing it. Depending on the model, there may be a few additional steps for deck removal, such as disconnecting the drive belts from the pulleys.
- Locate the Belt: Identify the belt that needs replacement. The Toro Z Master uses a series of belts for deck operation, so make sure you’re working on the right one. If necessary, refer to the owner’s manual or belt diagram to confirm the belt routing.
- Remove the Old Belt: Start by removing any guards or covers protecting the belt. Loosen the tension on the belt by adjusting the spring-loaded idler pulley. Once the tension is relieved, slide the old belt off the pulleys and remove it from the mower.
- Install the New Belt: Position the new belt according to the belt diagram, ensuring it follows the same path as the old one. Carefully loop the belt over each pulley, making sure it sits properly on the grooves.
- Adjust Tension: Reinstall the idler pulley and adjust its tension so the belt is tight but not overly stretched. The belt should move with some resistance but should not feel loose.
- Reassemble the Deck: Reattach the deck to the mower by securing the bolts or pins. Double-check all connections to ensure everything is secure and properly aligned.
- Test the Mower: Start the engine and run the mower at a slow speed to check for any unusual noises or issues with the belt. If everything seems smooth, you’re good to go.
Following these steps will help you quickly replace the belt on your Toro Z Master 52-inch deck and get back to mowing without hassle.
