2011 Honda Pilot Serpentine Belt Diagram and Installation Guide

The serpentine belt in the 2011 Honda Pilot is a critical component that drives several engine accessories, including the alternator, power steering pump, and air conditioning compressor. If you’re replacing or inspecting the serpentine belt, understanding its routing and diagram is crucial to avoid costly mistakes. Follow the specific belt path shown in the diagram for proper installation.

Inspecting the serpentine belt regularly is recommended to ensure it remains in good condition. Look for signs of wear such as cracks, fraying, or glazing. A damaged belt can lead to engine failure or the loss of essential systems like air conditioning or power steering. If you notice any signs of damage, it’s time to replace the belt.

The diagram for the 2011 Honda Pilot serpentine belt shows a clear, precise path for the belt. It’s important to align the belt properly around the pulleys and tensioner to avoid misalignment, which can cause premature wear or system failure. Make sure the tension is set according to the manufacturer’s specifications to maintain optimal performance.

When replacing the serpentine belt, be sure to use a high-quality replacement part. Cheaper belts may not last as long and could cause problems down the road. Always double-check the routing diagram before securing the new belt in place.

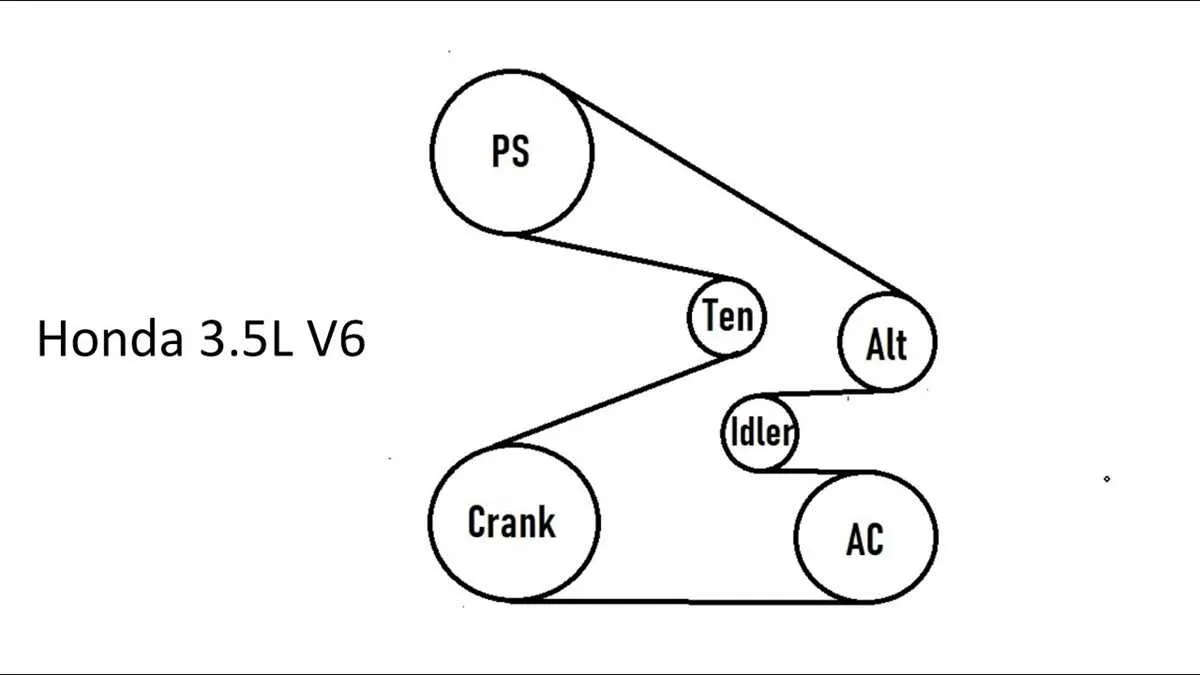

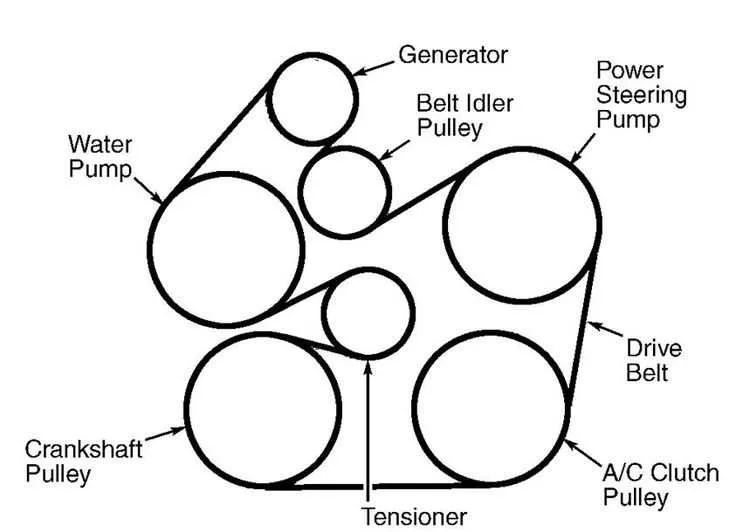

2011 Honda Pilot Serpentine Belt Diagram

The 2011 Honda Pilot’s serpentine belt is a critical component that powers several engine accessories, including the alternator, power steering pump, air conditioning compressor, and water pump. To ensure optimal performance, follow the precise routing of the belt shown in the diagram. Incorrect routing can cause excessive wear or damage to the belt or engine components.

The diagram typically shows the belt’s path around various pulleys. Start by identifying the tensioner pulley, which is responsible for keeping the belt tight. The diagram will also indicate the correct direction of rotation for each pulley, ensuring that the belt functions smoothly without slipping or overheating. Double-check that the belt properly follows the pulleys’ paths without twisting or misalignment.

If you’re replacing the serpentine belt, it’s important to note the condition of all the pulleys. Worn-out pulleys or bearings can lead to premature belt failure. Ensure that the new belt matches the specified length and width in the vehicle’s manual. Always use high-quality replacement parts to avoid common issues like noise, slippage, or premature wear.

Identifying the Serpentine Belt Components in a 2011 Honda Pilot

The serpentine belt in a 2011 Honda Pilot powers several key components. Inspect each part regularly for wear and proper operation.

The alternator is driven by the serpentine belt, supplying power to the vehicle’s electrical system and recharging the battery. The power steering pump also relies on the belt, providing hydraulic pressure for easy steering.

The water pump, which circulates coolant through the engine, is another component powered by the serpentine belt. A malfunctioning water pump can cause engine overheating.

The air conditioning compressor is driven by the serpentine belt, enabling the cooling system to function. The tensioner pulley keeps the belt tight, while the idler pulley ensures the belt follows its proper path.

• Alternator
• Power Steering Pump
• Water Pump
• Air Conditioning Compressor
• Tensioner Pulley
• Idler Pulley

Regularly check the belt and pulleys for signs of wear, cracks, or loosening to prevent issues with these components.

Steps for Proper Serpentine Belt Installation on a 2011 Honda Pilot

Begin by ensuring the engine is off and cool. Disconnect the negative battery terminal to prevent any electrical mishaps.

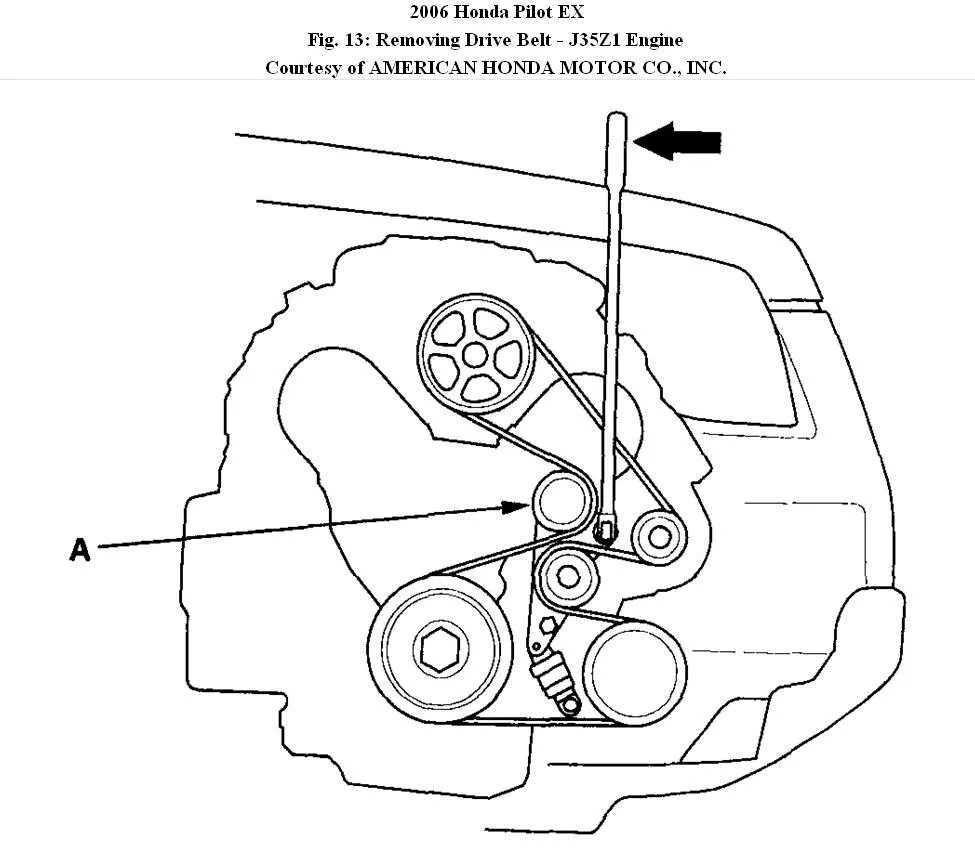

Locate the serpentine belt tensioner and use a suitable tool to release the tension, allowing you to remove the old belt easily. Make sure to note the belt’s routing by either taking a photo or referring to the diagram on the engine bay cover.

Remove the worn belt and check the condition of the tensioner, pulleys, and idler bearings. Replace any components that show signs of wear or damage.

Position the new serpentine belt in the correct routing order, ensuring it aligns with each pulley and tensioner. Verify that the belt sits properly in the grooves of the pulleys without being twisted.

Use the tool to release the tension on the tensioner again, allowing the belt to slip into place. Double-check that the belt is correctly aligned and seated in all grooves before releasing the tensioner fully.

Reconnect the negative battery terminal and start the engine. Let it run for a few minutes, then turn it off and inspect the belt for proper installation and tension. Adjust if necessary.

Finally, check the belt during regular maintenance intervals to ensure it remains in good condition and properly tensioned.

Common Issues with the Serpentine Belt on a 2011 Honda Pilot and How to Fix Them

The serpentine belt on a 2011 Honda Pilot can experience several issues over time. One common problem is belt wear, which leads to cracking, fraying, or stretching. If you notice squealing or chirping noises from the engine, the belt may be slipping or misaligned. This can be fixed by inspecting the belt and replacing it if damaged. A worn-out belt can also cause reduced performance of accessories like the alternator or air conditioning. Make sure to check the belt’s condition regularly to prevent this.

Another issue is the tensioner failure. If the tensioner is not applying enough pressure, the belt may slip off the pulleys. This can result in erratic operation of engine components. Inspect the tensioner for signs of wear or damage and replace it if necessary. Always ensure the new tensioner is correctly adjusted to maintain proper belt tension.

Sometimes, the belt can become misaligned due to pulley damage or dirt buildup. This causes the belt to wear unevenly. Cleaning the pulleys and inspecting them for any damage will help restore proper alignment. If you find damaged pulleys, replace them immediately to avoid further complications.

Finally, if the serpentine belt is too loose, it may cause the engine to overheat, as the water pump or alternator may not function properly. Check for proper belt tension using a belt tension gauge and adjust or replace the belt if necessary.
