Complete Belt Diagram for 5.9 Cummins Engine

The 5.9 Cummins engine uses a precise serpentine belt system that powers multiple components, including the alternator, air conditioning compressor, and power steering pump. Proper routing and maintenance are necessary to keep the engine running smoothly.

To ensure your serpentine belt remains in top condition, check for signs of wear and replace it at recommended intervals. A damaged or misrouted belt can cause multiple engine issues, leading to costly repairs. Consult your vehicle’s manual for the correct belt routing diagram and the specific tension required.

Make sure the belt is aligned correctly along all pulleys, and check for any misalignment that could lead to premature belt failure. Adjustments to the tension may be needed over time to keep the belt running optimally.

If you’re planning to replace the belt, remember that using the right part is key. Verify compatibility with your engine model and follow the manufacturer’s instructions for installation. Correct installation will prevent slipping and increase the lifespan of both the belt and your engine’s components.

Belt Diagram for 5.9 Cummins

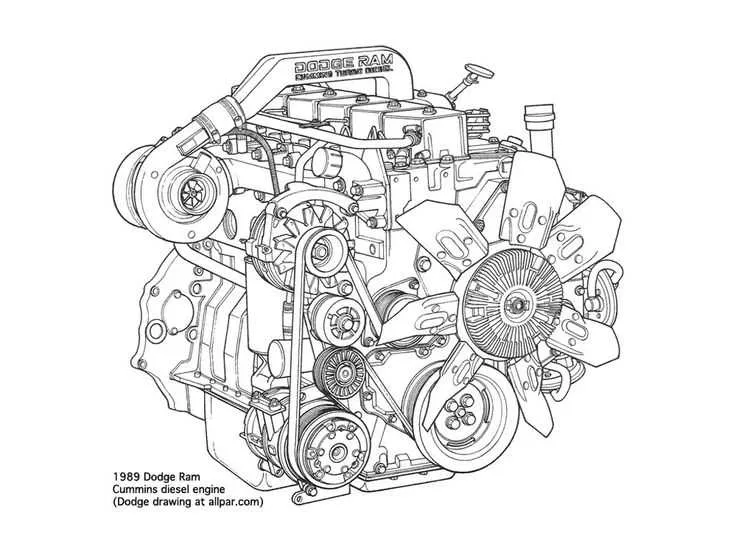

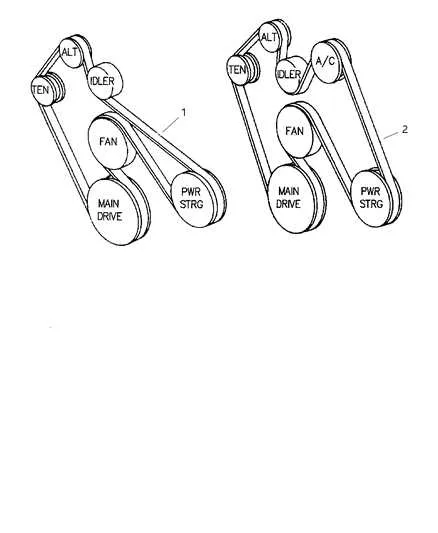

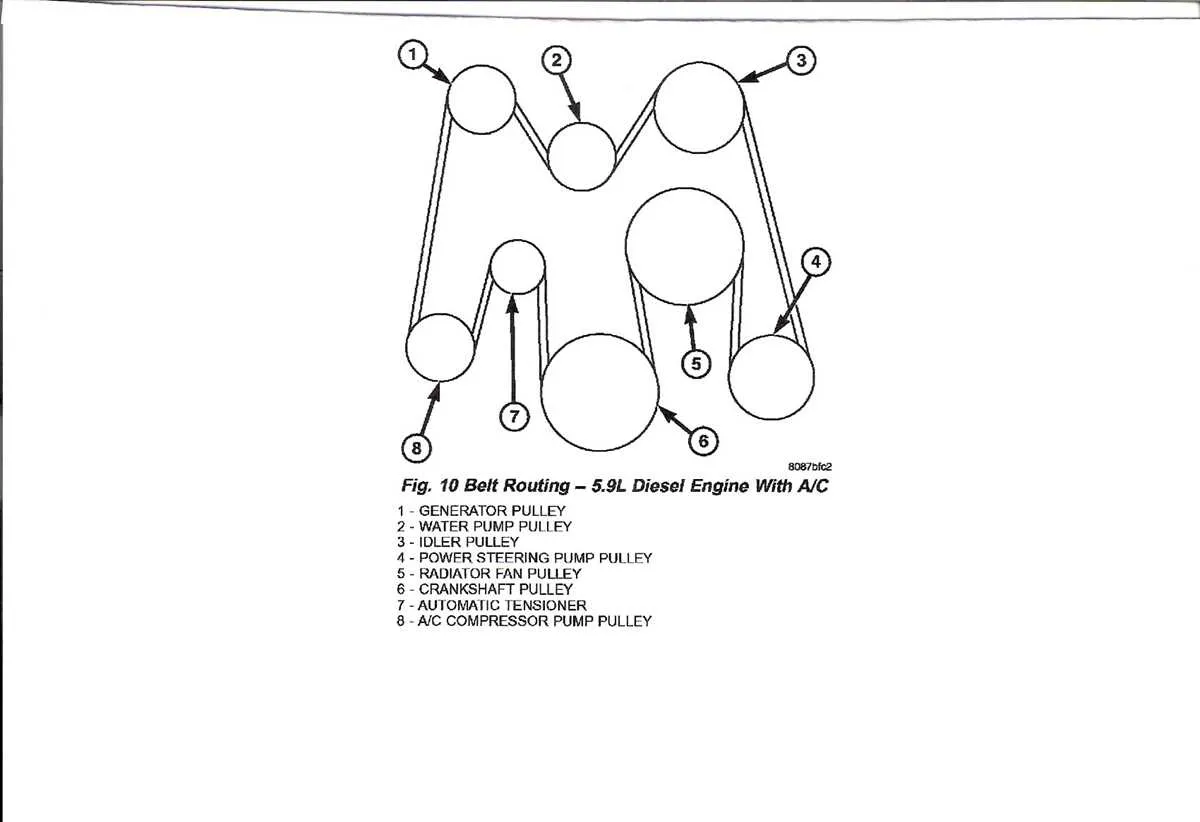

To replace or inspect the serpentine belt on a 5.9 Cummins, it’s important to understand the proper routing and component alignment. The diagram typically shows the belt’s path over various pulleys and accessories, including the alternator, water pump, power steering pump, and air conditioning compressor. This routing is crucial for maintaining proper tension and operation of the engine’s systems.

Check the tensioner pulley for any signs of wear or damage. If it’s not operating correctly, it can lead to poor belt performance, noise, or even belt failure. When inspecting the belt, look for cracks, frays, or signs of slipping. A worn-out belt should be replaced immediately to avoid further engine damage.

The routing diagram is available in the service manual and can be found on the engine bay’s belt diagram sticker. If the diagram is missing or illegible, be sure to consult a professional mechanic or refer to the manufacturer’s guidelines for accurate routing instructions.

For proper installation, always ensure the belt is aligned according to the diagram. A belt that is incorrectly routed can cause it to slip or wear prematurely, leading to malfunction of the engine’s accessories.

How to Identify the Correct Belt Routing for 5.9 Cummins

Check the engine diagram label first. It provides a visual representation of the proper belt routing for the 5.9 Cummins engine. Locate this label on the radiator support, engine bay, or inside the hood. If the label is missing or unreadable, refer to the service manual for the correct routing details.

Examine the pulleys and accessories. Identify each component powered by the serpentine belt, including the alternator, power steering pump, air conditioning compressor, and water pump. Compare their position to the engine diagram to ensure proper alignment of the belt.

Verify the tensioner placement. The automatic tensioner should align with the diagram, and it should apply correct pressure to the belt. If the belt is loose or slipping, check the tensioner for wear or malfunction.

Ensure belt direction and path. The ribbed side of the belt should face the pulleys, and it should run smoothly over the pulleys without twisting. Double-check that the belt path matches the diagram and that no pulleys are skipped or misaligned.

Confirm the belt length and condition. Use the recommended belt size specified in the manual. A worn or stretched belt may cause misalignment or slip off pulleys, so always inspect for cracks, fraying, or glazing on the belt surface.

Test engine performance. After routing the belt correctly, start the engine and listen for any unusual noises, such as squealing or slipping. Ensure that all components run smoothly and check the belt tension again after a few hours of operation.

Common Issues with the Serpentine Belt in 5.9 Cummins and Their Solutions

The serpentine belt in the 5.9 Cummins engine plays a crucial role in powering various engine components. Over time, several issues may arise, affecting performance and reliability.

1. Belt Wear and Cracking

Frequent exposure to heat, moisture, and friction can cause the serpentine belt to wear down and crack. This often results in reduced efficiency and premature failure. Inspect the belt regularly for visible signs of cracks or fraying.

• Solution: Replace the serpentine belt if cracks are visible. Use high-quality OEM replacement belts for better durability.

2. Misalignment

Misalignment of the serpentine belt can occur if one or more pulleys are not properly aligned. This issue can cause the belt to slip, leading to decreased performance and potential damage to the belt and pulleys.

• Solution: Inspect the pulleys and tensioners for damage or wear. Ensure all pulleys are aligned properly. If misalignment persists, replace the affected components.

3. Belt Slipping

If the belt is loose or improperly tensioned, it can slip on the pulleys. This leads to loss of power to essential components like the alternator, water pump, or power steering.

• Solution: Adjust or replace the tensioner if the belt is loose. Ensure the correct tension is applied to prevent slippage.

4. Tensioner Failure

The tensioner maintains the correct tension on the serpentine belt. Over time, the tensioner can wear out or fail, leading to improper belt tension and reduced performance.

• Solution: Check the tensioner for wear or damage. If faulty, replace it to restore proper belt tension and function.

5. Noise and Squeaking

Squealing or chirping noises often indicate friction between the belt and pulleys. This could be caused by a worn-out belt, dirty pulleys, or improper alignment.

• Solution: Clean the pulleys and inspect the belt. If the belt shows signs of wear, replace it. Ensure proper alignment and tension to reduce noise.

6. Overheating

Overheating of the serpentine belt can occur if the engine cooling system fails or if the belt is excessively tight. Overheating can cause the belt to deteriorate quickly.

• Solution: Check the cooling system for leaks or inefficiencies. Ensure the belt is properly tensioned to avoid overheating.

7. Contamination

Oil, coolant, or other fluids leaking onto the serpentine belt can lead to slippage and premature failure. Contaminated belts are prone to cracking and losing grip.

• Solution: Check for fluid leaks around the engine and fix any issues promptly. Clean the belt thoroughly and replace it if necessary.

Step-by-Step Guide to Replacing the Serpentine Belt on 5.9 Cummins

First, gather the necessary tools: a ratchet wrench, a socket set, and a serpentine belt tool or a breaker bar. Position your vehicle on a flat surface and ensure the engine is off and cool.

Locate the serpentine belt tensioner and use the appropriate tool to relieve tension from the belt. Turn the tensioner clockwise or counterclockwise, depending on the model, to loosen the belt. Carefully remove the belt from the pulleys while noting the routing for reinstallation.

Inspect the new belt to ensure it matches the old one in length and width. Align the new serpentine belt along the pulleys according to the diagram for the 5.9 Cummins engine. Ensure the belt fits properly in the grooves of each pulley.

Once the belt is in place, slowly release the tensioner to apply tension to the new belt. Make sure the belt is securely fitted into the pulleys, and verify that it is properly aligned.

Start the engine and observe the belt for any signs of slippage or misalignment. If everything runs smoothly, the replacement is complete.
