2007 Honda Accord V6 Belt Diagram and Routing Guide

To replace or inspect the serpentine belt on your 2007 Honda Accord V6, refer to the belt routing diagram for accurate placement. This diagram shows the path the belt takes around each pulley, ensuring the correct configuration for the alternator, power steering pump, and other accessories.

Double-check the diagram before installing a new belt. Make sure the belt is aligned properly, with no twists, and that it’s tensioned according to manufacturer specifications. A correctly installed belt will prevent slipping, reduce wear, and maintain the performance of your vehicle’s systems.

If you’re noticing noise or loss of power from any accessories, it might be time to inspect the belt. A worn or misaligned belt can cause issues with the charging system, air conditioning, and steering. Always refer to the diagram for troubleshooting and replacements to ensure you’re following the correct belt path.

2007 Honda Accord V6 Belt Diagram

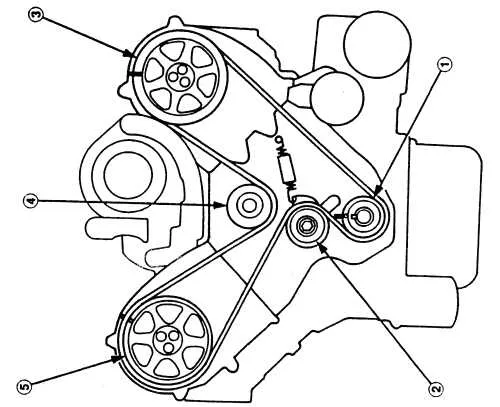

The 2007 Honda Accord V6 uses a serpentine belt system to drive multiple accessories such as the alternator, power steering pump, air conditioning compressor, and water pump. The main serpentine belt is routed through a series of pulleys, which ensures that all components are powered correctly. The diagram below provides the exact routing and alignment of the belt system.

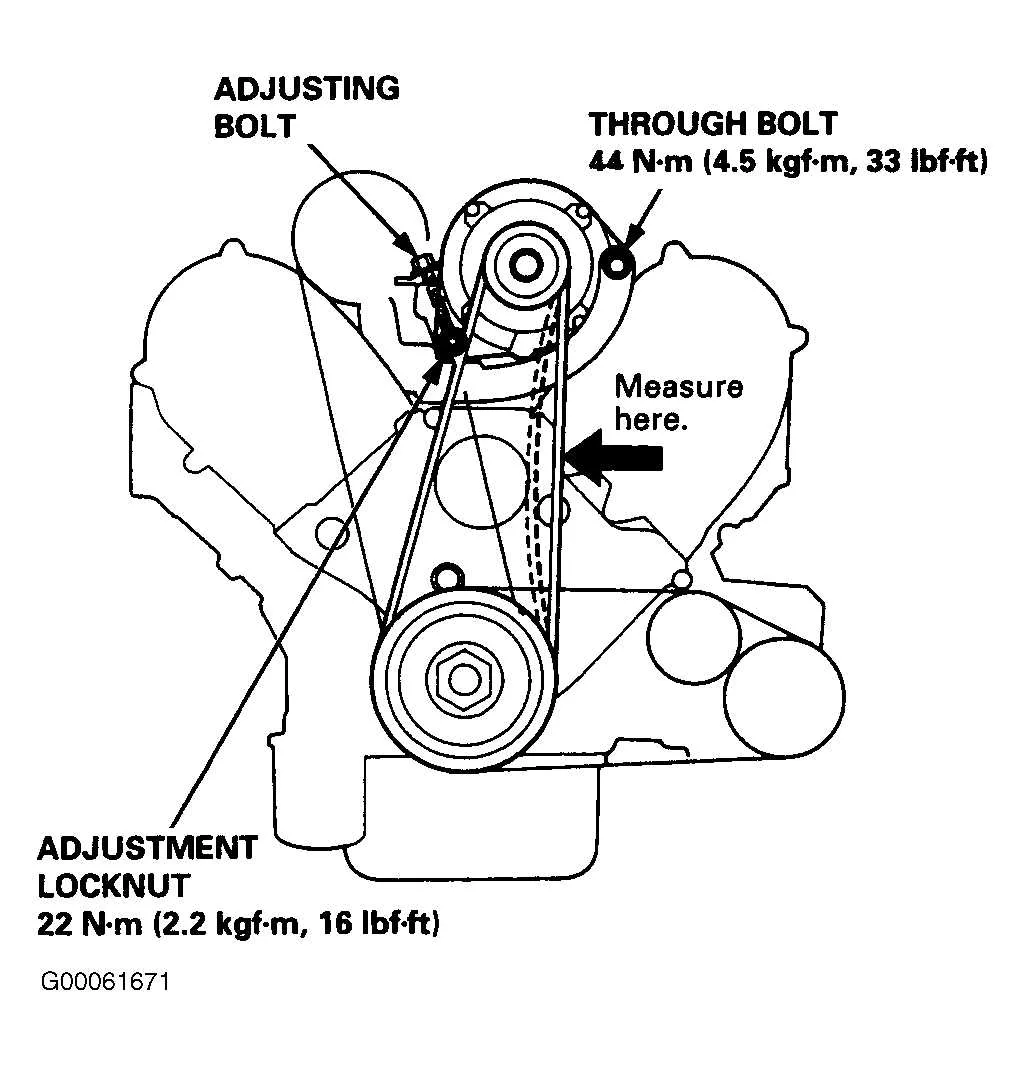

To replace the serpentine belt, follow these steps: Begin by relieving the tension on the belt using a serpentine belt tool or a 3/8-inch ratchet to rotate the tensioner pulley. Once the belt is loose, remove it from the pulleys. Make sure to inspect the new belt for wear and alignment before installing it. Route the new belt according to the diagram, ensuring it fits securely on each pulley. Reapply tension using the tensioner pulley, ensuring the belt is properly tightened without excessive slack.

Ensure you check the belt periodically for signs of wear or damage, as a faulty belt can lead to accessory failures and engine overheating. Proper maintenance of the serpentine belt and its components can save time and avoid costly repairs down the line.

Understanding the Belt Configuration for 2007 Honda Accord V6

The 2007 Honda Accord V6 uses a serpentine belt system that powers multiple components, including the alternator, power steering pump, air conditioning compressor, and water pump. The belt configuration is crucial for smooth engine operation and to prevent any malfunctioning of auxiliary systems.

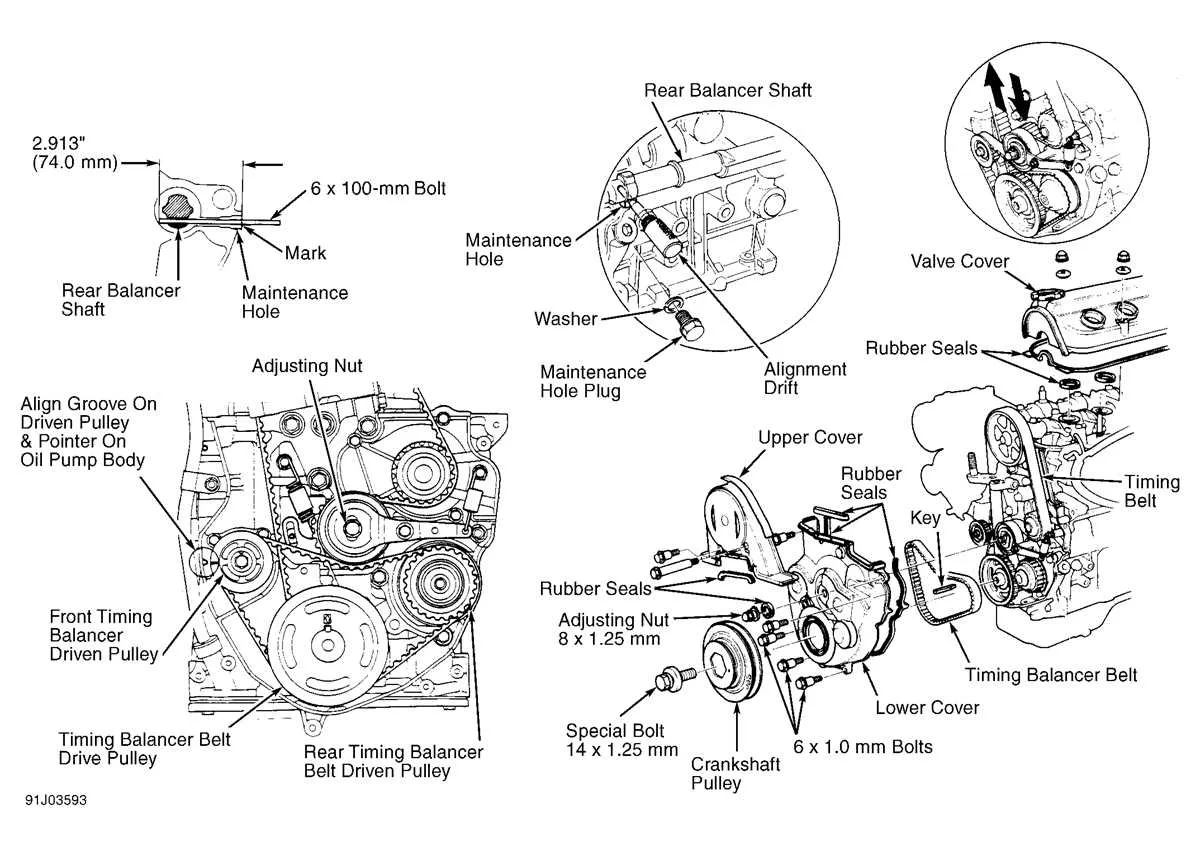

The primary serpentine belt routes around several pulleys and is tensioned by an automatic tensioner. A separate timing belt is responsible for synchronizing the camshaft and crankshaft, ensuring precise engine operation. It’s important to inspect the serpentine belt for signs of wear such as cracks, fraying, or glazing, which can indicate that it needs replacing.

Refer to the belt routing diagram found in the engine compartment for accurate installation. It’s recommended to replace the belt every 60,000 to 100,000 miles, depending on usage and driving conditions. Always check the condition of the belt tensioner, as a failing tensioner can lead to improper belt tension, affecting performance.

If you’re replacing the serpentine belt, make sure to check all the pulleys for wear or damage. Pulley misalignment or excessive wear can lead to premature belt failure. Proper alignment ensures smooth operation of the belt system and extends the lifespan of the components involved.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2007 Honda Accord V6

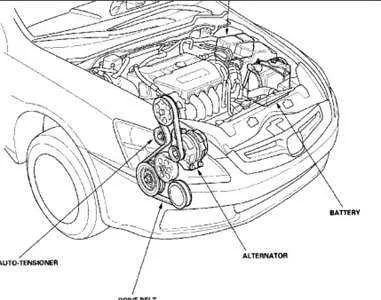

To replace the serpentine belt, you’ll need a 14mm socket, a ratchet, and a new serpentine belt. Start by locating the belt tensioner. Use the ratchet and 14mm socket to rotate the tensioner clockwise and relieve tension on the belt. This will allow you to slide the belt off the pulleys.

Next, take note of the belt routing diagram, usually found near the radiator or on the hood. This will help ensure proper installation of the new belt. Remove the old belt and carefully check the pulleys for any signs of damage or wear, such as cracks or excessive play. If any pulleys seem faulty, replace them before continuing.

Now, place the new belt on the pulleys, following the routing diagram. Ensure the belt sits correctly in the grooves of the pulleys, paying special attention to the tensioner and idler pulleys. Once the belt is in place, rotate the tensioner again with the ratchet and slide the belt onto the tensioner pulley.

Double-check the belt’s alignment on all pulleys, ensuring it’s seated properly. Start the engine and observe the belt in motion to verify everything is working smoothly without any unusual noise or movement.

If all checks out, you’ve successfully replaced the serpentine belt. Make sure to dispose of the old belt properly and take the vehicle for a short test drive to ensure everything is functioning as expected.

Common Belt-Related Issues and How to Diagnose Them on a 2007 Honda Accord V6

If the belts on your 2007 Honda Accord V6 are showing signs of wear or damage, addressing them immediately can save you from more serious engine problems. Look for these common issues:

• Squealing or High-Pitched Noise: A worn or loose serpentine belt often causes this noise. Check for visible cracks or fraying along the belt’s surface. If the tensioner is malfunctioning, it may also cause the belt to slip, producing a squealing sound.
• Unresponsive Power Steering: A slipping serpentine belt can reduce the efficiency of your power steering pump. If you experience difficulty turning the wheel or notice abnormal noises when turning, the belt may be slipping or misaligned.
• Battery Light On: The alternator belt drives the alternator. If the alternator belt is damaged, you might see the battery warning light. Check the belt for tightness and inspect the alternator pulley for damage.
• Overheating Engine: If the water pump belt is loose or damaged, the water pump might not circulate coolant effectively, leading to engine overheating. Examine the belt for wear and test the water pump’s operation.
• Cracked or Frayed Belts: If the belt looks cracked or shows signs of fraying, it needs replacement. These conditions often indicate age or excessive wear and may lead to total belt failure if not replaced in time.

To diagnose these issues:

• Visually inspect all belts, including the serpentine belt and individual drive belts for signs of damage.
• Check the tension of the belts. They should be tight enough to avoid slipping but not so tight that they cause strain on the pulleys.
• Use a stethoscope or a similar tool to listen for noises from the belt while the engine is running. This can help pinpoint the source of the issue.
• If any belt is visibly damaged or if a component driven by the belt is malfunctioning, replace the belt or the faulty part immediately to avoid further engine damage.
