2003 Honda Pilot Belt Diagram and Belt Routing Information

To maintain the proper function of your 2003 Honda Pilot, understanding the belt system is crucial. The serpentine belt, which drives multiple components like the alternator, air conditioning compressor, and power steering pump, must be installed correctly to avoid malfunctions. Ensure that the belt is routed as shown in the factory diagram for optimal performance.

The diagram for the 2003 Honda Pilot is straightforward but requires attention to detail. Start by identifying the alternator belt, which is typically the primary belt responsible for the charging system. The power steering belt follows, routed around the steering pump to provide smooth turning capabilities. Don’t forget to check the condition of each belt regularly to prevent wear and ensure longevity.

If the belts appear worn, cracked, or frayed, replacing them before further damage occurs will save on costly repairs. Always replace the belts with OEM parts for compatibility. Misalignment or incorrect routing can lead to the belts slipping or even breaking, so referring to the precise belt diagram is a must during installation or inspection.

2003 Honda Pilot Belt Diagram

The 2003 Honda Pilot uses a serpentine belt system to drive various components in the engine. This belt typically powers the alternator, air conditioning compressor, power steering pump, and the water pump. To ensure proper functioning, it’s crucial to understand the correct routing and the components involved in the system.

Start by locating the crankshaft pulley, which is at the bottom of the engine. The serpentine belt will pass around this pulley and continue upward, routing through the tensioner pulley, and then to the alternator. Ensure the belt follows the precise path to avoid slipping or unnecessary wear.

Next, the belt will loop over the air conditioning compressor pulley and pass through the power steering pump. The belt should maintain proper tension to avoid unnecessary movement, which could lead to premature failure. Always inspect the tensioner to ensure it is providing the correct amount of tension to the belt.

When replacing the serpentine belt, make sure to align the grooves with the pulleys and ensure the belt is not twisted. Misalignment can cause uneven wear and damage to both the belt and the pulleys.

If you’re experiencing issues with your belt system, such as squeaking or slipping, it’s recommended to inspect both the belt and pulleys for signs of wear. Replace any worn-out components promptly to avoid further engine damage.

How to Identify the Different Belts in the 2003 Honda Pilot

To identify the belts in your 2003 Honda Pilot, begin by locating the serpentine belt, which runs across multiple pulleys to power several engine components, including the alternator, power steering pump, and air conditioning compressor. This belt is visible from the top of the engine and can typically be found running along the front of the engine block.

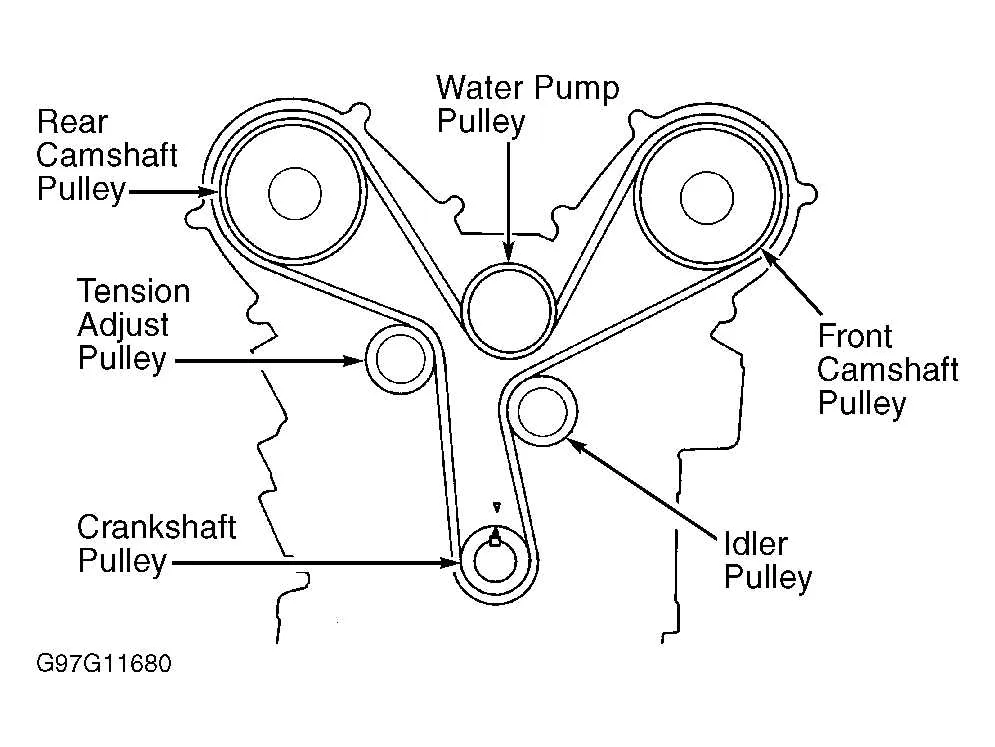

Next, identify the timing belt. It’s a crucial component, usually positioned behind the front cover of the engine. The timing belt synchronizes the rotation of the engine’s crankshaft and camshaft to ensure proper timing for engine operations. It’s generally not visible without removing parts of the engine’s exterior casing.

Also, check for the accessory belts, which drive components like the water pump, alternator, or air conditioning system. These are usually located on the side of the engine, with a clear route running across specific pulleys designed for each accessory. Some models may have an additional drive belt for specific systems, like the power steering pump.

Inspect the condition of each belt regularly. Look for any signs of wear, cracks, or fraying. A worn belt should be replaced promptly to avoid engine or accessory failure. If the serpentine belt is damaged, the accessories powered by it may stop working, affecting vehicle performance.

Step-by-Step Guide for Proper Belt Routing in the 2003 Honda Pilot

Begin by ensuring the engine is off and the key is removed from the ignition. This step is critical for safety before working on the belt system.

1. Locate the Serpentine Belt – The serpentine belt runs through several pulleys, including the alternator, power steering pump, air conditioning compressor, and water pump. Start by identifying the belt’s starting point on the crankshaft pulley.

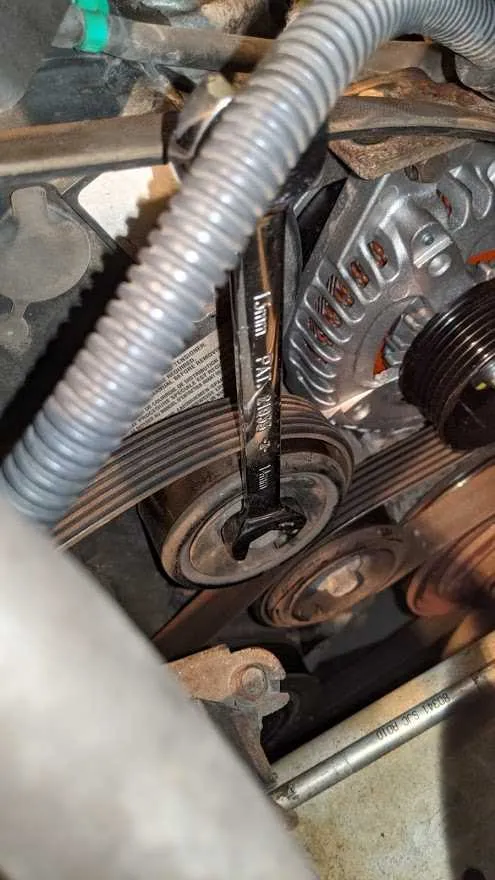

2. Remove the Old Belt – Use a wrench to release tension from the tensioner pulley. This will loosen the belt, allowing you to remove it easily from the pulleys.

3. Check the Routing Diagram – Refer to the routing diagram located under the hood or in the owner’s manual to ensure proper belt placement. Ensure the belt follows the path around the pulleys as shown.

4. Install the New Belt – Begin by threading the belt around the crankshaft pulley. Make sure the belt is properly aligned with the grooves on each pulley.

5. Position the Belt Correctly – Pay attention to the positioning around the tensioner and idler pulleys. These are crucial for the belt’s movement and tension. Ensure the belt is fully seated in the grooves on each pulley.

6. Reapply Tension – Use the wrench again to engage the tensioner pulley and ensure the belt is tight enough. The belt should have minimal slack but should not be overly tight.

7. Double-Check the Installation – Before starting the engine, manually rotate the crankshaft pulley to ensure the belt runs smoothly through all pulleys without slipping off or misaligning.

8. Test the Engine – Start the engine and observe the belt in motion. Listen for any unusual noises and watch for any signs of slippage or misalignment. If all looks good, the installation is complete.

Common Belt Issues in the 2003 Honda Pilot and How to Fix Them

1. Squeaking or Squealing Noise

If you hear a squeaking or squealing sound from the engine area, the serpentine belt may be loose or worn. Inspect the belt for signs of wear, such as cracks or fraying. Tighten or replace the belt if necessary. If the tensioner is faulty, replace it as well.

2. Belt Slipping

A slipping belt can lead to poor engine performance and may cause the alternator, power steering, or air conditioning to malfunction. Check the belt for wear, dirt, or glazing. If it’s damaged, replace the belt and ensure the tensioner maintains proper tension.

3. Belt Breakage

Over time, belts may snap due to age or excessive wear. If the belt breaks, it can cause immediate failure of critical engine components. Replace the belt before it becomes too worn. It’s also wise to inspect other components like pulleys and the tensioner to prevent premature belt failure.

4. Tensioner Failure

If the tensioner fails, the belt may become loose, leading to slipping or squealing noises. A faulty tensioner can also cause premature belt wear. Inspect the tensioner for signs of wear or damage and replace it if necessary.

5. Misaligned Belt

If the belt is misaligned, it could indicate an issue with the pulleys or the tensioner. Misalignment leads to uneven wear and premature failure. Inspect all pulleys for damage or debris, and make sure the alignment is correct. Replace any damaged components before reinstalling a new belt.
