2012 5.7 Hemi Serpentine Belt Diagram and Installation Guide

To replace or troubleshoot the serpentine belt on a 2012 5.7 Hemi engine, you must first understand the belt layout. The serpentine belt powers critical components, such as the alternator, power steering pump, and air conditioning compressor. Ensuring the correct routing of the belt is key to proper engine function and preventing damage.

The belt routing diagram for the 2012 5.7 Hemi is specific and must be followed precisely. Incorrect installation can lead to the belt slipping or breaking, potentially causing engine performance issues. You will need to examine the diagram carefully, noting how the belt interacts with each component, such as pulleys and tensioners.

When replacing the serpentine belt, it is essential to check the belt tensioner as well. A worn tensioner can cause the belt to slip or come loose. Always inspect the condition of the tensioner and other components while performing the replacement. If any part is damaged, replace it immediately to avoid further complications.

Refer to the official repair manual for specific torque settings and procedures, but using a professional-grade serpentine belt tool will make the replacement process easier and more efficient. Remember to align the belt correctly with the grooves of each pulley to ensure smooth operation.

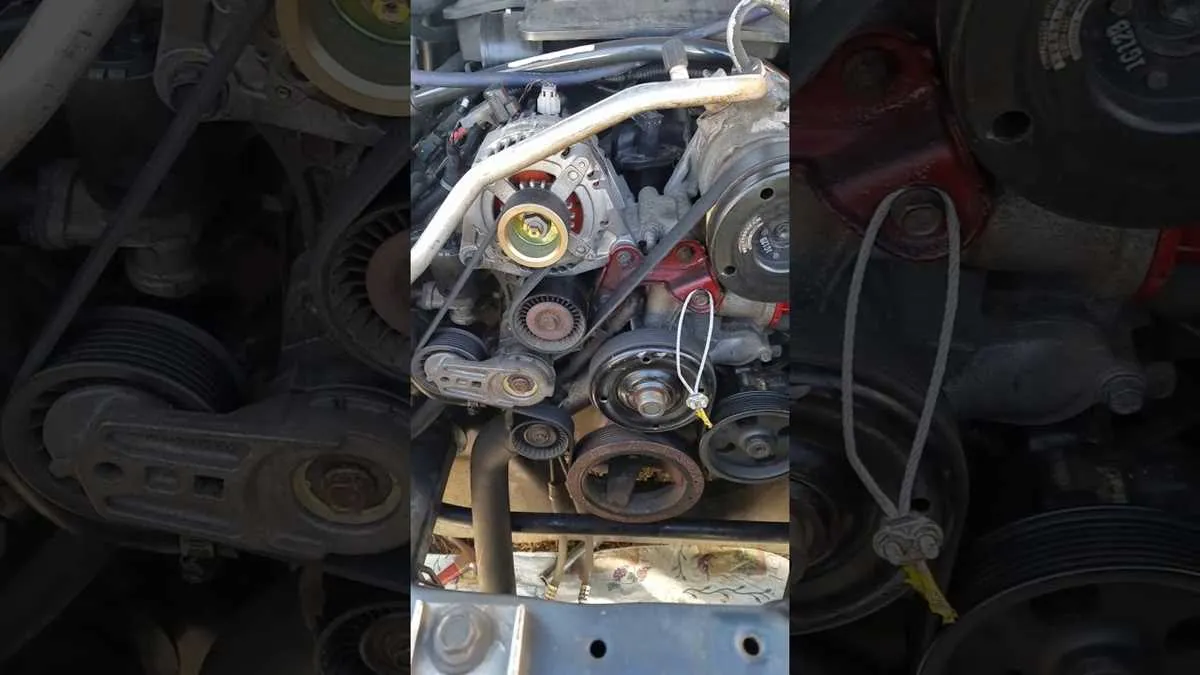

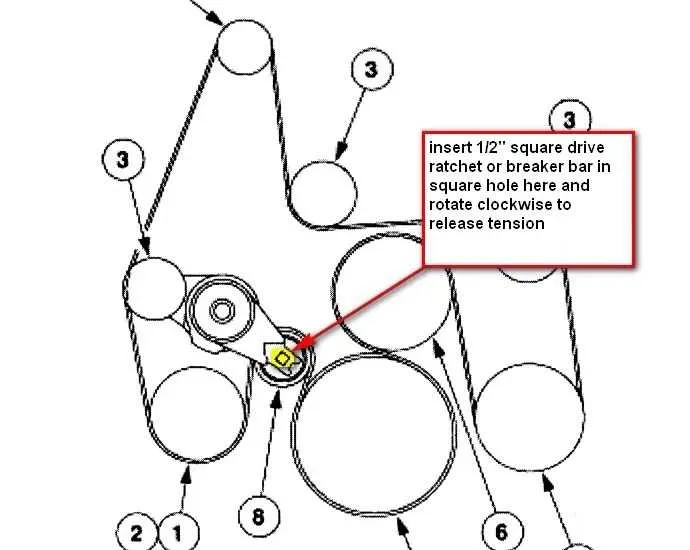

2012 5.7 Hemi Serpentine Belt Diagram

The serpentine belt system in the 2012 5.7 Hemi engine connects several components, including the alternator, power steering pump, water pump, and air conditioning compressor. The belt’s primary function is to transfer mechanical energy from the engine to these vital components, ensuring their proper operation. The diagram of this system provides a clear path of how the belt should be routed around each pulley and component.

When replacing or inspecting the serpentine belt, make sure the belt aligns correctly with all pulleys. Improper routing can lead to slipping or premature wear, which may cause the belt to fail. Pay attention to the belt tensioner, which ensures the belt is tight enough to avoid slippage but not too tight to cause excess wear. The tensioner should move smoothly and not show signs of rust or wear.

For the 2012 5.7 Hemi, the belt follows a specific routing, starting at the crankshaft pulley and moving through various components. It is vital to use the proper belt size and type for the engine’s specifications. A belt that is too tight or too loose can cause uneven wear and reduce the overall lifespan of the serpentine belt system.

Always double-check the diagram and verify the belt is installed correctly before starting the engine. A misaligned belt can lead to excessive wear and even damage to the engine components. Regularly inspect the serpentine belt for signs of cracking, fraying, or other damage to avoid unexpected failures during driving.

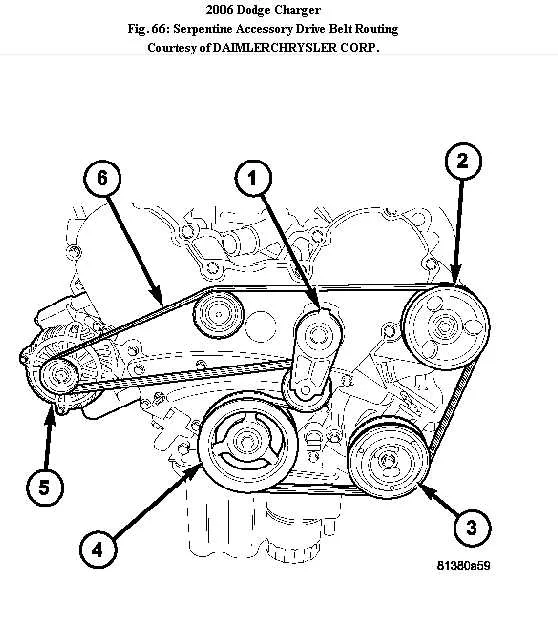

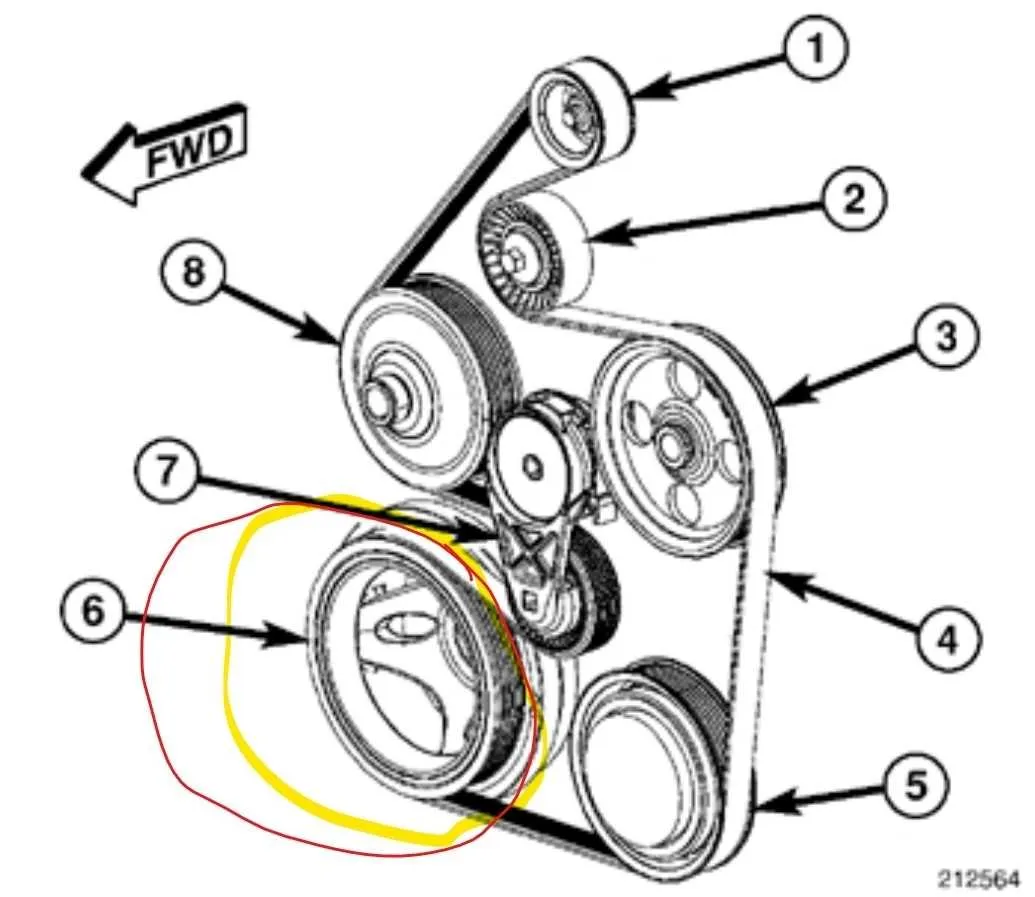

Understanding the Serpentine Belt Routing for the 2012 5.7 Hemi

The serpentine belt on the 2012 5.7 Hemi engine plays a crucial role in powering multiple accessories, including the alternator, power steering pump, air conditioning compressor, and water pump. Getting the belt routing correct is essential for smooth engine operation.

To ensure the belt is routed properly, follow these key steps:

• Start by locating the serpentine belt tensioner. This is where you’ll release tension to remove or install the belt.
• Route the belt around the crankshaft pulley, ensuring it wraps around it in the correct direction.
• Pass the belt over the water pump pulley and under the alternator pulley, ensuring the path aligns with the diagram.
• Make sure the belt loops around the power steering pump and air conditioning compressor pulleys, following the correct path shown on the diagram.
• Finish by ensuring the belt passes under the idler pulley and fits snugly around the tensioner, keeping proper tension.

Double-check the belt’s routing against the engine diagram to confirm all components are connected in the correct sequence. Misrouting can lead to belt slipping, excessive wear, or even damage to engine components.

Reapply tension by using the serpentine belt tool to rotate the tensioner pulley back into place. Ensure the belt fits tightly but with enough slack to move slightly, as excessive tension can cause premature wear.

Always replace the serpentine belt if there are signs of wear, cracking, or fraying, as a worn belt can cause significant engine issues. Checking the belt every 30,000 to 60,000 miles is recommended to maintain optimal engine performance.

Common Issues with the Serpentine Belt on the 2012 5.7 Hemi

One of the most common issues with the serpentine belt on the 2012 5.7 Hemi is belt wear. Over time, the belt can become cracked, frayed, or glazed. If you notice squealing noises or visual damage, it’s time to inspect the belt for signs of wear. A worn belt may not provide the proper tension to the accessories, causing them to malfunction.

A second frequent issue is belt tension. The serpentine belt relies on a tensioner to maintain the correct amount of tension. If the tensioner becomes faulty, the belt may slip or lose tension, leading to overheating or failure. If you notice the belt is loose or the tensioner is visibly damaged, replacement is necessary.

Another concern is improper routing. If the serpentine belt has been removed or replaced and incorrectly routed, it can cause issues with belt alignment, leading to excessive wear or even complete failure. Always double-check the routing diagram before reinstalling the belt.

Lastly, pulley misalignment can also affect the serpentine belt’s performance. If a pulley is damaged or out of alignment, it can cause the belt to wear unevenly or slip. Inspect all pulleys regularly for any signs of wear or misalignment, and replace them if needed to prevent further issues.

Steps to Replace the Serpentine Belt on the 2012 5.7 Hemi

First, disconnect the negative terminal of the battery to ensure safety during the process. This will prevent any accidental electrical shorts while working on the engine.

Locate the serpentine belt tensioner. Use a socket wrench to rotate the tensioner counterclockwise, which will relieve the tension on the belt. You can then remove the old belt from the pulleys.

Inspect the pulleys and tensioner for any damage or wear. This is a good time to replace any worn components before installing the new belt.

Compare the new serpentine belt to the old one to ensure proper length and fit. Check the routing diagram to confirm the correct positioning of the belt around all pulleys.

Install the new belt by following the routing diagram carefully. Ensure it sits securely on all pulleys and is aligned correctly on the tensioner.

Use the wrench to rotate the tensioner again and allow the belt to slip into place. Once the belt is positioned correctly, release the tensioner and verify the belt’s tension.

Reconnect the negative terminal of the battery. Start the engine and observe the belt while it runs to ensure it operates smoothly without slipping or making noise.

If everything looks good, you’ve successfully replaced the serpentine belt on your 2012 5.7 Hemi.
