2012 Ford F150 5.0 Serpentine Belt Routing Diagram and Installation Guide

If you need to replace or inspect the serpentine belt on your 2012 Ford F150 5.0, the diagram is key to ensure proper installation. The serpentine belt drives several important components, including the alternator, power steering pump, and air conditioning compressor. Getting the routing correct is vital for smooth operation.

The diagram for the 2012 Ford F150 5.0 V8 engine shows the exact path the serpentine belt should follow around pulleys. Pay close attention to the tensioner and idler pulleys. The belt needs to be routed correctly to maintain the correct tension and avoid slipping or damage. The diagram typically shows the direction of rotation, helping to prevent installation mistakes.

Make sure to verify belt size and part number before starting the job. After removing the old belt, inspect the pulleys for wear or damage. If any pulleys show signs of wear, it’s a good idea to replace them at the same time to avoid future problems. Once the new belt is installed, double-check the alignment to ensure everything runs smoothly.

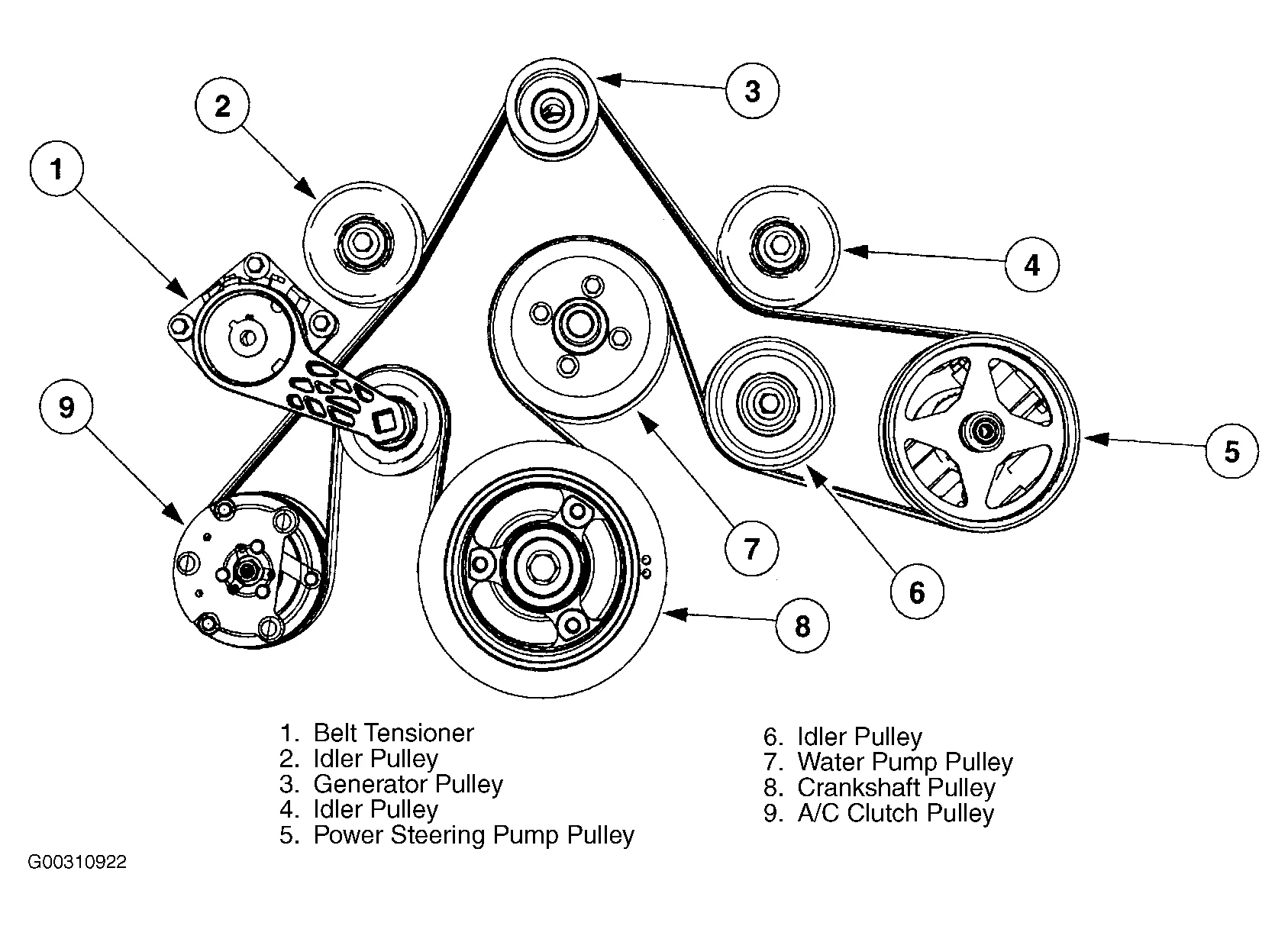

2012 Ford F150 5.0 Serpentine Belt Diagram

To replace or troubleshoot the serpentine belt on your 2012 Ford F150 5.0, follow this specific routing pattern. The diagram helps ensure the correct installation and functioning of components like the alternator, power steering pump, air conditioning compressor, and tensioner.

The serpentine belt should loop in the following order: starting from the crankshaft pulley, pass it under the idler pulley, over the power steering pump, under the air conditioning compressor, over the alternator, under the water pump, and finally, over the tensioner. Double-check that the belt is properly tensioned to prevent slipping or premature wear.

Ensure the belt wraps smoothly without any twists or misalignments. The belt should sit securely in the grooves of each pulley. If the belt appears worn or damaged, replace it as soon as possible to avoid system failures.

Once installed, manually rotate the tensioner pulley to confirm the correct tension. If it’s too loose or tight, adjust accordingly. A correctly routed and tensioned serpentine belt ensures optimal performance for your F150’s key systems.

How to Identify the Correct Serpentine Belt Routing for 2012 Ford F150 5.0

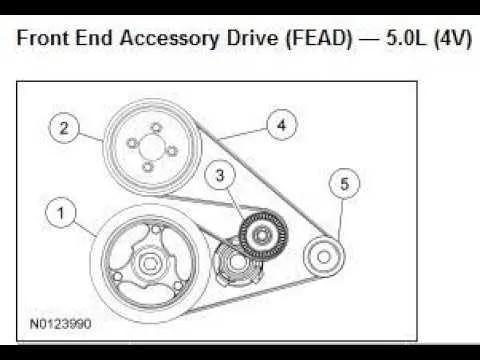

To find the correct serpentine belt routing for the 2012 Ford F150 5.0, locate the belt diagram, which is typically found on a decal near the radiator support or on the engine compartment’s fan shroud. This diagram shows the exact routing of the serpentine belt around the various pulleys.

Start by identifying the components the belt runs through: the crankshaft pulley, alternator, water pump, idler pulley, and tensioner. The belt should loop around these parts in a specific sequence to ensure optimal engine performance. Pay attention to the tensioner, which helps maintain proper belt tension, keeping the system running smoothly. The tensioner pulley is adjustable, allowing the belt to be tightened or loosened as needed.

If the diagram is missing or unreadable, use a service manual for your vehicle model or look up the routing diagram online. Double-check measurements of the belt length, as it needs to match the specifications for the 2012 F150 5.0 to prevent slippage or misalignment.

For belt replacement, start by loosening the tensioner pulley with a wrench or socket, then remove the old belt. Install the new belt following the same routing as the diagram, ensuring it’s properly seated on all pulleys before tightening the tensioner back into place.

Steps to Replace the Serpentine Belt on a 2012 Ford F150 5.0

Before starting, make sure you have the correct replacement serpentine belt for your 2012 Ford F150 5.0. Double-check the part number and the belt length against the vehicle’s specifications.

1. Lift the vehicle: Secure the truck on a flat surface and lift it using a jack. Ensure it is stable with jack stands before proceeding.

2. Locate the serpentine belt: Open the hood and find the serpentine belt routing diagram, typically located near the radiator or under the hood. This diagram shows how the belt runs around the pulleys.

3. Release tension: Use a ratchet and socket to rotate the tensioner pulley. This will relieve the tension on the serpentine belt, allowing you to remove it from the pulleys.

4. Remove the old belt: Carefully slide the belt off the pulleys. Pay attention to the routing to ensure the new belt will go on the same way.

5. Inspect pulleys and tensioner: Check for any signs of wear or damage on the pulleys and tensioner. If any component is faulty, replace it before installing the new belt.

6. Install the new serpentine belt: Begin threading the new belt through the pulleys, following the diagram. Make sure it sits properly in each pulley groove.

7. Apply tension: Rotate the tensioner pulley again to apply tension to the belt. Ensure the belt is tight and correctly aligned across all pulleys.

8. Double-check routing: Once the belt is in place, verify its routing against the diagram to confirm everything is correct. The belt should not be twisted or misaligned.

9. Test the system: Start the engine and observe the belt in motion. Listen for any unusual noises and check that the belt operates smoothly on all pulleys.

10. Lower the vehicle: Once satisfied, turn off the engine, lower the truck back to the ground, and remove the jack stands.

By following these steps, you can replace the serpentine belt on your 2012 Ford F150 5.0 with confidence and ensure that your vehicle runs smoothly.

Troubleshooting Common Serpentine Belt Issues in 2012 Ford F150 5.0

If your 2012 Ford F150 5.0’s serpentine belt is malfunctioning, it’s important to act quickly to prevent further damage. Common issues can often be diagnosed and fixed without much hassle. Here’s how to tackle these problems:

• Squealing or High-Pitched Noise: A slipping serpentine belt often causes this noise. Inspect the belt for wear and tear, or signs of glazing. Tightening the belt or replacing it may resolve the issue. Ensure the pulleys are properly aligned and free of debris.
• Belt Wear and Cracking: Cracks on the belt indicate that it’s nearing the end of its life. Check the belt for any signs of fraying or splitting, particularly at the edges. Replace the belt if necessary to prevent a sudden break.
• Poor Tension: If the belt appears loose, the tensioner may need adjusting or replacing. Check the tensioner spring for wear. It should maintain consistent pressure to keep the belt tight. If the spring is weak or the tensioner pulley is damaged, replace the tensioner assembly.
• Pulley Misalignment: If the belt tracks unevenly or comes off, it may be due to misaligned pulleys. Inspect the pulleys for any signs of damage, such as cracks or excessive wear. Replacing the affected pulley should fix the issue.
• Overheating Alternator: A malfunctioning serpentine belt can lead to poor alternator performance. If your alternator is overheating, it could be due to an insufficient power supply caused by a slipping or broken belt. Check the belt’s condition and the tension on the alternator’s pulley.

Regularly inspecting your serpentine belt and the associated components will help you avoid sudden failures and costly repairs. Don’t forget to also check the belt every 30,000 to 50,000 miles as part of your regular maintenance routine.
