Complete guide to the 2012 5.7 Hemi engine belt diagram and routing details
Follow the correct routing for the 2012 5.7 HEMI serpentine belt to prevent slippage and maintain engine performance. The belt loops around the crankshaft, alternator, water pump, power steering pump, and A/C compressor, with the automatic tensioner applying proper pressure to keep it aligned.
Compare the belt with a detailed diagram before installation to ensure each ribbed groove sits precisely in its pulley. Inspect all pulleys for wear or damage, and replace any that show cracks, wobble, or unusual resistance. Misaligned pulleys can cause noise, premature wear, or failure of connected components.
Release the tensioner slowly when positioning the belt, making certain it seats fully on every pulley. After the engine runs briefly, check that the belt tracks smoothly and remains centered. Correct installation reduces vibration and maintains steady operation of all accessories.
Keep a copy of the belt diagram accessible in the vehicle for reference during maintenance. Regularly check belt condition and tensioner operation to extend the service life of the belt and associated components, avoiding unexpected breakdowns or repairs.

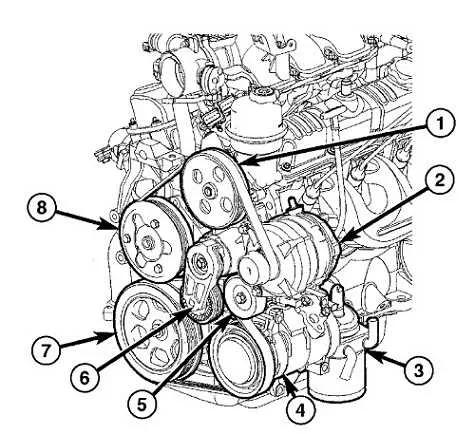

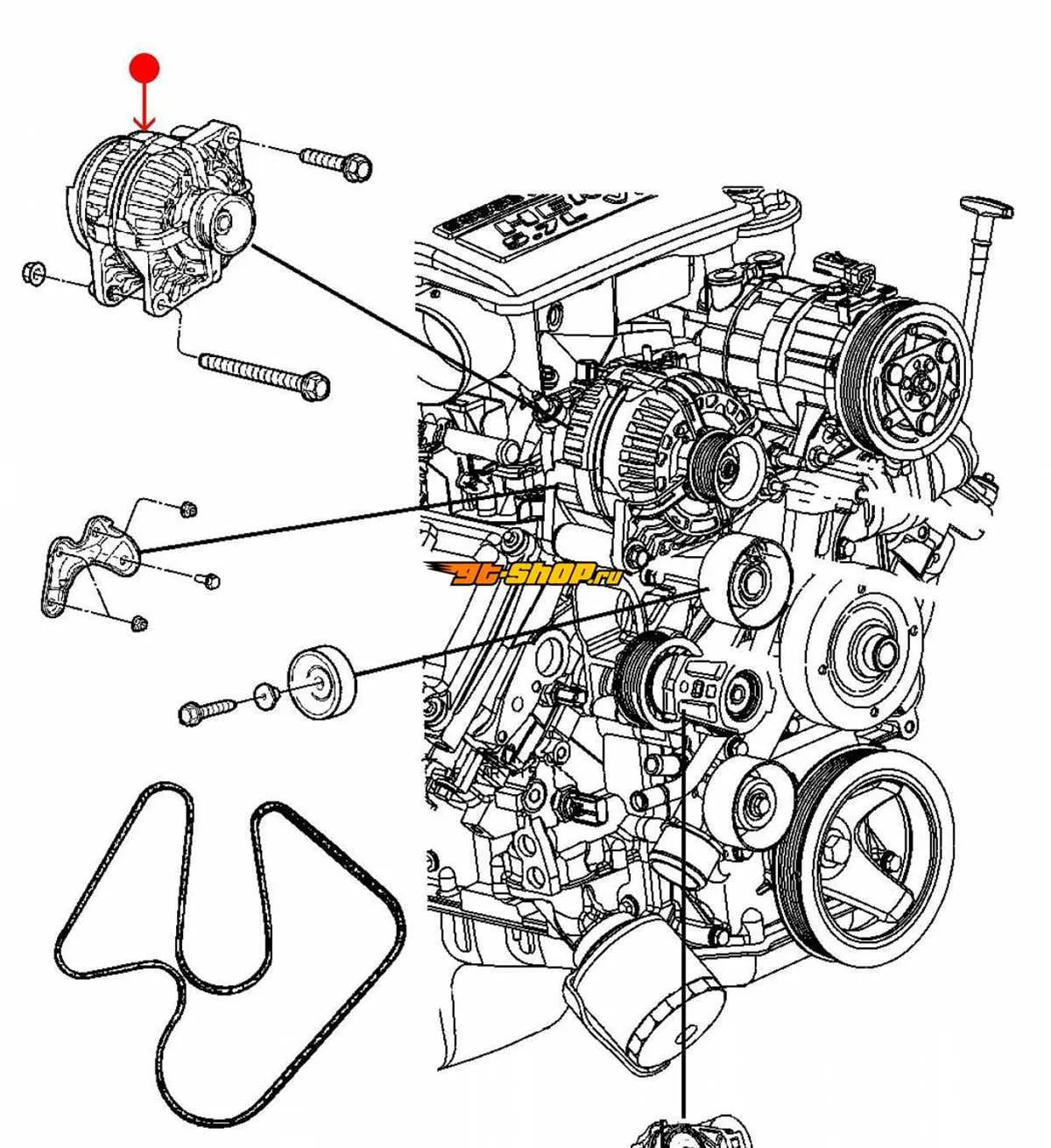

2012 5.7 HEMI Belt Diagram
Follow this belt routing to ensure correct installation on a 2012 5.7 HEMI engine. Misalignment can cause noise, premature wear, and accessory malfunction.
- Start at the crankshaft pulley. Loop the belt around the alternator pulley, keeping tension firm but not excessive.
- Next, route the belt over the water pump pulley, ensuring the ribs align perfectly with grooves.
- Bring the belt to the power steering pump pulley, maintaining smooth contact along the pulley surface.
- Route the belt around the A/C compressor pulley, checking that the belt sits evenly across the pulley width.
- Finish by passing the belt over the tensioner pulley. Use the tensioner tool to apply proper tension before releasing.
Inspect each pulley for wear or damage. Replace any cracked or glazed pulleys before finalizing the belt installation. Verify tension using a belt gauge or follow the manual’s deflection specifications for 5.7 HEMI.
Regularly check the belt for fraying or rib separation. A correctly routed belt ensures consistent performance of the alternator, water pump, power steering, and A/C system.
Keep the diagram accessible during future maintenance to reduce installation errors and extend the lifespan of the engine components.
Locating and Identifying Each Belt Component on the 5.7 HEMI Engine
Begin with the serpentine belt routed around the crankshaft pulley at the engine’s base. Follow it upward to locate the alternator, positioned on the passenger side, and trace the belt around its smooth pulley.
Next, identify the water pump, located near the center of the engine, with the belt passing directly over its pulley. The power steering pump sits on the driver side, with a slightly larger pulley that the belt loops around before moving to the tensioner.
The belt tensioner, spring-loaded and mounted near the center front, maintains proper tension. Press the tensioner arm with a wrench to release belt pressure and verify routing. Nearby, the idler pulleys guide the belt along smooth, fixed paths without any mechanical drive function.
Trace the belt’s path to the A/C compressor at the bottom passenger side. Its pulley is ribbed and typically smaller than the water pump or alternator. Confirm each contact point: crankshaft, alternator, water pump, power steering, tensioner, idler pulleys, and A/C compressor to ensure accurate placement.
Labeling each component visually while the belt is removed helps prevent misrouting. Use chalk or masking tape to mark pulley alignment and check belt alignment with the ribbed side facing all grooved pulleys. Reinstalling the belt along these marked paths reduces tensioner strain and ensures proper accessory function.
Step-by-Step Belt Routing for Front Accessory Installation
Place the belt around the crankshaft pulley first, ensuring it sits fully in the groove. Guide the belt upward to the water pump pulley, keeping tension on the top side to avoid slack. Loop the belt around the alternator pulley, checking that it aligns correctly with the pulley grooves. Direct the belt toward the power steering pump, maintaining a smooth path without twists. Wrap the belt around the air conditioning compressor pulley, making sure it tracks properly across all surfaces. Use a wrench on the tensioner pulley to apply slight pressure, then slide the belt over the tensioner. Release the tensioner slowly to hold the belt in place. Rotate the crankshaft manually two full turns to confirm the belt seats evenly across all pulleys. Inspect each pulley visually to verify alignment and ensure no side-to-side movement occurs before completing the installation.
Troubleshooting Common Belt Alignment and Tension Issues
Check the belt alignment using a straight edge along the pulleys. Misalignment of even 1/16 inch can cause squealing and accelerated wear. Adjust the tensioner to maintain 15–20 pounds of deflection on the main serpentine belt. Over-tightening can stress the water pump and alternator bearings.
Inspect pulleys for wobble or damage. A bent idler pulley often creates uneven wear patterns on the belt, visible as fraying or glazing. Replace any pulley with visible deviation beyond 0.5 mm.
Measure belt tension at multiple points. Use a calibrated gauge or apply finger pressure: a properly tensioned belt should deflect roughly 1/4 inch under moderate thumb pressure at mid-span. Replace belts that exhibit cracking, excessive rib separation, or hard spots.
Verify routing against the 2012 5.7 Hemi belt diagram. Crossed or incorrectly routed belts can generate high friction, overheating, and premature failure of both belt and accessories. Tighten the tensioner only after confirming correct routing.
| Issue | Symptom | Action |
|---|---|---|
| Misaligned pulleys | Squealing, uneven belt wear | Adjust pulley positions; replace bent pulleys |
| Excessive tension | Noise, bearing wear, reduced lifespan | Loosen tensioner to achieve 15–20 lb deflection |
| Loose belt | Slippage, poor accessory performance | Tighten tensioner to correct deflection; replace worn belt |
| Damaged belt | Cracks, glazing, fraying | Replace immediately; check pulley alignment |
