2013 Dodge Dart Serpentine Belt Diagram and Installation Guide

To maintain the smooth operation of your 2013 Dodge Dart, understanding the serpentine belt routing is crucial. The serpentine belt drives various components, such as the alternator, air conditioning compressor, and power steering pump. If the belt is misaligned or worn out, it can lead to significant engine issues.

The first step is to locate the belt diagram, typically found on the radiator support or engine bay. This diagram shows the correct routing of the serpentine belt. Make sure to compare this diagram with the physical setup on your vehicle to ensure the belt is in the proper position.

If you’re replacing the serpentine belt, make sure the new belt matches the specifications in your vehicle’s manual. A belt that is too tight or too loose can cause premature wear or damage to engine components. It’s also important to check the tensioner for proper operation to avoid future issues.

Keep in mind that over time, the belt can stretch, crack, or wear. Regularly inspect it for any signs of damage, especially when performing routine maintenance. If you notice any irregularities, replacing the belt promptly will save you from more costly repairs down the line.

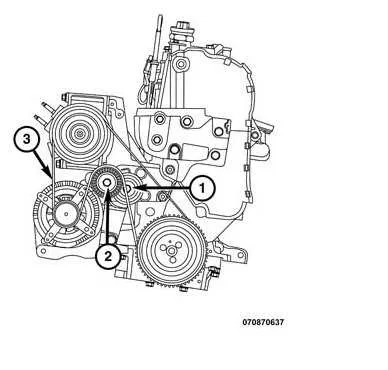

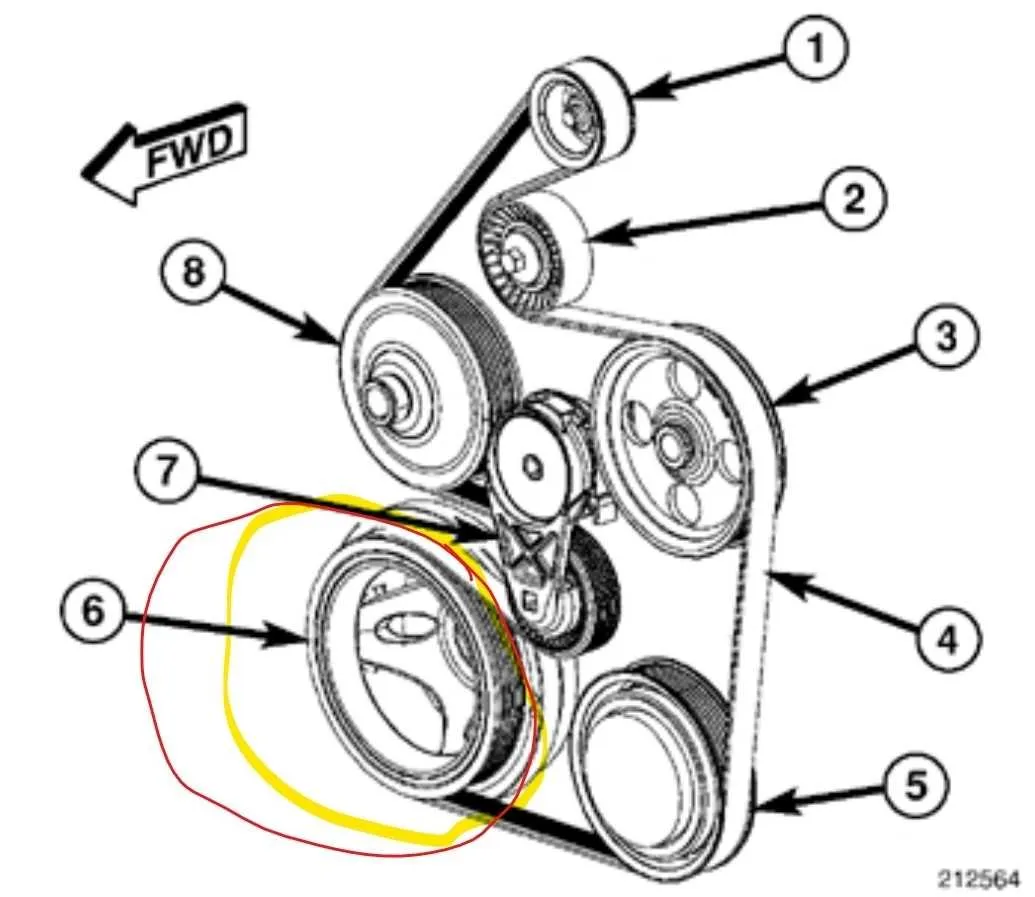

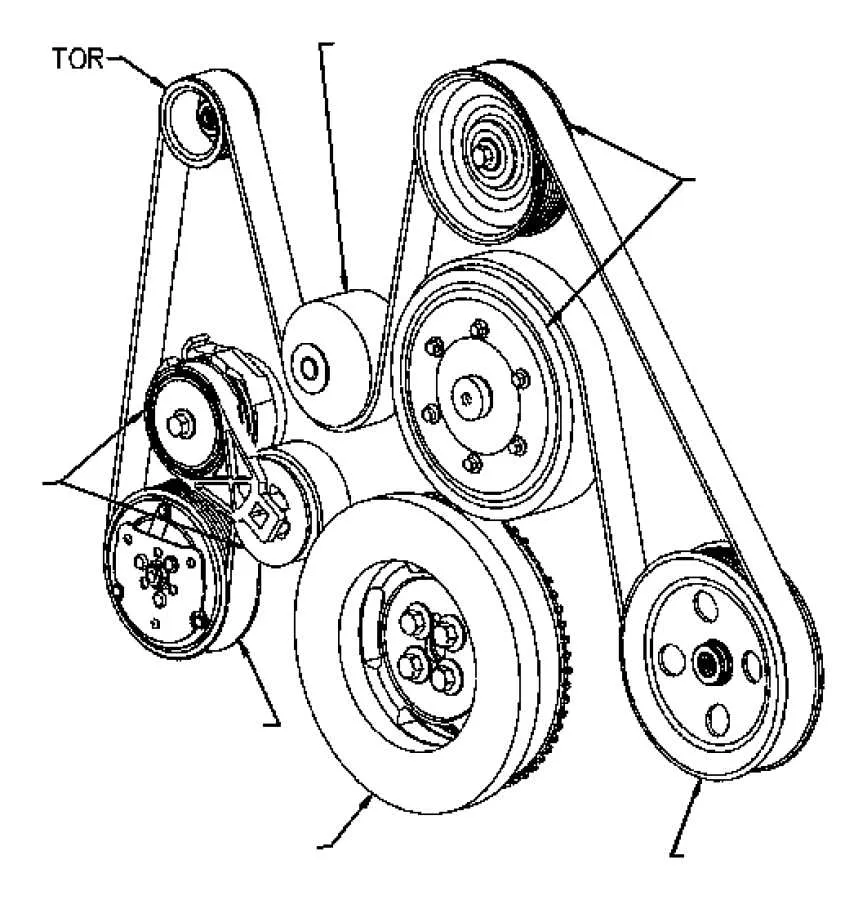

2013 Dodge Dart Serpentine Belt Diagram

For the 2013 Dodge Dart, the serpentine belt is a critical component that powers multiple engine accessories, including the alternator, power steering pump, and air conditioning compressor. If the serpentine belt is damaged or worn, it can cause engine accessories to fail, leading to engine overheating or loss of power steering. Here’s a detailed look at the serpentine belt layout for your vehicle.

The serpentine belt on the 2013 Dodge Dart follows a specific routing pattern to ensure that all accessories are powered efficiently. The belt runs over the crankshaft pulley, alternator, and power steering pump, among others. Pay attention to the belt’s path and its tension to prevent misalignment or slippage. Misalignment may cause the belt to wear out faster, leading to costly repairs.

Key Recommendations: Regular inspection of the serpentine belt should be part of your vehicle maintenance. Check for visible signs of wear such as cracks, fraying, or glazing. If the belt appears damaged, it’s important to replace it as soon as possible to avoid further damage to your engine components.

Maintenance Tip: When replacing the serpentine belt, it’s crucial to ensure it’s routed correctly. You can use the diagram in your vehicle’s manual as a guide. If you’re unsure about the routing, consider using a serpentine belt tool to maintain proper tension and ensure the belt remains aligned during installation.

How to Locate the Serpentine Belt on a 2013 Dodge Dart

To find the serpentine belt on a 2013 Dodge Dart, start by opening the hood and locating the engine. The serpentine belt runs across the front of the engine, typically near the alternator, power steering pump, and air conditioning compressor.

Look for the belt routing diagram, which is usually found on a label near the radiator or on the underside of the hood. This diagram shows the exact path the serpentine belt follows around the engine components.

Next, identify the belt itself. It is a long, rubber belt with grooves that connect various pulleys. In most cases, the belt will be easily visible from the top of the engine. If you have difficulty spotting it, you may need to move components like the air filter or cover to get a clearer view.

If you’re having trouble locating the belt, it can be helpful to follow the path from the alternator, as it is usually one of the most accessible parts to spot. Once you identify the belt’s path, you can determine if it’s in good condition or needs replacement.

Step-by-Step Guide to Replacing the Serpentine Belt

Start by locating the serpentine belt. It runs across multiple pulleys in your 2013 Dodge Dart, including the alternator, power steering, and air conditioning compressor. You’ll typically find it under the hood, near the front of the engine.

1. Loosen the Tensioner: Use a ratchet wrench to turn the tensioner pulley. This pulley keeps the belt tight. Turning the wrench counterclockwise will relieve tension and allow you to remove the old belt.

2. Remove the Old Belt: Once the tension is released, slide the belt off the pulleys. Carefully note its routing on the diagram (you can refer to the owner’s manual or a decal near the engine for the exact route).

3. Check Pulley Condition: Before installing the new belt, inspect all the pulleys for any damage or wear. Look for any wobbling or signs of rust. Replace any damaged pulleys to ensure the new belt runs smoothly.

4. Install the New Belt: Begin by threading the new serpentine belt around the pulleys, following the exact routing pattern of the old one. Ensure that the belt sits securely on each pulley without slipping off.

5. Reapply Tension: Once the belt is correctly positioned, use the ratchet wrench to rotate the tensioner pulley back into position, tightening the belt. Verify the belt is firmly in place and has proper tension.

6. Test the Belt: Start the engine and observe the belt’s movement. Ensure it runs smoothly and doesn’t make any unusual noises. If the belt is too loose or tight, adjust the tensioner accordingly.

7. Final Inspection: Turn off the engine and recheck the belt’s position. Make sure it’s centered on each pulley and is securely tensioned.

Troubleshooting Common Serpentine Belt Issues on the 2013 Dodge Dart

If you hear squealing noises from the engine, the serpentine belt may be slipping. Check for any signs of wear or glazing. A shiny or smooth surface on the belt suggests it’s losing friction, which could cause it to slip on pulleys, especially in cold conditions or when the engine is under load.

Another common issue is belt misalignment. If the belt appears to be off-center or you notice uneven wear patterns, the pulleys may not be aligned properly. Inspect the tensioner and idler pulleys for damage. Misalignment often results from worn components that need replacing.

Examine the belt for cracks or fraying. These are indicators that the belt is nearing the end of its lifespan. If the belt is damaged, it should be replaced immediately. Failure to do so may cause the belt to snap, leading to engine power loss and possible damage to other engine components.

If the belt tension is too loose, it can slip off the pulleys. A faulty tensioner or worn-out spring can cause improper tension. Inspect the tensioner’s spring to ensure it’s functioning correctly. If the tensioner feels weak or the belt is too loose, replace it.

Finally, check for oil or coolant leaks that might have come in contact with the serpentine belt. These substances can degrade the belt material, leading to premature failure. If you find any leaks, fix them before replacing the belt.
