2005 5.7 Hemi Serpentine Belt Diagram for Engine Maintenance and Repair

If you’re looking to replace or adjust the serpentine belt on a 2005 5.7 Hemi engine, understanding the belt routing diagram is key to ensuring a smooth and successful job. The belt layout is straightforward once you know where each component lies in the system. You’ll need the diagram to make sure the belt is properly aligned with the crankshaft, alternator, power steering, and other pulleys. A single misalignment can lead to premature wear or even engine damage.

To start, locate the tensioner pulley. This component is crucial because it maintains proper tension on the belt. Make sure the tensioner is fully relaxed before you begin removing the old belt. Following the routing instructions carefully is the best way to avoid unnecessary issues. Take your time and check the belt placement twice before tightening everything up. If you’re replacing the belt, verify the new one is the right size and specifications for your engine model.

By paying close attention to these details, you ensure that the belt stays intact and works as it should, delivering power to all necessary engine systems without slipping or wearing out prematurely. Once you’ve installed the belt, give it a quick check to make sure it’s routed correctly and that the tensioner is holding it in place with proper tension.

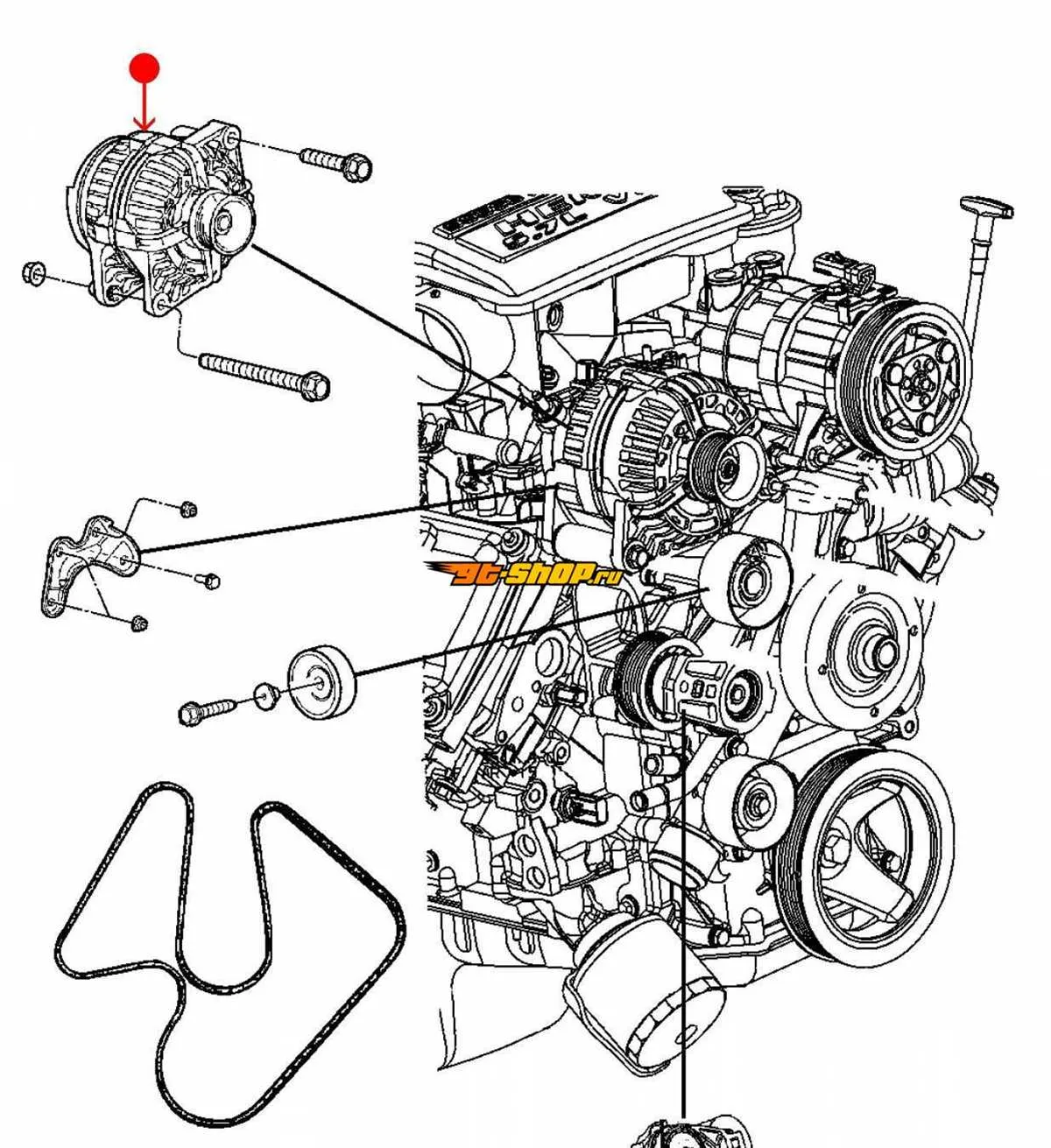

2005 5.7 Hemi Belt Diagram

To correctly replace or inspect the serpentine belt on a 2005 5.7 Hemi engine, follow this detailed guide for accurate placement.

• Starting Position: The belt should begin at the top of the alternator, which is located at the front of the engine.
• Routing: Continue the belt around the idler pulley on the passenger side of the engine.
• Power Steering Pump: From the idler pulley, the belt moves to the power steering pump located near the top of the engine on the driver’s side.
• Water Pump: Next, guide the belt over the water pump pulley, which sits below the power steering pump.
• AC Compressor: The belt then routes towards the air conditioning compressor, positioned near the bottom of the engine block.
• Crankshaft Pulley: Lastly, the belt loops over the crankshaft pulley, which sits at the very bottom of the engine, completing the loop.

Ensure that the tensioner is properly adjusted to maintain appropriate belt tension. It should be able to provide the right amount of tension to keep the belt securely in place without slack.

If the belt appears worn or cracked, replace it promptly to prevent engine damage or failure. Check all pulleys for any signs of wear or damage as well. Regular inspections can help identify any issues early on.

Understanding the Timing and Accessory Belt Routing for 2005 5.7 Hemi

The 2005 5.7 Hemi engine uses two key belts: the timing belt and the accessory drive belt. Both belts are critical for engine performance, and correct routing ensures proper operation of engine components such as the alternator, power steering pump, and air conditioning compressor.

The timing belt on the 5.7 Hemi is responsible for synchronizing the rotation of the crankshaft and camshaft. This allows the engine’s valves and pistons to operate in harmony. The accessory drive belt, on the other hand, drives essential components like the water pump, alternator, and power steering pump. Ensure both belts are routed according to the manufacturer’s diagram to prevent damage and maximize longevity.

For correct accessory belt routing, refer to the diagram located near the front of the engine or the service manual. The belt should loop around the crankshaft pulley, tensioner, alternator, and power steering pump, ensuring proper tension at all points. If the belt is misrouted, it could cause components to malfunction or wear prematurely.

When replacing either belt, double-check the tensioners and pulleys for wear. The timing belt should be replaced after 100,000 miles or based on manufacturer recommendations. A worn-out belt can lead to severe engine damage, so it’s important to stay on schedule with maintenance.

Be sure to follow the exact belt routing to prevent slipping, premature wear, or damage to critical engine components. The 5.7 Hemi engine is designed for reliability, but routine maintenance of both timing and accessory belts is key to maintaining performance and longevity.

Common Issues with Belt Tensioner and Pulley Alignment on 2005 5.7 Hemi

Misalignment between the belt tensioner and pulleys on the 2005 5.7 Hemi can lead to premature wear and potential engine damage. One common issue is the tensioner pulley misalignment, which results in uneven wear on the serpentine belt. Over time, this can cause the belt to slip, leading to a loss of power to critical components like the alternator, power steering, or water pump.

Check the tensioner assembly for any signs of damage or wear. If the tensioner arm is excessively worn or the pulley is no longer smooth, replacement is necessary. A misaligned tensioner can also cause the belt to become excessively tight or loose, which stresses the entire system. It’s crucial to ensure that the belt tension is within the manufacturer’s recommended specifications to avoid strain on other parts.

Inspect the pulleys for any signs of wobbling or irregular rotation. Pulley misalignment can be caused by a failing bearing or improper installation. Even slight misalignment can lead to noisy operation and decreased efficiency. When replacing pulleys or the tensioner, always verify the alignment with a straightedge or by eye to ensure they sit properly in line with the other components.

Addressing these issues early can prevent further damage to the serpentine belt and associated components. Regular inspection and maintenance will extend the life of the tensioner, pulleys, and belt, keeping your 2005 5.7 Hemi running smoothly.

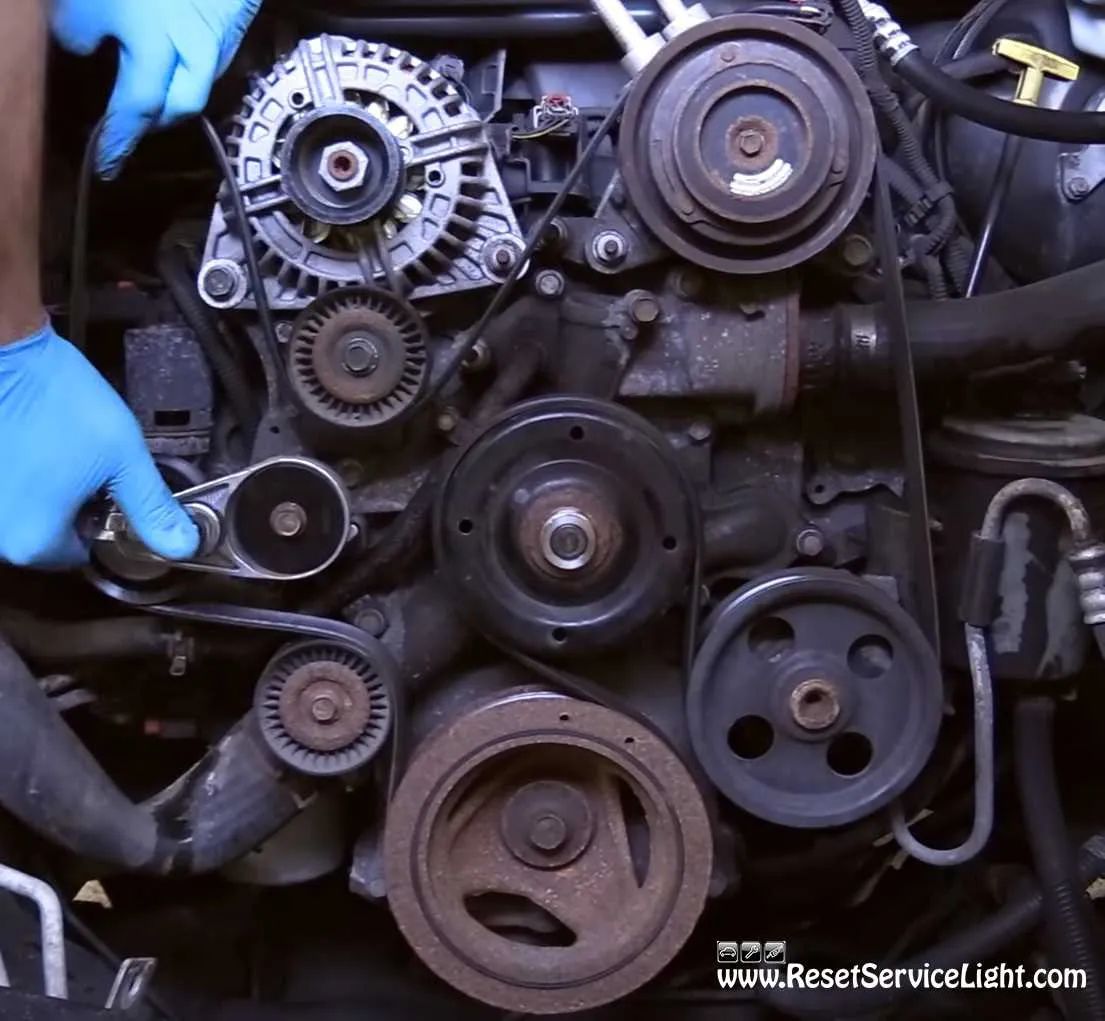

Step-by-Step Guide to Replacing the Belt on 2005 5.7 Hemi Engine

1. Begin by securing the vehicle. Ensure it is on a flat surface and the parking brake is engaged.

2. Open the hood and disconnect the negative battery terminal to avoid any electrical mishaps.

3. Locate the serpentine belt. For the 5.7 Hemi engine, the belt runs around various pulleys, including the alternator, power steering pump, and air conditioning compressor.

4. Use a 3/8-inch drive ratchet to release tension from the belt tensioner. Insert the ratchet into the square hole on the tensioner and rotate it counterclockwise to loosen the belt.

5. Once the tension is released, carefully remove the belt from the pulleys. Keep track of the belt routing for reinstallation. It’s helpful to take a picture before removing it.

6. Inspect the new belt for any damage or defects. Compare it with the old belt to ensure the correct size and specifications.

7. Install the new belt, following the same routing as the old one. Make sure the belt sits securely on each pulley.

8. Use the ratchet again to rotate the tensioner counterclockwise. While holding the tensioner, loop the belt over the tensioner pulley and release the ratchet to apply tension to the belt.

9. Double-check the belt to ensure it is properly aligned with all pulleys. It should sit snugly without any slack.

10. Reconnect the negative battery terminal and start the engine. Listen for any unusual sounds that might indicate improper installation.

11. Finally, turn off the engine, inspect the belt once more, and close the hood. Dispose of the old belt properly.
