2014 Dodge Avenger Serpentine Belt Diagram and Routing Guide

Replacing or inspecting the serpentine belt on a 2014 Dodge Avenger requires a clear understanding of its layout. The serpentine belt is critical for driving several components such as the alternator, air conditioning compressor, and power steering pump. To avoid unnecessary wear or potential damage, it’s important to follow the correct routing path.

The diagram for the 2014 Dodge Avenger shows a specific routing that ensures the belt moves smoothly across the system. Ensure the belt is properly tensioned and aligned to avoid issues like slipping or premature wear. Referencing the correct diagram is the first step to ensuring your vehicle’s belt system functions properly.

Check the condition of the serpentine belt during routine maintenance. If the belt is cracked or worn, replace it immediately to prevent failure. Follow the belt’s routing diagram exactly to ensure proper fit and function.

For more details on replacing the serpentine belt, consult your vehicle’s service manual for precise instructions and specifications.

2014 Dodge Avenger Serpentine Belt Diagram

The serpentine belt system on the 2014 Dodge Avenger connects key components like the alternator, power steering pump, and air conditioning compressor. Ensuring the correct routing of the serpentine belt is crucial for the proper function of the vehicle’s engine accessories. The belt follows a specific path around pulleys and tensioners, which helps drive the auxiliary systems of the engine. A clear understanding of the diagram will assist in the replacement or adjustment of the belt when necessary.

Check the routing diagram in the engine bay for visual guidance on how the belt should be positioned. Pay close attention to the direction of the grooves, as this determines how the belt interacts with the pulleys. An incorrect installation can lead to belt slippage, premature wear, or even complete failure, disrupting the vehicle’s operations. Use a professional-grade tensioner tool to ensure proper tension during installation.

If the belt shows signs of wear such as fraying or cracking, replace it immediately. Use the vehicle’s diagram as a reference to properly route the new belt. Always ensure the new belt matches the size and type specified for the 2014 Dodge Avenger to avoid operational issues.

Step-by-Step Guide to Understanding the Serpentine Belt Routing

First, identify the components the serpentine belt powers: the alternator, power steering pump, water pump, and air conditioning compressor. Each of these is connected to the engine via pulleys, which the belt routes through.

Locate the tensioner pulley. This is critical as it keeps the belt taut. The tensioner pulley should be at the side of the belt system, usually positioned near the center of the engine, depending on your model.

Review the belt routing diagram specific to your 2014 Dodge Avenger. This diagram is commonly found in the engine compartment or the owner’s manual. Follow the belt’s path step by step, ensuring it loops around all necessary pulleys. Pay attention to the direction of the belt’s grooves and ribbing to ensure proper installation.

Check the path around the crankshaft pulley. The belt should loop around it before traveling to the next component. Ensure the belt wraps tightly around the pulleys, avoiding any slack that could cause slippage or misalignment.

Verify the belt’s condition during the process. A worn-out serpentine belt can slip or break, damaging other components. Replace the belt if it shows signs of wear such as cracks, fraying, or significant glazing.

Once the belt is in place, check the tension by hand. It should be tight but not over-stretched. Adjust the tensioner pulley if necessary to maintain proper tension.

Finally, start the engine and inspect the belt’s operation. Ensure it runs smoothly across the pulleys without making any unusual noises or movements. If the belt shifts or squeals, double-check the routing and tension.

How to Identify and Replace a Damaged Serpentine Belt in the 2014 Dodge Avenger

Examine the serpentine belt for visible signs of wear. Look for cracks, fraying, or glazing on the surface. If the belt appears loose or there are squeaking noises when the engine is running, these are indicators that the belt may need replacing.

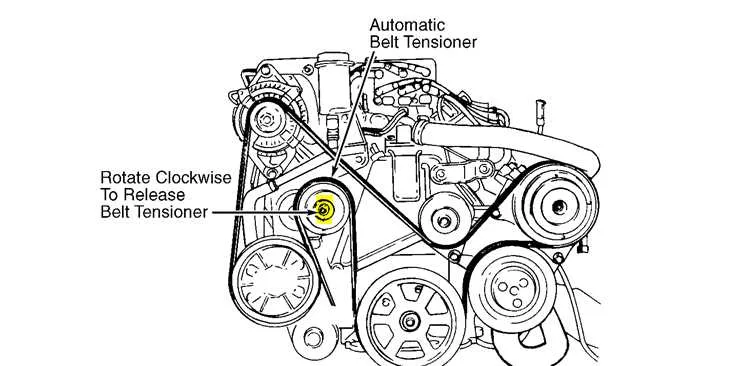

To replace the serpentine belt, first, locate the tensioner pulley. Use a socket wrench to relieve tension and remove the old belt. Be sure to follow the correct belt routing diagram for the 2014 Dodge Avenger to ensure proper installation. Place the new belt over the pulleys, ensuring it fits snugly into each groove. Reapply tension to the belt by turning the tensioner pulley back into position.

Check the belt alignment and tension after installation to confirm the belt is securely in place. Start the engine and listen for any unusual sounds. If the replacement was done correctly, the system should run smoothly.

Common Issues and Troubleshooting for the Serpentine Belt System

If you experience squealing or a noticeable drop in engine performance, the serpentine belt might be the cause. Over time, the belt can wear, slip, or even break, leading to multiple issues in your vehicle’s accessory systems.

Here are common problems and solutions for the 2014 Dodge Avenger serpentine belt system:

• Belt Slippage: This can cause poor power delivery to the engine accessories. Check the belt tension. If the tensioner is faulty or the belt is stretched, replacing the belt is necessary.
• Squeaking Noise: A high-pitched squeak usually indicates a worn-out belt or one that’s not aligned properly. Inspect the belt for signs of cracks or glazing and replace it if necessary.
• Belt Wear and Cracking: Inspect the belt for visible wear or cracks. Over time, belts can deteriorate due to heat and friction. If you see any visible damage, replace the belt to avoid a sudden failure.
• Loose or Broken Belt: If the belt is loose or broken, it will need immediate replacement. A broken serpentine belt can lead to the failure of the alternator, power steering, and air conditioning systems.
• Damaged Tensioner Pulley: A faulty tensioner pulley can cause the belt to slip or become misaligned. Check the pulley for wear or damage, and replace it if necessary.
• Power Steering Issues: If the power steering becomes difficult, it could be due to the serpentine belt losing tension. Verify the belt’s condition and replace if it’s no longer functioning correctly.

Regular inspections of the serpentine belt can help prevent unexpected breakdowns. Pay close attention to unusual noises, steering difficulties, or other performance issues that may indicate belt-related problems.
