Gravely 52 Inch Deck Belt Diagram and Installation Guide

If you need to replace or adjust the belt on your Gravely 52-inch deck, having the right diagram is crucial for proper installation. The diagram serves as a clear visual guide, helping you understand the path the belt should follow for optimal performance. Follow the steps outlined in the diagram for a smooth, efficient process.

The Gravely 52-inch deck typically requires a specific belt configuration to ensure the mower deck functions without issues. Make sure the belt is properly routed through each pulley, paying attention to the tensioning system. Referencing the diagram helps prevent mistakes that can cause wear on the belt or other components.

Be sure to check for any wear or damage to the belt itself before installation. A damaged belt can lead to poor mower performance or even damage to the deck or engine. Regularly inspect the belt for cracks, fraying, or signs of stretching, and replace it promptly if necessary to maintain efficient operation.

Once you have the diagram and replacement parts, make sure to follow the steps in the manual for proper tensioning. A correctly tensioned belt will ensure the longevity of the mower’s engine and deck system, allowing your Gravely mower to continue performing at its best.

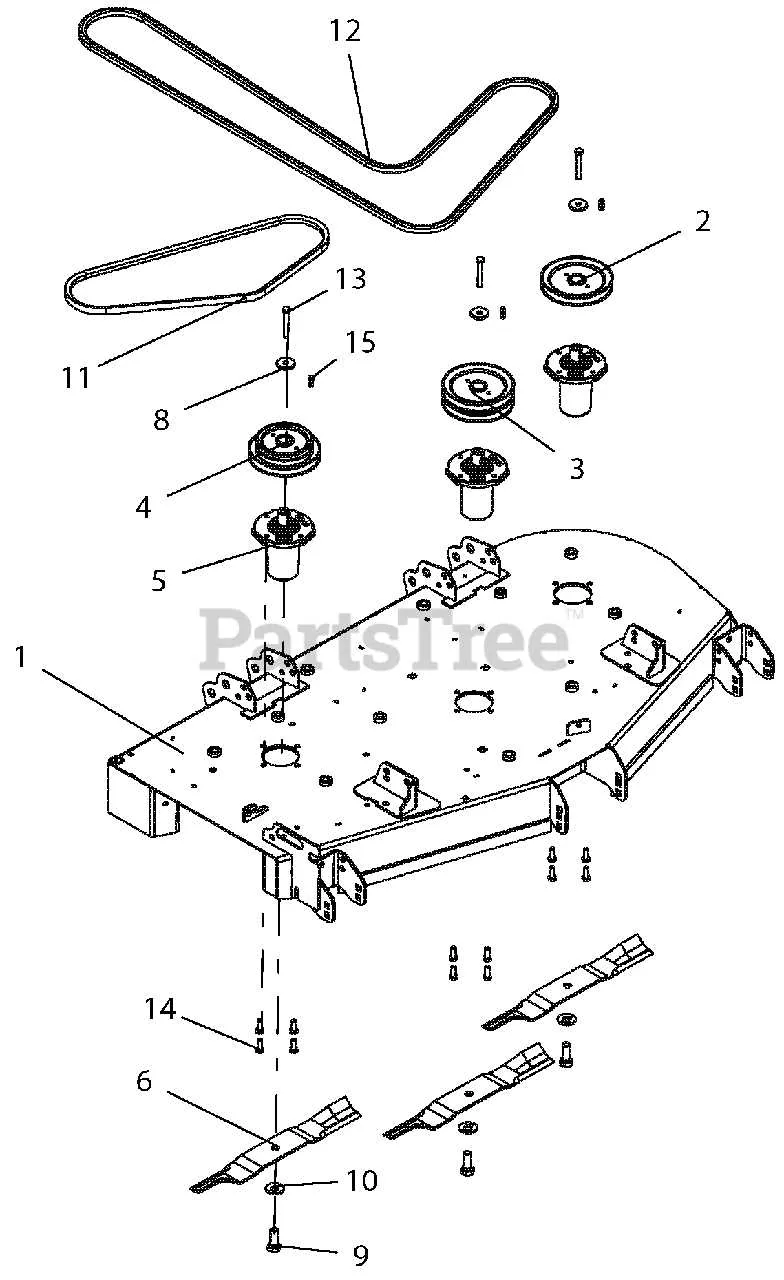

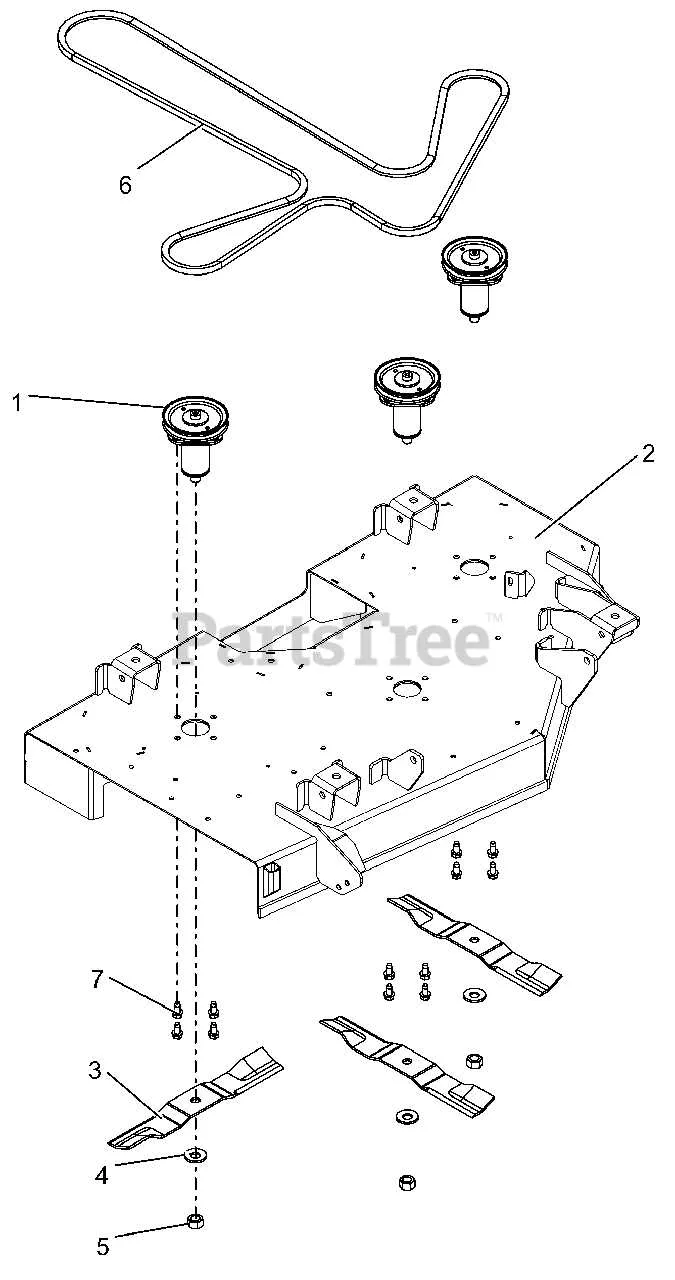

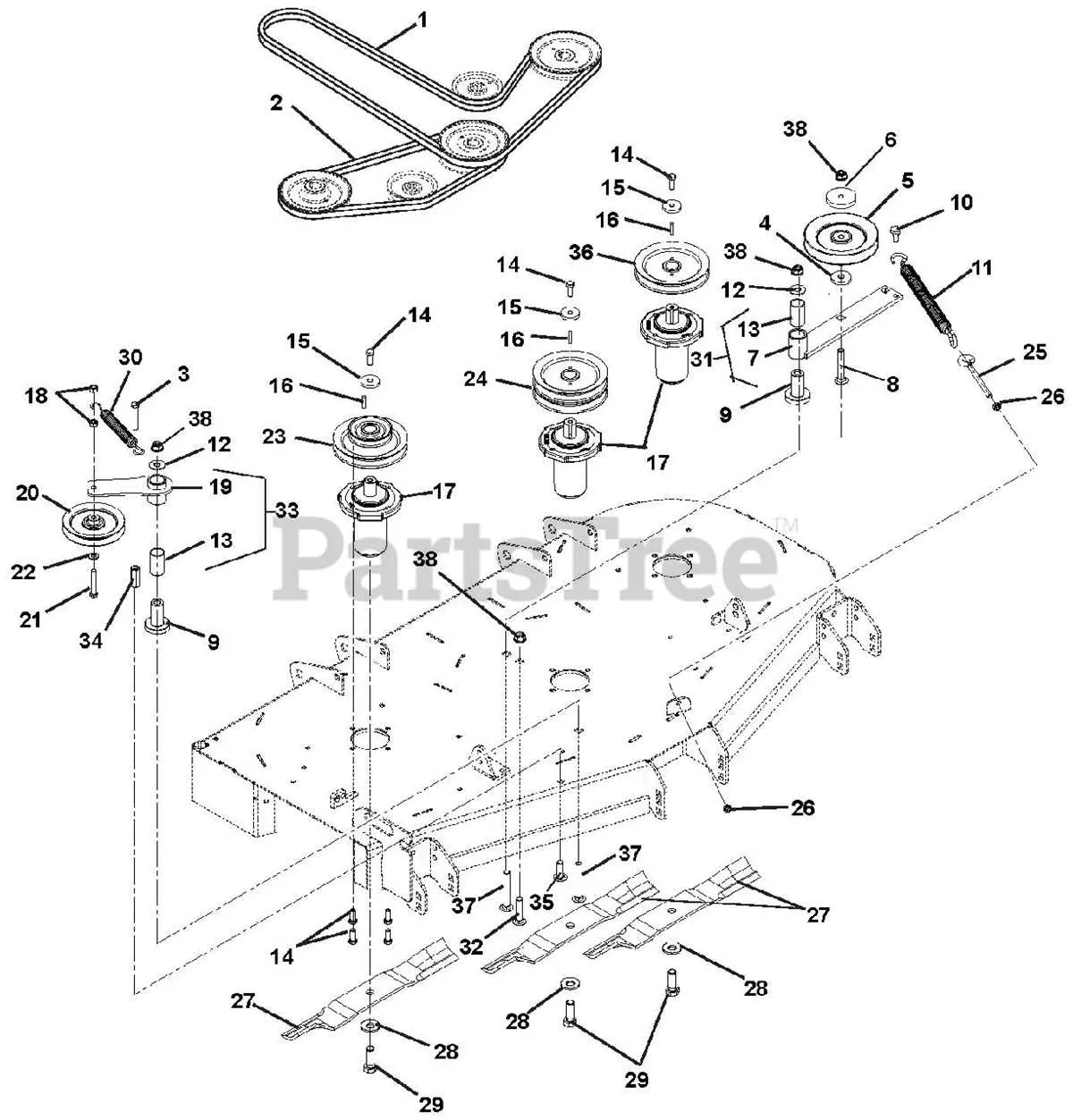

Gravely 52 Inch Deck Belt Diagram

To replace or adjust the belt on a Gravely 52-inch mower deck, follow the belt routing diagram carefully. This will ensure proper alignment and prevent premature wear or malfunction. The deck belt typically runs from the engine pulley to the idler pulleys and around the mower blades. Refer to the diagram for specific routing details based on your model number.

Key Steps:

1. Remove the deck from the mower chassis. Make sure the mower is off and the engine is cool before starting the process.

2. Identify the correct belt size and type according to the mower’s specifications. Typically, the 52-inch deck uses a specific belt length and configuration–ensure you’re using the right replacement part.

3. Loosen any tension by adjusting the idler pulleys. This will make it easier to remove the old belt and install the new one.

4. Follow the routing diagram closely as you install the new belt. Each pulley has a specific role, with some maintaining tension while others guide the belt around the blades.

Pro Tip: Double-check the tension once the belt is in place. The belt should have enough slack to move freely but not too much that it slips off during operation. Incorrect tension can lead to premature wear or damage to the system.

How to Read the Gravely 52 Inch Deck Belt Diagram

To read the Gravely 52 Inch deck belt diagram, first locate the key parts labeled on the diagram. These usually include the belt, pulleys, and routing points. Understanding the positioning and direction of the belt will help you follow the correct path.

Check the belt’s route by identifying where it starts and ends. The diagram will show you which pulleys the belt passes around. Pay attention to the tension and idler pulleys, as they keep the belt under proper tension to prevent slippage.

• Belt Routing: Start by identifying the starting point of the belt (usually the engine pulley). Then trace the belt’s path through the deck system, ensuring it loops correctly around all pulleys.
• Pulley Placement: Each pulley should be labeled. Verify the placement by checking the direction of rotation to ensure the belt will move smoothly. Follow the diagram’s suggested path for proper installation.
• Idler and Tension Pulleys: These pulleys help adjust the belt’s tension. Make sure they are positioned as shown in the diagram, as incorrect placement can affect the belt’s performance.
• Check for Overlaps or Gaps: The diagram will show any overlapping sections or gaps in the belt’s routing. Ensure the belt isn’t too tight or too loose after installation.

Once you’ve confirmed the routing path, compare it with your machine setup. If any differences are spotted, adjust accordingly to match the diagram. Finally, check the belt’s tension after installation to make sure everything functions smoothly.

Step-by-Step Guide to Replacing the Belt on Gravely 52 Inch Deck

Begin by parking the mower on a flat surface. Engage the parking brake for safety and remove the key from the ignition.

Lift the mower deck to its highest position. This will provide more space to access the belt and pulleys. Use a wrench to remove the mower deck from the tractor. Keep track of the bolts and hardware as you go.

Locate the old belt and take note of its routing path. You’ll need this information to correctly install the new belt. Pay close attention to how the belt wraps around the pulleys, idlers, and spindles.

Use a socket wrench to release tension from the tension spring or idler pulley. Carefully remove the belt from the pulleys and set it aside.

Install the new belt by first positioning it around the main pulleys and idlers. Follow the same routing as the old belt. Ensure the belt is properly seated in all grooves of the pulleys.

Once the belt is in place, re-engage the idler pulley or spring tension to apply the proper tension to the belt. Check for any slack or misalignment. The belt should be taut but not overly tight.

Reattach the mower deck to the tractor. Ensure that all bolts and hardware are securely tightened. Double-check the belt’s routing and tension one more time.

Start the mower and test the operation of the deck. Listen for any unusual sounds and ensure the belt is moving smoothly around the pulleys.

Common Issues with Gravely 52 Inch Deck Belt and Troubleshooting Tips

1. Belt Slipping or Losing Tension: If the belt is slipping, it may have stretched or become worn out. Inspect the belt for signs of damage. Adjust the tension by using the tensioning system or replace the belt if needed. Ensure the idler pulley is aligned properly.

2. Uneven Cutting or Stray Blades: Uneven cutting is often caused by a worn or misaligned belt. Check for any obstructions around the deck or debris caught in the pulleys. If the blades are not spinning at equal speeds, inspect the pulleys for wear and ensure the belt is tight enough to drive the blades correctly.

3. Noise or Vibration: Excessive noise or vibration can result from a misaligned or damaged deck belt. Inspect all pulleys for damage or wear. Clean the pulleys to ensure they spin freely. If the noise persists, check if the belt is properly routed according to the manufacturer’s diagram.

4. Belt Frequently Breaks: A broken belt can happen if the belt is too tight, too loose, or improperly routed. Double-check the routing diagram for accuracy. Tighten the belt, but do not over-tighten, as this can cause additional strain and breakage.

5. Pulley Misalignment: Misaligned pulleys can cause the belt to slip off or wear prematurely. Ensure all pulleys are aligned and rotating smoothly. If any pulley is damaged or wobbles, replace it to prevent further issues.

6. Lack of Proper Lubrication: Failing to lubricate the pulleys and moving parts can cause increased friction, leading to wear on the belt. Regularly apply a lubricant to the moving parts to keep everything running smoothly and avoid unnecessary strain on the belt.

7. Belt Keeps Coming Off: If the belt frequently falls off, check the belt routing diagram to ensure correct installation. A misrouted belt can easily slip off during use. Make sure all tensioners and pulleys are in their correct positions, and verify that the belt is the right size for your model.
