2008 Dodge Ram 3.7 Serpentine Belt Diagram and Routing Guide

To ensure your 2008 Dodge Ram 3.7 runs smoothly, having a clear understanding of the belt diagram is crucial. It shows the precise routing of the serpentine belt, which powers several components like the alternator, power steering pump, and air conditioning compressor. Incorrect belt routing can lead to inefficient performance or, worse, engine damage.

Start by locating the belt tensioner, which is key to adjusting the tension for proper operation. The diagram usually highlights the correct path the belt should follow around pulleys, guides, and tensioners. It’s also wise to check for wear and tear on the belt itself regularly, as any signs of fraying or cracking could lead to unexpected failures.

For the 3.7 engine model, the belt typically runs in a clockwise direction from the crankshaft, looping around the tensioner, alternator, and various pulleys. Always double-check with the factory service manual or a reliable online source to make sure the diagram matches your specific vehicle configuration.

With this knowledge, you can confidently replace or adjust the belt without the risk of misalignment or damaging the engine. Accurate belt installation not only ensures smoother engine performance but also helps extend the life of your vehicle’s components.

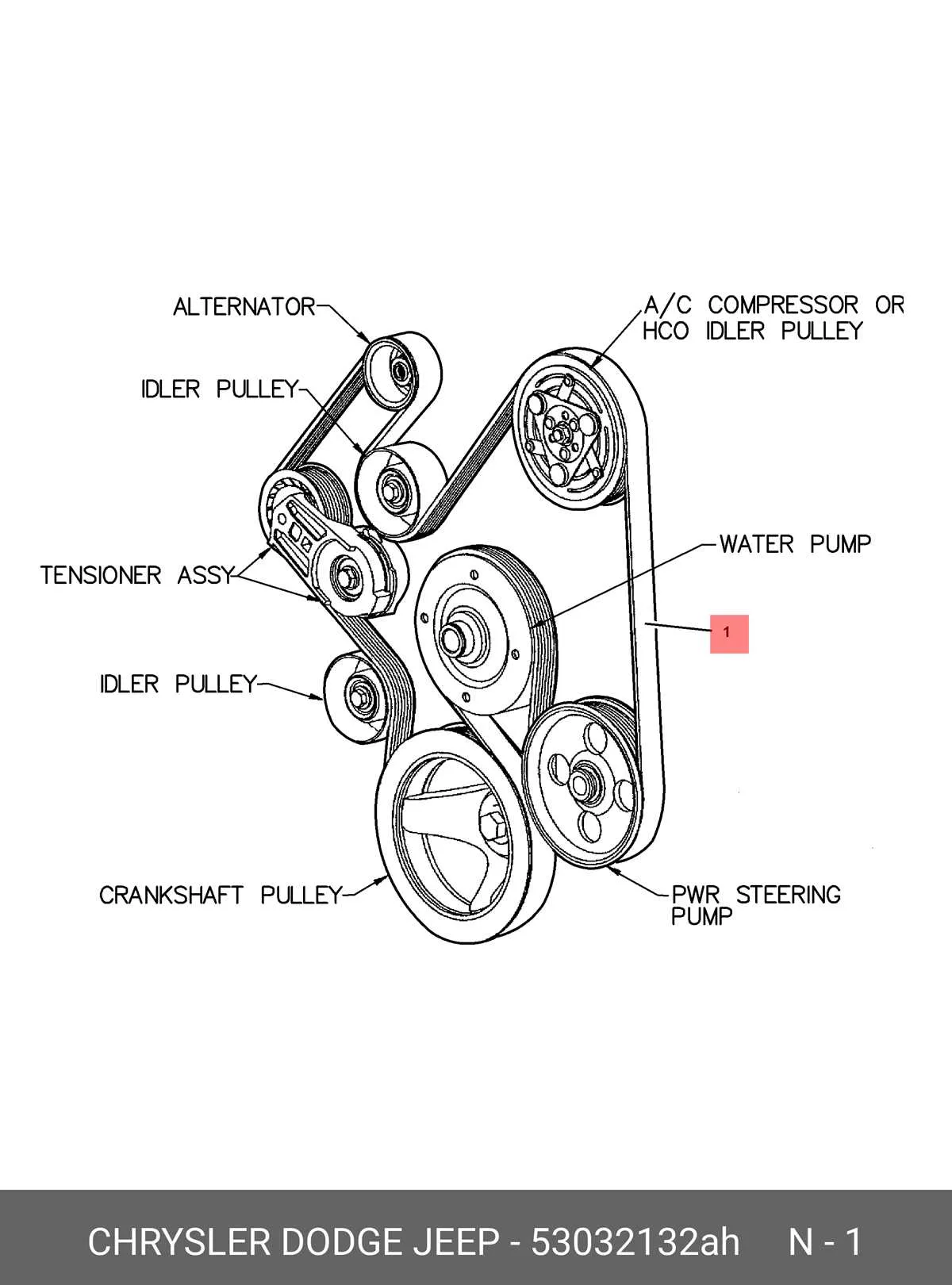

2008 Dodge Ram 3.7 Belt Diagram

The 2008 Dodge Ram 3.7 engine uses a serpentine belt system that powers multiple accessories. To replace or inspect the belt, ensure you follow the routing diagram precisely. The belt drives components like the alternator, power steering pump, air conditioning compressor, and water pump.

The routing starts at the crankshaft pulley, moving to the tensioner pulley, then the idler pulley, followed by the alternator, power steering pump, and air conditioning compressor. Make sure the belt is routed around these components without any twists. If replacing, ensure the tensioner maintains the correct tension. It’s crucial that the belt is properly aligned to avoid excessive wear and prevent slipping.

For maintenance, regularly check the belt for signs of wear such as cracks or fraying. A belt that is too loose or too tight can cause premature failure, affecting engine performance. If you hear squealing or notice power loss in your accessories, it’s time for an inspection.

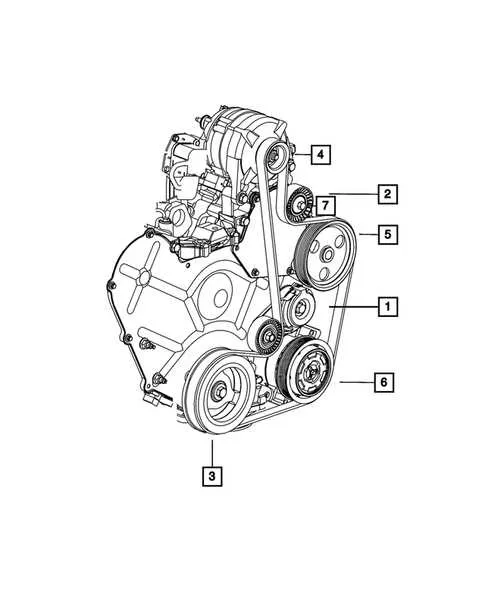

How to Read the 2008 Dodge Ram 3.7 Belt Diagram

To read the 2008 Dodge Ram 3.7 belt diagram, start by identifying the key components it illustrates: the serpentine belt, pulleys, tensioners, and the alternator. Follow the path of the belt to ensure it runs correctly around all pulleys in the system.

The diagram typically shows the routing from the crankshaft pulley to the other components, such as the power steering pump, alternator, water pump, and air conditioning compressor. Pay attention to the direction of the belt on each pulley, as reversing the route can damage components.

Steps to read the diagram:

• Locate the Crankshaft Pulley: This is usually the starting point, located at the bottom of the engine block. The belt wraps around this pulley before reaching others.
• Identify Tensioners: These maintain proper tension on the belt and are often adjustable. Check if they are automatic or require manual adjustments based on the diagram.
• Check Belt Routing: The diagram will show if the belt loops over or under components. It’s important to follow the exact path to avoid errors during installation.
• Verify Pulley Orientation: Pulleys may have arrows indicating belt direction. Ensure the belt’s alignment matches the diagram to prevent slippage or premature wear.
• Double-check Pulley Locations: Make sure all components shown on the diagram match the physical layout of the engine. In some cases, the layout may slightly differ depending on model or production changes.

If in doubt, always consult the vehicle’s manual for further clarification. Installing the belt incorrectly can cause overheating, loss of power steering, or battery charging issues.

Common Issues with the 2008 Dodge Ram 3.7 Belt System

The 2008 Dodge Ram 3.7 belt system can face a few key issues that affect performance and durability. One of the most common problems is belt wear. Over time, the serpentine belt can crack, fray, or stretch, reducing its efficiency in driving various engine components. A worn belt may lead to slipping, resulting in poor performance of the alternator, power steering pump, and air conditioning system.

Another frequent issue is a misaligned pulley. If the pulleys are not properly aligned, they can cause uneven wear on the belt, leading to premature failure. Misalignment can be due to worn-out tensioners, pulleys, or the incorrect installation of components. This often causes belt squealing or visible wear patterns along the belt’s surface.

Failure of the tensioner is another concern. The tensioner maintains the correct amount of tension on the serpentine belt. Over time, the spring in the tensioner can weaken, causing insufficient tension and belt slippage. If this happens, it may result in the belt losing its grip on the pulleys, causing the engine to run inefficiently or even stall.

In some cases, debris or dirt can get lodged between the belt and the pulleys, causing friction and wear. It’s important to inspect the belt and surrounding components regularly to prevent dirt buildup, which could lead to significant damage if left unchecked.

Lastly, if the water pump or alternator bearings wear out, they can create resistance, forcing the belt to work harder and shortening its lifespan. Regular checks and early detection of faulty bearings can prevent this issue before it becomes more costly.

Step-by-Step Guide to Replacing the Belt on a 2008 Dodge Ram 3.7

Start by disconnecting the negative battery cable. This ensures safety during the process by preventing any electrical issues.

Next, locate the serpentine belt tensioner. Use a socket wrench to rotate the tensioner clockwise and relieve tension from the belt. You may need to use a breaker bar for more leverage.

Once the belt is loose, slide it off the pulleys. Take note of the belt’s routing as you remove it–refer to the belt diagram located under the hood or in your owner’s manual. If the diagram is missing, make a quick sketch of the routing for reference.

Inspect the old belt for any wear, cracks, or fraying. It’s always best to replace it with a new one if it shows any signs of damage.

Install the new belt by following the same routing pattern as the old one. Begin by placing the belt over the pulleys, ensuring it sits properly in each groove. Pay attention to the direction of the grooves and any directional arrows on the belt.

Rotate the tensioner once again to release tension and slip the belt into place. Double-check that the belt is properly seated on all pulleys and the tensioner is holding it securely.

Reconnect the battery cable and start the engine. Observe the belt while the engine is running to ensure it is functioning smoothly and no unusual noises are present.

If everything looks good, you’re all set!
