2013 Ford F150 3.7 Serpentine Belt Routing Diagram and Overview
If you need a quick guide to replace or inspect the serpentine belt on your 2013 Ford F150 3.7, here’s a detailed diagram and step-by-step instructions to help you out. The serpentine belt is crucial for powering multiple components like the alternator, power steering pump, and air conditioning compressor.
The serpentine belt system on this vehicle features a single continuous loop that connects all these components to the engine’s crankshaft. This setup is efficient and reduces the number of belts in the engine bay. However, a worn or broken belt can cause major disruptions in vehicle functionality. A timely replacement ensures smooth operation and prevents engine damage.
Key Components: The belt in your 2013 F150 3.7 is routed around several pulleys, including the crankshaft, water pump, alternator, and tensioner. Pay close attention to the routing and make sure the belt is seated properly on each pulley to avoid any misalignment or unnecessary wear. Check the belt tension regularly to avoid slippage or snapping, which can be dangerous and costly to repair.
Use this diagram as a reference to ensure the correct belt placement and help guide you through the replacement process. Keep in mind, regular maintenance of the serpentine belt can save you from expensive repairs down the road.

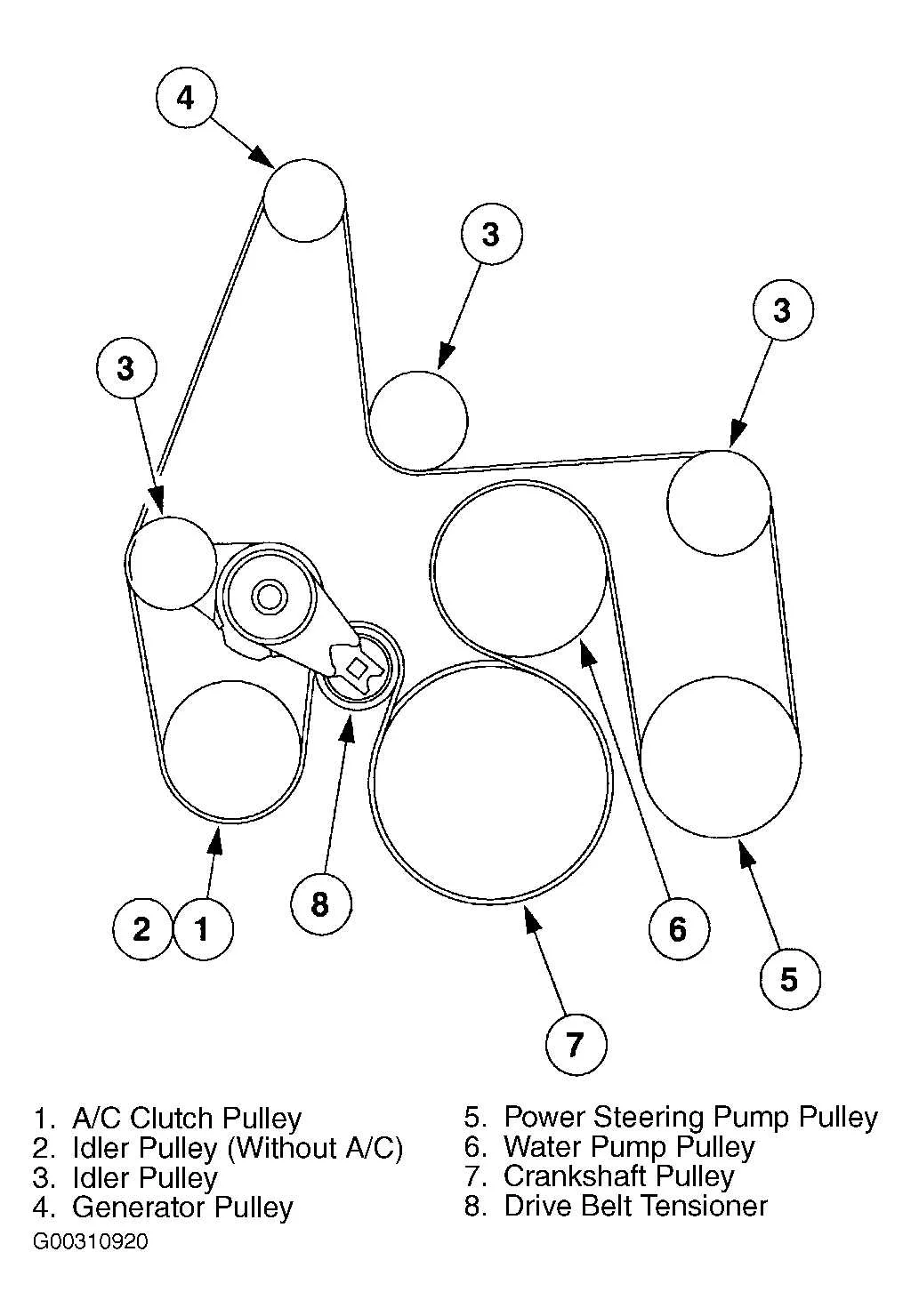

2013 Ford F150 3.7 Serpentine Belt Diagram
The serpentine belt on the 2013 Ford F150 3.7 V6 engine is responsible for driving multiple peripheral devices, such as the alternator, power steering pump, water pump, and air conditioning compressor. A clear understanding of the belt routing is key for easy replacement and maintenance.
Start by locating the tensioner pulley on the engine. The serpentine belt wraps around it to maintain proper tension. From the tensioner, the belt moves towards the crankshaft pulley, passing over the alternator pulley and the power steering pump pulley. The belt also goes around the idler pulley before connecting to the water pump and the AC compressor. Ensure the belt is routed correctly, with smooth movement through all pulleys to prevent excessive wear or misalignment.

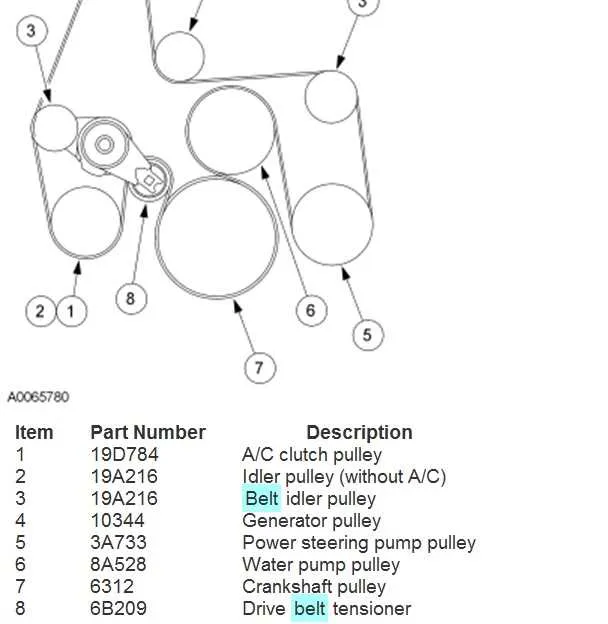

The diagram below provides the exact routing for the 3.7 engine. Ensure the belt fits tightly but without too much tension, as an overly tight belt can damage pulleys, and a loose belt can cause slippage and affect performance.
For belt replacement, always check the condition of the tensioner and pulleys, as they might need attention to avoid premature wear of the new serpentine belt.
How to Identify the Serpentine Belt Routing for 2013 Ford F150 3.7
Check the serpentine belt routing diagram on the engine bay sticker. This is usually located on the radiator support or near the front of the engine. If the diagram is missing or unreadable, you can find a reference diagram in the vehicle’s service manual.
To properly identify the routing, follow these steps:
- Locate the tensioner pulley: The tensioner is a movable pulley that maintains the correct tension on the belt. It is typically positioned near the top or side of the engine and should be relieved using a wrench or socket tool.
- Identify the components powered by the serpentine belt: These include the alternator, power steering pump, water pump, and A/C compressor. Each component will have a specific alignment and rotation based on the belt’s path.
- Match the belt with the diagram: Start by routing the belt around the largest pulley, usually the crankshaft, and follow the direction shown in the diagram. Ensure it properly loops around the alternator, A/C compressor, and other accessories. Pay special attention to the orientation of the tensioner pulley.
- Double-check the routing: After installing the belt, verify that it runs smoothly along the pulleys without slipping off or misaligning. The belt should have the correct tension and be securely routed around each component.
If the routing is unclear or you need further guidance, consult a professional mechanic or refer to the vehicle’s manual for additional assistance.
Step-by-Step Guide for Replacing the Serpentine Belt on 2013 Ford F150 3.7
1. Begin by disconnecting the vehicle’s negative battery terminal to avoid any electrical issues.
2. Locate the serpentine belt tensioner. It is usually found near the top of the engine, on the driver’s side.
3. Use a 3/8-inch drive ratchet or a serpentine belt tool to rotate the tensioner counterclockwise. This will relieve the tension on the belt, allowing you to remove it.
4. Carefully slide the belt off the pulleys. Take note of the belt routing before removal, as it will need to be installed the same way.
5. Compare the old belt with the new one to ensure the sizes match up.
6. Place the new serpentine belt over the pulleys, following the correct routing. Double-check that the belt sits correctly in the grooves of each pulley.
7. Rotate the tensioner again to make room for the new belt. Slide the belt onto the tensioner pulley and slowly release the tensioner to apply the necessary tension.
8. Inspect the belt to ensure it is properly aligned and seated on all pulleys.
9. Reconnect the battery terminal.
10. Start the engine and check the belt’s operation. Listen for any unusual noises and verify that the belt runs smoothly over the pulleys.
Common Issues with Serpentine Belts in 2013 Ford F150 3.7 and Troubleshooting Tips
One of the most common problems with the serpentine belt on the 2013 Ford F150 3.7 is premature wear. A worn-out belt can cause slipping, noise, or even complete failure. Check for signs of wear like cracks, fraying, or glazing to avoid unexpected breakdowns.
Another issue arises from improper tension. If the serpentine belt is too tight or too loose, it can lead to poor performance and damage to other components like the alternator, water pump, and power steering pump. Regularly check the tension using the vehicle’s tensioner gauge, or replace it if there’s noticeable wear.
One effective troubleshooting method is inspecting the pulleys for damage. A misaligned pulley can cause the belt to wear unevenly and may lead to squeaking or squealing sounds. Use a straightedge to check if the pulleys are aligned properly. Replace any damaged or misaligned pulleys immediately.
If the serpentine belt is slipping, check the belt’s condition and the tensioner’s function. A faulty tensioner often causes the belt to slip, leading to noise and performance issues. If the tensioner seems worn or damaged, replace it to maintain proper tension and performance.
Below is a table summarizing common serpentine belt issues and their troubleshooting steps:
| Issue | Possible Causes | Troubleshooting Tip |
|---|---|---|
| Excessive wear | Cracks, fraying, glazing | Inspect for visible damage, replace belt if necessary |
| Incorrect tension | Over-tightened or loose belt | Check tension using tensioner gauge, adjust as needed |
| Slipping | Worn tensioner, damaged pulleys | Inspect tensioner and pulleys, replace if damaged |
| Squeaking or squealing | Misaligned pulley | Check pulley alignment with a straightedge, replace damaged parts |
By following these steps, you can diagnose and address most serpentine belt issues before they escalate into more serious problems. Regular maintenance and timely replacement of damaged components will keep your 2013 Ford F150 running smoothly.
