Ariens Ikon X 52 Drive Belt Diagram and Maintenance Guide

Properly understanding the drive belt system of the Ariens Ikon X 52 is key to maintaining its performance. If you’re dealing with belt issues or need to replace the drive belt, knowing the layout is crucial. The diagram below helps you locate and identify each component of the system. It’s recommended to refer to this diagram before attempting any repair or maintenance to avoid mistakes.

The drive belt system on the Ariens Ikon X 52 involves several key parts: the drive belt, pulleys, and tensioners. Understanding how these components interact will guide you in diagnosing potential issues, such as wear or misalignment. Regular inspection of the belt for cracks, fraying, or loss of tension can prevent major failures and ensure optimal operation of the mower.

Start by checking the belt routing against the provided diagram to confirm everything is in place. If you notice any discrepancies, it’s a good idea to replace the belt immediately. Ensure the new belt is properly aligned with all pulleys and tensioners to avoid further complications. Keeping your system well-maintained can extend the life of your Ariens Ikon X 52 and improve its efficiency.

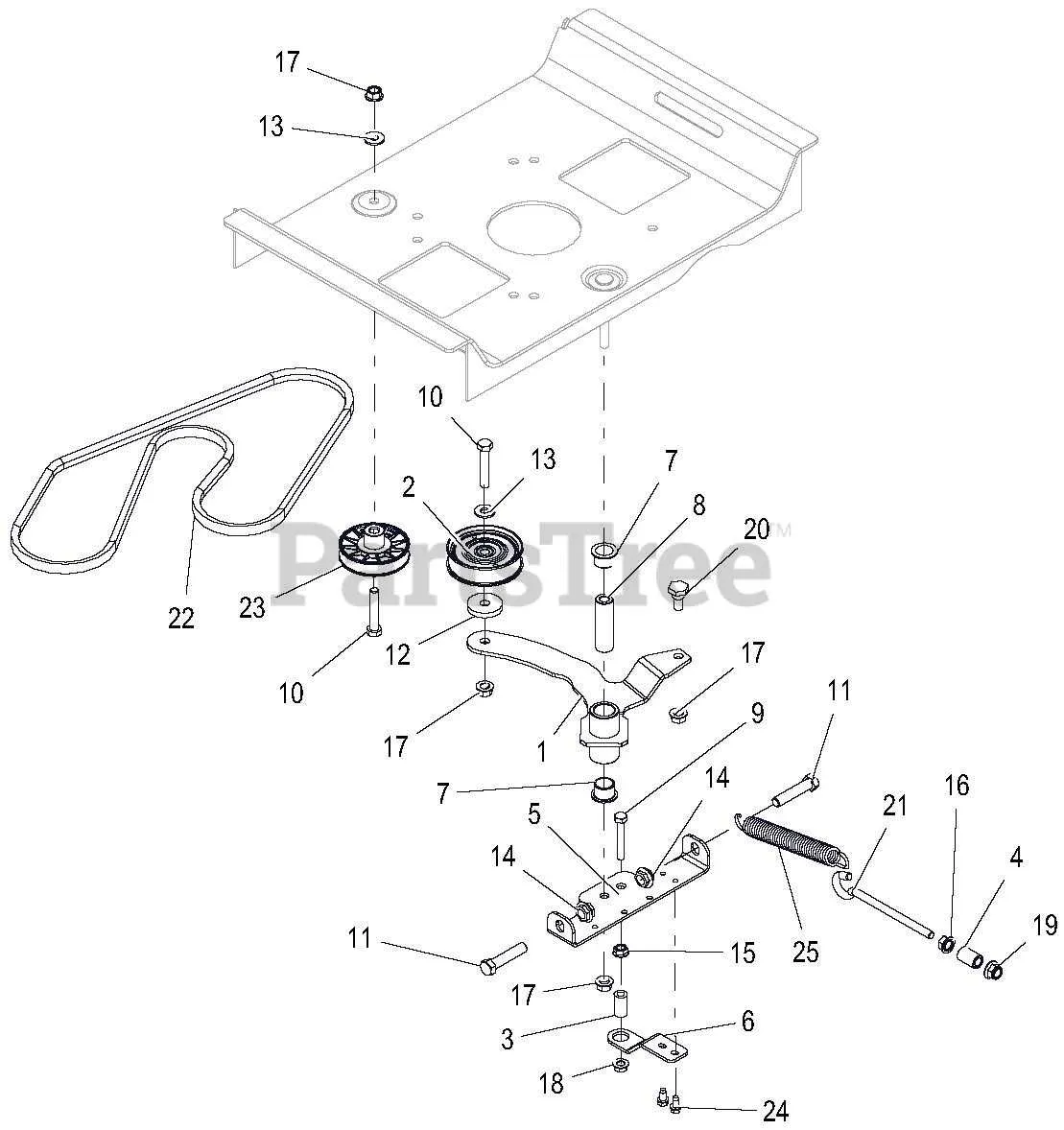

Ariens Ikon X 52 Drive Belt Diagram

To maintain your Ariens Ikon X 52 efficiently, understanding the drive belt system is key. The drive belt transfers power from the engine to the mower’s transmission, ensuring proper operation of the cutting deck and other essential components. Follow these steps to identify and troubleshoot any issues with the belt.

Start by locating the drive belt diagram in the user manual. The diagram shows the exact routing of the belt, highlighting how it loops around the pulleys. The Ikon X 52 typically has two belts: one for the drive system and another for the deck system. Each of these belts has a specific path, and misalignment or damage can lead to malfunction.

Check the belt tension regularly. Over time, belts can stretch and lose their tension, causing slippage or wear. If the belt is loose, it may need to be adjusted or replaced. Be sure to inspect the pulleys for any signs of wear or damage that could affect belt performance. Keep an eye out for fraying or cracking on the belt itself, which could indicate it’s time for a replacement.

If you’re replacing the drive belt, make sure to follow the exact routing shown in the diagram. Incorrect installation can cause the belt to slip or break prematurely. When removing the old belt, release the tensioner pulley, which will allow you to slide the belt off the pulleys and replace it with a new one.

Remember that while the belt system is designed to be durable, regular inspection and maintenance will ensure long-lasting performance. If the belt shows signs of excessive wear or if you notice any unusual noises, it’s best to replace it promptly to avoid further damage to the mower.

How to Identify the Drive Belt Components in the Ariens Ikon X 52

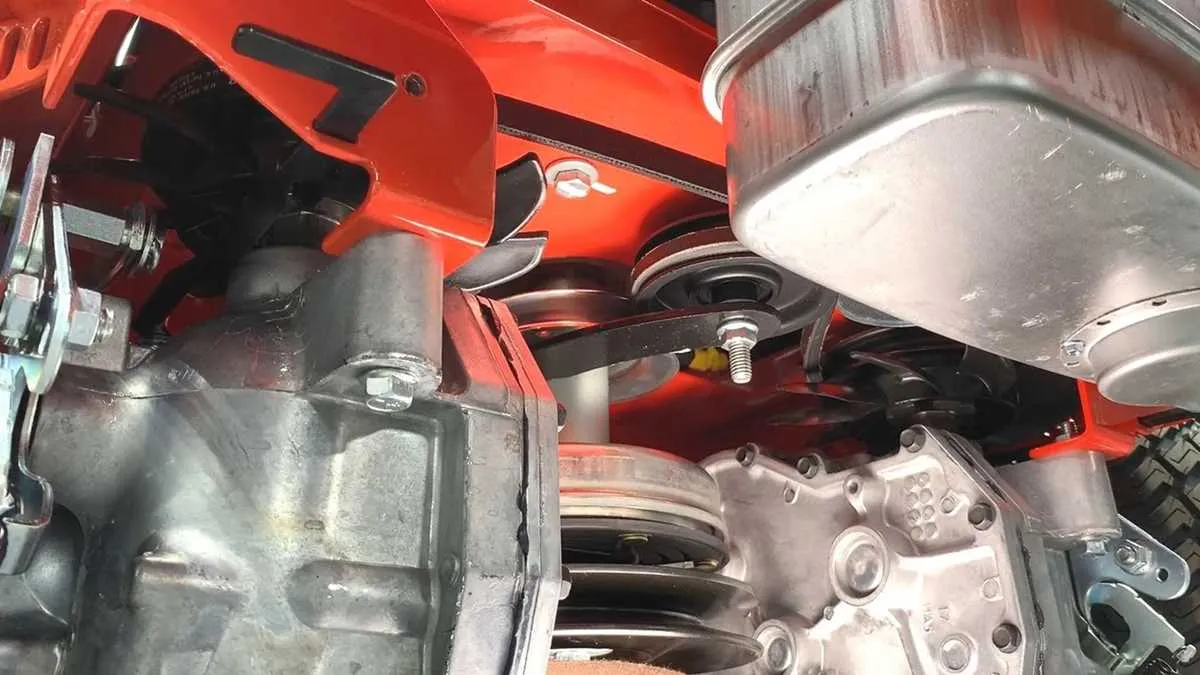

To identify the drive belt components in the Ariens Ikon X 52, start by locating the engine and the mower’s transmission system. The main components you’ll be focusing on are the drive belt, pulleys, tensioner, and idler arm. The drive belt connects the engine’s crankshaft to the transmission, powering the mower’s wheels.

The pulleys, positioned near the engine and the transmission, guide the belt along its path. Ensure the belt runs smoothly over these pulleys and doesn’t show signs of wear such as cracks or fraying. The tensioner, usually located on the side, adjusts the tightness of the belt, ensuring there is no slack. A loose belt could affect performance, so check for any looseness and ensure the tensioner is operating correctly.

Inspect the idler arm for proper positioning. This arm ensures the belt maintains the correct tension as it moves. If any part of the system shows damage or misalignment, replace it to maintain optimal mower performance. By regularly checking these components, you can prevent future belt issues and ensure the smooth operation of the Ariens Ikon X 52.

Step-by-Step Guide for Replacing the Drive Belt on Ariens Ikon X 52

First, disconnect the battery to ensure safety during the replacement process.

Next, lift the mower deck using the appropriate lifting mechanism or jack. Secure it in place to prevent movement while you work.

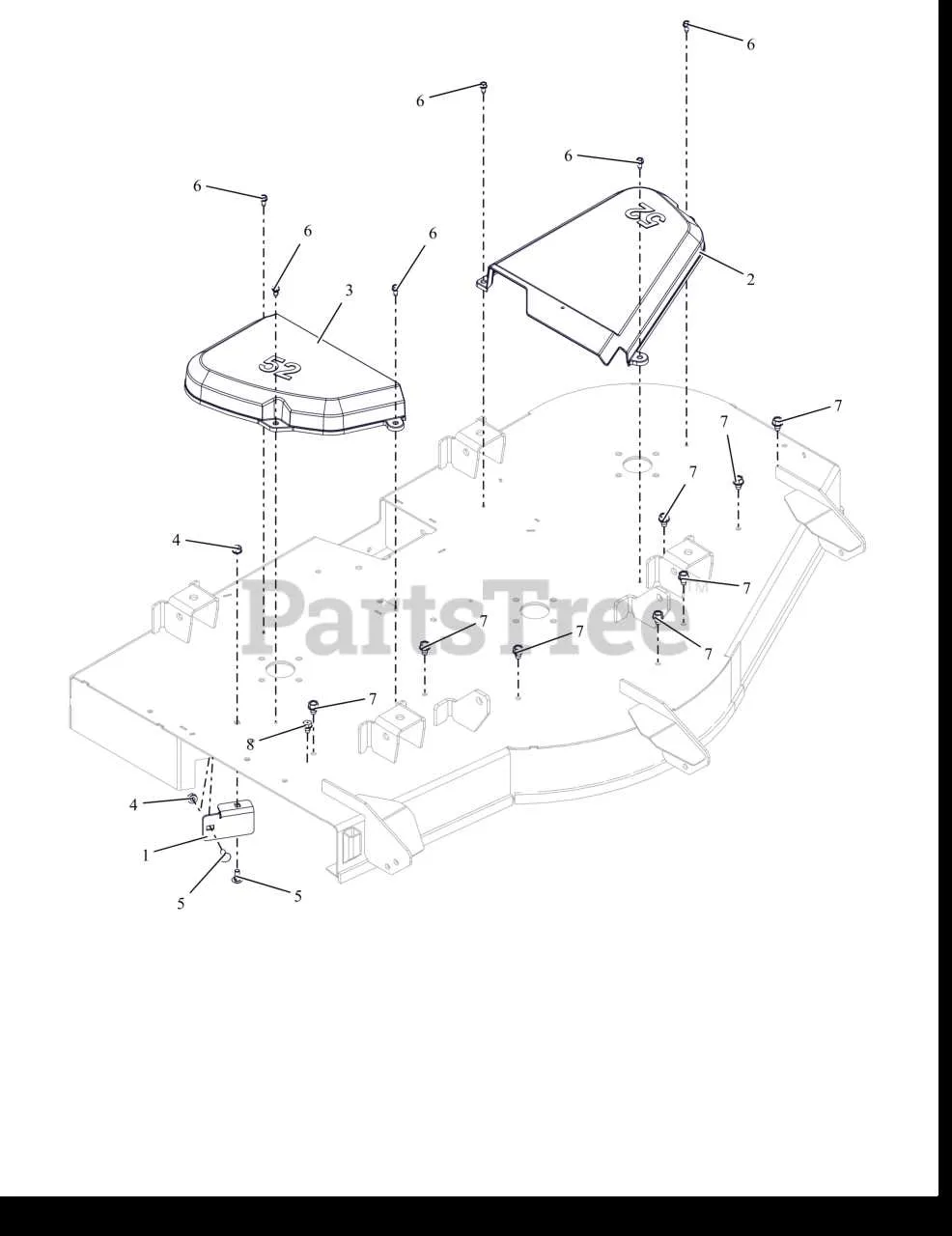

Remove the belt cover by unscrewing the bolts or fasteners that hold it in place. This will expose the drive belt and the pulleys.

Loosen the tension on the old drive belt by adjusting the idler pulley. You may need to use a wrench to move the tensioner and relieve pressure from the belt.

Carefully slide the old belt off the pulleys. Take note of the belt’s routing as you remove it. This will be crucial for the installation of the new belt.

Inspect the pulleys and idler arm for any wear or damage. If needed, replace or lubricate them before installing the new belt.

Position the new drive belt around the pulleys following the same routing pattern as the old one. Ensure it fits snugly and correctly on each pulley.

Reapply tension to the belt by adjusting the idler pulley back to its original position.

Once the belt is in place and properly tensioned, replace the belt cover and secure it with the screws or bolts.

Finally, reconnect the battery and test the mower to ensure the new belt operates smoothly and the system functions correctly.

Common Problems with Drive Belt and Troubleshooting Tips for Ariens Ikon X 52

If your Ariens Ikon X 52 is experiencing issues with the drive belt, there are a few key problems that may be causing it. First, inspect the belt for signs of wear, cracking, or fraying. A damaged belt will not function properly and may cause the mower to stop moving or make unusual noises.

Another issue could be the belt tension. If the belt is too loose, it will slip and affect the mower’s performance. Conversely, if the belt is too tight, it may cause excessive wear and strain on the engine components. Adjust the tension according to the manufacturer’s guidelines to maintain optimal performance.

Examine the pulleys as well. Worn or misaligned pulleys can lead to belt misalignment, causing slipping or premature wear. Clean the pulleys regularly to ensure smooth operation and check for any debris or buildup that could impede the belt’s movement.

Check the idler pulley and spring assembly. A malfunctioning idler pulley can lead to improper belt tension and reduced efficiency. If the spring is loose or broken, the pulley will not function properly, causing the belt to either slip or become too tight.

Lastly, inspect the drive belt for proper installation. Ensure that the belt is routed correctly according to the Ariens Ikon X 52 diagram. Incorrect routing can result in the belt not engaging fully, leading to performance issues.

By performing regular checks and adjustments to these components, you can keep your Ariens Ikon X 52 running smoothly and avoid costly repairs.
