2012 Ford Fusion 2.5 Serpentine Belt Diagram and Routing Guide

To replace or inspect the serpentine belt on your 2012 Ford Fusion 2.5, you first need a clear diagram to understand its routing. The serpentine belt is responsible for powering several accessories, including the alternator, power steering pump, and air conditioning compressor. Knowing the correct path of the belt will help you avoid any damage and ensure proper installation.

The serpentine belt on the 2012 Ford Fusion 2.5 follows a specific route around various pulleys. First, locate the tensioner pulley, which is designed to maintain the right amount of tension on the belt. Use a suitable tool to release tension and remove the old belt. When installing a new one, follow the diagram carefully to ensure that it is positioned correctly around the pulleys.

Pay attention to the direction in which the belt should turn, as this is crucial for the proper functioning of your car’s systems. If you’re unsure about the process, refer to the manufacturer’s manual or consult an experienced technician.

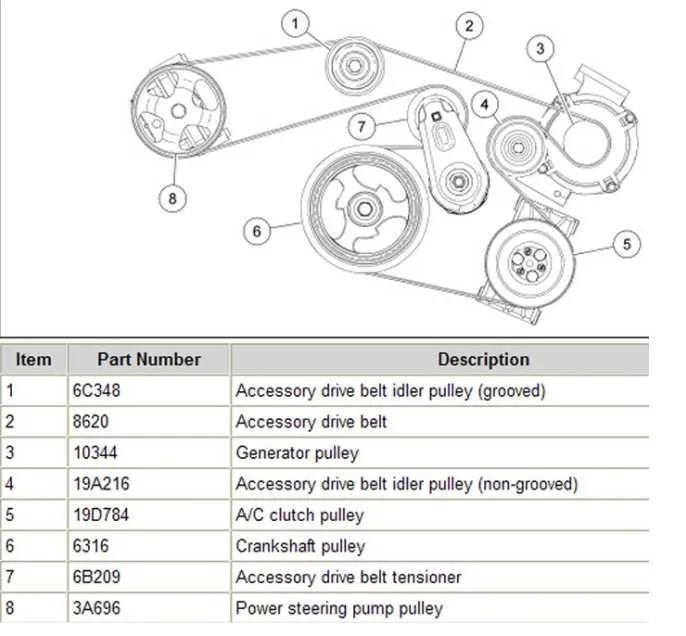

2012 Ford Fusion 2.5 Serpentine Belt Diagram

The serpentine belt diagram for the 2012 Ford Fusion 2.5 provides a clear representation of how the belt should be routed around the engine components. This diagram is crucial for correctly installing or replacing the serpentine belt, ensuring proper operation of the engine’s accessories like the alternator, power steering pump, air conditioning compressor, and water pump.

Refer to the following steps to ensure correct installation:

• Locate the tensioner pulley and use a ratchet to relieve tension from the belt.
• Inspect the new serpentine belt to confirm it matches the old belt in size and design.
• Route the belt following the diagram, ensuring each groove is properly aligned with the corresponding pulleys.
• Reapply tension by tightening the tensioner pulley once the belt is in place.
• Double-check the belt routing for any misalignment before starting the engine.

The diagram can typically be found on a sticker or decal located on the engine compartment or in the vehicle’s service manual. If the diagram is missing or unclear, it is advisable to consult an online resource or the vehicle’s manufacturer for an accurate routing guide.

Common issues related to improper serpentine belt routing include slipping, squealing, or belt wear. If any of these issues arise, inspect the belt’s alignment and pulley condition. A misrouted or damaged belt can cause engine performance problems, so correcting these issues promptly will help maintain the vehicle’s reliability.

How to Read the Serpentine Belt Diagram for 2012 Ford Fusion

To understand the serpentine belt diagram for the 2012 Ford Fusion, start by identifying the main components that the belt drives. This includes the alternator, power steering pump, air conditioning compressor, and water pump. The diagram will typically show these components along with the belt routing path.

First, locate the tensioner pulley. The belt routes through it and it plays a critical role in maintaining proper tension on the belt. The diagram will highlight the direction of the belt and how it loops around each component. Be mindful of arrows indicating the rotation direction of pulleys, as they guide you in installing the belt correctly.

Next, note the layout of the pulleys. The diagram will show which pulleys are fixed and which ones rotate with the belt. This is key when reinstalling or replacing the serpentine belt, as the orientation must match exactly what is shown in the diagram.

Additionally, pay attention to any special instructions or additional details such as belt sizes or part numbers. These will ensure you select the correct replacement belt if needed. The diagram will also show any specific tools required for belt removal or installation.

Finally, verify the alignment of the belt once it’s in place. The diagram can help confirm that the belt follows the correct path, ensuring all components are driven properly without slipping or misalignment.

Steps to Replace the Serpentine Belt on 2012 Ford Fusion 2.5

Begin by ensuring the engine is off and cool. Disconnect the negative battery terminal to avoid any electrical issues.

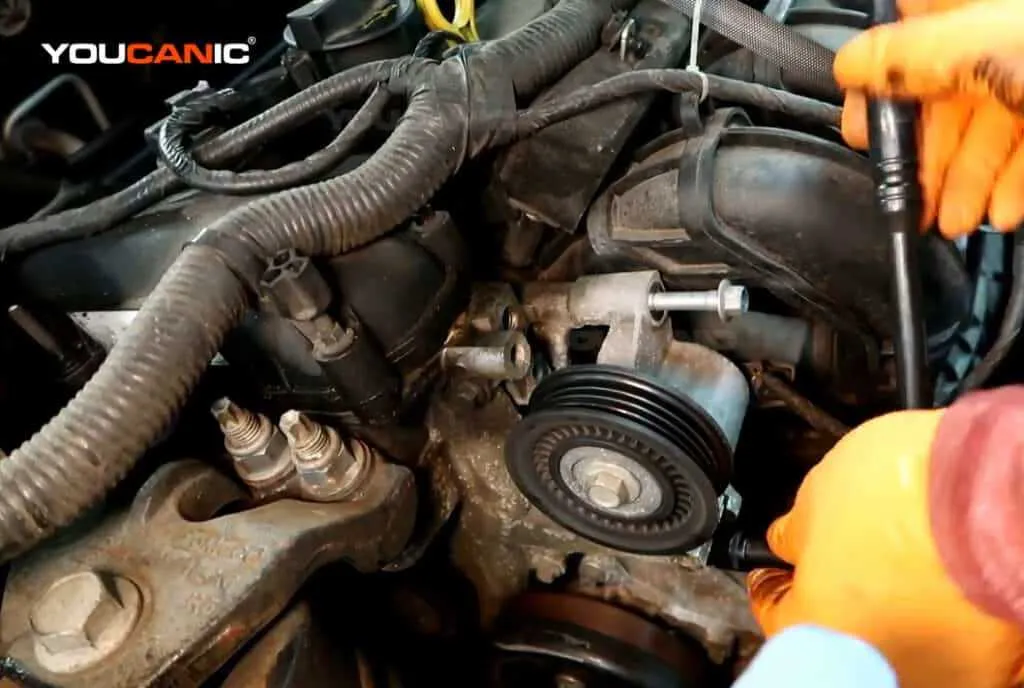

Locate the serpentine belt tensioner. Use a socket wrench to turn the tensioner clockwise and release tension from the belt. Remove the belt carefully, ensuring you note its routing for reinstallation.

Check the condition of the belt before proceeding. If it appears worn or cracked, replace it with a new one that matches the specifications for your 2012 Ford Fusion 2.5.

Install the new serpentine belt, following the same routing as the old one. Start by placing the belt over the pulleys, ensuring it sits properly on all grooves.

Once in place, use the socket wrench again to rotate the tensioner and slip the belt into position. Make sure the belt is tight and properly aligned with all pulleys.

Reconnect the battery terminal and start the engine. Verify the belt runs smoothly and is correctly positioned on all pulleys.

Finally, check for any abnormal noises or slippage. If everything sounds normal and the belt is running smoothly, the replacement is complete.

Common Issues with the Serpentine Belt on 2012 Ford Fusion

A worn serpentine belt on a 2012 Ford Fusion can lead to various issues, including engine overheating, power steering failure, and alternator malfunctions. The most common problems arise from belt wear, cracks, or improper tension. The following issues are typically encountered:

1. Cracking or Fraying

As the serpentine belt ages, it can develop cracks or become frayed. This is usually a result of constant exposure to heat, moisture, and friction. Cracks in the belt can eventually cause it to break, leading to a sudden loss of power to critical components like the alternator and power steering pump.

2. Slipping or Loose Belt

If the belt is loose or improperly tensioned, it may slip on the pulleys. This can cause squealing noises and reduce the efficiency of the belt-driven components. It may also lead to overheating, as the water pump may not operate at the correct speed. A loose belt is usually caused by a worn-out tensioner or improper installation.

3. Misalignment

If the serpentine belt is not aligned correctly with the pulleys, it can wear unevenly. Misalignment is often caused by a faulty pulley or tensioner. This can lead to belt damage, further misalignment, and eventual failure. Misaligned belts may also produce strange noises such as squeaks or grinding sounds.

4. Excessive Wear

Frequent exposure to high temperatures and engine fluids can accelerate wear on the serpentine belt. Over time, the rubber material deteriorates, and the belt loses its grip on the pulleys. This can result in slipping, which compromises the operation of the alternator and other important systems.

5. Broken Tensioner

A malfunctioning belt tensioner can cause the serpentine belt to lose proper tension. The tensioner ensures that the belt stays tight enough to maintain efficient power transmission. If the tensioner is faulty, the belt may become too loose or too tight, both of which can lead to failure of the serpentine belt and its associated systems.

Regularly inspecting the serpentine belt for signs of wear and replacing it as needed can prevent these issues. If you notice any squealing, slapping, or other unusual noises, it’s a good idea to check the condition of the belt and its components.
