Craftsman Riding Mower Model 917 Drive Belt Diagram and Repair Guide

If you’re having trouble with your Craftsman 917 riding mower’s drive belt, refer to this clear and simple diagram for guidance. The correct installation of the drive belt is crucial for ensuring smooth performance and avoiding unnecessary repairs.

First, make sure you have the right replacement belt for your model. The Craftsman 917 typically uses a specific size and type of belt depending on the exact model year and configuration. Check your mower’s user manual or the model number for the precise specifications.

Next, follow the belt routing diagram carefully. This visual guide shows the exact path the drive belt should follow, from the engine pulley to the rear wheel drive. A misrouted belt can cause significant wear or even breakage. Keep the diagram handy as you work through the installation, ensuring each step matches the correct path.

While installing, be cautious of the tension required for the drive belt. Too much slack can prevent proper engagement, while excessive tension can damage components. Once installed, test the mower to ensure smooth operation. A properly adjusted belt should result in effortless mowing and prolonged mower life.

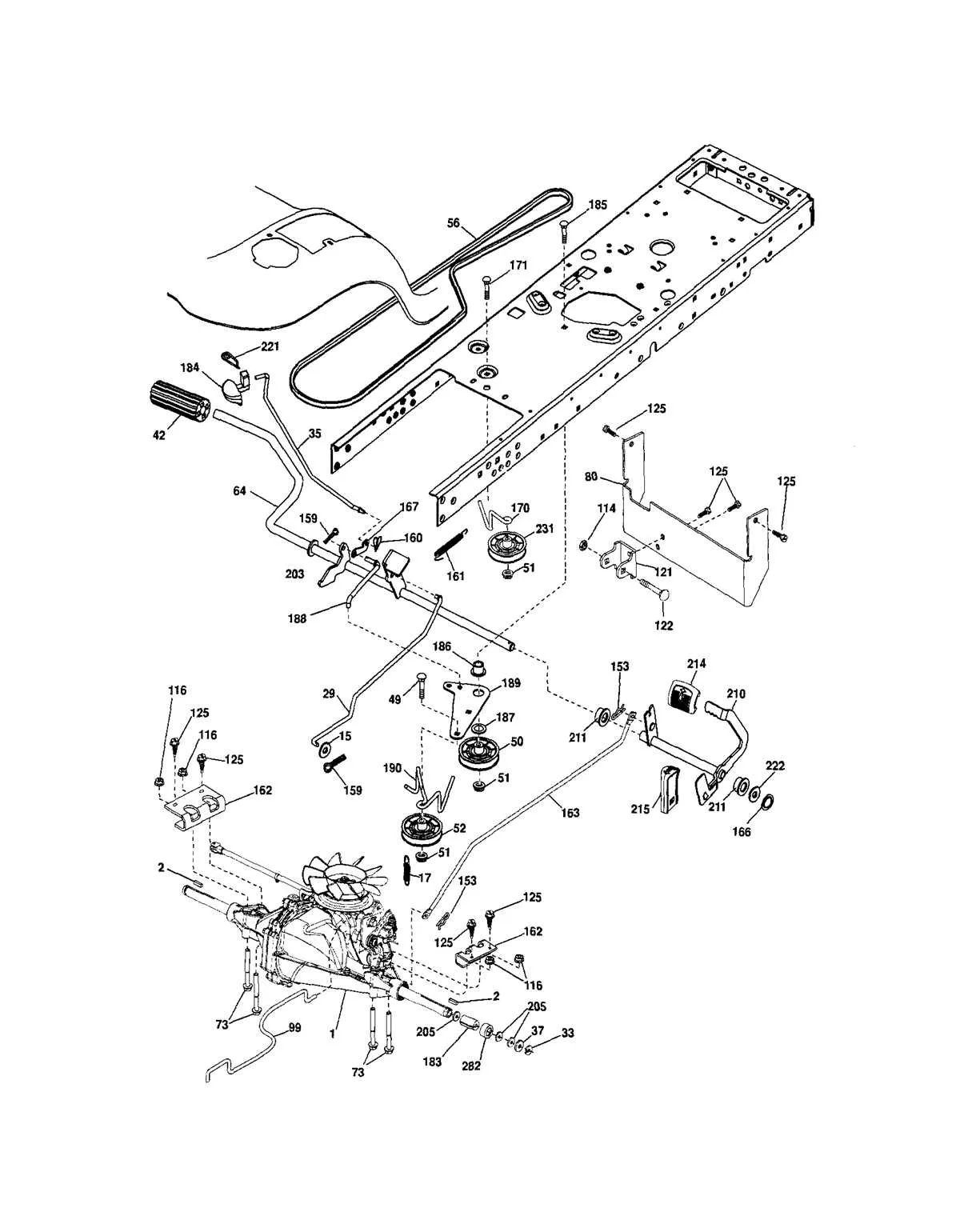

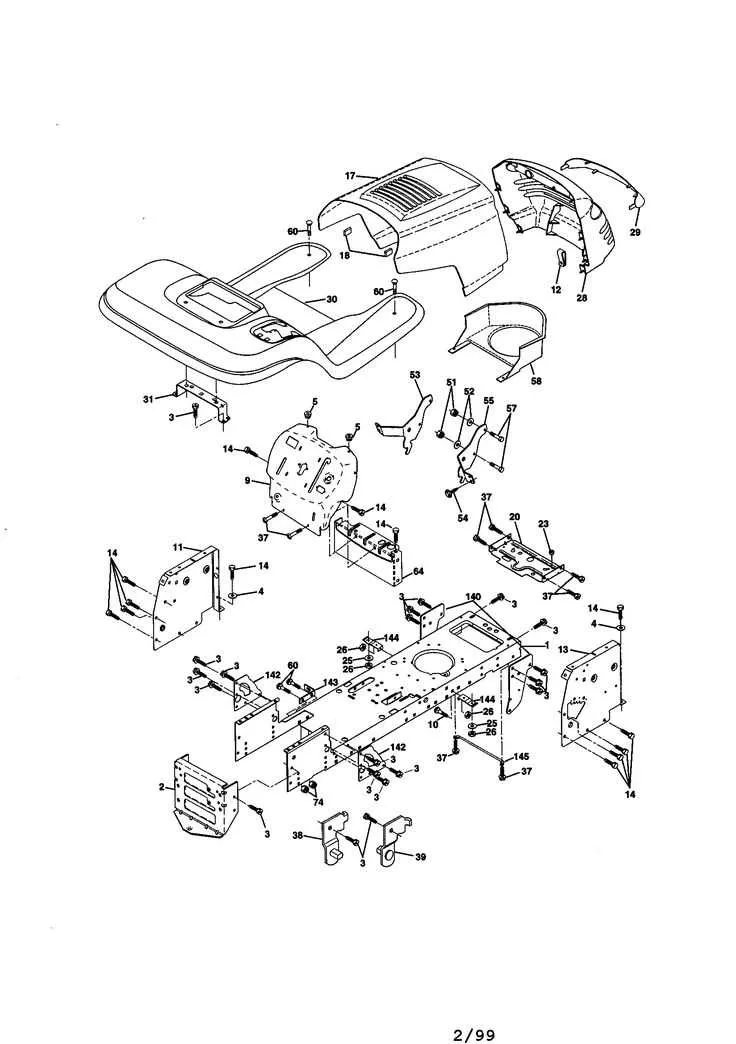

Craftsman Riding Mower Model 917 Drive Belt Diagram

When replacing or inspecting the drive belt on your Craftsman Riding Mower Model 917, use the diagram for proper alignment. Start by removing the mower deck for easier access to the belt system. The diagram outlines the path of the belt around pulleys, spindles, and the engine crankshaft.

The drive belt wraps around the engine pulley, connecting to the transmission pulley. Ensure the belt is positioned correctly across each pulley, with the correct tension. Check the belt for signs of wear, such as fraying or cracking, especially at sharp turns. A misaligned or loose belt can affect performance and cause premature wear.

If the belt is damaged, refer to the diagram to identify the part number for replacement. It’s crucial to use the manufacturer-recommended part for proper fit and function. To reinstall, follow the diagram step by step, ensuring the belt is seated in each groove correctly.

After installation, manually rotate the blades and check that the belt runs smoothly, without slipping or rubbing. Adjust the tension if needed, following the specifications in the user manual to avoid any stress on the components.

Understanding the Drive Belt Layout for Craftsman Model 917

The drive belt setup on your Craftsman Model 917 mower is straightforward but needs proper attention to maintain smooth operation. A correctly aligned belt ensures optimal performance and prevents unnecessary wear. Here’s how the belt should be routed:

• The belt loops around the engine pulley and then to the transmission pulley, which controls the mower’s speed.
• It passes through a series of idler pulleys, which help maintain the correct tension.
• Ensure the belt is not twisted, and make sure it aligns correctly with all pulleys during installation.
• Check that the belt’s tension is balanced. A loose belt may slip, while an overly tight one can cause premature wear.

If the belt slips or becomes damaged, it may lead to issues like reduced power delivery to the wheels. Regular checks on the belt condition and alignment can prevent these problems. When replacing the belt, ensure it matches the specifications listed in your owner’s manual for optimal performance.

Keep an eye on the belt’s wear pattern. Uneven wear may indicate a misalignment or faulty pulley. Always inspect pulleys for damage or debris buildup, which could affect the belt’s efficiency.

Steps to Replace the Drive Belt on Craftsman Mower Model 917

Lift the mower and secure it on a stable surface. Use a jack or a similar tool to raise the rear of the mower for better access to the drive belt.

Remove the mower’s deck. First, detach any fasteners securing it in place. Then, carefully slide the deck out from under the mower.

Locate the drive belt. You’ll find it connecting the engine pulley to the transaxle pulley. Before removing it, take note of how it’s routed around the pulleys for easy installation of the new belt.

Loosen the tension on the old belt by releasing the tension spring or pulley. This will give you the flexibility to slide the belt off the pulleys.

Remove the old belt from the mower. Slide it off each pulley, making sure not to damage any parts as you do so.

Install the new drive belt. Start by placing the new belt around the engine pulley, ensuring it fits correctly into its grooves. Follow the exact path of the previous belt and route it around the transaxle pulley.

Adjust the belt tension. Tighten the spring or pulley that holds the belt in place. Check the tension to ensure there’s no slack and that the belt fits snugly.

Reassemble the mower deck. Slide it back into position and secure all fasteners that were removed earlier.

Lower the mower back to the ground, ensuring everything is securely fastened. Start the engine and test the mower to ensure the belt functions smoothly and the mower operates correctly.

Troubleshooting Common Drive Belt Issues in Craftsman 917 Mowers

If your Craftsman 917 mower isn’t working properly, the drive belt could be the culprit. A loose, worn-out, or misaligned belt can cause several problems like poor cutting performance or difficulty in moving. Here’s how to address common issues:

1. Belt Slipping

If the mower struggles to move or doesn’t engage properly, check if the drive belt is slipping. Inspect the belt for wear or damage. If the belt is too loose, it won’t grip properly and may slip off during operation. Adjust the tension by tightening the belt or replacing it if it shows signs of wear like cracking or fraying.

2. Broken or Frayed Belt

A broken belt will stop the mower in its tracks. Look for visible signs of fraying, tears, or cracks. If the belt appears worn or damaged, replace it immediately with a compatible Craftsman 917 replacement belt. To replace the belt, remove the deck and loosen the tension pulley to free the old belt before installing the new one.

3. Misaligned Belt

If the belt is misaligned, it won’t turn the pulleys correctly, resulting in inefficient power transmission. Check the pulleys and belt routing to ensure everything is in line with the manufacturer’s specifications. Misalignment can also cause excessive wear on the belt, so realign it or replace the components causing the issue.

4. Worn Pulley or Tensioner

A worn or damaged pulley can affect the movement of the belt and cause it to slip or wear out prematurely. Inspect the pulleys for any cracks, wear, or debris buildup. If they appear damaged, replace the pulley to avoid further damage to the belt.

5. Incorrect Belt Installation

If the belt isn’t installed correctly, it may not function as intended. Refer to the Craftsman 917 mower’s manual to ensure proper routing. Double-check the position of the tensioner and pulleys to prevent unnecessary stress on the belt.

Regular inspection and maintenance of your mower’s drive belt can extend its lifespan and keep your mower running smoothly. If in doubt, consult the manual or a professional to ensure your mower stays in top working condition.
