2012 Ford Fusion 2.5 Serpentine Belt Diagram and Routing Guide
To correctly replace or inspect the belts on a 2012 Ford Fusion 2.5, it’s crucial to understand the proper routing of each belt. Start by locating the serpentine belt, which is the primary belt that drives several engine components, such as the alternator, air conditioning compressor, and power steering pump. This belt must be routed correctly to ensure proper operation of all driven accessories.
The serpentine belt routing diagram for the 2012 Ford Fusion 2.5 shows how the belt wraps around the pulleys and tensioner. Ensure that the belt passes over the correct pulleys, including the crankshaft pulley, the alternator, and the power steering pump. The tensioner must also be positioned to maintain appropriate tension on the belt. If this is your first time working with the 2.5 engine, referencing a diagram is a must to avoid misrouting.
Once you’ve routed the belt correctly, check the alignment of each pulley to ensure the belt runs smoothly. If any component is misaligned, it could lead to premature wear of the belt or cause the belt to slip off. It’s also important to inspect the condition of the belt before installation; cracks, fraying, or signs of wear should prompt a belt replacement.

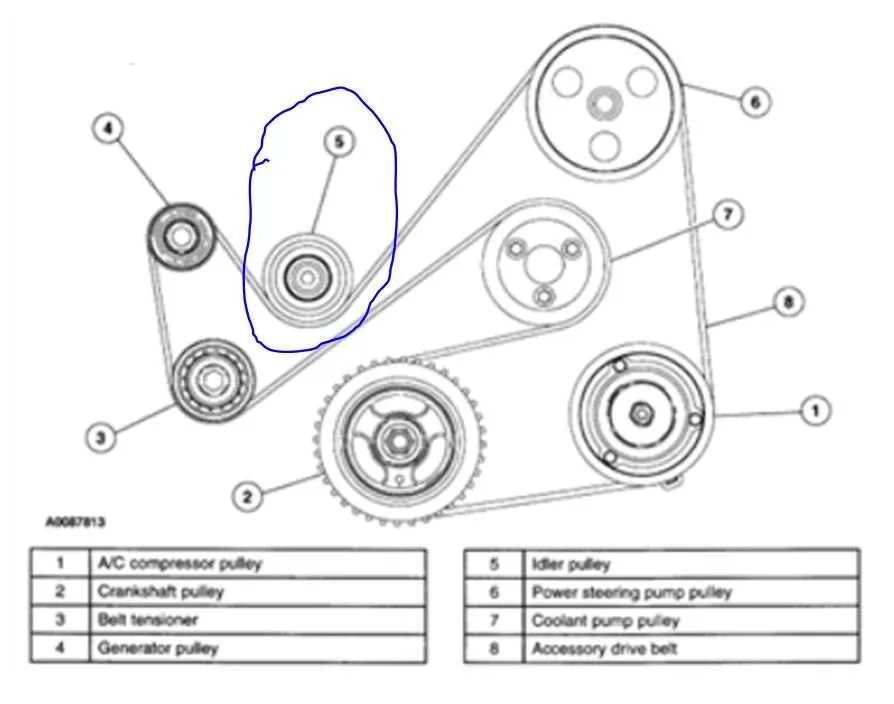

2012 Ford Fusion 2.5 Belt Diagram
For a 2012 Ford Fusion 2.5, the belt diagram is crucial to ensure proper installation and maintenance of the serpentine belt system. It’s important to follow the correct routing to avoid unnecessary wear and potential engine damage. Below is the recommended belt routing for the 2.5 engine model:
Belt Routing: Start by threading the belt around the crankshaft pulley, moving clockwise. Then, pass it over the tensioner pulley, ensuring it fits snugly. After that, route it through the alternator pulley, water pump, and idler pulley in the proper sequence. Pay close attention to the alignment, especially near the power steering pump and air conditioning compressor, ensuring there’s no slack in the belt.
Ensure the belt is properly tensioned, as improper tension can lead to premature wear or slippage. If you are replacing the belt, check the condition of all pulleys and replace any that show signs of damage or wear.

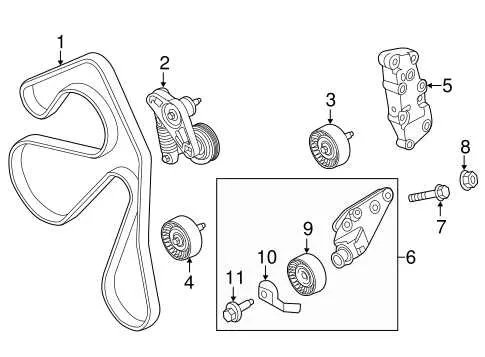

Key Pulleys and Components: The diagram will feature the following key components in the 2.5 engine configuration:
- Crankshaft Pulley
- Alternator Pulley
- Water Pump Pulley
- Power Steering Pulley
- Air Conditioning Pulley
- Tensioner Pulley
- Idler Pulley
Refer to the vehicle manual or a service guide to double-check the exact belt routing and specifications for your model. If in doubt, consult a professional mechanic to ensure proper installation.
How to Identify the Correct Belt Routing for 2012 Ford Fusion 2.5
Locate the belt routing diagram on the engine bay. It’s typically on a sticker attached to the radiator support or near the front of the engine. If it’s missing or unreadable, refer to the owner’s manual or a repair guide for the 2012 Ford Fusion 2.5.
Examine the components that the serpentine belt will route through. These include the alternator, power steering pump, air conditioning compressor, and the crankshaft pulley. The belt should wrap around each component in a specific sequence to ensure proper function.
Follow the general steps below to identify the correct belt routing:
- Check the crankshaft pulley for the starting point of the belt.
- Route the belt over the idler pulley, making sure it moves freely without any slack.
- Loop the belt over the tensioner pulley last, ensuring it is under proper tension. The tensioner automatically adjusts as needed.
- Ensure the belt correctly aligns with each component pulley and doesn’t deviate from the prescribed path.
If the belt doesn’t seem to fit or align properly, double-check the routing diagram or consult with a mechanic to ensure the belt is the correct length and type for the vehicle.
Step-by-Step Guide to Replacing the Serpentine Belt in 2012 Ford Fusion 2.5
Start by ensuring your engine is cool and the car is on a level surface. Disconnect the negative terminal from the battery to avoid any electrical issues.
Locate the serpentine belt routing diagram. You can find this on a sticker near the engine bay or refer to the owner’s manual for the exact layout. This will help you understand how the belt runs through the pulleys.

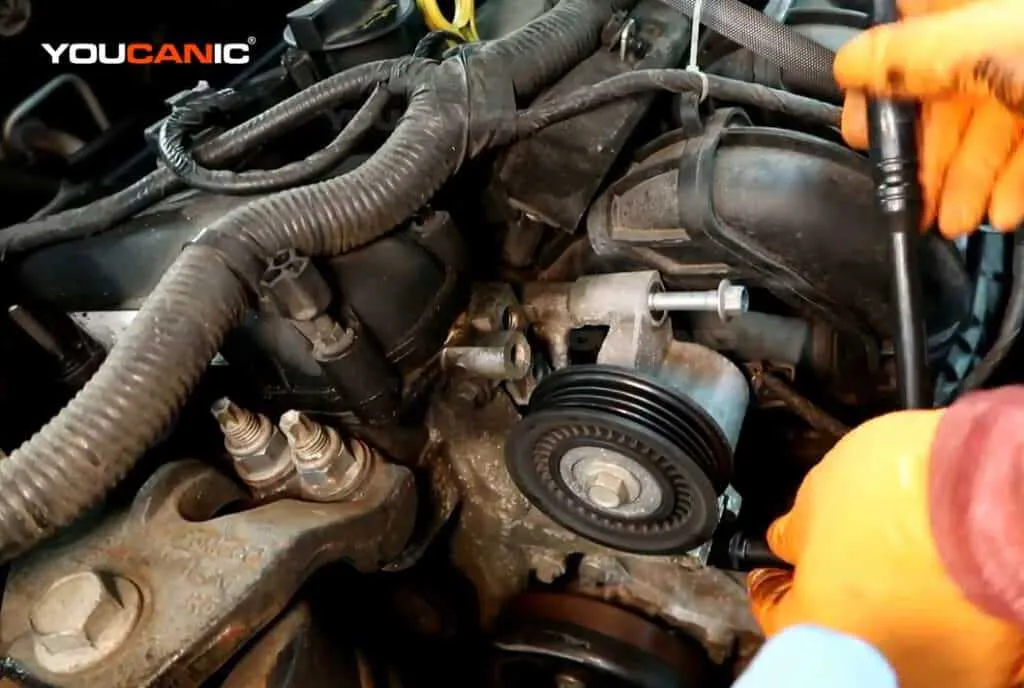

Next, use a wrench or socket to rotate the tensioner pulley counterclockwise. This will relieve tension from the belt, allowing you to remove it easily. Be cautious when doing this to avoid damaging the tensioner.
Once the tension is released, slide the serpentine belt off the pulleys. Carefully note the routing so you can install the new belt in the correct orientation.
Before installing the new belt, inspect the pulleys for wear or damage. Clean any debris or dirt from the pulleys to ensure smooth operation.
Position the new belt according to the routing diagram and carefully thread it over the pulleys. Make sure the belt sits properly in the grooves of each pulley.
Once the belt is in place, rotate the tensioner pulley again to relieve tension. Slide the belt onto the tensioner pulley and release the tensioner to secure the belt in place.
Double-check that the belt is properly aligned and seated on all pulleys. Rotate the engine by hand to ensure the belt runs smoothly without slipping.
Reconnect the battery terminal, start the engine, and listen for any unusual noises. If everything runs smoothly, the replacement is complete.
Troubleshooting Common Belt Issues in 2012 Ford Fusion 2.5
If your 2012 Ford Fusion 2.5 is showing signs of belt-related issues, it’s critical to address them quickly to avoid further damage. Start by inspecting the serpentine belt for visible wear, cracks, or glazing. A damaged belt can slip or break, leading to engine performance problems.
Listen for unusual squealing or whining noises while the engine is running. These sounds often indicate a worn-out or misaligned belt. If the noise persists, check the tensioner and idler pulleys for signs of damage or wear. A faulty pulley can cause improper belt tension, which leads to poor engine performance or belt slippage.
If you notice that your engine is overheating or electrical components aren’t working correctly, the issue might be with the drive belt. A slipping or broken belt will prevent your alternator and water pump from operating efficiently. In such cases, inspect the belt for damage and replace it immediately if necessary.
Also, check the belt’s alignment. If the belt appears misaligned, the pulleys may not be in their proper positions. This can result from worn-out bearings or damaged pulleys. In some cases, this issue can be resolved by simply realigning the pulleys or replacing the faulty components.
If you’re unsure whether the belt is at fault, perform a tension test. A loose belt can cause poor engine performance, while excessive tension may result in additional stress on the engine components. Adjust the tensioner or replace it if needed.
