2014 Chevy Captiva Serpentine Belt Diagram and Replacement Guide
The serpentine belt layout on the 2014 Chevy Captiva is crucial for maintaining proper engine function. A well-aligned belt ensures all components, like the alternator and power steering pump, operate smoothly. If you notice unusual noises or loss of power, it’s worth checking the belt’s position and condition.
To begin, locate the diagram on the vehicle’s radiator support or the underside of the hood. This diagram will show the exact routing of the serpentine belt around the pulleys. Make sure to compare this layout with the actual setup under the hood, ensuring each component is properly connected.
If the belt shows signs of wear such as fraying or cracking, replace it immediately. A damaged belt can cause the engine to overheat or result in a loss of power steering. Always use a high-quality replacement belt to avoid future issues.
2014 Chevy Captiva Belt Diagram
For a clear understanding of the belt routing on the 2014 Chevy Captiva, refer to the following belt diagram. This will guide you through the correct positioning and tension of the serpentine belt, ensuring smooth engine operation.
The serpentine belt drives various engine components like the alternator, power steering pump, and air conditioning compressor. Be sure to check the belt for wear or damage, as it directly affects the performance of these systems. If you notice cracks or fraying, it’s time to replace the belt.

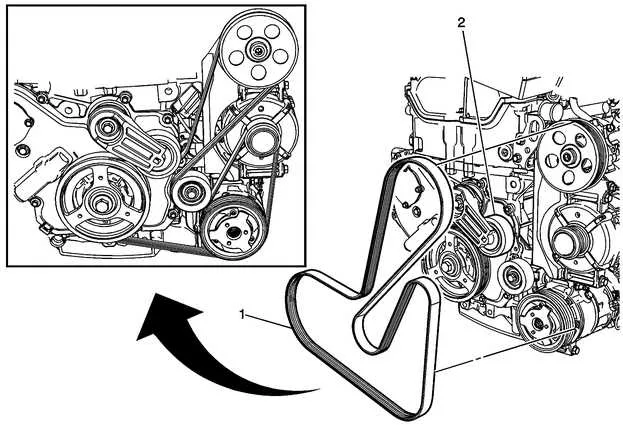

In the 2014 Chevy Captiva, the serpentine belt is routed around the pulleys in a specific sequence. The diagram below illustrates the exact path the belt follows across the engine. Always double-check the routing before securing the belt in place. Incorrect routing can cause serious damage to your vehicle’s engine components.
To replace the serpentine belt, first, release the tension using a belt tensioner tool. Then, remove the old belt and install the new one following the diagram carefully. Once the new belt is in place, check the tension and ensure it is properly aligned on all pulleys.
Refer to the vehicle’s service manual for additional specifications on the belt’s length and tensioning requirements. Regular maintenance of the serpentine belt can prevent unexpected breakdowns and prolong the life of your vehicle’s engine systems.
How to Read the 2014 Chevy Captiva Belt Diagram
First, locate the main components on the diagram: the alternator, power steering pump, water pump, and air conditioning compressor. These are typically shown as circles or squares connected by lines representing the serpentine belt. Pay attention to the direction of the belt path, marked with arrows in most diagrams.
The diagram will also include the belt tensioner, usually positioned near the top or side of the engine. Identify its location and how it affects the belt routing. In some cases, the diagram may indicate the belt’s tension, either manually adjusted or spring-loaded, which helps maintain proper belt tightness.
Next, check for the position of each pulley. Some diagrams offer additional details on pulley size and positioning, which will help you understand the belt’s route and function. If there are any special notations about the alignment or specific instructions for the tensioner, make sure to follow those closely.
Understanding the tensioner’s role is key: it maintains the correct tension of the serpentine belt. In case of a replacement, the diagram will also specify if any components need to be temporarily moved or removed to access the belt.
Refer to the diagram for troubleshooting or when replacing the belt. Knowing where each component is located ensures the proper alignment and smooth operation of the engine’s systems.
Identifying Common Belt Issues on the 2014 Chevy Captiva
Check the serpentine belt regularly for signs of wear, such as cracks or fraying, which can cause it to slip or break. Inspect the belt’s tension; if it’s too loose, it may fail to drive the necessary components effectively. If it’s too tight, it may put excess strain on the pulleys and cause premature wear.
Listen for unusual noises like squealing or chirping while the engine is running. These sounds often indicate that the belt is slipping or misaligned. Misalignment can occur due to worn-out pulleys or improper installation.
Examine the belt for oil or coolant stains, as these can weaken the belt and lead to premature failure. Oil leaks or coolant drips onto the belt can cause it to deteriorate faster, even if the belt appears intact.
Check the condition of the pulleys and tensioners. If these components show signs of wear, it may be necessary to replace them along with the belt to ensure proper operation. Worn pulleys can cause uneven wear on the belt, which leads to inefficient performance.
If the belt is slipping, check the alternator and other driven components to ensure that they are not misaligned or damaged. A malfunctioning alternator can cause the belt to slip and reduce its lifespan.
- Cracks or fraying on the belt surface
- Squealing or chirping noises during operation
- Oil or coolant stains on the belt
- Worn-out pulleys or tensioners
- Belt slippage affecting engine performance
Regular inspection and maintenance can prevent more severe issues and keep the 2014 Chevy Captiva running smoothly. If you notice any of these signs, replacing the belt promptly will help avoid further damage to the engine components.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2014 Chevy Captiva
To replace the serpentine belt on a 2014 Chevy Captiva, follow these detailed steps:
1. Ensure the engine is off and completely cool. Disconnect the negative terminal from the battery to prevent electrical issues.
2. Locate the serpentine belt. On the 2014 Chevy Captiva, it runs across multiple pulleys. Refer to the belt diagram for guidance on the correct routing.

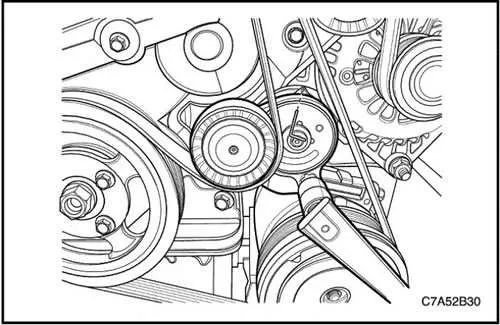

3. Find the belt tensioner. It’s typically located near the top or side of the engine and will have a bolt or pulley that you can use to relieve tension.
4. Use a socket wrench to rotate the tensioner and relieve tension on the belt. This will allow you to slide the belt off the pulleys. If necessary, use a breaker bar for extra leverage.
5. Remove the old serpentine belt from the engine, noting its routing so you can install the new one in the same pattern.
6. Install the new serpentine belt, following the correct routing as shown in the diagram. Ensure it sits snugly on all pulleys.
7. Rotate the tensioner again to slip the belt over the final pulley. Ensure the belt is properly aligned and seated in all grooves.
8. Reconnect the battery terminal and start the engine. Observe the belt to ensure it’s running smoothly without slipping or making noise.
9. Double-check the belt tension after running the engine for a few minutes. If necessary, adjust the tensioner to ensure the belt has the correct tightness.
