2011 Ford Escape Serpentine Belt Diagram and Routing Guide
The serpentine belt diagram for the 2011 Ford Escape shows the precise routing and positioning of the belt across various components of the engine. Properly understanding this diagram is crucial when replacing or inspecting the serpentine belt, as it ensures all parts function correctly without excessive wear or damage. Always refer to the manufacturer’s diagram before attempting any repairs or maintenance.
The serpentine belt drives several key components of the engine, such as the alternator, power steering pump, air conditioning compressor, and the water pump. Ensure that the belt tensioner is functioning properly, as improper tension can lead to belt slippage and cause engine issues. If you notice unusual sounds or a loss of performance in any of these components, inspect the belt immediately.
Replacing the serpentine belt in the 2011 Ford Escape requires careful attention to the belt’s routing to avoid misplacement. Always check for the correct belt length and ensure it is in good condition, free from cracks, fraying, or glazing. A damaged belt should be replaced without delay to prevent further engine complications.
Regular inspection of the serpentine belt and its components should be part of your vehicle maintenance routine. If the belt shows signs of wear, it’s best to replace it before it fails, potentially causing more significant damage to the engine’s systems.

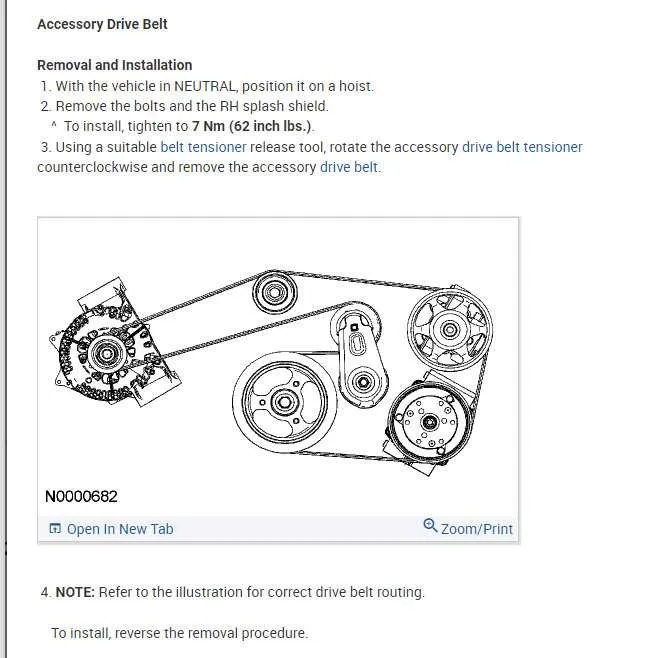

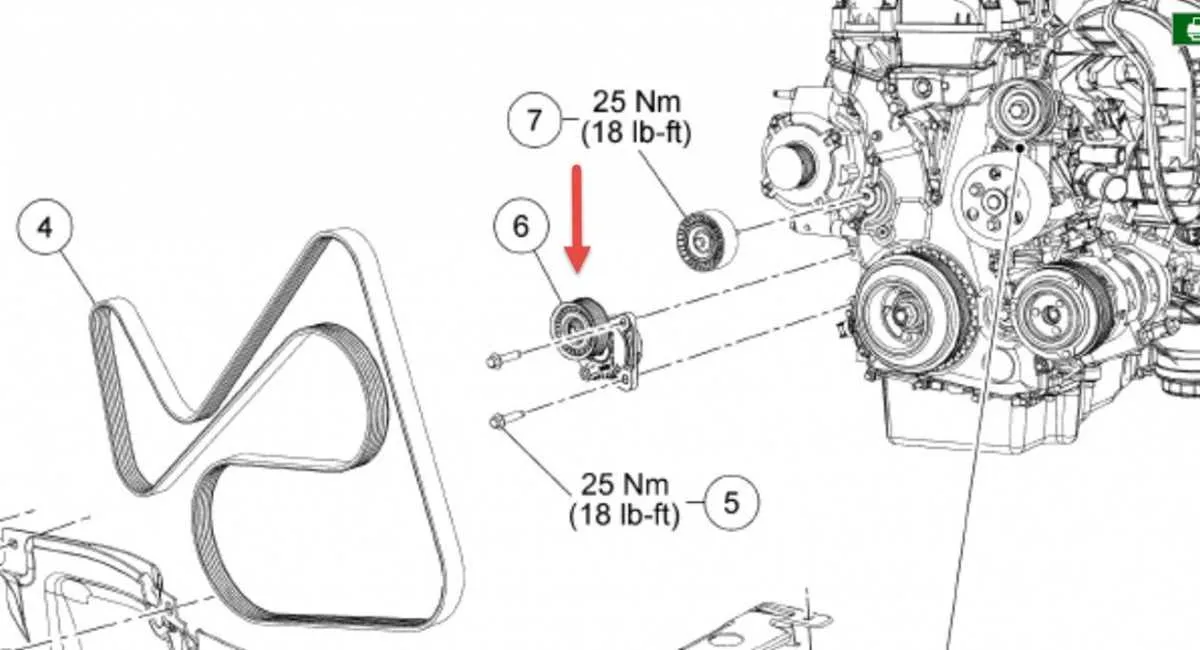

2011 Ford Escape Serpentine Belt Diagram
To replace or inspect the serpentine belt on your 2011 Ford Escape, refer to the diagram for accurate belt routing. The serpentine belt is a crucial part of the engine, driving several components such as the alternator, power steering pump, and air conditioning compressor.
The belt system consists of a single continuous belt that wraps around various pulleys. It is essential to check for signs of wear, such as cracks or fraying, to avoid potential failures. Follow these steps for proper belt installation and maintenance:
- Locate the tensioner pulley, which is responsible for maintaining the correct tension on the belt. Use a socket wrench to rotate the tensioner and relieve tension before removing the old belt.
- Ensure that the new belt follows the same path as shown in the diagram, ensuring it is properly aligned with all pulleys and idlers.
- Once the belt is in place, use the wrench to rotate the tensioner back into its original position, tightening the belt to the correct tension.
- Double-check the belt’s alignment on all pulleys to confirm it is correctly positioned.
- Start the engine and observe the belt’s movement to ensure it runs smoothly without any noise or slippage.
For any issues related to the serpentine belt, such as slipping or noise, inspect the belt and pulleys for damage. It is recommended to replace the serpentine belt every 60,000 to 100,000 miles to avoid breakdowns.
How to Identify the Correct Serpentine Belt Routing for 2011 Ford Escape
To identify the correct serpentine belt routing for your 2011 Ford Escape, first locate the belt routing diagram. This can typically be found on a sticker or plate near the engine bay, often on the radiator support or under the hood. This diagram provides the exact path the serpentine belt should follow around the pulleys.
Next, check the orientation of the pulleys. The belt should follow the sequence of pulleys starting with the crankshaft pulley, which drives the rest of the accessories. Ensure the belt loops around the tensioner pulley last. The tensioner adjusts the belt’s tightness, preventing slippage or damage.
If the diagram is missing or unreadable, use the following sequence as a guide: the belt should loop over the crankshaft pulley, wrap around the alternator pulley, pass under the idler pulley, and then wrap around the power steering pump and air conditioning compressor. Ensure the belt is routed properly over or under each pulley as per the specific model’s requirements.
Before installation, inspect the belt for any wear or damage. If the belt appears worn or cracked, it’s best to replace it before re-routing. Once the belt is correctly routed, ensure it is seated properly in the grooves of each pulley and that the tension is correct before starting the engine.
Steps to Replace the Serpentine Belt in a 2011 Ford Escape
First, locate the serpentine belt tensioner and relieve its tension using a wrench. This will allow you to remove the belt from the pulleys.
Next, carefully remove the serpentine belt from the engine bay, ensuring it doesn’t damage any components along the way. Make note of the belt routing before removal to assist with installation.
Inspect the new serpentine belt to ensure it matches the old one in size and tooth count. If necessary, compare the part numbers to confirm compatibility.
Install the new belt by following the same routing as the previous one. Start by threading the belt around the pulleys, ensuring it sits in the grooves properly.
Once the belt is in place, use the tensioner to apply the appropriate tension. Double-check the belt for any misalignment or slack.
Finally, start the engine and observe the belt’s operation. Listen for unusual noises or movement, and ensure the belt is running smoothly across the pulleys.
Troubleshooting Common Serpentine Belt Issues in a 2011 Ford Escape
If the serpentine belt in your 2011 Ford Escape starts showing signs of wear, follow these steps to identify and resolve common issues:
1. Squeaking or Squealing Noise
This noise often indicates a loose or worn belt. Check the belt tensioner for proper tension. If it’s loose, adjust or replace the tensioner. Inspect the belt for cracks, fraying, or glazing. A worn belt should be replaced immediately to prevent further damage.
2. Belt Slipping
Slipping can occur when the belt becomes too worn or the tensioner fails to maintain proper tension. Look for signs of excessive wear on the grooves of the belt and check the tensioner’s spring. Replace the tensioner or the belt as needed.
3. Engine Overheating
If the serpentine belt is loose or broken, it may cause the water pump to stop functioning, leading to overheating. Inspect the belt for any signs of damage and ensure the tensioner is working correctly. A broken belt requires immediate replacement.
4. Loss of Power Steering
A damaged or loose serpentine belt may prevent the power steering pump from functioning. If steering feels stiff, inspect the belt and its components. If the belt is intact but loose, adjust the tensioner. Replace any damaged parts.
5. Battery Charging Issues
A worn or loose belt can affect the alternator’s ability to charge the battery. If you notice the battery warning light, check the belt tension and condition. Tighten or replace the belt as necessary.
6. Belt Alignment
Improper belt alignment can cause premature wear. Inspect the pulleys and ensure they are aligned correctly. Misalignment could result from a damaged pulley or misaligned tensioner, which should be addressed immediately.
Regular inspections and addressing issues early will help maintain the performance of your serpentine belt and prevent costly repairs.
