2006 Dodge Cummins Belt Diagram and Routing Information

To avoid confusion during maintenance, refer to the 2006 Dodge Cummins belt diagram for the correct routing of all accessory belts. This diagram helps prevent improper installation and ensures optimal engine performance. The primary drive belt system includes components like the alternator, power steering, air conditioning compressor, and water pump.

To make the process smoother, ensure that you have the right tools and replacement belts before starting the job. The belt routing is straightforward but requires attention to detail to avoid misalignment or incorrect tension. A clear understanding of the diagram will prevent you from running into issues down the road.

The diagram will show the exact path of each belt around pulleys and tensioners, which is crucial for correct installation. Take note of any optional components, such as an auxiliary drive, that might require additional routing steps. Following this diagram closely will ensure your 2006 Dodge Cummins runs without unnecessary wear on the belt system.

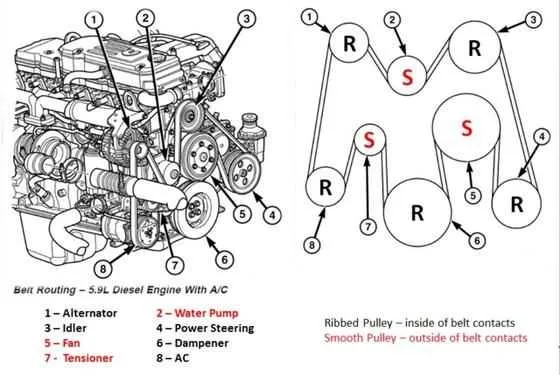

2006 Dodge Cummins Belt Diagram

If you’re replacing or inspecting the serpentine belt on a 2006 Dodge Cummins, follow this guide for proper routing. The belt powers critical components such as the alternator, power steering pump, and air conditioning compressor. Ensuring proper alignment and tension is crucial to the engine’s performance.

• Start at the crankshaft pulley, which is the main drive point.
• Route the belt over the idler pulley to the power steering pump.
• Continue to the alternator, keeping the belt tight and aligned.
• Pass the belt over the A/C compressor pulley before looping it back to the tensioner pulley.
• Ensure the belt is tensioned properly on the tensioner pulley to avoid slippage.
• Verify that the belt is routed correctly without any twists or misalignments.

Check the diagram for specific belt length and routing details, especially if there are modifications to the accessories or pulleys. Pay attention to any adjustments needed for the tensioner when replacing the belt.

Regular maintenance and inspection can help prevent belt failure, which could lead to engine damage. If you notice any wear, cracks, or missing ribs on the belt, it’s time for a replacement.

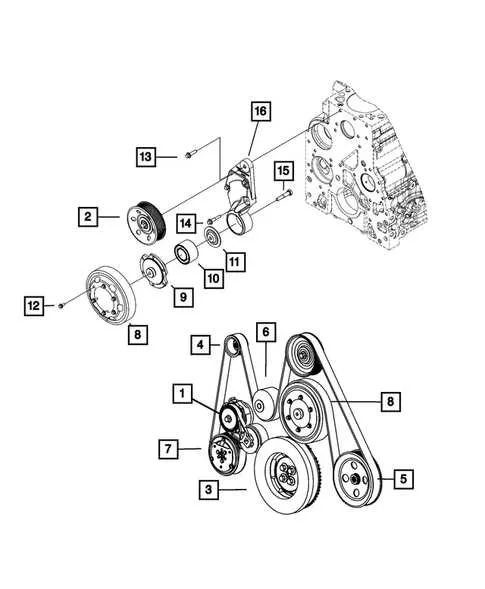

Identifying Key Components in the 2006 Dodge Cummins Belt System

The 2006 Dodge Cummins belt system is composed of several key components that ensure the proper operation of the engine’s accessories. The serpentine belt, the main driving component, powers the alternator, air conditioning compressor, power steering pump, and water pump. Recognizing these components helps you diagnose potential issues before they affect engine performance.

The serpentine belt is driven by the crankshaft pulley and routed through various pulleys and tensioners. The tensioner ensures the belt remains taut, preventing slipping. The idler pulley redirects the belt without contributing to the drive of any accessory. Pay attention to the alignment of these pulleys to ensure the belt runs smoothly.

The alternator pulley is another important component, as it helps recharge the battery while the engine is running. Inspect the alternator for any wobble, as this can indicate wear or failure of the pulley or bearings. The power steering pump pulley is driven by the same belt, and any noise or difficulty in steering could signal issues with the pump or belt.

In some models, the air conditioning compressor is also linked to the belt system. A malfunction here can cause the A/C system to lose power. Check for belt wear near the compressor pulley and ensure it rotates freely when the engine is running.

The water pump pulley, which is part of the cooling system, can also affect engine temperature. A failing water pump often causes overheating. Listen for any unusual noise from the pump area, and inspect the belt for signs of excessive wear, which could indicate misalignment or improper tension.

Step-by-Step Guide to Replacing Belts on a 2006 Dodge Cummins

Begin by securing the vehicle and ensuring the engine is cool. Disconnect the negative battery terminal to prevent accidental electrical shorts.

Locate the tensioner pulley on the front of the engine. Use a ratchet wrench to relieve tension on the serpentine belt by turning the tensioner clockwise. This will allow you to remove the belt from the pulleys.

Take note of the belt routing. It’s helpful to either take a picture or refer to the diagram on the engine bay to ensure correct installation later.

Once the serpentine belt is off, check the other belts for wear and tear. Replace any damaged belts, including the air conditioning belt, alternator belt, and power steering belt if necessary.

Install the new serpentine belt by routing it according to the diagram. Ensure the belt sits correctly in the grooves of each pulley.

After the belt is properly installed, use the ratchet wrench to rotate the tensioner again, and secure the belt. Double-check the routing and the tension on the new belt to ensure it’s aligned properly.

Reconnect the negative battery terminal. Start the engine and visually inspect the belts in motion. Listen for any unusual noises and check for proper belt tension. If everything appears normal, the installation is complete.

Troubleshooting Common Issues with the 2006 Dodge Cummins Belt Setup

Start by inspecting the belt tensioner. If it shows signs of wear or doesn’t maintain proper tension, replace it immediately. A loose belt can lead to poor engine performance or even damage components like the alternator or water pump.

Check for belt misalignment. Look at the pulleys to ensure they are lined up correctly. If a pulley is off-center or damaged, it can cause the belt to wear unevenly, leading to slipping or squealing sounds. Replace any misaligned pulleys to avoid further issues.

Inspect the belt for cracks, fraying, or signs of glazing. A worn-out belt will fail to grip the pulleys properly, resulting in slipping, noise, and reduced efficiency. Replace the belt if you notice any visible damage or excessive wear.

Examine the pulleys for any signs of rust or buildup. Rust can cause the belt to slip, and buildup may interfere with proper belt motion. Clean the pulleys and lubricate them if necessary to ensure smooth operation.

Check the water pump and alternator for any unusual noise or resistance. A seized component can create excess tension on the belt, causing it to slip or even break. If any part of the accessory drive is hard to turn by hand, consider replacing the faulty component.

Make sure the belt routing matches the factory diagram. Incorrect routing can cause stress on certain parts, leading to premature failure. Double-check your work to ensure everything is in the right place.

If your engine continues to run hot or exhibits fluctuating temperatures, inspect the serpentine belt’s interaction with the water pump and alternator. If these components aren’t operating correctly due to belt issues, engine cooling can be compromised.

Lastly, don’t forget to periodically check the belt tension after replacement. Even with a new belt, it can settle over time, requiring adjustment to keep it in optimal condition.
