2007 Ford Escape Serpentine Belt Diagram and Maintenance Guide
To replace or inspect the serpentine belt in a 2007 Ford Escape, start by identifying the correct routing. The serpentine belt in this model connects various engine components such as the alternator, power steering pump, and air conditioning compressor. Understanding the exact belt layout ensures proper installation and operation.
The diagram for the 2007 Ford Escape serpentine belt is straightforward but crucial for maintaining engine efficiency. Pay attention to the direction of the belt grooves, and always check the belt tension before and after installation. An incorrectly routed or loose belt can cause serious engine issues.
Consult the diagram to avoid unnecessary wear and tear on components. Regular inspection of the serpentine belt helps prevent breakdowns and ensures the proper functioning of vital systems. When in doubt, refer to the manufacturer’s manual for additional guidance on belt specifications and installation instructions.

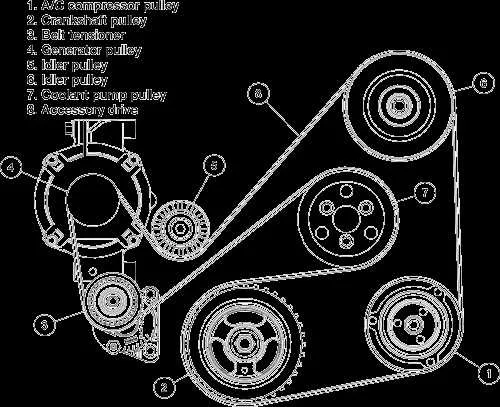

2007 Ford Escape Serpentine Belt Diagram
The 2007 Ford Escape serpentine belt system is a critical component for the engine’s operation. The serpentine belt drives several accessories, including the alternator, power steering pump, water pump, and air conditioning compressor. If the belt fails, these systems will cease to function properly. Regular inspection and replacement of the serpentine belt are recommended to prevent unexpected breakdowns.
To replace the serpentine belt, start by releasing the tension from the belt tensioner using a suitable wrench. The diagram for the serpentine belt routing is crucial for ensuring that the belt is correctly installed. Incorrect installation can lead to severe engine damage or improper accessory operation.

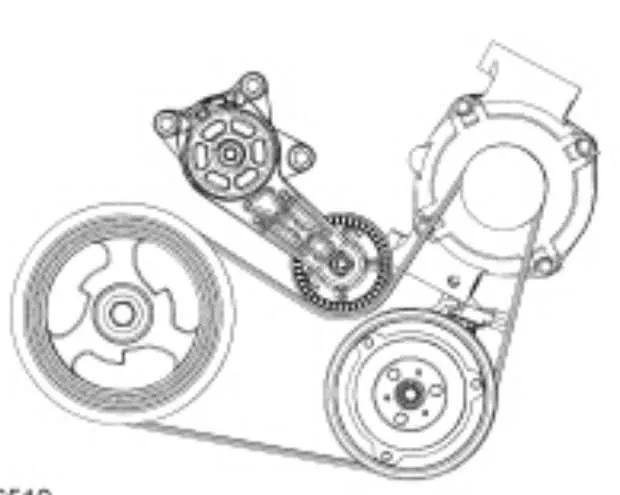

The diagram for the 2007 Ford Escape typically shows the belt routing around various pulleys, including the crankshaft, alternator, and idler pulleys. Always refer to the diagram for the exact belt path specific to your vehicle model and engine type. Make sure to double-check the belt’s alignment before starting the engine.
If you’re unsure about replacing the serpentine belt yourself, it’s best to seek professional help to ensure proper installation and avoid complications that could arise from improper handling.
Understanding the Serpentine Belt Layout for 2007 Ford Escape
The serpentine belt layout on the 2007 Ford Escape plays a vital role in ensuring the smooth operation of essential components like the alternator, power steering pump, air conditioning compressor, and water pump. Here’s a breakdown of how it works and how to check for issues:
- Belt Routing: The belt routes around several pulleys to drive various engine accessories. Follow the diagram specific to the 2007 Ford Escape to ensure accurate installation.
- Tensioner: The tensioner pulley maintains proper belt tension. A worn-out or malfunctioning tensioner can cause slippage or premature wear of the serpentine belt.
- Idle Pulleys: These pulleys keep the belt aligned. Inspect for any visible damage or misalignment that could cause uneven wear.
- Common Issues: Pay attention to signs of wear, such as cracks, fraying, or a squeaking noise. These issues indicate that the belt needs replacement to avoid further engine damage.
For proper belt replacement, ensure the new belt follows the exact routing as per the original configuration. A misaligned belt can affect the performance of your vehicle’s systems.
Steps to Properly Install the Serpentine Belt on 2007 Ford Escape
Ensure the engine is turned off and the keys are removed from the ignition. Allow the engine to cool before proceeding with the installation.
Locate the serpentine belt routing diagram. This can typically be found on a sticker on the radiator support or under the hood of the vehicle. Verify the belt routing pattern before starting the installation.
Use a ratchet wrench to relieve tension on the belt by turning the tensioner pulley counterclockwise. This will release the pressure on the belt, allowing you to remove it easily.
Once the belt is removed, inspect it for wear or damage. Check the grooves and the overall condition of the belt to ensure the new one is a suitable replacement.
Place the new serpentine belt on the pulleys in the correct routing order as shown in the diagram. Ensure the belt is seated properly in the grooves of each pulley, particularly the crankshaft and alternator pulleys.
After positioning the belt, use the ratchet wrench to move the tensioner pulley again and allow the new belt to slip into place. The tensioner will apply the required tension to the belt.
Check the alignment of the belt on each pulley to confirm it’s correctly positioned and runs smoothly.
Start the engine and observe the belt while it’s in motion. Listen for any unusual noises and ensure the belt runs without slipping or making contact with any components. If everything seems correct, the installation is complete.
Common Issues and Solutions with the Serpentine Belt on 2007 Ford Escape
One common issue with the serpentine belt on the 2007 Ford Escape is premature wear. If you notice squealing noises or poor performance from the engine accessories, the serpentine belt may be worn or damaged. Regular inspection is crucial to detect cracks or fraying before they lead to a complete failure. Replace the belt if you notice significant damage, ensuring proper tension during installation.
Another problem arises from improper tension. A loose serpentine belt can cause slippage, leading to loss of power to the alternator, power steering, or air conditioning. Use a belt tension gauge to check the belt’s tension and adjust it according to manufacturer specifications. Over-tightening the belt can also cause damage, so it’s essential to find the correct balance.
Misalignment of the serpentine belt can occur due to faulty pulleys or damaged components. This can lead to the belt coming off track, causing the engine to lose power. Inspect the pulleys for damage and wear, and replace any faulty parts. A misaligned belt can cause rapid wear and eventual failure, so it’s important to address this issue immediately.
In some cases, the serpentine belt may break or snap entirely. This often occurs due to age, wear, or damage from external factors like debris. If the belt snaps, the engine will lose power, and several accessories will stop functioning. Replace the belt with a new one that meets the manufacturer’s specifications, and check for any underlying causes such as misalignment or damaged pulleys.
