JD 48 Mower Deck Belt Diagram and Troubleshooting Guide

The JD 48 mower deck belt diagram provides a clear layout of how the belts should be routed within the mower. This diagram is crucial for anyone looking to replace or troubleshoot the belts. Ensure that the belts are properly aligned to avoid damage to the mower or belts themselves. If you are unsure, referring to the official JD 48 manual for specific details is highly recommended.

When replacing the belt, start by removing the deck from the mower, ensuring it is safely secured before starting any work. Inspect the condition of the pulleys and idler arms, as a worn pulley could cause premature wear on a new belt. The diagram will help you identify the correct routing path, which is vital for optimal performance.

Pay attention to the tensioner assembly in the diagram. Proper belt tension is necessary to avoid slipping or excessive wear. Too much tension can cause the belt to break, while too little can lead to poor cutting performance. Always double-check the belt size before installation to ensure compatibility with your model.

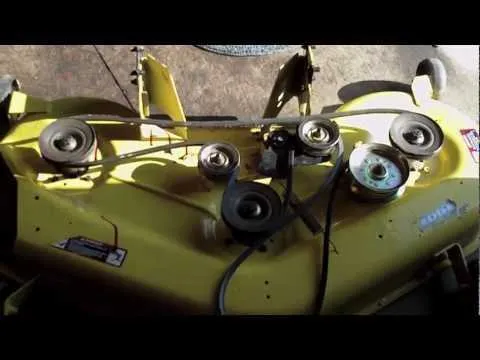

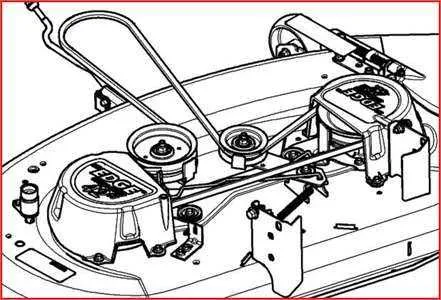

JD 48 Mower Deck Belt Diagram

To correctly replace or adjust the belt on a JD 48 mower deck, refer to the belt routing diagram. This diagram clearly outlines the specific path the belt follows, ensuring it operates smoothly and maintains optimal performance.

Start by identifying the key components in the diagram: the engine pulley, deck pulleys, and tensioner. The diagram shows how the belt loops around each pulley, providing power to the blades and other essential parts. Pay close attention to the direction of the belt and how it interacts with the idler pulleys, as improper alignment can lead to premature wear.

Ensure the belt is routed as shown in the diagram. Double-check that the tensioner is engaged properly, as a loose belt will not function effectively. Replace the belt if there are signs of excessive wear or fraying. A worn belt can cause slipping or reduced cutting performance.

If the belt is being replaced, use a genuine replacement part to ensure it matches the specifications in the diagram. This guarantees compatibility and reliability. After installation, manually rotate the deck pulleys to confirm the belt is moving freely and doesn’t bind at any point.

Lastly, check the tension after a few hours of use. The belt may stretch slightly, so it’s crucial to monitor it during the first few mowing sessions. If the belt becomes loose, tighten the tensioner according to the specifications in the manual.

Understanding the Belt Routing for JD 48 Mower Deck

To properly route the belt on your JD 48 mower deck, start by ensuring the mower is on a flat surface and the engine is off. This ensures safety and proper alignment.

The belt routing on the JD 48 mower deck follows a clear path, and the key steps are outlined below:

• First, position the belt around the engine pulley. Make sure it sits securely in place without slack.
• Next, loop the belt through the idler pulleys. Ensure that each idler pulley is oriented correctly to avoid improper tension.
• Run the belt over the deck spindles, making sure it wraps smoothly around each one. Adjust if necessary for even distribution across the deck.
• Finally, check the tension of the belt by hand. There should be a slight deflection but not too much slack.

Inspect the routing diagram on the mower for further clarity. Following this routing guide ensures the mower operates efficiently, without unnecessary wear on the belt or pulleys.

Regularly check the belt for signs of damage or wear. Replace the belt if it appears frayed or stretched beyond normal use. This will keep your mower deck running smoothly and prevent unexpected breakdowns.

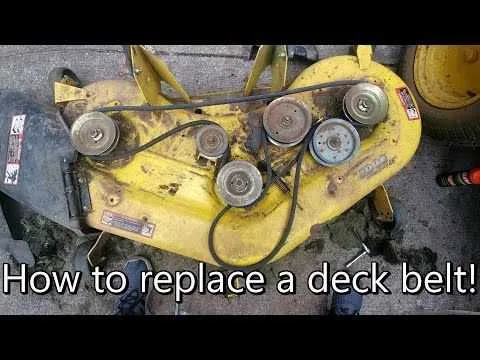

Step-by-Step Guide to Replacing the Belt on JD 48 Mower Deck

Disconnect the mower’s battery before starting any repair work. This prevents accidental startups during the belt replacement process.

Lift the mower deck to access the belt. Use a jack or similar tool to lift it to a comfortable height. Secure the deck before proceeding.

Locate the old belt. Check the belt path by referring to the JD 48 mower deck belt diagram for clarity. Remove any covers or shields that might obstruct the belt removal process.

Release tension from the belt. Find the tensioning mechanism (usually a spring or lever) and release it. This will allow you to remove the belt more easily.

Remove the old belt by carefully sliding it off the pulleys. Take note of the belt routing to ensure correct installation of the new belt.

Install the new belt by following the routing diagram. Make sure the belt is aligned properly with all pulleys and that it sits securely in place.

Reapply tension to the belt using the tensioning mechanism. Double-check that the belt is tight but not overly stretched.

Lower the mower deck back into position and ensure everything is securely fastened. Test the new belt by starting the mower and checking for smooth operation.

Troubleshooting Common Belt Issues on JD 48 Mower Deck

If the belt on your JD 48 mower deck is slipping or breaking, first check for wear and tear. Inspect the belt for cracks or fraying. If the belt appears damaged, replace it with a new one. Make sure the replacement belt matches the exact specifications for your model.

Next, check the belt tension. A loose belt can lead to slipping or inefficient mowing. Tighten the belt by adjusting the tensioner pulley. Use a wrench to adjust the bolt holding the tensioner, ensuring there is sufficient tension without over-tightening it.

Inspect the pulleys and idlers. Worn-out pulleys or idler bearings can cause uneven belt wear. Spin each pulley by hand to check for smooth rotation. If you feel resistance or hear unusual noises, replace the faulty pulley or bearing immediately.

Ensure the belt routing is correct. Misrouted belts often lead to issues like slipping or damage. Refer to the JD 48 mower deck diagram to verify the proper belt routing and correct any mistakes.

Finally, check the mower deck for obstructions. Any debris stuck between the belt and pulleys can cause friction, leading to overheating and belt damage. Clean the mower deck thoroughly and remove any obstacles before using the mower again.
