2006 Ford Fusion Belt Diagram for Proper Maintenance and Repairs

If you’re working on a 2006 Ford Fusion and need to understand the belt system, you’ve come to the right place. The diagram will guide you through the correct routing and placement of the serpentine belt and other components, helping you avoid costly mistakes and ensure smooth engine performance. It’s a simple yet crucial step in maintaining your vehicle’s reliability and efficiency.

The 2006 Ford Fusion uses a single serpentine belt that drives multiple engine accessories, including the alternator, power steering pump, and air conditioning compressor. This belt needs to be installed correctly to ensure everything functions without issues. Make sure to double-check the tensioner and idler pulleys, as they play a key role in maintaining proper belt tension.

Check the diagram carefully to confirm the belt runs in the proper direction. Misrouting can lead to slippage, which can result in premature wear or even belt failure. If you notice unusual noise or performance issues, it might be time to replace the belt or inspect the tensioners.

2006 Ford Fusion Belt Diagram

The 2006 Ford Fusion uses a serpentine belt system for most of its engine accessories. The belt is critical for powering the alternator, power steering pump, air conditioning compressor, and other components. Here’s how to identify and replace it properly:

The belt routing diagram for the 2006 Ford Fusion is typically located near the engine or inside the engine compartment on a label. If it’s not visible, you can follow these general steps:

• Locate the crankshaft pulley, which is the main point of the belt’s rotation.
• The belt wraps around the alternator, power steering pump, air conditioning compressor, and tensioner pulley.
• The belt tensioner keeps the belt tight and should be relieved when removing the old belt.
• Check the alignment of the belt path to ensure it’s routed correctly over all pulleys.

For replacement, make sure the new belt matches the length and width specified in the vehicle’s manual. Use a tool to release the tension on the tensioner pulley and slide the old belt off. Install the new belt by following the same routing, ensuring it sits properly in each groove of the pulleys.

If you’re unsure about any step, consulting the vehicle’s manual or seeking assistance from a professional mechanic is recommended. The belt needs to be aligned properly to prevent premature wear and maintain optimal engine function.

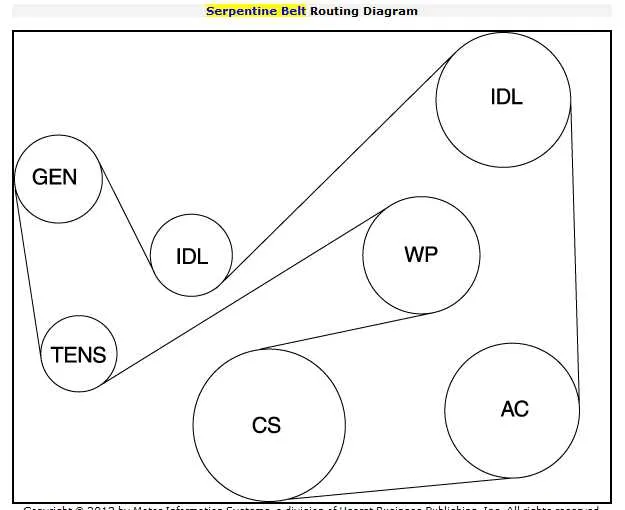

How to Identify the Correct Belt Routing for 2006 Ford Fusion

Check the belt routing diagram located near the engine bay. Look for a sticker or decal that provides a visual guide to the belt’s path. If the diagram is missing or unreadable, you can find the routing information in the vehicle’s owner manual or online service manuals specific to the 2006 Ford Fusion.

Start by locating the main components the belt interacts with: the crankshaft pulley, the alternator, the power steering pump, and the air conditioning compressor. Follow the path of the belt as it moves around these components, noting the orientation of the pulleys and any additional tensioner or idler pulleys along the way. The routing diagram typically includes the specific path, including which pulleys are involved and the direction in which the belt should move.

If you’re replacing the serpentine belt, ensure you release the tension on the old one by using a belt tensioner tool. This will make it easier to remove and install the new belt correctly, avoiding any misalignment.

Inspect the belt for any wear signs, such as cracks or fraying, as these could impact its routing and function. Install the new belt following the diagram precisely to avoid errors, and double-check that it sits properly in the grooves of each pulley.

If needed, rotate the tensioner pulley to ensure proper tension is applied to the belt. A belt that is too loose or too tight can affect the performance of your vehicle’s systems.

Step-by-Step Guide to Replacing the Serpentine Belt in a 2006 Ford Fusion

Start by ensuring the engine is cool. Disconnect the negative terminal of the battery to avoid any electrical accidents.

Locate the serpentine belt tensioner. It is typically located near the top of the engine, towards the driver’s side. Use a socket wrench or breaker bar to rotate the tensioner counterclockwise. This will loosen the belt and allow you to remove it from the pulleys.

Before removing the old belt, take a photo or make a note of the belt routing. This will help you install the new one correctly. Refer to the belt diagram under the hood if needed.

Carefully remove the belt from the pulleys. Inspect the old belt for wear, such as cracks, fraying, or glazing. If you notice any of these signs, it’s time to replace it.

Take the new serpentine belt and align it according to the diagram. Ensure the belt is seated properly in the grooves of each pulley. Pay attention to the direction of the belt, ensuring the arrows on the side face outward.

Once the belt is in place, use the socket wrench or breaker bar to rotate the tensioner again. This will create enough slack to allow you to slip the belt over the last pulley. Slowly release the tensioner to apply the correct tension to the belt.

Double-check the belt alignment. Ensure it’s correctly seated on all pulleys and there is no slack or misalignment.

Reconnect the battery and start the engine. Listen for any unusual noises and ensure the belt runs smoothly across the pulleys.

If everything looks good, you’re done. Dispose of the old belt properly and clean up your tools. You’ve successfully replaced the serpentine belt!

Common Issues with the Belt System in 2006 Ford Fusion and How to Fix Them

Worn or damaged serpentine belts are a common issue in the 2006 Ford Fusion. A noisy belt often signals wear or debris stuck in the grooves. If you hear squealing or grinding sounds from the engine, inspect the belt for cracks, fraying, or signs of glazing. Replacing the belt should be your first step. Make sure to adjust the tension if necessary, as a loose belt can also cause these noises.

Another issue is misalignment of the pulleys. This can cause the belt to wear unevenly and lead to belt slippage. If you notice the belt skipping or coming off its track, check the pulleys for wear. Sometimes, a misaligned pulley can be fixed by tightening the mounting bolts or replacing a damaged pulley.

Over time, the belt tensioner can lose its ability to maintain proper tension, leading to slippage or excessive wear. If the belt is too loose or too tight, the tensioner may need to be replaced. A simple test involves checking the spring in the tensioner for any signs of wear or loss of pressure.

Another issue that can affect the belt system is a failing alternator or power steering pump. These components are driven by the belt, and if they begin to malfunction, they may put excessive strain on the belt, causing it to wear out quickly. If the alternator is struggling to charge or the steering feels stiff, it might be time to check these parts for damage or wear.

Regularly inspect the belt system for signs of wear. Make sure the belt is properly routed according to the factory diagram to avoid unnecessary damage. When replacing the belt, consider replacing the tensioner and idler pulleys as well, as these are often the culprits in premature belt failure.
