2006 Ford Fusion 2.3 Serpentine Belt Diagram and Routing Guide

If you’re working on a 2006 Ford Fusion with a 2.3L engine and need to replace or inspect the serpentine belt, understanding the correct routing is key. The serpentine belt powers several crucial components like the alternator, air conditioning compressor, and power steering pump. Ensuring it is routed correctly will prevent unnecessary wear and damage to the belt and its accessories.

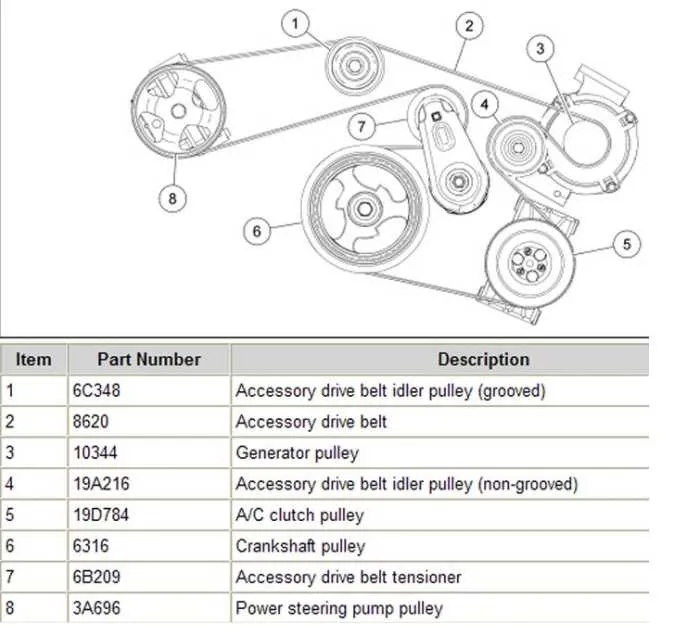

The diagram for this model shows the belt running around a few key pulleys in a specific sequence. First, start with the crankshaft pulley, then move around the tensioner pulley. From there, the belt goes over the alternator, the water pump, and the power steering pump before wrapping around the AC compressor. Double-check the alignment of the belt on each pulley as you go to avoid misrouting, which could cause slippage or damage to the components.

Before beginning any work, make sure the engine is off and cooled down. Using the correct tools to release tension on the belt will make removal and replacement easier. Also, it’s wise to inspect the tensioner for wear and make sure the new belt matches the recommended size. A properly installed serpentine belt ensures your Fusion’s systems run smoothly and efficiently, keeping you on the road without unnecessary issues.

2006 Ford Fusion 2.3 Serpentine Belt Diagram

For the 2006 Ford Fusion 2.3, the serpentine belt routing is critical to ensure proper functioning of the engine accessories. The belt drives the alternator, power steering pump, air conditioning compressor, and the water pump. If your serpentine belt is showing signs of wear or has come off, refer to this guide to help you understand the proper diagram and installation steps.

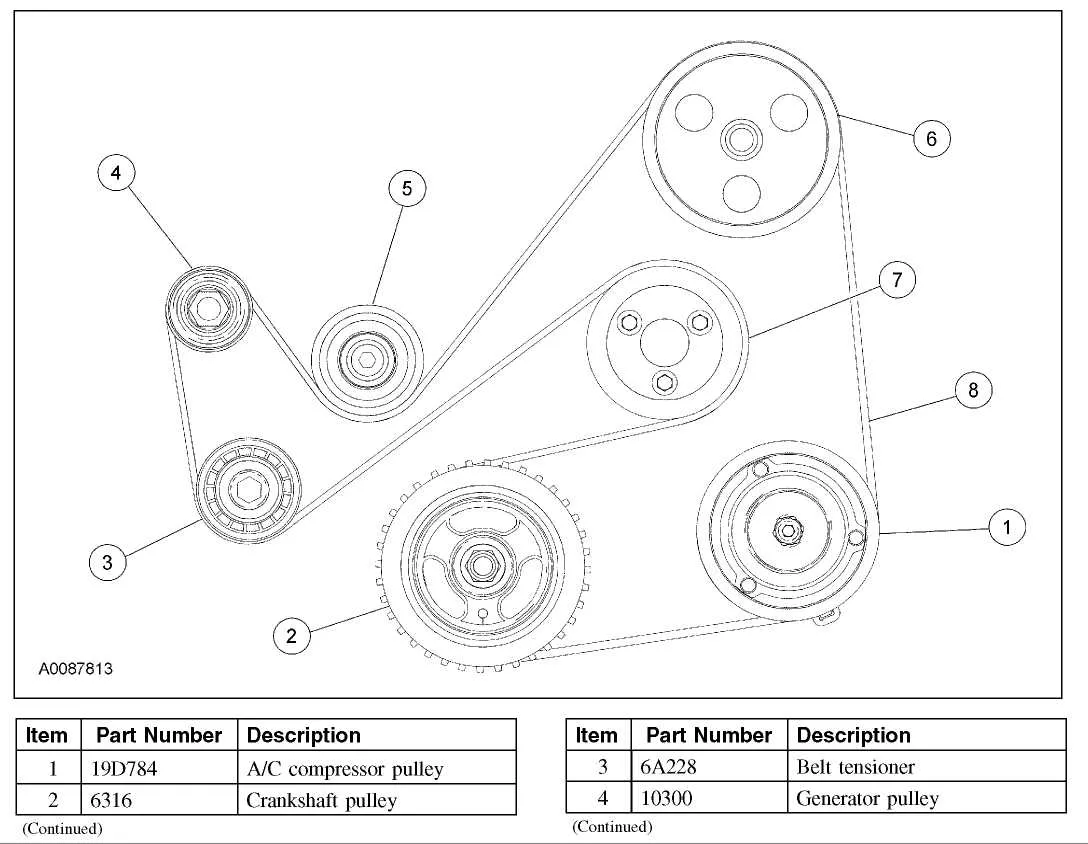

In the diagram, the belt starts at the crankshaft pulley and loops around the idler pulley, then travels to the power steering pump, alternator, and A/C compressor. The tensioner pulley is crucial for maintaining the correct tension on the belt. Pay attention to the direction of the grooves on the pulleys and ensure the belt fits securely within them.

Steps to replace the serpentine belt:

• Locate the belt tensioner and use a wrench or socket to relieve tension on the belt.
• Remove the old belt, noting the routing pattern.
• Install the new belt by following the diagram carefully to ensure all pulleys are aligned properly.
• Re-engage the tensioner pulley to apply the correct tension to the belt.

If the belt appears loose or damaged, inspect the pulleys for any signs of wear or misalignment. Also, replace the tensioner if it no longer maintains proper tension.

Refer to your owner’s manual for specific details on the serpentine belt size and replacement intervals. Regular checks can help you avoid costly repairs and keep your engine running smoothly.

How to Identify the Correct Serpentine Belt Routing for a 2006 Ford Fusion 2.3

The serpentine belt routing on a 2006 Ford Fusion 2.3 is designed to efficiently power the engine accessories, including the alternator, power steering pump, and air conditioning compressor. To identify the correct routing, locate the diagram on the front of the engine bay or refer to the owner’s manual. If these options aren’t available, follow the steps below.

1. Inspect the Belt Path: Start by checking the position of the pulleys. The main belt path involves a continuous loop around the crankshaft, water pump, alternator, and tensioner. Ensure the belt travels in a smooth line, avoiding any slack or twists that could cause malfunction.

2. Identify the Tensioner: The tensioner is a spring-loaded pulley that maintains the correct belt tension. It’s typically located near the bottom of the engine. Ensure the belt passes beneath this pulley and is properly tensioned.

3. Check Pulley Sizes: The belt will be routed around both large and small pulleys. Ensure that the belt follows the appropriate path across each size, with the smaller pulleys (such as the idler) placed in a way that keeps the belt under tension without slipping.

4. Confirm Proper Alignment: Visually confirm that the belt is aligned with all pulleys. Misalignment could indicate a problem with one of the pulleys or a belt that is too worn out or damaged. The belt should run parallel to the engine block without any deviation.

5. Use the Diagram: If available, the engine bay should have a routing diagram stamped on a sticker or plate near the front of the engine compartment. Use this diagram as a reference to ensure the belt follows the exact path specified by Ford.

6. Consult a Repair Manual: If the diagram isn’t visible or readable, refer to a repair manual for the 2006 Ford Fusion 2.3. The manual will provide detailed illustrations of the serpentine belt routing specific to your model.

By following these steps and ensuring the belt is routed according to specifications, you can maintain the efficiency of your engine’s accessory systems and prevent premature belt wear or damage.

Step-by-Step Instructions for Replacing the Serpentine Belt on a 2006 Ford Fusion 2.3

Start by gathering the necessary tools: a 3/8-inch drive ratchet, serpentine belt tool or a long socket wrench, a socket set, and a pry bar. You may also need a jack and jack stands for extra clearance.

1. Lift the vehicle: Use a jack to lift the front of the car and secure it with jack stands. This will provide more space to work under the car.

2. Locate the serpentine belt: Find the serpentine belt running around the pulleys at the front of the engine. Look for the tensioner pulley, which keeps the belt tight.

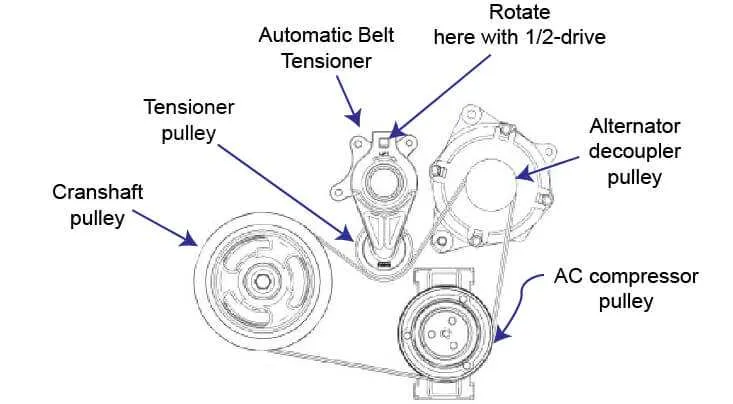

3. Release the tension: Insert the serpentine belt tool or a long ratchet handle into the tensioner pulley. Rotate it counterclockwise to relieve the tension on the belt. You might need to apply a bit of force, but it will move.

4. Remove the old belt: With the tension released, slide the belt off the pulleys. Make sure to note the routing of the belt for reinstallation. Taking a photo of the belt path can be helpful.

5. Check the pulleys: Inspect the pulleys for wear or damage. Rotate each pulley by hand to ensure they spin smoothly without any wobble or noise. If any pulley feels loose or damaged, replace it before installing the new belt.

6. Install the new belt: Place the new serpentine belt around the pulleys, following the original routing. Make sure it is seated correctly on each pulley and the tensioner.

7. Tighten the tensioner: Use the serpentine belt tool or ratchet to rotate the tensioner again, this time moving it clockwise to tighten the new belt. Ensure the belt has proper tension; it should be tight but not overly stretched.

8. Double-check the installation: Once the belt is in place and the tension is adjusted, rotate the engine manually by hand (using the crankshaft pulley) to ensure the belt moves freely without slipping or making noise.

9. Lower the vehicle: Carefully lower the car back to the ground using the jack and remove the jack stands.

10. Test the system: Start the engine and observe the serpentine belt’s operation. Listen for any unusual sounds and watch the belt to ensure it runs smoothly over the pulleys.

After completing these steps, the serpentine belt on your 2006 Ford Fusion 2.3 should be fully replaced and functioning correctly.

Common Issues with Serpentine Belt Tension and How to Fix Them in the 2006 Ford Fusion 2.3

Improper serpentine belt tension can cause multiple problems in your 2006 Ford Fusion 2.3, including squeaking noises, overheating, or poor engine performance. If you notice any of these symptoms, it’s likely related to the belt tensioner or belt wear. Here’s how to address the issues.

1. Belt Tensioner Failure

If the serpentine belt is too loose or too tight, the tensioner is likely worn or malfunctioning. A faulty tensioner can lead to improper tension, causing the belt to slip or wear out quickly. You’ll notice this through inconsistent power steering, AC, or alternator issues. Replace the tensioner by loosening the mounting bolts and securing the new one with proper tension using a special tool for the belt.

2. Worn Serpentine Belt

A worn serpentine belt won’t maintain the proper tension, even if the tensioner is functioning correctly. Look for fraying, cracking, or glazing on the belt’s surface. If the belt looks damaged, replace it with a new one. Make sure the new belt matches the original specifications for your 2006 Ford Fusion 2.3 to avoid issues with proper fit and tension.

3. Misalignment of Pulley

Misaligned pulleys can cause the serpentine belt to wear unevenly, leading to improper tension. Check for any pulley that is out of place or damaged. This could be the result of a bent bracket, worn bearing, or an issue with the pulley itself. If any pulleys are misaligned, replace or realign them to restore the belt’s correct tension.

4. Tensioner Spring Weakness

Sometimes, the tensioner spring loses its ability to maintain proper tension, especially in older vehicles. If you suspect the spring is weak, check for signs of reduced tension on the belt. Replace the tensioner assembly if the spring can no longer hold the necessary tension.

5. Incorrect Belt Routing

Improperly routed serpentine belts can cause uneven tension distribution, leading to issues with belt alignment and tension. Verify the correct routing using the diagram found under the hood. If the belt is not routed properly, it can be fixed by following the correct pattern as per the factory specifications.

Addressing these common tension-related issues early will prevent costly repairs and ensure the proper functioning of your 2006 Ford Fusion 2.3’s engine components. Regular inspection of the serpentine belt, tensioner, and pulleys is the key to avoiding future complications.
